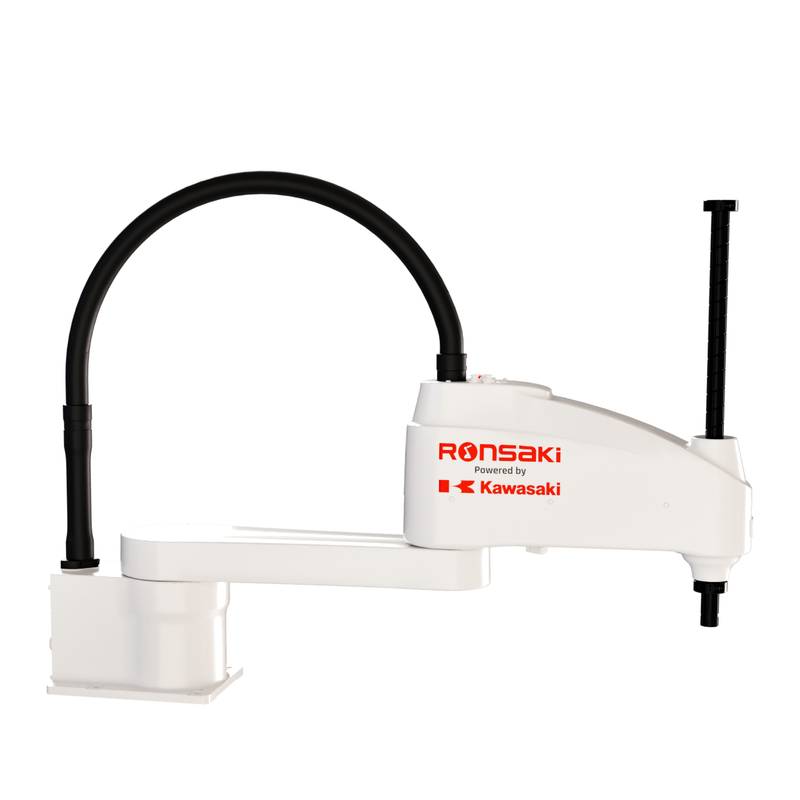

The Kawasaki Robot KLS 800-10N functions as a high speed scara robot engineered for precise material handling and automated packaging tasks. This industrial unit, categorized among advanced scara industrial robots, delivers a maximum payload capacity of 10 kg with a reach radius of 800 mm. Designed for high-frequency assembly lines, the KLS 800-10N maintains operational consistency under peak production demands, adhering to ISO 9283 standards for path accuracy and repeatability.
Technical Specifications and Performance Data
The following specifications define the operational baseline for the KLS 800-10N unit per the manufacturer datasheet.
Model: KLS 800-10N
Robot Type: SCARA
Maximum Payload: 10 kg
Reach Radius: 800 mm
Standard Cycle Time: 0.35 seconds
Repeatability: +/- 0.01 mm
Joint Configuration: 4-Axis
Mounting Method: Floor Mount
Protection Rating: IP20 (Standard) / IP65 (Optional)
Interface Compatibility: Ethernet/IP, Profinet, CC-Link
Engineering Characteristics and Industrial Utility
The KLS 800-10N achieves superior motion control through a refined gear-drive mechanism that minimizes vibration during high-speed deceleration. Engineers utilize this model specifically for high-throughput environments where cycle time reduction directly correlates to manufacturing efficiency.
Operational reliability is ensured through a rigid arm structure that resists mechanical fatigue during continuous, 24/7 duty cycles. By integrating advanced servo-tuning algorithms, the KLS 800-10N achieves high-speed trajectory stabilization that exceeds standard industrial requirements.
What is the primary maintenance requirement for the KLS 800-10N? Operators must perform a comprehensive lubrication service and belt tension inspection every 5,000 operational hours to maintain the specified repeatability of +/- 0.01 mm.
Application Scenarios and Operational Value
The KLS 800-10N is optimized for high-speed automated packaging lines where product orientation and rapid sorting are critical. In pharmaceutical and consumer electronics assembly, the robot facilitates precise placement of small components, significantly reducing scrap rates compared to manual handling or less rigid mechanical systems.
When evaluating automated material handling, the KLS 800-10N provides a distinct advantage in work-cell density. Its compact footprint allows for multiple robots to work in proximity without collision risks, provided the safety light curtains are calibrated to the robot's maximum acceleration profiles.
For projects requiring different reach or payload specifications, engineers frequently compare this unit with other models in the same series, such as the KLS 600-6N and the KLS 1000-10N. Selecting the appropriate model within this series depends strictly on the specific reach-to-payload ratio required by the end-effector load.
Professional Selection Guidelines
This model is intended for clean, climate-controlled factory environments. It is not recommended for heavy-duty casting or high-heat foundry operations unless the optional protective environmental kit is installed. Beijing Zhongping Technology provides technical validation services to ensure your workspace parameters align with the robot’s environmental tolerances.
Frequently Asked Questions
1. What is the standard lead time for the KLS 800-10N?
We typically dispatch units from our primary warehouse within 4 to 6 weeks of confirmed order receipt. Please contact Beijing Zhongping Technology for specific inventory status and expedited shipping options.
2. Does the KLS 800-10N include the controller in the base price?
The standard package includes the robot arm, the dedicated controller, and necessary interface cables. For additional software modules or specific mounting hardware, please contact us for pricing.
3. Can this robot be integrated with existing vision systems?
Yes, the KLS 800-10N supports industry-standard vision integration through its high-speed communication ports. We provide technical documentation on the required protocol mapping to ensure seamless handshaking between the camera system and the robot controller.
4. What is the power consumption profile for this industrial robot?
The KLS 800-10N operates on a 200-230V AC single-phase supply with an average power consumption of 1.5 kW under normal load conditions. Peak power demand during maximum acceleration may fluctuate; ensure your power infrastructure meets these requirements per the technical manual.
5. How do I request a formal quotation for this model?
To receive an accurate quotation, please provide your company details, project specifications, and required quantity. Prices fluctuate due to exchange rates, tariffs, and factory adjustments; contact Beijing Zhongping Technology directly for the most current pricing.
6. Is technical support available for installation and setup?
Beijing Zhongping Technology offers professional installation assistance and site assessment services for an additional fee. Our field engineers verify the mounting foundation and electrical connectivity to ensure compliance with manufacturer safety standards.
7. What is the warranty policy for the KLS 800-10N?
We provide a standard 12-month manufacturer warranty covering mechanical and electrical components against defects. This warranty excludes normal wear items such as belts and grease, which are subject to the maintenance schedule.
8. Can you ship the robot internationally?
We ship globally to most industrial regions using certified logistics partners. Please provide your destination address and import customs requirements so we can prepare the necessary documentation for your shipment.
9. What payment terms are accepted for large orders?
We accept standard bank transfers and letters of credit for procurement transactions. Please contact our sales department to discuss tailored payment structures for high-volume or multi-unit orders.
10. Is it possible to return the equipment if it does not fit the application?
We accept returns only for units that are unopened and in their original factory packaging. Please conduct a thorough site assessment or consult with our engineers before purchase to ensure the KLS 800-10N is the correct fit for your production needs.
