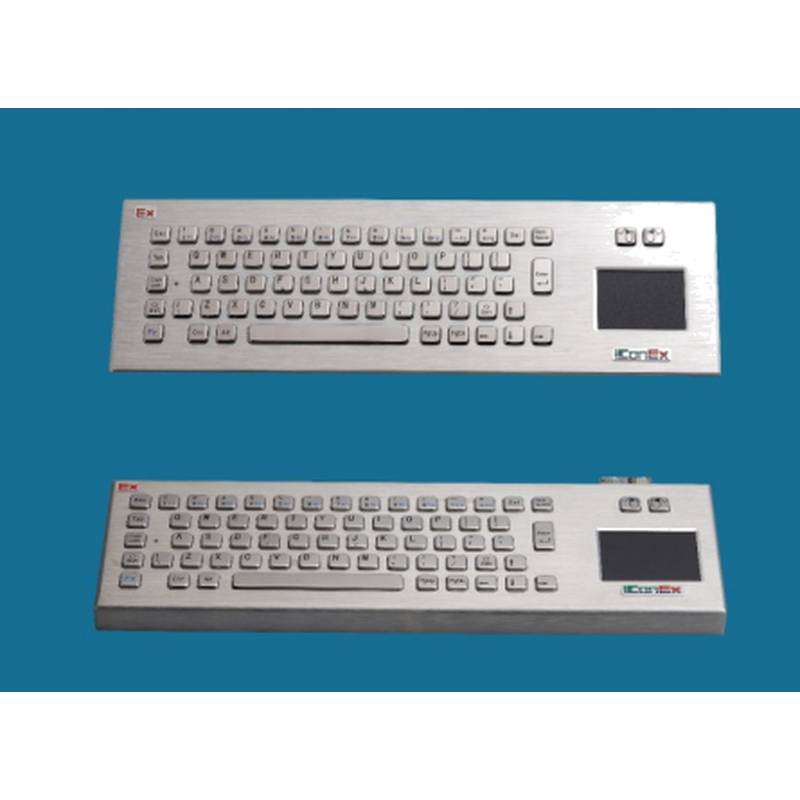

iConEx XYEXKBPC Explosion Proof Intrinsically Safe Keyboard with Touchpad

　　The iConEx XYEXKBPC stands as a critical interface solution in industrial settings where operational safety is paramount.This explosion proof keyboard is engineered to deliver reliable performance in hazardous areas,certified as an intrinsically safe keyboard that prevents ignition risks in volatile atmospheres.Designed with a durable stainless-steel panel and advanced sealing technologies,it meets rigorous international standards for use in gas and dust-laden environments.Its robust construction ensures protection against water,dust,and corrosive elements,making it an ideal choice for industries such as oil and gas,chemical processing,and mining.The keyboard incorporates laser-etched key legends for longevity and offers multiple interface options,providing a seamless blend of safety,durability,and user convenience for control systems in classified locations.

　　1 Product Overview and Certification Details

　　The iConEx XYEXKBPC is specifically designed as an intrinsically safe keyboard for use in potentially explosive atmospheres.This explosion proof keyboard complies with stringent international standards,including GB3836.1-2000 and GB3836.4,which govern electrical equipment for explosive gas atmospheres.The keyboard carries multiple protection certifications,with its most notable being the explosion-proof rating of Ex ib IIC T6 Gb,indicating suitability for Zone 1 gas environments,and Ex ibD 21 T85°C for Zone 21 dust atmospheres.These certifications confirm the keyboard's ability to operate safely in environments where flammable gases,vapors,or combustible dusts may be present.

　　The fundamental safety principle behind this intrinsically safe keyboard lies in its energy-limiting design,which ensures that any electrical energy within the device remains below levels that could ignite specific hazardous atmospheric mixtures.This is achieved through a two-component system consisting of the keyboard itself and a matching safety barrier(models HB03CA or HB11CA),which must be installed in the safe area.The barrier limits the current and voltage that can reach the keyboard in the hazardous area,ensuring that even in fault conditions,no spark with sufficient energy to cause ignition can occur.

　　2 Technical Specifications and Performance Data

　　The iConEx XYEXKBPC explosion proof keyboard delivers impressive technical specifications that underscore its robustness and reliability.The keyboard operates on a 5VDC power supply with a tolerance of±10%,ensuring stable performance even with minor voltage fluctuations.Its electrical characteristics include a key contact resistance of less than 10Ωand exceptional insulation resistance exceeding 100 MΩ,which prevents leakage currents and maintains signal integrity in humid conditions.

　　Durability testing reveals an exceptional key life cycle rated at over 2,000,000 actuations,far surpassing conventional industrial keyboards.This remarkable longevity is achieved through precision engineering of the key mechanisms with an optimal actuation force between 2-3N and a travel distance of 0.45mm,providing satisfactory tactile feedback while minimizing mechanical stress.The keyboard maintains operational stability across a wide temperature range from-20°C to+55°C,with storage tolerance extending from-30°C to+70°C,ensuring reliability in both extreme cold and hot industrial environments.

　　Environmental sealing is another standout feature,with the keyboard achieving an IP65 protection rating on the front panel,making it completely dust-tight and protected against low-pressure water jets from any direction.Some variants of the model offer even enhanced protection up to IP66 level.This intrinsically safe keyboard can function in relative humidity conditions up to 95%non-condensing,addressing the challenges of moist industrial atmospheres where condensation might occur on electronic equipment.

　　3 Design Features and Construction Elements

　　3.1 Material Selection and Ergonomic Considerations

　　The iConEx XYEXKBPC explosion proof keyboard features a premium stainless steel brushed panel as its primary interface surface,providing exceptional corrosion resistance necessary for harsh industrial environments where chemical exposure is common.This material choice ensures longevity and easy cleaning while maintaining a professional appearance throughout its operational life.Alternative models offer antistatic film panels for applications requiring different tactile responses or where metal detection might interfere with nearby sensitive equipment.

　　The keyboard incorporates laser-engraved legends filled with high-strength ink,creating permanent markings that withstand abrasion,frequent cleaning,and chemical exposure.This manufacturing technique ensures critical identification symbols,function labels,and directional indicators remain clearly visible throughout the keyboard's extended service life,addressing one of the most common failure points in industrial input devices where legends wear off from repetitive use.

　　3.2 Configuration Options and Customization

　　The XYEXKBPC series offers versatile configuration options to match specific application requirements.Users can select between standard full-keyboard layouts(Type II)or compact versions with integrated touchpad functionality(Type III)that combine cursor control with traditional keyboard input.Interface connectivity includes both USB and legacy PS/2 configurations,designated by"U"and"P"suffixes in the model numbering system,ensuring compatibility with both modern and legacy industrial computing systems.

　　Installation flexibility is another highlight,with options for either permanent screw-fixing(Type A)for secure mounting in control panels or free-standing desktop placement(Type B)for temporary or mobile applications.The manufacturer additionally offers custom layout services,allowing clients to specify unique key arrangements,specialized legends,or distinctive panel designs to match specific operational workflows or branding requirements.

　　4 Application Areas and Industry Solutions

　　The iConEx XYEXKBPC intrinsically safe keyboard finds essential application across numerous industries where explosive atmospheres may occur.In the oil and gas sector,it serves as a critical interface for control systems in refining facilities,offshore platforms,and petrochemical plants where flammable gases may be present.The chemical and pharmaceutical industries utilize this explosion proof keyboard for process control computers in manufacturing areas where volatile solvents or combustible dusts from powder handling create hazardous conditions.

　　Mining operations represent another significant application area,particularly in underground coal mines where methane gas and combustible coal dust pose serious explosion risks.The keyboard's robust construction withstands the vibration,humidity,and particulate challenges of mining environments while providing safe operator interface for monitoring and control systems.Additional implementation scenarios include power generation facilities,metallurgical plants,grain processing facilities,and wastewater treatment plants–essentially any industrial setting where the classification of hazardous areas demands specially certified equipment.

　　The intrinsically safe keyboard is particularly valuable in hygienic processing industries such as food and beverage or pharmaceutical manufacturing,where its sealed stainless-steel construction permits rigorous washdown procedures without liquid ingress or corrosion damage.The smooth surface and absence of crevices prevent bacterial growth and allow for effective sanitation,meeting the stringent cleanliness requirements of these regulated industries while maintaining safety in potentially explosive atmospheres where alcohol-based sanitizers or flour dust might be present.

　　5 Installation Guidelines and Safety Considerations

　　5.1 System Configuration and Barrier Requirements

　　Proper installation of the iConEx XYEXKBPC explosion proof keyboard requires careful attention to the safety barrier system,which forms an integral part of the intrinsic safety concept.The designated safety barrier(HB03CA or HB11CA models)must be installed in a non-hazardous area,physically separated from the explosive atmosphere,and connected between the safe-area computer system and the hazardous-area keyboard.This arrangement ensures that any fault conditions resulting in excessive energy cannot reach the hazardous area where the keyboard is located.

　　Installation guidelines specify that the safety barrier should be mounted in locations free from excessive vibration,impact,strong electromagnetic interference,or highly corrosive conditions that could compromise its protective function.The grounding terminal(GND)of the safety barrier must be properly connected to a reliable earth ground to maintain the integrity of the protection system and provide a safe path for any fault currents.Cable routing between the safe and hazardous areas must follow approved pathways and utilize appropriate glanding systems to maintain the overall explosion protection.

　　5.2 Environmental Compatibility and Maintenance Protocols

　　The explosion proof keyboard requires specific environmental considerations to maintain its protective properties and operational reliability.While the device itself is rated for temperatures from-20°C to+55°C,ambient conditions should be maintained within reasonable limits to ensure operator comfort and prevent condensation if temperatures approach extremes.The keyboard's IP65/IP66 rating ensures reliable performance in wet or dusty conditions,but regular inspection of cable glands and interface connections is recommended to maintain this protection over time.

　　Routine maintenance should include periodic visual inspection for physical damage,especially to the cable sheath and connector strain reliefs,which represent potential compromise points in the overall safety system.Cleaning should be performed using damp cloths with mild detergents appropriate for stainless steel surfaces,avoiding high-pressure spray directly at interface connections even with the high IP rating.For troubleshooting,the system requires specialized assessment by qualified personnel familiar with intrinsic safety principles,as standard multimeter testing might invalidate certifications or introduce unsafe energy into the system.

　　6 Comparative Advantages and Economic Benefits

　　The iConEx XYEXKBPC intrinsically safe keyboard delivers significant operational advantages beyond basic explosion protection.Its exceptional mechanical lifespan exceeding 2 million actuations translates to reduced replacement frequency and lower total cost of ownership compared to standard industrial keyboards.The high-reliability design minimizes unplanned downtime in critical processes where operator input is essential for continued operation,providing substantial economic benefits through improved production continuity.

　　This explosion proof keyboard offers a more flexible and cost-effective alternative to pressurized enclosure systems that require continuous air purification and complex sealing arrangements.The intrinsic safety approach eliminates the need for bulky explosion-proof enclosures that often complicate operator interface and maintenance procedures.The keyboard's compatibility with standard computer systems through the safety barrier reduces integration complexity and allows use with commercial off-the-shelf industrial computers rather than requiring specialized expensive certified computing equipment.

　　The hygienic design of certain variants,particularly those with stainless steel panels and complete sealing,provides additional value in regulated industries by supporting compliance with sanitation standards while meeting safety requirements for explosive atmospheres.This dual compliance eliminates the need for separate specialized interfaces for different areas within a facility,streamlining procurement and inventory management while ensuring consistent operator experience across control stations.

　　Frequently Asked Questions(FAQs)

　　1.What specific hazardous areas is the iConEx XYEXKBPC keyboard certified for?

　　This explosion proof keyboard carries dual certification for both gaseous and dusty environments.It is approved for Zone 1 gas atmospheres with an Ex ib IIC T6 Gb rating,indicating safety in areas where explosive gases may be present during normal operation.Additionally,it features an Ex ibD 21 T85°C rating for Zone 21 dust environments where combustible dust may be present in sufficient quantities.These certifications make it suitable for a wide range of industrial applications from petrochemical to food processing facilities.

　　2.How does the'intrinsically safe'designation differ from general explosion-proof protection?

　　The intrinsically safe keyboard designation means the iConEx XYEXKBPC is engineered to prevent ignition by limiting electrical and thermal energy to levels below what's required to ignite specific hazardous substances.This differs from general explosion-proof protection that contains any explosion within an enclosure.Intrinsic safety is considered the superior protection method for electronic devices as it prevents ignition from occurring rather than simply containing it,and allows for safer maintenance and modifications while the system is energized in hazardous areas.

　　3.What are the available interface options for connecting this keyboard to control systems?

　　The keyboard series offers multiple interface configurations to match existing infrastructure requirements.Standard models include USB connectivity for modern computer systems,while PS/2 interfaces are available for legacy equipment.Some specialized versions offer alternative communication protocols including RS232/RS485 serial communication for industrial control networks,and specific numeric keypad models provide ribbon cable connections for embedded systems.The interface selection is indicated in the model suffix according to the manufacturer's designation system.

　　4.Can the keyboard layout be customized for specific applications or industry needs?

　　Yes,the manufacturer provides customization services for specific application requirements.Options include custom key legends,specialized key arrangements,unique panel layouts,and modified key functions.The number of keys can be specified from minimal numeric pads with 10-30 keys up to full-size keyboards with 65-90 keys depending on the model series.These customization options ensure the explosion proof keyboard can be tailored to specific industry workflows,specialized terminology,or unique operational sequences.

　　5.What maintenance practices ensure long-term reliability of the keyboard in harsh environments?

　　Regular preventive maintenance should include visual inspection for physical damage,verification of cable integrity and connector strain relief,and cleaning of the stainless steel surface with appropriate non-abrasive cleaners.The safety barrier located in the non-hazardous area should be periodically verified for proper grounding and absence of corrosion.Although the keyboard features exceptional sealing,it's recommended to check interface glands periodically,especially in environments with significant vibration or temperature cycling that might compromise gaskets over time.
