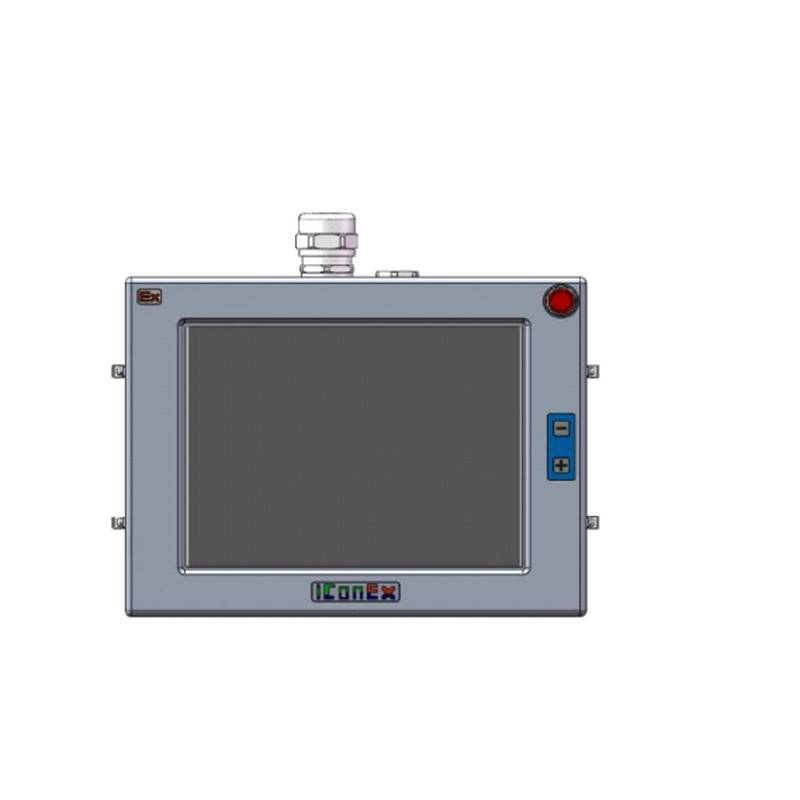

iConEx XYExOP Explosion-Proof Handheld Operator for Hazardous Areas

　　The iConEx XYExOP stands as a paramount solution for industrial control and monitoring within potentially explosive atmospheres,engineered specifically as an Explosion-proof Handheld Operator.This robust device provides a critical human-machine interface(HMI)for technicians and engineers operating in hazardous locations where the use of standard electronic equipment is prohibited.Designed to meet the most rigorous international safety standards,this Hazardous Area Handheld Operator enables real-time parameter configuration,data logging,diagnostic troubleshooting,and control system adjustment for a wide array of process instruments—from valve positioners and variable frequency drives to flow meters and analytical sensors.Its intrinsically safe design philosophy ensures that the electrical and thermal energy within the device is maintained at levels too low to ignite a specific hazardous gas or dust atmosphere,thereby safeguarding personnel,processes,and facilities against the risk of catastrophic ignition.

　　1.Product Overview and Operational Philosophy

　　The iConEx XYExOP is more than a simple configuration tool;it is a comprehensive interface platform built for reliability in the most challenging environments.Its core operational philosophy revolves around providing full functionality without compromising safety.Unlike standard handhelds that require a powered-down,safe-area for use,this Explosion-proof Handheld Operator is certified for operation within defined hazardous zones,such as those classified under Zone 1/21 or Zone 2/22.This allows for immediate on-the-spot diagnostics and adjustments,drastically reducing downtime associated with moving equipment in and out of safe areas for configuration.The device typically features a high-resolution,sunlight-readable display,a ruggedized keypad or touch interface designed for use with gloves,and multiple communication ports,such as infrared(IR),Bluetooth Low Energy(BLE),or physical connections,all engineered to be intrinsically safe.

　　The device serves as a universal window into the control system,capable of communicating with a vast range of field instruments using standard protocols like HART,Foundation Fieldbus,or PROFIBUS.This universality makes the XYExOP an invaluable tool for a maintenance team,replacing the need for multiple,device-specific configurators.Its software is designed for intuitive operation,guiding the user through complex parameter sets and providing clear diagnostic messages and process variable trends,all while ensuring that every command and data exchange is executed within the strict boundaries of its intrinsic safety certifications.

　　2.Technical Specifications and Certification Landscape

　　The technical identity of the iConEx XYExOP is defined by its robust construction and its comprehensive portfolio of safety certifications.The device is built to withstand not just the atmospheric hazards but also the physical rigors of industrial sites.This often translates to high Ingress Protection(IP)ratings,such as IP66 or IP67,ensuring it is completely dust-tight and protected against powerful water jets or temporary immersion.The operating temperature range is typically wide,from well below freezing to elevated temperatures,ensuring functionality in outdoor or unconditioned industrial settings.

　　The certification landscape for this Hazardous Area Handheld Operator is global and critical to its application.It commonly carries ATEX and IECEx certifications for international use,and may also hold North American certifications like UL/CSA for Class I,Division 1 or 2.These certifications specify the exact conditions of its use,including the types of gases or dusts it is certified against(e.g.,IIA,IIB,or IIC gas groups for ATEX/IECEx)and the maximum surface temperature or temperature class(T1-T6)it is allowed to operate at.The device's electrical parameters,such as maximum open-circuit voltage,short-circuit current,and stored energy,are carefully engineered and documented in its entity parameters,which must be considered when connecting to other intrinsically safe apparatus to maintain the overall system's safety integrity.

　　3.Design Features and Safety-Centric Architecture

　　Robust Enclosure and Ergonomic User Interface

　　The physical design of the XYExOP Explosion-proof Handheld Operator prioritizes both durability and usability.The enclosure is typically molded from a high-impact,fiberglass-reinforced polycarbonate or a similar robust material that is resistant to chemicals,oils,and UV radiation.The design is often drop-tested from significant heights to guarantee survivability in case of accidental falls.Ergonomically,it is shaped for a secure grip,with buttons that are tactile and sufficiently spaced for error-free operation while wearing personal protective equipment(PPE).The display is a critical component,designed to be non-glare and high-brightness to ensure clear visibility in direct sunlight,and it may also be equipped with a backlight for low-light conditions.

　　Intrinsic Safety Barriers and Certified Components

　　The heart of its safety is the internal electronic design,which incorporates intrinsic safety barriers and energy-limiting circuits.These components ensure that the electrical energy available at the communication ports and the battery terminals is strictly limited to levels deemed safe for the specified hazardous area.The device uses certified batteries—often lithium-based with specific energy limits—and a battery management system that prevents overcharging and over-discharging.Every internal component,from the microprocessor to the communication transceivers,is selected and configured to operate within the stringent power dissipation limits required by the intrinsic safety standards,making the entire system a carefully engineered safeguard against ignition.

　　4.Primary Application Areas and Industry Deployment

　　The iConEx XYExOP finds its indispensable role across a broad spectrum of industries where hazardous areas are a常态.In the oil and gas sector,it is used on offshore platforms,in refineries,and along pipelines for configuring and troubleshooting safety valves,pressure transmitters,and gas detection systems.In the chemical and pharmaceutical industries,this Hazardous Area Handheld Operator allows technicians to safely interface with reactors,mixer drives,and analytical instruments located in zones where flammable solvents or powders are processed.

　　The device is equally critical in the wastewater treatment industry for managing equipment in areas prone to methane and hydrogen sulfide accumulation,and in grain handling and storage facilities where combustible dust clouds can form.Its deployment enables a proactive maintenance strategy,allowing teams to perform diagnostics and fine-tune processes without the delays and costs associated with gas testing,permit-to-work systems,and equipment shutdowns that would be necessary for using non-certified tools.

　　5.Operational Advantages and Economic Impact

　　Enhanced Operational Efficiency and Reduced Downtime

　　The most immediate advantage of the XYExOP Explosion-proof Handheld Operator is the dramatic reduction in process interruption.Technicians can connect the device directly to a malfunctioning instrument in the hazardous area,diagnose the issue,and often rectify it through recalibration or parameter changes in minutes.This eliminates the hours-long process of de-energizing equipment,performing gas clearance tests,and issuing hot work permits that would be required to bring a standard electronic device into the area.The result is a significant increase in plant availability and productivity.

　　Long-term Cost Savings and Risk Mitigation

　　Beyond efficiency gains,the device delivers substantial financial benefits by mitigating the immense costs associated with an ignition event.By providing a certified safe interface,it systematically removes a key ignition risk from the facility.Furthermore,its universal compatibility reduces the need to purchase and maintain multiple,proprietary configuration tools for different instrument brands.The ruggedized design also translates to a lower total cost of ownership by surviving the harsh industrial environment,reducing repair and replacement frequency compared to less robust devices.

　　Frequently Asked Questions(FAQs)

　　What is the fundamental difference between"Explosion-proof"and"Intrinsically Safe"protection for a handheld operator?

　　An"Explosion-proof"(or flameproof)enclosure is designed to withstand an internal explosion of a specific gas and prevent it from igniting the surrounding hazardous atmosphere.It is a containment strategy.In contrast,"Intrinsically Safe"protection,which typically applies to the iConEx XYExOP as a Hazardous Area Handheld Operator,is a prevention strategy.It limits the electrical and thermal energy within the device and its interconnecting wiring to a level that is incapable of causing ignition of a specific hazardous atmospheric mixture.Intrinsically safe equipment is generally lighter,more portable,and can often be opened and maintained in the hazardous area with the power on,unlike explosion-proof enclosures.

　　Can the iConEx XYExOP be used to connect to any field instrument in a hazardous area?

　　No,its use must comply with the"entity concept"of intrinsic safety.The XYExOP Explosion-proof Handheld Operator has its own entity parameters(e.g.,Vmax,Imax,Ci,Li).The field instrument it is connected to must also have its own entity parameters.For a safe connection,the entity parameters of the handheld must be such that it cannot deliver more than the Vmax and Imax of the field instrument,and the stored energy(represented by Ci and Li)of the cable and connected apparatus must not exceed certain limits.The system is only intrinsically safe if all interconnected equipment is compatible and certified as such.

　　How does the battery system in an intrinsically safe handheld operator ensure safety?

　　The battery in a device like the XYExOP is a critical safety component.It is not a standard commercial battery but a certified intrinsically safe battery pack.This pack incorporates multiple layers of protection,including current-limiting resistors,fuse protection,and diodes to prevent reverse charging.The battery's chemistry and construction are designed to limit its available energy and prevent excessive heat generation.The device's charging circuit,whether internal or in an external base station,is also specifically designed to limit charging current and voltage to safe levels,ensuring the battery cannot become a source of ignition.

　　What are the key steps for the safe deployment and use of this device in a Zone 1 area?

　　Safe deployment requires a systematic approach.First,verification is essential:ensure the device's certification(e.g.,ATEX,IECEx)matches the hazardous area classification(e.g.,Zone 1,Gas Group IIC)and gas present.Second,perform a visual inspection of the device and its communication cable for any signs of damage to the enclosure or connectors before each use.Third,only use communication cables and connectors that are approved for use with the device and do not compromise the intrinsic safety loop.Finally,users must be trained on the specific operational procedures and limitations outlined in the device's manual to ensure they understand how to maintain the system's safety integrity.
