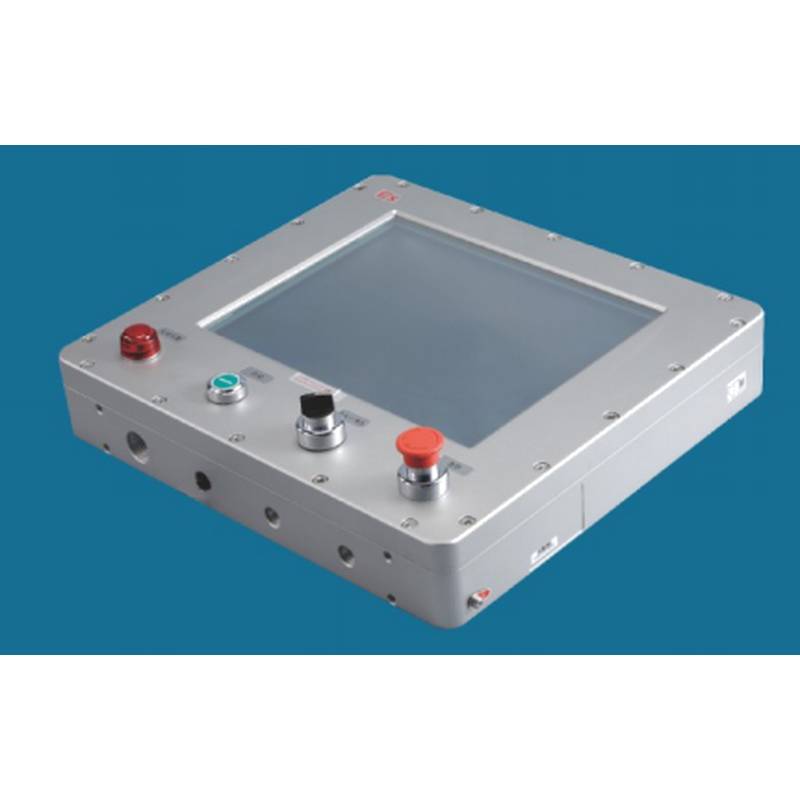

iConEx XY800_D Rugged Explosion-proof Industrial HMI Touch Screen

　　The iConEx XY800_D stands as a critical interface solution in industrial settings where safety is paramount.This robust Explosion-proof HMI represents a specialized category of Industrial HMI specifically engineered for operation in hazardous areas classified with potentially explosive atmospheres.Unlike standard industrial panels,the XY800_D integrates a high-resolution touchscreen with physical push buttons,all housed within a certified explosion-proof enclosure that prevents internal sparks or excessive heat from igniting surrounding gases,dust,or vapors.This design ensures safe interaction and control in critical industries such as oil and gas,chemical processing,pharmaceutical manufacturing,and grain handling,where the presence of combustible materials makes conventional electronic devices a significant safety risk.Its combination of intuitive operation,advanced communication capabilities,and unwavering safety compliance makes it an indispensable tool for monitoring and controlling processes in the world's most challenging workplaces.

　　1.Product Overview and Core Technology

　　The iConEx XY800_D is a fully integrated operator terminal designed from the ground up for hazardous locations.Its core technology revolves around containment and isolation.The unit is encased in a heavy-duty,precision-engineered enclosure,often constructed from durable materials like stainless steel or copper-free aluminum,which is capable of withstanding an internal explosion without allowing flames or hot gases to escape and ignite the external atmosphere.This is a fundamental principle of explosion protection known as"flameproof"or"explosion-proof"enclosure(Ex d).The Industrial HMI components inside,including the display,circuit boards,and wiring,are all housed within this robust shell.The integrated touchscreen technology is designed to function reliably within this sealed environment,while the physical push buttons provide a reliable,tactile fallback option for operators wearing gloves or in situations where touchscreen use may be compromised.The device is typically certified under international standards such as ATEX,IECEx,or NEC for use in specific zones,guaranteeing its compliance with global safety requirements.

　　2.Technical Specifications and Performance Characteristics

　　The iConEx XY800_D is defined by a set of technical specifications that prioritize both performance and safety.It typically features a bright,high-contrast TFT LCD display,with screen sizes often around 8 inches,offering sufficient visibility in various lighting conditions.The display is overlaid with a ruggedized touch panel,frequently resistive or projective capacitive,capable of registering inputs even when wearing industrial gloves.The inclusion of physical push-buttons,with a specific IP rating for each,ensures redundant control options.In terms of processing power,it is equipped with a modern processor and ample memory to run complex visualization software and handle data logging tasks without lag.

　　Connectivity is a cornerstone of its functionality,featuring multiple industrial communication ports such as Ethernet,RS-485,and USB.These allow for seamless integration with PLCs,variable frequency drives,and other control system components.The device operates on a wide-range power supply input,accommodating typical industrial voltages.Most critically,its explosion-proof ratings are clearly specified,such as Ex d IIC T6 or Ex td A21 IP66,indicating its suitability for gas and dust environments with specific temperature classes.Its operating temperature range is notably wide,and it boasts a high Ingress Protection(IP)rating,ensuring it remains dust-tight and protected against high-pressure water jets,which is essential for the harsh environments it serves.

　　3.Design Features and Construction Details

　　Robust Enclosure and Safety-Certified Design

　　The most critical design feature of the XY800_D is its explosion-proof enclosure.This housing is not merely robust;it is meticulously engineered with flame paths.These are precisely machined gaps between mating surfaces like the enclosure door and body.In the event of an internal ignition,exploding gases are forced to travel through these long,narrow paths.As they do so,they cool down sufficiently so that any flame escaping to the outside environment is no longer capable of igniting the surrounding hazardous atmosphere.The materials used are non-sparking and designed to contain pressure.The glass viewing window is exceptionally thick and laminated to withstand both the pressure of an internal explosion and impacts from the external environment.

　　Integrated Control Interface and Human Factors

　　This Explosion-proof HMI masterfully combines a modern touchscreen with physical,hard-wired push buttons.This hybrid approach is a significant operational advantage.The touchscreen allows for intuitive navigation through complex graphical process overviews,recipe management,and alarm history.Meanwhile,the physical buttons provide immediate,reliable access to critical functions like emergency stops,motor start/stop,or acknowledge alarms,which can be vital in high-stress situations or when the screen is not easily accessible.The layout is designed with human factors in mind,ensuring clear visibility of the display and easy access to buttons,even for operators wearing bulky personal protective equipment(PPE).

　　Advanced Thermal Management and Sealing

　　Managing heat dissipation is a unique challenge for electronics sealed inside an explosion-proof enclosure.The XY800_D employs sophisticated thermal management solutions,which may include internal heat sinks and the strategic use of the enclosure itself as a heat dissipater,to ensure that the surface temperature of the device never exceeds its designated Temperature Class(e.g.,T6=85°C surface temperature).This prevents the unit from becoming an ignition source through heat.Furthermore,comprehensive sealing with high-grade gaskets ensures the integrity of the enclosure,achieving a high IP rating for protection against dust and moisture,which is crucial for both safety and the long-term reliability of the internal electronics.

　　4.Primary Application Areas and Industry Solutions

　　The iConEx XY800_D finds its indispensable role in industries where the operational environment is inherently dangerous.In the oil and gas sector,it is deployed on offshore platforms,in refineries,and at pipeline compressor stations for monitoring wellhead pressures,controlling valve arrays,and overseeing distillation processes.In chemical and pharmaceutical plants,it serves as the operator's window into reactors,mixing vessels,and material handling systems,where flammable solvents or dust are routinely present.

　　The petrochemical industry relies on this Industrial HMI for controlling complex,safety-critical processes like catalytic cracking and polymerization.Furthermore,industries involved with the production or handling of combustible dusts,such as grain silos,flour mills,wood processing facilities,and coal handling plants,utilize the XY800_D to safely monitor silo levels,control conveyor belts,and manage dust collection systems.Its robustness also makes it suitable for use in potentially explosive environments within the wastewater treatment and mining industries.

　　5.Operational Advantages and Economic Benefits

　　Uncompromising Safety and Regulatory Compliance

　　The primary advantage of the XY800_D is its ability to enable direct operator interaction with control systems in hazardous areas without compromising safety.Its certified Explosion-proof HMI design ensures compliance with stringent international safety regulations,helping plants avoid catastrophic incidents,massive regulatory fines,and severe operational downtime.This inherent safety builds a foundation for protecting human lives,valuable assets,and the environment.

　　Enhanced Operational Efficiency and Reliability

　　By placing a fully functional operator interface directly in the hazardous area,this Industrial HMI eliminates the need for lengthy runs of field wiring to a safe-area control room.This reduces installation costs and potential points of failure.Operators can monitor processes and respond to local conditions or alarms immediately,leading to faster decision-making and reduced response times.The reliability of its ruggedized construction translates into lower failure rates,reduced maintenance needs,and higher overall system availability,which directly impacts productivity and profitability.

　　Long-Term Cost Savings and Risk Mitigation

　　While the initial investment in an explosion-proof HMI is higher than a standard panel,the total cost of ownership is favorable.The durability of the device minimizes replacement costs and maintenance interruptions.More importantly,it acts as a critical risk mitigation tool.The cost of a single explosion incident in terms of equipment damage,production loss,and liability would be astronomical compared to the investment in certified safety equipment like the XY800_D,making it an economically prudent choice for any operation handling combustible materials.

　　Frequently Asked Questions(FAQs)

　　What exactly makes an HMI"explosion-proof"and how is it different from"intrinsically safe"?

　　An Explosion-proof HMI like the iConEx XY800_D is designed with a robust enclosure that can contain and cool an internal explosion,preventing it from igniting the external hazardous atmosphere.It is built strong enough to withstand internal pressures and has flame paths to extinguish flames.In contrast,an"intrinsically safe"(IS)device works on the principle of energy limitation.The electrical energy within the IS device is kept so low that it is incapable of generating a spark or heat sufficient to cause ignition.Explosion-proof equipment is often used for higher-power devices in Zone 1/Division 1,while intrinsically safe designs are typically for lower-power devices like sensors in Zone 0/Division 1.

　　Can the touchscreen function properly with the thick glass required for the explosion-proof rating?

　　Yes,modern Explosion-proof HMI units are engineered to overcome this challenge.The touchscreen technology,often resistive or specially calibrated projective capacitive,is designed to sense touch inputs effectively through the thick,laminated glass window.While there might be a slight difference in feel compared to a standard consumer tablet,the functionality remains robust and fully operational,even allowing for use with industrial gloves.The calibration is fine-tuned at the factory to account for the glass barrier.

　　What are the key certifications to look for when selecting an explosion-proof HMI for a global project?

　　For global deployment,the most critical certifications are ATEX(for the European Union),IECEx(an international certification scheme),and UL/CSA standards(for North America,specifically Class I Division 1/Zone 1).The iConEx XY800_D typically carries one or more of these certifications.It is vital to select a model whose certification exactly matches the hazardous area classification(e.g.,gas group IIC,dust group IIIB,temperature class T6)of the installation site as defined by the local regulatory body.

　　How does the hybrid button-and-touchscreen design benefit operators in real-world use?

　　The hybrid design offers the best of both worlds,enhancing both efficiency and safety.The touchscreen is ideal for navigating complex graphics,accessing data trends,and inputting numerical values or text.The physical buttons provide immediate,muscle-memory access to the most critical functions,such as emergency stop,motor start/stop,or silencing an alarm.This is crucial in high-stress situations where speed and reliability are paramount,as a physical button can be activated without looking at the screen and provides tactile confirmation.

　　What are the primary maintenance considerations for ensuring the long-term integrity of an explosion-proof HMI?

　　Maintenance focuses on preserving the integrity of the explosion-proof enclosure.This includes regularly inspecting the enclosure for any signs of damage or corrosion.It is critical to ensure that all sealing gaskets are in perfect condition and that any cable glands used are properly tightened and certified for the application.When the enclosure is opened for any service,it must be re-closed with extreme care,following the manufacturer's specified torque values for bolts to ensure the flame paths are perfectly mated.Failure to do so can compromise the explosion-proof safety rating.
