Overview

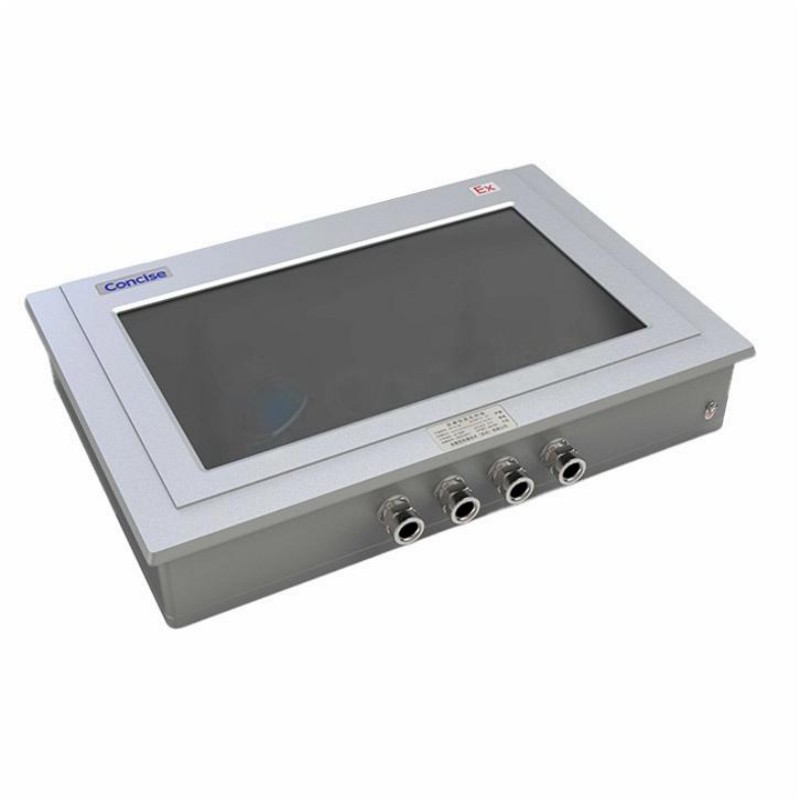

The iConEx XYEXMTP Series represents the pinnacle of ruggedized explosion-proof display technology, engineered explicitly for continuous operation in the most demanding Zone 1 gas and Zone 21 dust hazardous areas. Unlike displays designed for less frequent hazard exposure (Zone 2/22), this series is built to endure where explosive atmospheres are consistently present under normal operation.
It achieves this through a combination of an ultra-robust Ex d [Flameproof] enclosure and advanced Ex ib [Intrinsic Safety] circuitry for its internal components. Certified to Ex d ib IIC T6 Gb and Ex tD ibD A21 IP66 T80°C, it delivers unparalleled reliability for critical monitoring roles in upstream oil & gas (drilling platforms, refineries), chemical processing plants, and mining operations—where failure is not an option.
Core Design Philosophy: Maximum Resilience for Constant Hazard
The XYEXMTP Series is architected around the principle of maximum containment and isolation. Its primary Flameproof (Ex d) enclosure is constructed from high-grade, thick-walled stainless steel or ductile iron, machined to precise tolerances to create flame paths that can contain and cool any internal ignition, preventing it from propagating to the external hazardous atmosphere.
This is complemented by intrinsically safe (ib) design for critical internal circuits, limiting their energy to below ignition levels. This dual approach ensures survival in the harshest conditions, including exposure to corrosive chemicals, constant vibration, and extreme temperature swings.
Product Features & Characteristics
Highest Level of Explosion Protection (Ex d ib IIC): Flagship feature with Flameproof (Ex d) certification for Group IIC gases (including hydrogen and acetylene)—the most stringent gas group. This makes it suitable for Zone 1, the highest-risk gas zone.
Corrosion-Resistant Exoskeleton: Enclosure treated with specialized anti-corrosion coatings (e.g., powder coating, PTFE finishes) to withstand saltwater, H₂S, and other corrosive chemicals in offshore and chemical applications.
Extreme Environment Durability: Operates reliably in a vast temperature range from -40°C to +70°C (with optional internal heating elements for cold starts). Boasts exceptional shock/vibration resistance (tested to IEC 60068-2-27/64 standards) for heavy machinery or mining vehicles.
High-Performance Display in a Fortified Shell: Houses a high-brightness (≥1000 cd/m²) TFT LCD with optical bonding (reduces glare, enhances sunlight readability, prevents condensation). Features multi-touch projective capacitive touch operable with gloves.
Advanced Connectivity and Control: Equipped with M12 X-coded connectors for robust Ethernet/power links (ideal for high-vibration environments). Supports comprehensive video inputs (HDMI, DisplayPort, VGA) via intrinsically safe barriers.
Key Specifications
Parameter/Category
Specification Details
Model Series iConEx XYEXMTP (e.g., XYEXMTP-19, XYEXMTP-22)
Display Type TFT LCD, Projected Capacitive Touch (Multi-touch)
Available Sizes 19", 21.5", 24"
Resolution 1280x1024 (19"), 1920x1080 (21.5", 24")
Brightness ≥ 1000 cd/m²
Touch Technology Projected Capacitive (Glove & Moisture Operable)
Protection Rating IP66 / IP67 (Front Panel)
Explosion Proof Cert. Gas: Ex d ib IIC T6 Gb; Dust: Ex tD ibD A21 IP66 T80°C
Hazardous Area Applicability Zone 1/21 (Gases/Dust), Zone 2/22
Operating Temperature Standard: -30°C ~ +60°C; Extended: -40°C ~ +70°C
Storage Temperature -50°C ~ +85°C
Input Power DC 24V (18V - 32V range) or AC 100-240V (with isolated internal PSU)
Power Consumption ~45W (19") to ~75W (24")
Electrical Interfaces M12 A-coded (Power), M12 X-coded (Ethernet), IS Barrier Interfaces for Video
Video Inputs HDMI, DisplayPort, VGA (via intrinsically safe interfaces)
Vibration Resistance 5 Grms (10-500 Hz, IEC 60068-2-64)
Shock Resistance 50g, 11ms (IEC 60068-2-27)
Enclosure Material 316L Stainless Steel or Ductile Iron with Corrosion-Resistant Coating
Weight ~25 kg (19") to ~40 kg (24")
Applications
The XYEXMTP is deployed in the heart of the most critical and continuously hazardous operations:
Upstream Oil & Gas Drilling Rigs: Serves as the primary display for mud logging units, blow-out preventer (BOP) control systems, and real-time drilling parameter monitoring on the rig floor (constantly exposed to potential gas releases).
Refinery & Chemical Process Units: Mounted directly on reactor control panels or processing areas for visualizing SCADA/DCS systems (continuously exposed to flammable vapors and corrosive chemicals).
Mining Continuous Miners & Tunneling Machines: Integrated into operator cabins of heavy mining machinery (subjected to constant vibration and combustible coal dust atmospheres).
Pharmaceutical Chemical Synthesis Suites: Monitors critical reaction processes in environments with solvent vapors and strict containment requirements.
Product Advantages
The definitive advantage of the iConEx XYEXMTP Series is its unsurpassed inherent safety (Ex d) for continuous operation in highest-risk hazardous areas (Zone 1/21), coupled with extreme environmental durability that transcends standard industrial displays.
It eliminates the need for external pressurized (purged) enclosures—components that add complexity and single points of failure. While a premium investment, its unparalleled build quality and safety certifications minimize the risk of catastrophic equipment failure and production downtime in critical processes, offering the lowest total cost of ownership for extreme applications.
Packaging & Warranty
Given its high value and rugged nature, the XYEXMTP is shipped in a custom, heavy-duty crate with reinforced foam immobilization to protect it during arduous logistics. iConEx typically offers an extended warranty (e.g., 36 months) on this series—reflecting its build quality—and includes comprehensive on-site service options due to the criticality of its installations.
FAQs
1. What is the fundamental difference between Ex d (Flameproof) enclosures and other protection methods like Ex nR or intrinsic safety, and why is it necessary for Zone 1?
The core difference lies in safety philosophy:
Ex d (Flameproof): Designed to contain internal explosions without propagating them externally. It uses a massively robust, precision-machined enclosure with long, cool flame paths—any internal explosion is contained, cooled, and quenched as flames exit these paths. Ideal for high-power components (like large displays) that generate heat.
Ex nR (Restricted Breathing): Relies on preventing gas ingress into the enclosure over time. Only suitable for Zone 2 (hazardous atmospheres are rare/short-lived).
Intrinsic Safety (Ex i): Limits circuit electrical energy below ignition levels. Suitable for low-power devices (sensors) but impractical for power-hungry displays.
For Zone 1 (explosive atmospheres likely in normal operation), Ex d is the most practical choice for high-power equipment—it actively contains hazards rather than just preventing them.
2. For such a heavy and robust display, what are the critical mounting and installation considerations?
Installing the XYEXMTP (up to 40 kg) requires meticulous planning:
Structural Integrity: The mounting surface (steel panels, vibration-damped walls, machine cabins) must support static weight and dynamic shock/vibration loads. Standard brackets are inadequate—heavy-duty industrial mounts rated for the weight/environment are mandatory.
Cable Management: M12 connectors/conduit entries must be properly sealed with correct glands to maintain IP66/67 and explosion-proof integrity. Cables must avoid pinch points/stress (critical for high-vibration settings).
Handling Safety: Installation requires a team and specialized lifting equipment to maneuver the display without damage or personnel injury.
Environmental Alignment: Select optional features (heaters, specific coatings) based on ambient temperature extremes, corrosive exposure, or salt spray.
3. How does projected capacitive (PCAP) touch technology benefit harsh industrial environments compared to resistive touch?
PCAP offers key advantages over resistive touch:
Durability & Chemical Resistance: Uses a tough glass substrate resistant to scratches, abrasions, and degradation from oils/solvents—no replaceable surface films needed, extending lifespan.
Reliable Operation with PPE/Contaminants: Senses conductive properties (finger/glove) without physical pressure. Works seamlessly with thick industrial gloves, and ignores light moisture, dust, or grease (no false touches).
Enhanced User Interaction: Supports multi-touch gestures (pinch-to-zoom, two-finger scroll) for complex maps/schematics, boosting operator efficiency and reducing cognitive load in critical scenarios.
