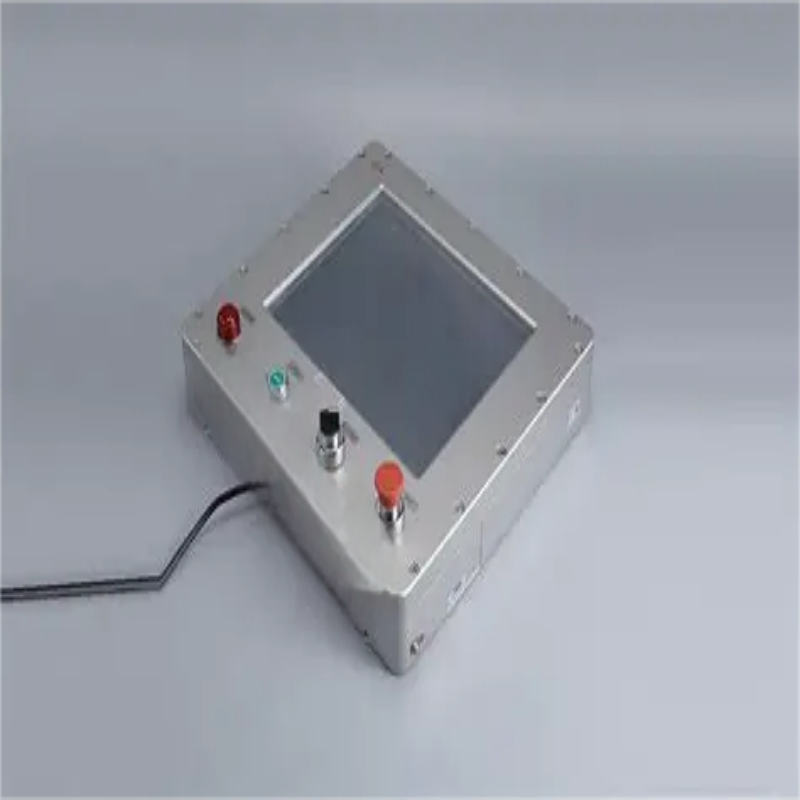

The iConEx XY600 Series is a rugged line of explosion-proof Human-Machine Interface (HMI) monitors, distinguished by its integrated high-brightness TFT display and dedicated physical push buttons. Engineered for Zone 1/2 hazardous locations (Class I, Division 1/2 equivalents), it solves the limitations of touchscreens in scenarios with thick gloves, grime, or where tactile feedback is critical for safety.
Powered by a 32-bit RISC CPU (streamlined Linux OS), it combines clear visualization with customizable buttons—ideal for oil & gas, chemical, pharmaceutical, and power generation industries.
Core Design Philosophy: Tactile Certainty in High-Risk Environments
The XY600 Series is built on error-free input via physical actuation. It recognizes that in high-stress or low-visibility scenarios, operators rely on muscle memory and tactile feedback—something touchscreens lack, especially with PPE. Combined with Ex d(ib)ibIIBT6 certification, it prioritizes operational certainty in critical control tasks.
Product Features & Characteristics
Programmable Physical Buttons: 24–30 stainless steel keys for direct control/navigation, supplementing the touch interface.
High-Visibility Display: 65536-color TFT LCD (7"–15") with >300 cd/m² brightness, ensuring clarity in well-lit industrial settings.
Dual Protection: Ex d(ib)ibIIBT6 certification (flameproof + intrinsic safety) for Zone 1/2 gaseous environments (e.g., propane, ethylene).
Industrial Connectivity: 400MHz CPU with 128MB Flash/64MB DDR2 RAM; supports RS-232/485/422, Ethernet (8"+ models), USB, and Profibus-DP/CAN.
Customizable Logic: Uses XYFD2000 software with C-like macros for complex control sequences.
Key Specifications
Parameter/Category
Specification Details
Model Series iConEx XY600
Type Explosion-Proof HMI with Physical Buttons
Display Type TFT LCD, Resistive Touch (Single-point) + 24–30 Stainless Steel Buttons
Available Sizes 7", 8", 10.4", 12.1", 15"
Resolution 800x480 (7"), 800x600 (8",10.4"), 1024x768 (12.1",15")
Brightness >300 cd/m²
CPU 32-bit RISC ARM @ 400MHz
Memory 128MB Flash, 64MB DDR2 DRAM
Operating System Streamlined Linux Kernel
Communication Ports Isolated RS232/RS485/RS422, Ethernet (10/100M, 8"+), USB Host/Device
Fieldbus Support Profibus-DP, CAN, MPI (Optional/Integrated)
Input Power DC 24V (18V–32V range)
Power Consumption 5W–15W (Max)
Explosion Proof Cert. Ex d(ib)ibIIBT6
Hazardous Area Applicability Zone 1/2 (Gases)
Operating Temperature Standard: -20°C~+60°C; Wide-Temp: -40°C~+70°C
Applications
The XY600 excels in tactile-critical, high-risk tasks:
Oil & Gas Wellheads: Monitoring pressure/flow and manual valve/pump control.
Chemical Batch Processing: Initiating/pausing mixing sequences or reactor control.
Pharmaceutical Manufacturing: Operating autoclaves/bioreactors (gloves mandatory).
Power Plants: Emergency stops and turbine/boiler control interventions.
Mining: Controlling conveyors/crushers in dust/gas-prone surface operations.
Product Advantages
Its key strength is combining tactile buttons with modern HMI functionality in an explosion-proof enclosure. This reduces input errors in high-stress scenarios, works reliably with gloves, and avoids touchscreen lag/failure. It’s a pragmatic alternative to fully touch-based HMIs for critical control.
Packaging & Warranty
Standard protective packaging is used for transit. For warranty details (duration, coverage), consult the manufacturer or authorized distributor directly.
FAQs
1. Why are physical buttons important on the XY600 in hazardous areas?
They provide tactile feedback for blind, gloved operation—critical when visibility is low.
In emergencies, they eliminate touchscreen fumbling, reducing errors and boosting safety.
2. What does 'Ex d(ib)ibIIBT6' certification mean?
'Ex d': Flameproof enclosure (contains internal explosions).
'ib': Intrinsically safe circuits (low energy, no ignition risk).
'IIBT6': For gases like ethylene; max surface temp ≤85°C. Approved for Zone 1/2.
3. How does the wide temperature range benefit the XY600?
It works reliably from -40°C (cold storage/outdoors) to +70°C (hot industrial zones).
Eliminates the need for external heaters/coolers, ensuring continuous operation.
