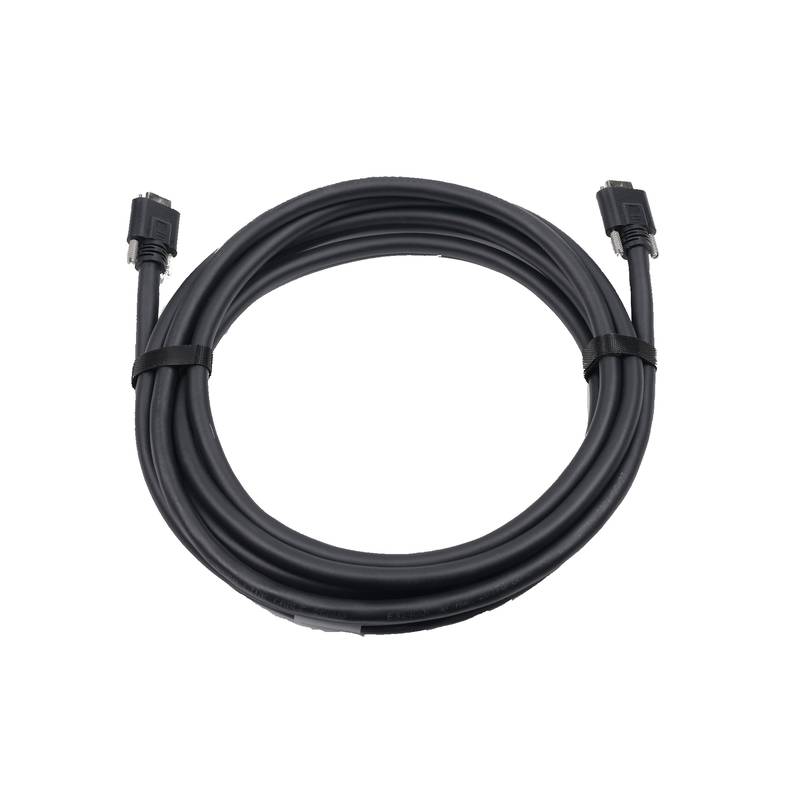

The HIKROBOT MV-ACCL-SDR-SDR-ST-3m is a high-performance industrial camera link data cable designed for robust data transmission in demanding automation environments. As a crucial component for machine vision systems, these camera link cables ensure reliable communication between cameras and frame grabbers, enabling real-time image acquisition and processing. This 3-meter cable addresses the common need for secure and high-speed data transfer in manufacturing, inspection, and robotics applications where signal integrity is paramount. Its construction is engineered to withstand the rigors of industrial settings, minimizing downtime and ensuring consistent operational performance.
Product Type & Category Positioning
The HIKROBOT MV-ACCL-SDR-SDR-ST-3m belongs to the specialized category of high-speed industrial data cables, specifically designed to meet the stringent requirements of Camera Link interfaces. Unlike general-purpose USB or Ethernet cables, Camera Link cables are engineered for deterministic, high-bandwidth, and low-latency data transfer, essential for applications demanding real-time image processing. This particular model is a standard Camera Link cable, designed for typical industrial machine vision setups. Its positioning is within the mid-range segment, offering a balance of performance, reliability, and cost-effectiveness for a broad spectrum of industrial automation and inspection tasks. Building on this classification, its specific design is tailored for environments where consistent and error-free data flow is critical.
Technical Specifications
Cable Length: 3m
Connector Type: SDR to SDR
Data Rate: Up to 6.8 Gbps
Shielding: Triple-shielded construction
Jacket Material: Industrial-grade PVC
Operating Temperature: -20°C to +70°C
Voltage Rating: 30V AC/DC
Flexibility: High-flexibility design for dynamic applications
Compliance: RoHS, CE
Technical Highlights
The triple-shielded construction of the MV-ACCL-SDR-SDR-ST-3m cable, combined with its high-flexibility design, ensures exceptional signal integrity and durability in dynamic industrial environments. This robust shielding effectively minimizes electromagnetic interference (EMI) and radio frequency interference (RFI), critical for maintaining data rates up to 6.8 Gbps without degradation, as per the manufacturer's datasheet. The high-flexibility jacket material allows for repeated bending and movement without compromising internal conductors, making it ideal for robotic arm applications or other systems with frequent motion.
This cable's ability to operate reliably within a temperature range of -20°C to +70°C highlights its suitability for diverse industrial settings, from cold storage facilities to moderately heated production floors, a key specification noted in the manufacturer's datasheet. The 30V AC/DC voltage rating is standard for industrial data transmission, ensuring safe operation within typical control system voltages. These features collectively contribute to enhanced system uptime and reduced maintenance requirements by preventing signal loss or cable failure due to environmental factors or mechanical stress.
Application Scenarios
High-Speed Automated Inspection: This cable is ideal for connecting high-resolution cameras in automated optical inspection (AOI) systems, supporting data rates up to 6.8 Gbps to ensure rapid and accurate detection of defects. Its robust construction minimizes downtime by preventing signal interruptions during continuous operation. Robotic Guidance and Vision: In robotic applications, the MV-ACCL-SDR-SDR-ST-3m's high-flexibility design allows for reliable data transmission even with constant movement, ensuring precise object recognition and trajectory planning for assembly or pick-and-place tasks. This flexibility helps extend the cable's service life in dynamic robotic environments. Machine Vision for Quality Control: For quality control stations requiring real-time image analysis, this industrial data cable ensures uninterrupted data flow from the camera to the processing unit, supporting rapid decision-making for product acceptance or rejection. Consistent data transmission contributes to improved overall product quality and reduced manufacturing waste. Process Monitoring in Harsh Environments: The cable's wide operating temperature range (-20°C to +70°C) and triple-shielding make it suitable for process monitoring applications in manufacturing floors that may experience moderate temperature fluctuations and electromagnetic interference. This reliability ensures continuous oversight and timely intervention when needed.
Selection Recommendations
Suitable Scenario: This cable is highly suitable for applications requiring high-bandwidth, low-latency data transfer in environments with moderate temperature fluctuations, such as automated assembly lines or robotic work cells, due to its support for data rates up to 6.8 Gbps and an operating temperature range of -20°C to +70°C. Unsuitable Scenario: The MV-ACCL-SDR-SDR-ST-3m is not recommended for extremely high-temperature environments exceeding its rated 70°C or applications demanding significantly higher bandwidth than the Camera Link standard supports, as it may lead to performance degradation or premature failure.
Comparative Model: For applications requiring extended reach or different connector types, consider the HIKROBOT MV-ACCL-SDR-SC-5m, which offers a 5-meter length.
FAQ
1. What is the maximum data transfer rate supported by this camera link cable?
The maximum data transfer rate supported by this camera link cable is up to 6.8 Gbps. This high bandwidth is achieved through its specialized design for Camera Link interfaces, ensuring rapid image data acquisition essential for high-speed machine vision applications. This speed is critical for capturing detailed images without frame drops, even in dynamic scenarios. To ensure optimal performance, we recommend verifying compatibility with your camera and frame grabber specifications.
2. Can this industrial data cable be used in environments with significant electromagnetic interference?
Yes, this industrial data cable is designed to withstand significant electromagnetic interference due to its triple-shielded construction. The shielding, as detailed in the technical specifications, significantly reduces EMI/RFI, which is crucial for maintaining signal integrity and data accuracy in electrically noisy factory floors. This protection is vital for preventing data corruption and ensuring reliable operation. For extremely high interference scenarios, our team can assess alternative shielding options or integration strategies.
3. What is the expected lifespan of the HIKROBOT MV-ACCL-SDR-SDR-ST-3m cable under typical industrial use?
Under typical industrial use, the expected lifespan of the HIKROBOT MV-ACCL-SDR-SDR-ST-3m cable is significantly enhanced by its high-flexibility design and robust jacket material, often exceeding standard cable life expectancies in dynamic applications. The cable is rated for a wide operating temperature range of -20°C to +70°C, contributing to its longevity by preventing material degradation. To maximize lifespan, we advise adhering to the recommended bend radius during installation. Our team can provide guidance on installation best practices to ensure extended operational life.
4. Is this camera link cable compatible with different brands of industrial cameras and frame grabbers?
This camera link cable utilizes standard SDR connectors, making it generally compatible with industrial cameras and frame grabbers that support the Camera Link interface and these connector types. The standard ensures interoperability across various manufacturers. Compatibility is key for seamless integration into your existing machine vision setup. We recommend consulting your specific camera and frame grabber datasheets for confirmation of SDR connector compatibility. Our technical team is available to assist with compatibility verification.
5. What are the implications of the -20°C to +70°C operating temperature range for my application?
The -20°C to +70°C operating temperature range means this cable can reliably function in a broad spectrum of industrial environments, from cool storage areas to moderately warm production floors, as per manufacturer specifications. This wide thermal tolerance prevents signal degradation or physical damage that could occur with standard cables in extreme temperatures. It ensures consistent performance without the need for special environmental controls within this range. If your application exceeds these temperature limits, we can explore specialized industrial-grade cables or environmental enclosures.
6. How does the high-flexibility design benefit robotic applications?
The high-flexibility design is crucial for robotic applications as it allows the cable to withstand repeated bending and twisting motions inherent in robotic arm movements without compromising internal wiring integrity or signal transmission. This prevents premature cable failure and reduces downtime associated with cable replacement, a common issue in dynamic robotic systems. The cable's ability to maintain signal integrity even under constant flex ensures accurate vision feedback for precise robotic operations. Our team can provide installation support to optimize cable routing for maximum flexibility and longevity in robotic setups.
7. What is the recommended bend radius for this cable to ensure longevity?
While a specific minimum bend radius is not detailed in the general specifications, for optimal longevity, it is crucial to avoid sharp or acute bends. A general guideline for industrial high-flex cables is to maintain a bend radius of at least 10 times the cable's outer diameter. Exceeding this can stress the internal conductors and shielding, potentially leading to failure. Adhering to a gentle curve during installation will significantly prolong the cable's operational life. For precise recommendations based on your specific robotic or dynamic application, please consult our engineering support.
8. Are there any specific considerations for installing this 3-meter camera link cable in a tightly packed industrial cabinet?
When installing the 3-meter HIKROBOT MV-ACCL-SDR-SDR-ST-3m cable in a tightly packed industrial cabinet, it is essential to ensure that the cable is not pinched or subjected to excessive stress, particularly at the connector points. The high-flexibility design is beneficial here, but maintaining a gentle bend radius and avoiding any crushing or kinking are critical for signal integrity and cable durability. Ensure adequate clearance for movement if the connected devices are dynamic. Beijing Zhongping Technology can provide detailed installation guides and site assessment services to ensure optimal integration and prevent potential issues.
9. What are the implications of the RoHS and CE compliance for international use?
RoHS (Restriction of Hazardous Substances) and CE (Conformité Européenne) compliance indicate that this camera link cable meets stringent environmental and safety standards required for sale and use within the European Union and many other international markets. RoHS compliance ensures that the cable contains limited amounts of restricted hazardous materials, contributing to environmental protection. CE marking signifies that the product conforms to relevant EU directives concerning health, safety, and environmental protection. This compliance facilitates easier customs clearance and regulatory adherence for global deployments.
10. What upgrade path or alternative configuration is available if this model does not fully match my requirements?
If the MV-ACCL-SDR-SDR-ST-3m model does not fully meet your requirements, alternative configurations may involve longer cable lengths such as the 5-meter version, or cables with different connector types if your equipment necessitates it. For applications demanding even higher bandwidth or different protocols, exploring alternative interface technologies beyond Camera Link might be necessary, such as CoaXPress or GigE Vision with appropriate cabling. Our team can work with you to identify the most suitable solution, whether it's a different cable specification or a broader system-level recommendation.
