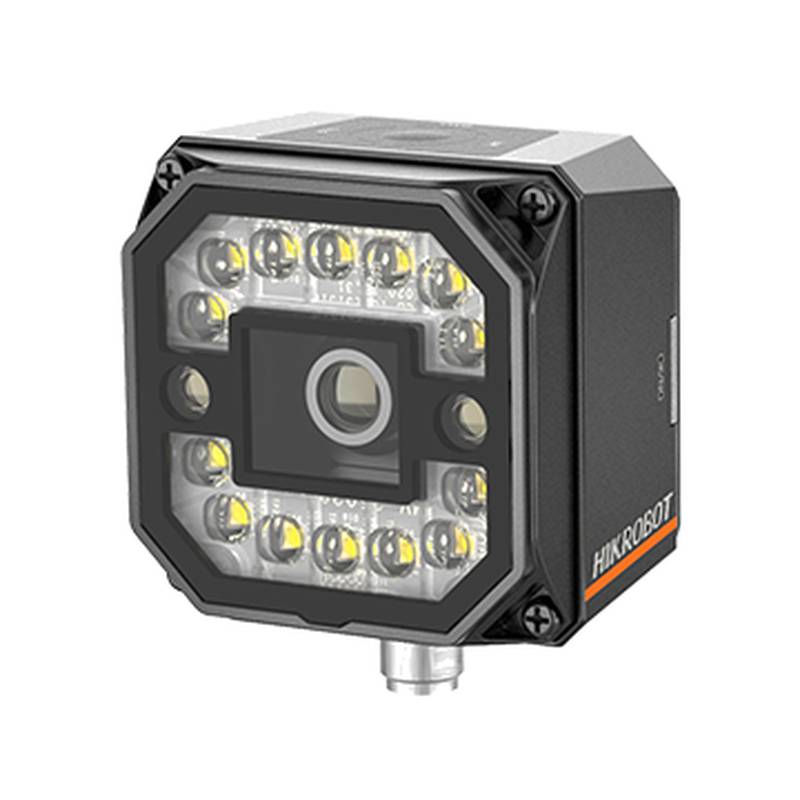

The HIKROBOT MV-ID3013PM-06M-WBN is a high-performance automatic barcode scanner designed for industrial applications, featuring a 1.3MP resolution and a 6mm lens. This 2D imager barcode scanner excels in demanding environments, offering rapid and accurate decoding of a wide array of 1D, 2D, and stacked symbologies. Its advanced CMOS sensor with global shutter ensures crisp image capture even in high-speed scenarios, minimizing motion blur. The device is engineered for seamless integration into automated systems, providing robust connectivity options and reliable performance for quality control and tracking processes.
Product Specifications:
Model: MV-ID3013PM-06M-WBN
Description: Industrial Smart Reader with 6mm lens and 130W resolution (V2.0)
Barcode Types:
1D: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, Matrix 2 of 5, Matrix 25, MSI, China Post, Code 11, Industrial 25, etc.
2D: QR Code, Data Matrix, etc.
Stacked Codes: PDF417, etc.
Max Processing Frame Rate: 60 fps
Max Reading Speed: 84 codes/second
Sensor Type: CMOS, Global Shutter
Pixel Size: 4 μm × 4 μm
Sensor Size: 1/2.7”
Resolution: 1280 × 1024
Exposure Time: 35 μs ~ 1 sec
Gain: 0 dB ~ 23 dB
Color Type: Monochrome
Communication Protocols: SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, SLMP
Electrical Characteristics:
Data Interface: Fast Ethernet (100 Mbit/s)
Digital I/O: 17-pin M12 connector for power and I/O, including 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 3/4/5), 1 RS-232. Supports device triggering via top button.
Power Supply: 24 VDC
Max Power Consumption: 20 W @ 24 VDC (with built-in illumination enabled)
Structural Details:
Focal Length: 6 mm
Lens Mount: M12-Mount, manual focus
Lens Hood: Semi-polarized lens hood; clear and full-polarized lens hoods are optional.
Light Source: Focused white light; focused red, blue, or infrared light are optional.
Indicator Lights: Power indicator (PWR), Network indicator (LNK), Status indicator (STS), Result indicators (OK/NG).
Dimensions: 65.2 mm × 65.2 mm × 47 mm
Weight: Approximately 280 g
IP Protection Rating: IP67 (when properly installed with an appropriate lens protective cover)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -30 ~ 70°C
Operating Humidity: 20% ~ 95% RH non-condensing
General Specifications:
Software: IDMVS
Certifications: CE, RoHS, KC
The HIKROBOT MV-ID3013PM-06M-WBN is distinguished by its robust construction and versatile scanning capabilities, making it an ideal solution for automated identification tasks across various industrial sectors. Its high resolution and fast processing speed ensure efficient and reliable data capture, crucial for maintaining high throughput on production lines. The device's compatibility with multiple industrial communication protocols facilitates straightforward integration into existing automation frameworks, reducing implementation time and complexity. The industrial-grade design, including its IP67 rating, ensures sustained operation even in harsh environmental conditions, contributing to the longevity and reliability of automated systems.
This automatic barcode scanner is engineered to provide exceptional performance in scenarios demanding high accuracy and speed. The 1280 × 1024 resolution, coupled with a 4 μm × 4 μm pixel size, allows for the precise reading of even small or densely printed codes. The global shutter CMOS sensor technology effectively eliminates image distortion caused by motion, a common challenge in industrial automation. Furthermore, the flexible exposure time and gain adjustment capabilities enable the scanner to adapt to varying lighting conditions and object distances, optimizing read rates and accuracy.
Industrial Scene Applications and Value Proposition:
1. Automotive Manufacturing Assembly Lines: In automotive plants, the MV-ID3013PM-06M-WBN can be deployed for real-time tracking of components, sub-assemblies, and finished vehicles. Its ability to rapidly scan 2D codes on parts ensures accurate inventory management and traceability throughout the production process. This contributes to enhanced production efficiency by minimizing errors and delays associated with manual data entry or misidentification of parts, thereby streamlining the assembly workflow and improving overall operational throughput.
2. Food and Beverage Packaging: This 2D imager barcode scanner is highly suitable for the food and beverage industry, where accurate tracking of products and packaging is paramount for compliance and quality control. It can reliably scan codes on individual items, cases, and pallets, facilitating efficient inventory management and supporting recall procedures if necessary. The scanner's performance in challenging conditions, such as the presence of condensation or varying surface textures on packaging, ensures consistent data capture, thereby enhancing operational stability and reducing product loss due to misidentification.
3. Electronics Manufacturing: Within electronics manufacturing, the HIKROBOT MV-ID3013PM-06M-WBN plays a critical role in managing the complex supply chain and production of electronic components and devices. It ensures precise identification and tracking of small, high-density codes on printed circuit boards (PCBs) and individual components. This capability is vital for preventing counterfeit parts, managing work-in-progress, and ensuring the final product's integrity, leading to improved product quality and reduced manufacturing defects, ultimately contributing to a lower total cost of ownership.
4. Logistics and Warehousing Automation: In large-scale logistics and warehousing operations, the scanner's high-speed reading capability and broad field of view are instrumental in automating sorting, picking, and shipping processes. It can efficiently scan barcodes on incoming goods and outgoing shipments, ensuring accurate inventory levels and facilitating faster order fulfillment. The integration of this device into automated guided vehicle (AGV) systems or conveyor belts significantly boosts operational throughput and reduces labor costs associated with manual scanning.
The HIKROBOT MV-ID3013PM-06M-WBN is part of a comprehensive series of industrial smart readers designed to meet diverse application needs. Other notable models in this family include the MV-ID3013PM-06M-WBN-8, which offers extended range capabilities, and variants such as the MV-ID3013PM-12M-WBN and MV-ID3013PM-15M-WBN, featuring higher resolution options for more detailed scanning requirements. For applications demanding different form factors or specialized scanning characteristics, models like the MV-ID3016PM-06M-WBN, MV-ID3050PM-08M-WBN, and the ruggedized MV-ID3040RM-08M-RBN and MV-ID3060RM-08M-RBN series are available, each providing tailored solutions for specific industrial environments and challenges.
Selection Guidance:
The HIKROBOT MV-ID3013PM-06M-WBN is exceptionally well-suited for applications requiring high-speed, accurate 1D/2D code reading in moderately challenging industrial environments. Its 6mm lens is ideal for medium-range scanning of standard-sized codes. It is particularly recommended for automated assembly lines, packaging verification, and general-purpose industrial identification tasks where reliability and efficiency are key.
However, this specific model might be less suitable for applications demanding extremely close-up readings of microscopic codes or for scanning over very long distances without appropriate lensing or alternative models. For extremely harsh environments with significant dust or moisture ingress beyond IP67, or where specialized illumination is critical (e.g., reading on highly reflective surfaces), further consideration of specialized accessories or different series within the HIKROBOT product line may be necessary. For applications requiring higher resolutions for very small codes, models like the MV-ID3013PM-12M-WBN or MV-ID3013PM-15M-WBN would be more appropriate.
Frequently Asked Questions (FAQ):
Q: What is the primary advantage of the HIKROBOT MV-ID3013PM-06M-WBN over standard 1D barcode scanners?
A: The primary advantage is its ability to read both 1D and 2D codes, offering greater data capacity and flexibility for applications requiring more information, such as manufacturing lot numbers, expiry dates, and complex identifiers.
Q: How does the global shutter technology benefit industrial applications?
A: Global shutter technology ensures that the entire image is captured at once, eliminating motion blur even when scanning rapidly moving objects, which is crucial for maintaining high read rates and accuracy on production lines.
Q: Is the HIKROBOT MV-ID3013PM-06M-WBN compatible with common industrial automation networks?
A: Yes, it supports a wide range of communication protocols including Profinet, Ethernet/IP, ModBus, and others, ensuring seamless integration with various industrial control systems and networks.
Q: What environmental conditions can this barcode scanner withstand?
A: The device is rated IP67, meaning it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for many industrial environments. It operates within a temperature range of 0 to 50°C.
Q: Can this scanner read codes on curved or uneven surfaces?
A: The scanner's performance on curved or uneven surfaces depends on factors like code quality, surface reflectivity, and the angle of presentation. While it is designed for robust performance, optimal results are achieved with relatively flat and well-presented codes. For challenging surfaces, specific lighting or lens options might enhance performance.
Q: How does the choice of lens (e.g., 6mm) affect the scanner's performance?
A: The 6mm lens provides a specific field of view and working distance. It is generally suitable for medium-range scanning. For scanning smaller codes at close distances or larger codes at longer distances, different lens options, such as those found on models like the MV-ID3013PM-12M-WBN or MV-ID3013PM-15M-WBN, may be more appropriate.
Q: What are the key differences between the '-WBN' and '-RBN' series models?
A: While specific details may vary, typically the '-WBN' series often denotes monochrome imaging with standard illumination features, whereas '-RBN' models might indicate variations in illumination (e.g., red light) or ruggedized features for more demanding environments. The MV-ID3040RM-08M-RBN and MV-ID3060RM-08M-RBN are examples of ruggedized options.
Q: Does the scanner require specialized software for operation?
A: The scanner utilizes the IDMVS software for configuration and operation, which is part of the HIKROBOT ecosystem, designed for ease of use and efficient deployment of vision solutions.
Q: What is the maximum number of codes the scanner can read per second?
A: The HIKROBOT MV-ID3013PM-06M-WBN can read up to 84 codes per second, enabling high-throughput automation.
Q: Can this device be used for direct part marking (DPM) codes?
A: While capable of reading various codes, direct part marking (DPM) can present unique challenges due to surface properties. For optimal DPM reading, specialized lighting and higher resolution models might be necessary, or confirmation of specific DPM code readability with this model is recommended.
