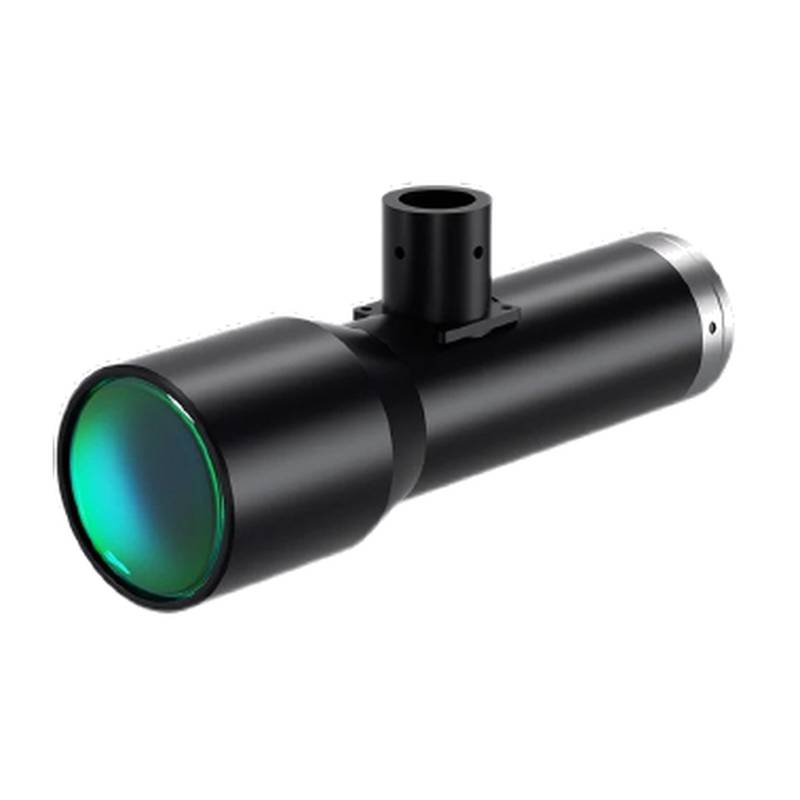

The HIKROBOT MVL-KT-1-110C-V3 is a high-performance c mount telecentric lens engineered for demanding machine vision applications. This machine vision telecentric lens is designed to provide exceptional accuracy and reliability in measurement and inspection tasks by eliminating parallax error and ensuring consistent magnification across varying object distances. Its advanced optical design minimizes geometric distortion, delivering true-to-scale imaging crucial for critical quality control processes.
Key Specifications and Performance:
Model: MVL-KT-1-110C-V3 Magnification: 1x Working Distance: 110 ± 2 mm F-Number: F7 Image Circle: Φ18.4 mm Optical Distortion: ≤ 0.06% Depth of Field: ±0.3 mm @ F7 Object Space Resolution: 4.7 μm Object Space Telecentricity: ≤ 0.06° Interface Type: C-Mount Dimensions: 152.6 mm × Φ44 mm Weight: 350 g Coaxial Light: Supported Operating Temperature: -10 ~ 50°C Certification: RoHS2.0
The MVL-KT-1-110C-V3 excels in applications where precision is paramount. Its minimal optical distortion of ≤ 0.06% and low object space telecentricity of ≤ 0.06° ensure that measurements are highly accurate and repeatable, even with slight variations in object position or height. The substantial depth of field of ±0.3 mm at F7 allows for sharp imaging of objects with varying surface levels, enhancing inspection capabilities. This telecentric lens is compatible with a wide range of machine vision cameras due to its standard C-Mount interface.
Advanced Features and Benefits:
Telecentric lenses, like the MVL-KT-1-110C-V3, are distinguished by their ability to maintain constant magnification regardless of the object's distance from the lens. This characteristic is vital for applications requiring precise dimensional metrology and gauging, such as in the automotive, electronics, and pharmaceutical industries. The elimination of parallax error, a common issue with conventional lenses, guarantees that measurements are not skewed by perspective distortion, leading to more reliable defect detection and quality assurance. The integrated support for coaxial lighting further enhances its utility by enabling uniform and direct illumination of the target object, critical for high-contrast imaging and the identification of subtle surface imperfections.
Industrial Applications:
The robust performance and accuracy of the HIKROBOT MVL-KT-1-110C-V3 make it ideally suited for a variety of industrial automation scenarios. These include:
Automotive Manufacturing: For precise inspection of components, assembly verification, and quality control on production lines. Electronics Assembly: Ensuring the accurate placement and inspection of micro-components, solder joints, and printed circuit boards. Pharmaceuticals: Verifying the integrity of packaging, counting pills, and inspecting fill levels with high precision. Food and Beverage Packaging: Inspecting labels, seal integrity, and product fill levels for quality assurance. General Precision Measurement: Anywhere exact dimensional verification is required, from small parts to larger assemblies.
Related HIKROBOT Models:
The HIKROBOT telecentric lens family offers a comprehensive range of solutions to meet diverse application needs. Notable models within this series include the MVL-KT-2-110, MVL-KT-3-110, MVL-KT-3-110C, MVL-KT-4-108, MVL-KT-4-108C, MVL-KT-05-110-V3, MVL-KT-05-220, MVL-KT-15-110, MVL-KT-0345-220, MVL-KBT-0438-118, MVL-HY-1-180C, MVL-HY-2-250, MVL-HY-3-110, MVL-HY-3-110C, MVL-HY-4-110, MVL-HY-4-110C, MVL-HY-05-225, MVL-HY-08-130, MVL-HY-08-130C, MVL-HY-08-150C, MVL-HY-15-65, MVL-HY-15-65C, MVL-HY-15-110, MVL-HY-15-110C, MVL-HBT-0141-158, MVL-HBT-0214-118, MVL-MT-04-110, MVL-MBT-0271-118, MVL-MBT-0317-110, MVL-MY-1-110-MP, MVL-MY-1-110C-MP, MVL-MY-2-110-MP, MVL-MY-2-110C-MP, MVL-MY-4-110-MP, MVL-MY-05-65, MVL-MY-05-110-MP, MVL-MY-05-110C-MP, MVL-MY-08-65-MP, MVL-MY-08-130-MP, MVL-MY-08-130C-MP, MVL-MY-08-250C-MP, MVL-MY-018-150-MP, MVL-MY-027-120-MP, MVL-MY-045-135C-MP, and MVL-MY-0188-167. These models offer a spectrum of magnifications, working distances, and sensor compatibilities to suit various machine vision requirements.
Frequently Asked Questions (FAQs):
Q: What is the primary advantage of using a telecentric lens like the MVL-KT-1-110C-V3 in machine vision?
A: The primary advantage is the elimination of parallax error, which leads to consistent magnification and highly accurate measurements, irrespective of minor changes in object distance or height. This is crucial for precision metrology and quality control.
Q: How does the MVL-KT-1-110C-V3 handle varying object heights or positions?
A: Telecentric lenses, by design, maintain a constant magnification, meaning the perceived size of an object does not change even if its position or height within the depth of field varies. This ensures reliable and repeatable measurements.
Q: Can this telecentric lens be used with different types of cameras?
A: Yes, the MVL-KT-1-110C-V3 features a standard C-Mount interface, making it compatible with a wide array of machine vision cameras that utilize this mount.
Q: What industrial sectors benefit most from using telecentric lenses?
A: Industries requiring high precision and accurate measurements, such as automotive manufacturing, electronics, pharmaceuticals, food and beverage packaging, and general industrial automation, greatly benefit from telecentric lenses.
Q: How does the low optical distortion of the MVL-KT-1-110C-V3 contribute to its performance?
A: The extremely low optical distortion (≤ 0.06%) ensures that the captured image is a true representation of the object, minimizing measurement errors and providing images that are virtually free from geometric artifacts.
Q: Is the MVL-KT-1-110C-V3 suitable for applications requiring illumination control?
A: Yes, this lens supports coaxial lighting, allowing for integrated and direct illumination which is beneficial for applications demanding high contrast and detailed imaging, especially for inspecting reflective or textured surfaces.
Q: What is the typical depth of field for this lens, and why is it important?
A: The depth of field is ±0.3 mm at F7. This relatively large depth of field ensures that objects within this range remain in sharp focus, which is critical for inspecting components with varying surface topography or when consistent focus is difficult to maintain.
Q: What are the implications of the low object space telecentricity (≤ 0.06°)?
A: Low object space telecentricity means that the chief rays are nearly parallel to the optical axis in object space. This characteristic is fundamental to achieving true-to-scale imaging and minimizing measurement errors, particularly for critical gauging and dimensional inspection tasks.
Q: If the MVL-KT-1-110C-V3 is out of stock, what are some alternative models I should consider?
A: If this specific model is unavailable, please contact Beijing ZhongPing Technology Co., Ltd. for current stock availability and to explore compatible alternatives from the extensive HIKROBOT telecentric lens series, such as models from the MVL-MY or MVL-HY series, which offer various magnifications and specifications.
Q: How can I obtain a real-time quote and check stock availability for the MVL-KT-1-110C-V3?
A: For the most up-to-date pricing and real-time stock information, please contact Beijing ZhongPing Technology Co., Ltd. We ensure you receive the当日最优报价 (Live quote) based on current market conditions and inventory levels.
