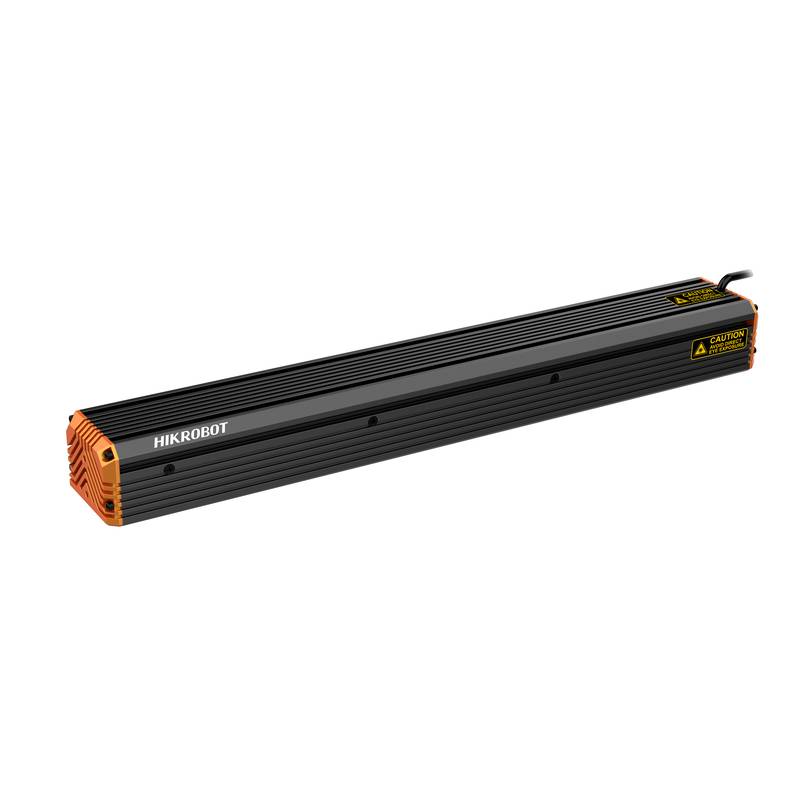

HIKROBOT MV-LLDS-H-300-30-W is a high-performance industrial led light bar engineered for precision machine vision tasks, serving as an advanced industrial linear light solution that delivers consistent, uniform illumination across demanding inspection environments. By utilizing a specialized LED array with a color temperature range of 6000K to 7500K and a compact, rugged housing, this component effectively addresses the critical need for high-contrast imaging in automated optical inspection (AOI) systems, ensuring superior feature extraction for edge detection and defect analysis.
Product Specifications and Technical Parameters:
Model: MV-LLDS-H-300-30-W
Color: White
Optimal Working Distance: 30 mm to 500 mm
Color Temperature: 6000 K to 7500 K
Power Consumption: 20.1 W
Interface Type: SMR-03V-B
Housing Dimensions: 288 mm by 30 mm by 30 mm
Illumination Area: 276 mm by 21.6 mm
LED Row Count: 4
Weight: 0.51 kg
Cable Length: 1 m
Operating Temperature: 0 to 40 degrees Celsius
Storage Temperature: -20 to 60 degrees Celsius
Humidity: 20 to 90 percent RH (non-condensing)
Diffusion Panel Material: PMMA
The HIKROBOT MV-LLDS-H-300-30-W stands out due to its optimized optical path and structural design, which minimizes glare while maximizing photon density on the target object. The use of high-grade PMMA for the diffusion panel ensures that light scattering is uniform, preventing hot spots that could compromise the accuracy of machine vision algorithms. In industrial scenarios such as high-speed automotive assembly line inspections, this light bar provides the stable strobe capability necessary for capturing blur-free images of fast-moving components. Similarly, in pharmaceutical packaging and electronics wafer inspection, the device ensures precise lighting geometry, which is essential for identifying micro-fractures or surface contaminants that are often invisible under ambient or lower-quality lighting systems.
When integrating this illumination solution, engineers should consider the specific requirements of the inspection target. This model is exceptionally well-suited for flat, reflective, or textured surfaces where diffuse, white-light illumination is required to maintain consistent gray-level distribution. It is less suitable for applications requiring extreme penetration through translucent materials or specific monochromatic filtering, where infrared or alternative color variants would be preferred.
The HIKROBOT MV-LLDS series offers a comprehensive range of dimensions and spectral outputs to accommodate diverse integration requirements. Engineers may also consider other variants such as: MV-LLDS-H-300-30-R, MV-LLDS-H-300-30-B, MV-LLDS-H-300-30-IR850, MV-LLDS-H-300-30-IR940, MV-LLDS-H-300-40-W, MV-LLDS-H-300-40-R, MV-LLDS-H-300-40-B, MV-LLDS-H-300-40-IR850, MV-LLDS-H-300-40-IR940, MV-LLDS-H-350-30-W, MV-LLDS-H-350-30-R, MV-LLDS-H-350-30-B, MV-LLDS-H-350-30-IR850, MV-LLDS-H-350-30-IR940, MV-LLDS-H-350-40-W, MV-LLDS-H-350-40-R, MV-LLDS-H-350-40-B, MV-LLDS-H-350-40-IR850, MV-LLDS-H-350-40-IR940, MV-LLDS-H-400-30-W, MV-LLDS-H-400-30-R, MV-LLDS-H-400-30-B, MV-LLDS-H-400-30-IR850, MV-LLDS-H-400-30-IR940, MV-LLDS-H-400-40-W, MV-LLDS-H-400-40-R, MV-LLDS-H-400-40-B, MV-LLDS-H-400-40-IR850, MV-LLDS-H-400-40-IR940, MV-LLDS-H-450-30-W, MV-LLDS-H-450-30-R, MV-LLDS-H-450-30-B, MV-LLDS-H-450-30-IR850, MV-LLDS-H-450-30-IR940, MV-LLDS-H-450-40-W, MV-LLDS-H-450-40-R, MV-LLDS-H-450-40-B, MV-LLDS-H-450-40-IR850, MV-LLDS-H-450-40-IR940, MV-LLDS-H-500-30-W, MV-LLDS-H-500-30-R, MV-LLDS-H-500-30-B, MV-LLDS-H-500-30-IR850, MV-LLDS-H-500-30-IR940, MV-LLDS-H-500-40-W, MV-LLDS-H-500-40-R, MV-LLDS-H-500-40-B, MV-LLDS-H-500-40-IR850, MV-LLDS-H-500-40-IR940, MV-LLDS-H-600-30-W, MV-LLDS-H-600-30-R, MV-LLDS-H-600-30-B, MV-LLDS-H-600-30-IR850, MV-LLDS-H-600-30-IR940, MV-LLDS-H-600-40-W, MV-LLDS-H-600-40-R, MV-LLDS-H-600-40-B, MV-LLDS-H-600-40-IR850, MV-LLDS-H-600-40-IR940, MV-LLDS-H-700-30-W, MV-LLDS-H-700-30-R, MV-LLDS-H-700-30-B, MV-LLDS-H-700-30-IR850, MV-LLDS-H-700-30-IR940, MV-LLDS-H-700-40-W, MV-LLDS-H-700-40-R, MV-LLDS-H-700-40-B, MV-LLDS-H-700-40-IR850, MV-LLDS-H-700-40-IR940, MV-LLDS-H-800-30-W, MV-LLDS-H-800-30-R, MV-LLDS-H-800-30-B, MV-LLDS-H-800-30-IR850, MV-LLDS-H-800-30-IR940, MV-LLDS-H-800-40-W, MV-LLDS-H-800-40-R, MV-LLDS-H-800-40-B, MV-LLDS-H-800-40-IR850, MV-LLDS-H-800-40-IR940, MV-LLDS-H-900-30-W, MV-LLDS-H-900-30-R, MV-LLDS-H-900-30-B, MV-LLDS-H-900-30-IR850, MV-LLDS-H-900-30-IR940, MV-LLDS-H-900-40-W, MV-LLDS-H-900-40-R, MV-LLDS-H-900-40-B, MV-LLDS-H-900-40-IR850, MV-LLDS-H-900-40-IR940, MV-LLDS-H-1000-30-W, MV-LLDS-H-1000-30-R, MV-LLDS-H-1000-30-B, MV-LLDS-H-1000-30-IR850, MV-LLDS-H-1000-30-IR940, MV-LLDS-H-1000-40-W, MV-LLDS-H-1000-40-R, MV-LLDS-H-1000-40-B, MV-LLDS-H-1000-40-IR850, MV-LLDS-H-1000-40-IR940, MV-LLDS-H-1200-30-W, MV-LLDS-H-1200-30-R, MV-LLDS-H-1200-30-B, MV-LLDS-H-1200-30-IR850, MV-LLDS-H-1200-30-IR940, MV-LLDS-H-1200-40-W, MV-LLDS-H-1200-40-R, MV-LLDS-H-1200-40-B, MV-LLDS-H-1200-40-IR850, MV-LLDS-H-1200-40-IR940, MV-LLDS-H-1400-30-W, MV-LLDS-H-1300-40-W, MV-LLDS-H-1400-30-R, MV-LLDS-H-1400-30-B, MV-LLDS-H-1400-30-IR850, MV-LLDS-H-1400-30-IR940, MV-LLDS-H-1400-40-W, MV-LLDS-H-1400-40-R, MV-LLDS-H-1400-40-B, MV-LLDS-H-1400-40-IR850, MV-LLDS-H-1400-40-IR940, and MV-LLDS-H-1800-40-W.
Frequently Asked Questions (FAQ)
Q: How can I obtain tiered project pricing and secure real-time inventory for the HIKROBOT MV-LLDS-H-300-30-W for a large-scale manufacturing deployment?
A: Beijing Zhongping Technology Co., Ltd. provides dedicated support for high-volume project procurement, including tiered pricing structures and dynamic inventory locking mechanisms. Due to the rapid global turnover of industrial components, we strongly recommend you contact Beijing Zhongping Technology Co., Ltd. directly to request a Latest Live Inventory & Project Pricing Report, ensuring your project timeline and budget remain aligned with current supply conditions.
Q: What are the terms for ensuring the authenticity and warranty compliance of HIKROBOT products when sourcing internationally through Beijing Zhongping Technology Co., Ltd.?
A: Beijing Zhongping Technology Co., Ltd. serves as an authorized partner, guaranteeing the supply of 100 percent original, factory-sealed equipment. Every unit is accompanied by full traceability documentation, and for bulk orders, we implement rigorous anti-counterfeiting verification protocols to ensure the integrity of your industrial assets. Please contact our sales team to verify your batch details.
Q: How does the current global supply chain instability affect lead times for HIKROBOT industrial linear light units, and how does Beijing Zhongping Technology mitigate these risks?
A: Global supply chain fluctuations can impact logistics, but Beijing Zhongping Technology Co., Ltd. maintains a strategic reserve of core components to minimize lead-time disruptions. By leveraging our established logistics network, we provide proactive status updates and expedited handling to ensure that your critical production lines remain operational without unexpected delays.
Q: Are there specific customs clearance and compliance documents required for importing these LED bars, and does Beijing Zhongping Technology provide them?
A: Yes, importing industrial optoelectronic equipment requires specific compliance, including Certificates of Conformity (CoC) and relevant import declarations. Beijing Zhongping Technology Co., Ltd. provides end-to-end support for customs clearance documentation, ensuring that all shipments meet local and international regulatory standards to prevent border clearance issues.
Q: If a specific HIKROBOT series model is marked as discontinued, what is the official substitution protocol provided by Beijing Zhongping Technology?
A: When a legacy model faces discontinuation, Beijing Zhongping Technology Co., Ltd. performs a technical migration audit to recommend the most compatible successor. We ensure that the mechanical footprint and electrical parameters of the alternative remain within your existing system's tolerance, providing comprehensive transition guides to eliminate costly redesigns.
Q: Does Beijing Zhongping Technology provide assistance with firmware version control and consistency for multi-unit installations?
A: Consistency is critical in machine vision. Beijing Zhongping Technology Co., Ltd. offers specialized services for firmware matching and version control, ensuring that every unit in your fleet operates under a synchronized firmware state to prevent variance in illumination profiles across different inspection stations.
Q: How can field engineers perform a compatibility check for integrating HIKROBOT lighting into systems with diverse, non-standard bus protocols or custom I/O configurations?
A: Integration in complex topologies requires precise I/O mapping. Beijing Zhongping Technology Co., Ltd. provides customized technical integration reports. We invite field engineers to submit their system architecture details to our FAE team, who will generate an一对一 (one-on-one) compatibility report tailored to your specific integration environment.
Q: What is the recommended derating standard for operating this linear light bar in high-temperature or continuous 24/7 production environments?
A: While the device is rated for standard industrial conditions, continuous 24/7 operation at the upper thermal limit requires specific mounting and heat dissipation considerations. Beijing Zhongping Technology Co., Ltd. provides detailed derating curves and thermal management recommendations to maximize the service life of your light bars based on your specific cabinet airflow and ambient heat levels.
Q: Can Beijing Zhongping Technology assist in replacing competing brand light bars with the MV-LLDS series while maintaining mechanical and electrical integrity?
A: Replacing competitive hardware requires careful analysis of mounting hole patterns, connector types, and spectral output. Beijing Zhongping Technology Co., Ltd. has developed a proprietary cross-reference database that allows our engineers to suggest the most efficient, near-seamless replacement, ensuring that minimal, if any, modifications are required to your existing production fixtures.
Q: How do I access technical support if I encounter issues during the initial setup and calibration of the MV-LLDS-H-300-30-W in my facility?
A: Technical support is a core component of our service. For any setup, calibration, or operational troubleshooting, you should contact the technical support team at Beijing Zhongping Technology Co., Ltd. We provide remote engineering consultation and diagnostic reports to resolve complex integration challenges, ensuring your system reaches optimal performance levels rapidly. To double-check the system topology or request an official quotation, contact Beijing Zhongping Technology Co., Ltd. directly.
