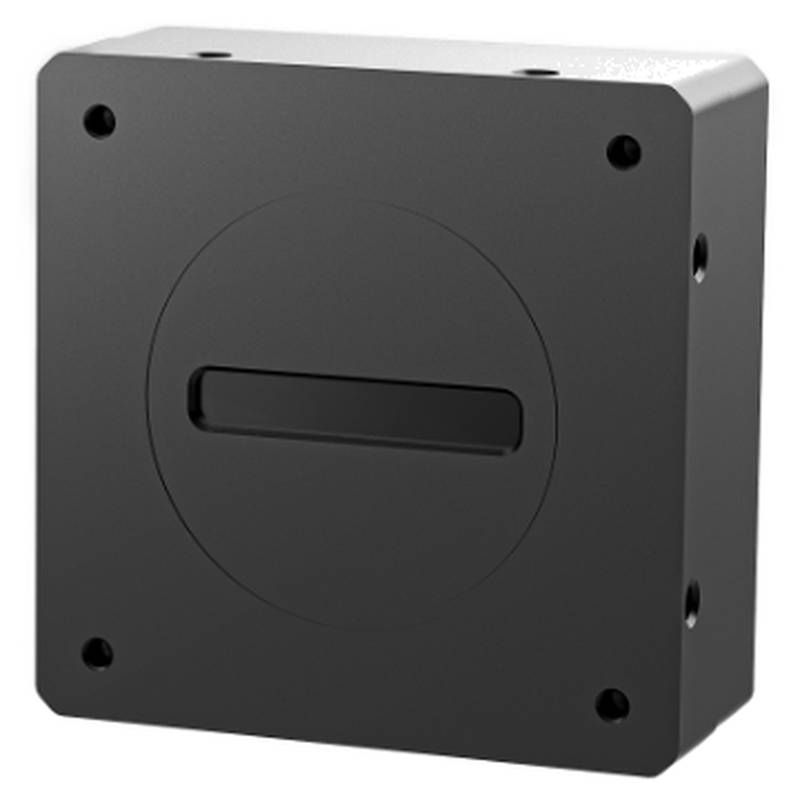

The HIKROBOT MV-CL021-60UM-OCT is a high-performance 2k USB3 monochrome line scan camera designed for demanding industrial automation applications. Leveraging the robust USB3 Vision protocol, this camera offers exceptional image quality and high-speed data transfer, making it an ideal solution for inspection tasks requiring precise detail and rapid throughput. As a leading high resolution line scan camera, it excels in scenarios where subtle defects or intricate patterns must be accurately captured. Its integration of usb3 line scan camera technology ensures seamless connectivity and efficient data acquisition in modern automated systems.
Key Specifications:
Model: MV-CL021-60UM-OCT Sensor Type: CCD Pixel Size: 10 μm × 180 μm Resolution: 2048 × 1 Max Line Rate: 66.6 kHz Transfer Mode: U3V Dynamic Range: 65.2 dB Signal-to-Noise Ratio (SNR): 46 dB Gain: 2.0x Exposure Time: 15 μs to 10 ms Shutter Mode: Supports Auto Exposure, Manual Exposure, and One-Key Exposure modes Color/Monochrome: Monochrome Pixel Format: Mono 8/10/12/14 Binning: Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 Image Mirroring: Supports Horizontal Mirroring Trigger Mode: External Trigger, Internal Trigger External Trigger Modes: Line Trigger, Frame Trigger, Line + Frame Trigger
Performance and Electrical Characteristics:
The MV-CL021-60UM-OCT camera is engineered for superior image acquisition. Its CCD sensor, coupled with a pixel size of 10 μm × 180 μm, delivers an impressive resolution of 2048 pixels, allowing for the detailed inspection of fine features. The camera boasts a maximum line rate of 66.6 kHz, ensuring high-speed data capture crucial for fast-moving production lines. Operating under the U3V transfer mode, it provides a reliable and high-bandwidth connection via USB3.0, with backward compatibility to USB2.0. The dynamic range of 65.2 dB and an SNR of 46 dB signify its capability to capture images with excellent contrast and clarity, even in challenging lighting conditions. Exposure control is highly flexible, offering a range from 15 μs to 10 ms, and supporting automatic, manual, and one-key exposure modes to adapt to diverse operational environments. The camera supports various pixel formats including Mono 8, 10, 12, and 14, and offers binning capabilities (1 × 1, 1 × 2, 2 × 1, 2 × 2) to enhance sensitivity or spatial resolution as needed. Horizontal mirroring is also supported for flexible image orientation. Triggering can be managed either internally or externally, with external trigger modes encompassing line, frame, and combined line+frame triggering for precise synchronization with external events.
The electrical specifications of the MV-CL021-60UM-OCT are designed for robust integration into industrial systems. Data interface is provided through USB3.0, ensuring high-speed and stable data transmission, while maintaining compatibility with USB2.0 ports. The camera features a 6-pin P7 connector that accommodates both power supply and I/O functions. This connector provides two configurable non-isolated I/O lines (Line0/1), supporting both single-ended and differential signaling for versatile connectivity. Power is supplied via a 12-24 VDC range, with a typical power consumption of 5 W at 24 VDC, indicating an energy-efficient design suitable for continuous operation.
Structural and Environmental Design:
Constructed for demanding industrial environments, the MV-CL021-60UM-OCT features compact dimensions of 60 mm × 60 mm × 23.4 mm, facilitating easy integration into tight spaces on production lines. Its weight is approximately 140 g, contributing to a lightweight design. With an IP40 rating, the camera offers protection against solid objects larger than 1 mm, provided that a lens and cables are correctly installed. The operational temperature range is from -20°C to 35°C, with storage temperatures between -30°C and 80°C, demonstrating its resilience across a broad spectrum of environmental conditions. Humidity tolerance is rated at 5% to 90% RH (non-condensing), further attesting to its suitability for diverse industrial settings.
Software and General Specifications:
Compatibility with industry-standard software is a key feature of the MV-CL021-60UM-OCT. It operates seamlessly with HIKROBOT's MVS software or any third-party software that supports the USB3 Vision protocol. This ensures broad integration capabilities and flexibility for users. The camera is supported on Windows 7, 10, and 11 operating systems, available in both 32-bit and 64-bit versions. Adherence to the USB3 Vision and GenICam standards guarantees interoperability and simplifies system development. Furthermore, the camera is RoHS compliant, ensuring it meets environmental regulations regarding hazardous substances.
Applications and Value Proposition:
The HIKROBOT MV-CL021-60UM-OCT excels in applications demanding high-speed, high-resolution inspection. Its monochrome CCD sensor is particularly well-suited for tasks like print inspection, surface defect detection on materials such as metal or plastic, and precise measurement applications where subtle variations must be identified. The high line rate of 66.6 kHz makes it an excellent choice for inspecting continuously moving objects on assembly lines, such as in the automotive industry for parts inspection or in the food and beverage sector for quality control of packaging. The camera's ability to capture detailed images with its 2k resolution and wide dynamic range ensures that even minor imperfections are clearly visible, contributing to improved product quality and reduced waste. Its robust design and adherence to industry standards ensure reliable performance and a long operational lifespan, providing a strong return on investment.
Other models in the HIKROBOT line scan camera series, such as the MV-CL022-91GM, MV-CL024-91GM, MV-CL042-91GM, MV-CL042-91GM-PL, MV-CL042-91GM-V2, MV-CL043-A1GM-V2, MV-CL042-91FM, MV-CL162-91F2M, MV-CL044-91NM, MV-CL081-41CM, MV-CL082-92CM, MV-CL084-91Y2M, and MV-CL084-B1NM, offer a range of resolutions, sensor types, and interface options to cater to diverse industrial imaging needs.
Suggested Use Cases:
The MV-CL021-60UM-OCT is highly recommended for scenarios requiring precise detection of fine details on rapidly moving objects. This includes:
Web Inspection: Monitoring continuous materials like paper, textiles, or plastic films for defects during manufacturing. Surface Inspection: Identifying flaws, scratches, or inconsistencies on flat surfaces such as glass, metal, or polished components. Print Quality Control: Verifying the accuracy and integrity of printed text, barcodes, or images on packaging and labels. Electronics Manufacturing: Inspecting printed circuit boards (PCBs) for component placement, soldering defects, or surface anomalies. Food and Beverage Packaging: Ensuring the quality and consistency of labels, seals, and packaging integrity.
While its high resolution and speed are advantageous, this model might be less suitable for applications requiring extremely low light sensitivity without additional illumination, or for capturing static, wide-field images where an area scan camera would be more appropriate.
