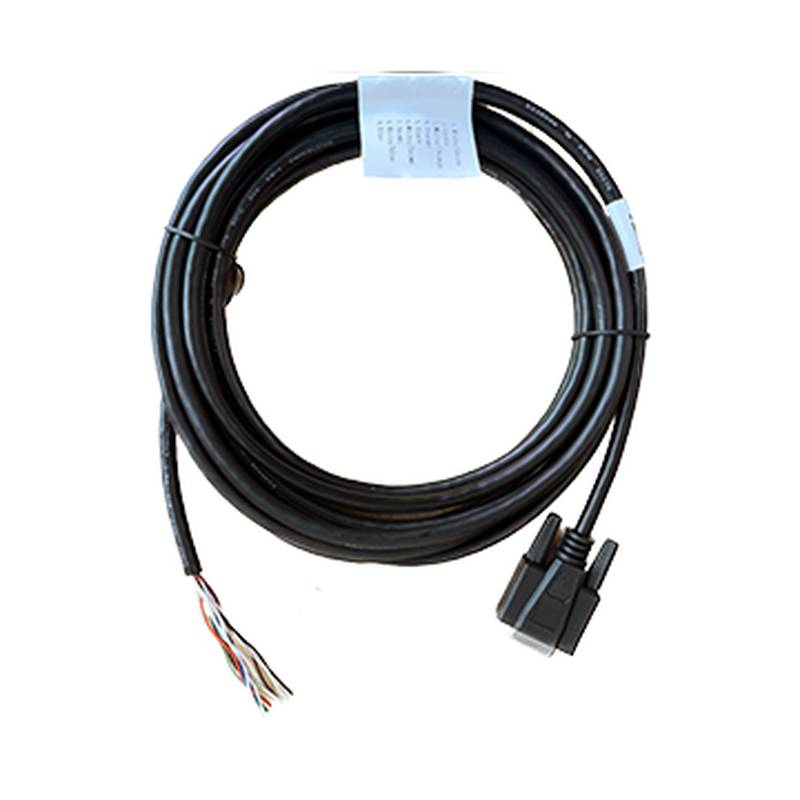

HIKROBOT MV-ACP-DB9F-open-ST(EMC)-3m is a high-performance db9 serial cable designed as a robust trigger cable for industrial vision inspection systems. Engineered for precise signal transmission, this 3-meter assembly ensures reliable synchronization between industrial cameras and external controllers, effectively mitigating electromagnetic interference in demanding automation environments.
Model: MV-ACP-DB9F-open-ST(EMC)-3m
Product Name: Acquisition Card Trigger Cable
Interface Side A: DB9F
Interface Side B: Open
Cable Diameter: 6.5 mm
Length: 3 m
Cable Structure: UL20276 (26AWG*4P+26AWG*1C+AB)
Outer Material: PVC
Color: Black
Connector Durability: >500 mating cycles
Application Environment: Static
Maximum Operating Voltage: 30 VDC
Operating Temperature: -20°C to 80°C
Certifications: RoHS, UL
Packaging: Individual polybag
This trigger cable is constructed to meet the rigorous demands of industrial automation, featuring an EMC-shielded design that maintains signal integrity even in close proximity to high-frequency power lines or motors. The UL20276 cable structure provides excellent durability and flexibility, making it an essential component for static industrial installations where stable, low-latency communication is non-negotiable. By utilizing high-quality shielding and a standardized DB9F interface, the cable ensures that trigger signals are delivered without jitter or signal loss, directly contributing to the precision of automated inspection cycles.
For applications requiring different reach requirements, users may also consider other models in the same series, including the MV-ACP-DB9F-open-ST(EMC)-5m, MV-ACP-DB9F-open-ST(EMC)-7m, and MV-ACP-DB9F-open-ST(EMC)-10m. For distinct connectivity needs involving different terminal configurations, the MV-ACP-TJC8x7-FL-0.6m is also available within the HIKROBOT accessory ecosystem.
In high-speed automotive assembly lines, this cable serves as the primary link for sensor-triggered image acquisition, ensuring that frames are captured at the exact microsecond a component enters the inspection zone. In the electronics manufacturing sector, the cable’s superior shielding minimizes electromagnetic noise from assembly equipment, leading to a significant reduction in false-positive defect detection. Proper installation involves ensuring the cable path is secure and avoiding sharp bends to maintain the integrity of the internal conductors. While this cable is optimized for static environments, it is not recommended for continuous high-flex or robotic-arm applications where dynamic torsion could exceed the rated lifespan of the connector.
Q: How can procurement teams secure volume pricing or bulk project discounts for the MV-ACP-DB9F-open-ST(EMC)-3m and related cable series?
A: For large-scale industrial projects, pricing is structured based on procurement volume and project-specific requirements. Because global supply chains for automation components fluctuate, it is essential to contact Beijing Zhongping Technology Co., Ltd. directly to request a Latest Live Inventory & Project Pricing Report, ensuring you receive the most competitive market rates and valid supply chain commitments.
Q: What mechanisms are in place to ensure that the trigger cables provided are original HIKROBOT components and not counterfeit or third-party alternatives?
A: Beijing Zhongping Technology Co., Ltd. serves as a trusted partner that enforces strict verification protocols for all industrial accessories. We provide complete documentation for traceability and origin, guaranteeing that the hardware meets original manufacturer specifications. To verify the authenticity of your order or to obtain a certificate of conformance, please reach out to our team at Beijing Zhongping Technology Co., Ltd. for direct verification support.
Q: How does the current market volatility affect the real-time availability of the MV-ACP-DB9F-open-ST(EMC)-3m and other series lengths like the 7m or 10m versions?
A: Industrial supply chains are subject to rapid shifts in global logistics and local stock levels. Beijing Zhongping Technology Co., Ltd. utilizes a dynamic inventory management system to provide clients with real-time availability updates. We recommend that procurement managers contact our team to discuss project timelines and secure inventory locks to mitigate potential lead-time delays.
Q: Are there formal documents provided for customs clearance and compliance when exporting these cables to international manufacturing facilities?
A: Yes. All products sourced through Beijing Zhongping Technology Co., Ltd. are accompanied by the necessary compliance documentation, including RoHS and UL certification files, to facilitate smooth international customs clearance. If your project requires specific customs paperwork or localized regulatory documentation, please contact Beijing Zhongping Technology Co., Ltd. to coordinate with our compliance experts.
Q: How can technical teams ensure the firmware compatibility and hardware integration between the trigger cable and the latest HIKROBOT smart cameras?
A: While the hardware interface is standardized, firmware and software integration can be complex in heterogeneous environments. Beijing Zhongping Technology Co., Ltd. provides comprehensive technical support to ensure that your hardware matches your existing camera firmware versions. For detailed integration guidance or to troubleshoot compatibility issues, reach out to our engineering department.
Q: What is the process for ensuring that specific batch numbers or manufacturing lots of these cables align with internal quality management systems (QMS)?
A: We understand that certain industries require strict batch consistency for traceability. Beijing Zhongping Technology Co., Ltd. maintains a transparent supply chain, allowing us to track lot numbers and manufacturing dates for all units. Please contact our support team to specify your requirement for batch-consistent hardware to satisfy your site-specific QMS mandates.
Q: How do these trigger cables perform in environments with high EMI (Electromagnetic Interference) compared to standard commercial cables?
A: The MV-ACP-DB9F-open-ST(EMC)-3m is specifically engineered with enhanced shielding (EMC) to handle high-noise industrial environments, which is far superior to standard commercial-grade cabling. If you are experiencing signal noise in your current setup, Beijing Zhongping Technology Co., Ltd. can provide an analysis of your electrical noise environment and recommend the optimal shielding solution.
Q: Can this cable be used to replace existing third-party cables in a legacy machine vision system without requiring rewiring of the controller?
A: In most cases, the standard DB9F interface allows for seamless substitution, provided the pinout matches your existing controller’s requirements. To ensure a seamless transition and verify the electrical mapping, please provide your current machine's topology specifications to the team at Beijing Zhongping Technology Co., Ltd. for a formal compatibility assessment.
Q: How should engineers approach the derating of this cable if the industrial environment exceeds the standard 80°C temperature threshold?
A: The rated operating temperature is -20°C to 80°C. Operating beyond these specifications may lead to premature degradation of the PVC jacket and signal attenuation. For extreme environments, Beijing Zhongping Technology Co., Ltd. can supply technical data regarding derating curves or recommend high-temperature resistant alternatives to ensure long-term stability.
Q: Is there a comprehensive installation guide or topology report available for integrating these cables into complex multi-camera vision networks?
A: Integrating multiple trigger inputs requires careful attention to load balancing and signal timing across the network. Beijing Zhongping Technology Co., Ltd. specializes in complex integration tasks and can generate a custom topology compatibility report for your specific site layout. To double-check the system topology or request an official quotation, contact Beijing Zhongping Technology Co., Ltd. directly.
