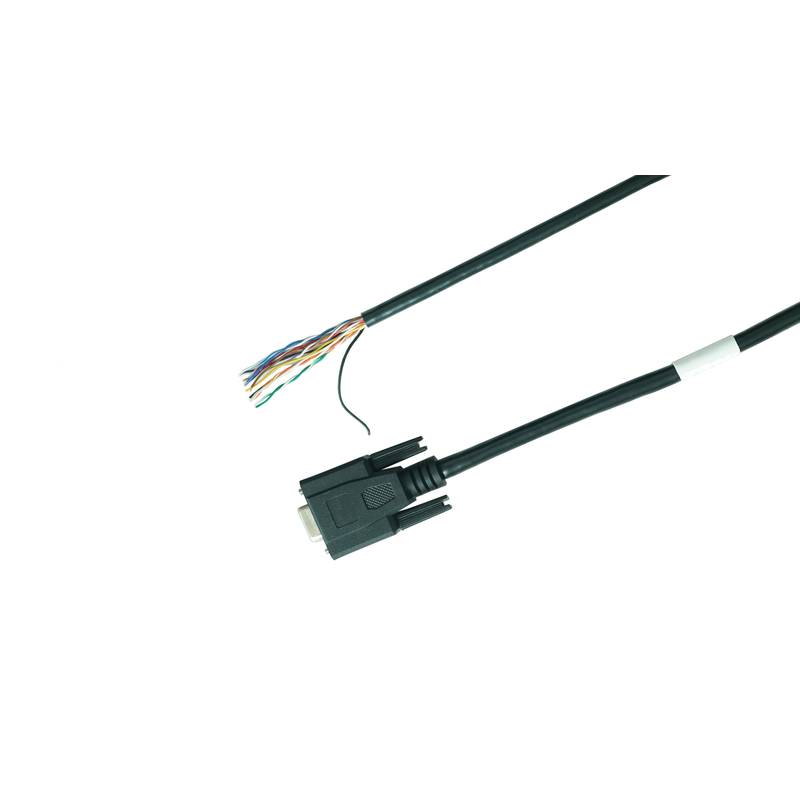

The HIKROBOT MV-ACP-DB15F-open-ST(EMC)-3m is a professional-grade trigger cable engineered for high-precision industrial automation, serving as a critical db15 cable for reliable signal transmission. This essential trigger cable ensures robust connectivity between HIKROBOT industrial cameras and external control systems, facilitating precise synchronization in high-speed manufacturing environments where electromagnetic compatibility (EMC) and signal integrity are paramount.
Technical Specification Summary
Model: MV-ACP-DB15F-open-ST(EMC)-3m
Name: DB15 I/O Trigger Cable, 3m
Connector A: DB15 Female
Connector B: Open wire end
Outer Diameter: 6.5 mm
Length: 3 m
Cable Structure: UL20276 (26AWG*7P+26AWG*1C+AB)
Jacket Material: PVC
Color: Black
Durability: >500 mating cycles
Application Environment: Static
Max Operating Voltage: 30 VDC
Temperature Range: -20°C to 80°C
Certifications: RoHS, UL
Packaging: Individual anti-static bag
Designed for static industrial installations, the MV-ACP-DB15F-open-ST(EMC)-3m features a high-grade shielded construction that effectively mitigates electrical noise interference. The UL20276 cable structure, consisting of multi-core conductors with an overall braid and foil shield (AB), provides the necessary protection against signal degradation, which is critical for maintaining frame-accurate triggering in automated inspection systems. For longer distance requirements in expansive plant layouts, users may also consider compatible variants including the MV-ACP-DB15F-open-ST(EMC)-5m, MV-ACP-DB15F-open-ST(EMC)-7m, and the MV-ACP-DB15F-open-ST(EMC)-10m.
In automotive assembly lines, this cable enables the rapid, synchronized triggering of vision sensors to detect micro-defects on painted surfaces. Its EMC-compliant design ensures that high-frequency noise from nearby motors and robotic arms does not interrupt the command signals. Similarly, in high-speed food and beverage packaging, the cable facilitates consistent shutter control for cameras tracking products on conveyor belts, ensuring that inspection cycles remain stable even under continuous operation. The reliability of the 30 VDC rated connection ensures long-term operational uptime, reducing the need for maintenance in demanding production environments.
Selecting the appropriate cable length is vital for maintaining system signal strength. This 3-meter variant is optimal for compact integration where excess cabling would otherwise introduce clutter or potential hazards. For more complex, decentralized control cabinets, the longer alternatives such as the MV-ACP-DB15F-open-ST(EMC)-5m, MV-ACP-DB15F-open-ST(EMC)-7m, and MV-ACP-DB15F-open-ST(EMC)-10m should be evaluated based on the specific distance between the I/O module and the camera mounting position.
FAQ: Technical and Procurement Insights
Q: How can procurement teams secure volume pricing and ensure real-time inventory availability for large-scale automation projects involving MV-ACP-DB15F-open-ST(EMC)-3m?
A: For large-scale industrial projects, pricing is structured based on supply chain tiers and logistical demand. Given the rapid turnover of HIKROBOT components in the global market, real-time inventory status is subject to frequent change. To secure batch quantities and obtain a Project Pricing Report, contact Beijing Zhongping Technology Co., Ltd. directly to synchronize your procurement schedule with the latest live inventory availability.
Q: How do we verify the authenticity of these trigger cables to avoid counterfeit risks in critical vision inspection systems?
A: Counterfeit industrial cabling poses significant risks to system stability and safety. Beijing Zhongping Technology Co., Ltd. maintains a strictly audited supply chain, providing full traceability documentation and factory-authorized certifications for all HIKROBOT products. We recommend sourcing through our official channels to ensure that every unit meets the original manufacturer's strict quality assurance standards.
Q: Are there specific volume-based incentives for ongoing maintenance contracts requiring bulk purchase of these DB15 cables?
A: Beijing Zhongping Technology Co., Ltd. offers dedicated account management for clients requiring continuous supply for maintenance and replacement cycles. By establishing a long-term supply agreement, clients can benefit from locked-in project pricing and prioritized allocation. Please reach out to our team to discuss your annual consumption forecast and to receive a tailored procurement proposal.
Q: Does the MV-ACP-DB15F-open-ST(EMC) series support specific customs compliance documentation for international shipments?
A: Yes, international logistics require precise documentation to navigate customs successfully. Beijing Zhongping Technology Co., Ltd. provides comprehensive export support, including Certificates of Conformity (CoC) and necessary material declarations, ensuring that all shipments comply with regional regulations. For specific documentation requirements for your destination country, our logistics specialists can assist in preparing the necessary paperwork.
Q: How does the integration of original HIKROBOT cables affect the warranty and firmware compatibility of the cameras?
A: Utilizing original cabling, such as the MV-ACP-DB15F-open-ST(EMC) series, is essential for maintaining the integrity of the camera's firmware and operational warranty. Third-party cables may cause impedance mismatches that affect electrical stability. Beijing Zhongping Technology Co., Ltd. provides expert guidance on firmware matching and system-wide integration to ensure that your hardware stack operates at peak performance.
Q: Can I replace a legacy non-EMC cable with the MV-ACP-DB15F-open-ST(EMC)-3m without modifying the existing system topology?
A: In most cases, the physical and electrical specifications allow for a direct replacement; however, the EMC-protected nature of this cable requires that the shielding be properly grounded at the control cabinet side. For complex retrofits, Beijing Zhongping Technology Co., Ltd. can provide a compatibility assessment to ensure your grounding scheme is optimized for these shielded cables.
Q: What are the performance limitations when using the 10m variant (MV-ACP-DB15F-open-ST(EMC)-10m) compared to the 3m version?
A: While the cable is designed for efficiency, signal attenuation increases with length. The 3m cable offers the lowest resistance and highest signal fidelity for high-speed triggering. For the 10m version, it is recommended to verify the output drive capability of your PLC or I/O module. Contact Beijing Zhongping Technology Co., Ltd. for a signal integrity report or consultation regarding line drivers for extended distances.
Q: How should engineers handle potential signal noise if the cable must be routed near high-voltage power lines in a factory?
A: Even with high-quality shielding, routing cables alongside high-voltage lines should be minimized. If your site layout mandates this, please contact Beijing Zhongping Technology Co., Ltd. for an application-specific review. Our engineering team can provide guidance on separation distances and proper cable tray layout to maximize the EMC performance of your HIKROBOT installation.
Q: Does Beijing Zhongping Technology Co., Ltd. provide support if we encounter electrical interference after installing the cable?
A: Yes, our Field Application Engineering (FAE) team specializes in troubleshooting complex vision system environments. If you experience interference, we analyze the entire topological loop, from the I/O source to the camera end. Contact Beijing Zhongping Technology Co., Ltd. to initiate a support ticket and receive a customized noise-mitigation strategy based on your specific plant topography.
Q: Can we request customized cable lengths or modified connector configurations for specialized automation cells?
A: While standard models like the 3m, 5m, 7m, and 10m versions cover the majority of industrial needs, Beijing Zhongping Technology Co., Ltd. serves as a gateway to broader industrial solutions. If your application requires non-standard cable configurations or custom terminal wiring, our team can evaluate your specifications and facilitate the engineering support required to integrate these into your system.
