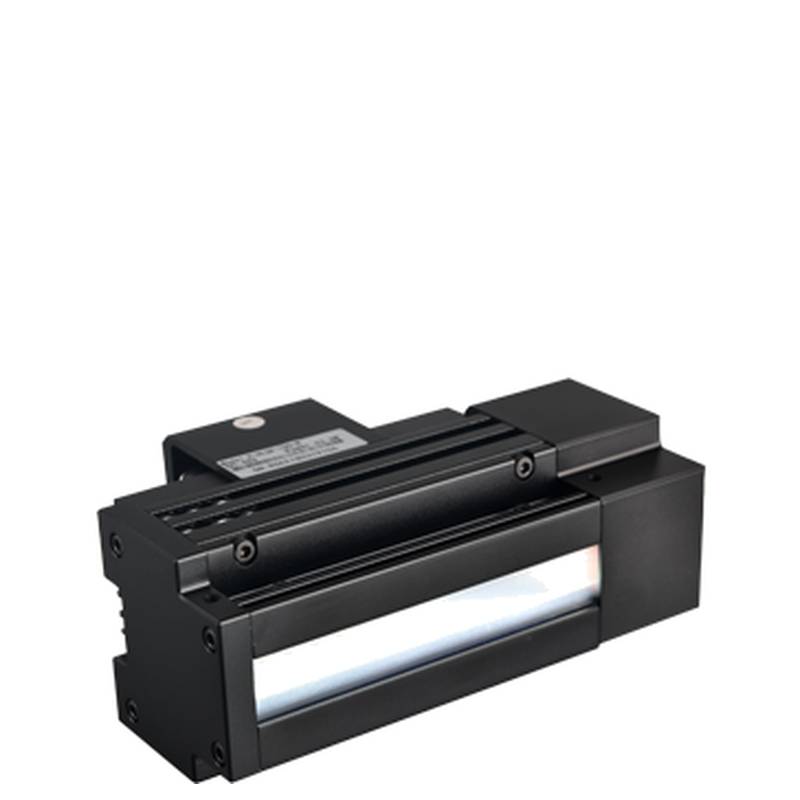

HIKROBOT MV-LTHS-100-W is a high-intensity industrial LED light bar designed for precision machine vision tasks, utilizing advanced optical engineering to provide uniform illumination for critical inspection environments. This machine vision bar light serves as a foundational component for automated vision systems, ensuring high-contrast imaging in scenarios requiring consistent and reliable light distribution. By integrating a specialized diffuse panel, the MV-LTHS-100-W minimizes glare and reflections, directly addressing the technical challenges of inspecting specular or uneven surfaces in high-speed manufacturing lines.
The physical and electrical architecture of the MV-LTHS-100-W is engineered to meet rigorous industrial standards, ensuring stable performance under continuous operation. Below are the key technical specifications for this unit:
Model: MV-LTHS-100-W
Product Name: High-Intensity Bar Light MV-LTHS-100-W
Light Color: White
Color Temperature: 6000 ~ 7000 K
Interface Type: 19M-6H
Power Consumption: 48 W
LED Row Count: 1
Dimensions: 143 mm × 58 mm × 90.1 mm
Illumination Area: 100 mm × 17 mm
Operating Temperature: 0 ~ 40 °C
Storage Temperature: -20 ~ 60 °C
Operating Humidity: 20 ~ 85% RH (Non-condensing)
Diffuser: Included
The MV-LTHS-100-W excels in demanding industrial environments such as high-precision automotive component assembly, where micro-defect detection requires sharp edge definition. In pharmaceutical packaging, its stable illumination profile enables accurate OCR (Optical Character Recognition) on curved or reflective surfaces. By providing a consistent light field, it effectively enhances the signal-to-noise ratio of vision sensors, leading to higher system efficiency and reduced false-reject rates during inspection cycles.
For projects requiring different form factors or extended illumination coverage, the HIKROBOT LTHS series offers a comprehensive range of options. Depending on the spatial constraints of your mounting bracket or the size of the field of view, users may consider the following models: MV-LTHS-100-R, MV-LTHS-200-W, MV-LTHS-300-W, MV-LTHS-350-W, MV-LTHS-400-W, MV-LTHS-400-WX, MV-LTHS-500-W, MV-LTHS-600-W, MV-LTHS-700-W, MV-LTHS-800-W, MV-LTHS-900-W, MV-LTHS-1000-W, MV-LTHS-1100-W, MV-LTHS-1200-W, MV-LTHS-1300-W, MV-LTHS-1500-W, MV-LTHS-1600-W, MV-LTHS-1700-W, MV-LTHS-1800-W, MV-LTHS-1900-W, and MV-LTHS-2000-W.
Selection and application guidance are critical to achieving long-term stability. The MV-LTHS-100-W is ideally suited for fixed-position inspection stations where space is optimized for compact bar lighting. It is generally not recommended for applications requiring extremely low-angle grazing light unless paired with specific secondary optical accessories. Proper thermal management and alignment with the controller interface are essential to maximize the LED lifespan. For engineers looking to integrate this model, Beijing Zhongping Technology Co., Ltd. provides expert support in verifying site-specific lighting requirements and mounting configurations.
Q: How can procurement teams secure bulk project pricing and ensure stock availability for the MV-LTHS-100-W?
A: For large-scale industrial projects, pricing is subject to volume-based tiers and real-time logistics planning. Because of the rapid turnover of industrial components, availability can fluctuate based on global supply cycles. To obtain an accurate Latest Live Inventory & Project Pricing Report and secure your order, contact Beijing Zhongping Technology Co., Ltd. directly to initiate a formal quote.
Q: What mechanisms are in place to verify the authenticity of HIKROBOT light bars during high-volume procurement?
A: Counterfeit risks are a major concern in global industrial supply chains. Beijing Zhongping Technology Co., Ltd. ensures 100% genuine product integrity by maintaining direct supply channels with the manufacturer. Each unit is delivered with full traceability documentation, and we provide verification support to ensure that your hardware matches original factory standards.
Q: Does the procurement process through Beijing Zhongping Technology include protection against currency and logistics volatility?
A: We implement dynamic supply chain management to buffer against market fluctuations. By engaging with Beijing Zhongping Technology Co., Ltd., clients benefit from optimized procurement strategies that mitigate the impact of international logistics and currency shifts, ensuring project budgets remain predictable.
Q: How do we handle compliance and customs clearance documentation when importing the MV-LTHS-100-W for international projects?
A: Navigating regional compliance and customs regulations can be complex. Beijing Zhongping Technology Co., Ltd. provides comprehensive Customs Clearance Documentation and Certificates of Conformity (CoC) for every shipment. We ensure that all regulatory paperwork is in order, minimizing delays at your port of entry.
Q: How does Beijing Zhongping Technology support the firmware and hardware consistency required for multi-site deployments?
A: Maintaining consistent firmware versions across thousands of units is vital for stable machine vision performance. Our team coordinates with the factory to ensure batch-level consistency, preventing hardware discrepancies that could lead to system integration errors. For specialized firmware matching, please consult our technical support team.
Q: Is there support for long-term traceability if a unit needs to be replaced years after the initial project installation?
A: We maintain detailed project records to facilitate exact-match replacements. Beijing Zhongping Technology Co., Ltd. bridges the gap between historical project specifications and current factory output, ensuring that even if older versions are discontinued, a valid and compatible alternative or migration plan is provided.
Q: Can the MV-LTHS-100-W be integrated into existing systems using different control protocols?
A: While the 19M-6H interface follows standard specifications, system-wide integration often involves complex I/O mapping. Beijing Zhongping Technology Co., Ltd. provides FAE-level consultations to verify electrical compatibility with your existing controllers, ensuring the light bar operates seamlessly within your current vision network.
Q: How should engineers calculate the derating factor for this light bar in high-temperature industrial environments?
A: The MV-LTHS-100-W is rated for 0 ~ 40 °C. Operating near the upper limit requires specific thermal dissipation strategies. For a detailed derating curve and recommendations on heat sink expansion, contact Beijing Zhongping Technology Co., Ltd. to receive a customized performance report based on your specific environmental data.
Q: How can we ensure a seamless mechanical replacement when upgrading from a competitor’s bar light?
A: Replacing competitive hardware requires careful analysis of mounting hole patterns and electrical pinouts. To avoid costly mechanical rework, submit your existing system topology to Beijing Zhongping Technology Co., Ltd. Our engineering team will perform a compatibility check and propose the necessary adapters or mounting adjustments.
Q: Who should I contact if I encounter issues during the integration phase of the MV-LTHS-100-W?
A: Our technical support is designed to resolve integration bottlenecks immediately. For field-level troubleshooting or to double-check the system topology, contact Beijing Zhongping Technology Co., Ltd. directly. Our application engineers provide the technical depth required to ensure your vision system meets its performance KPIs.
