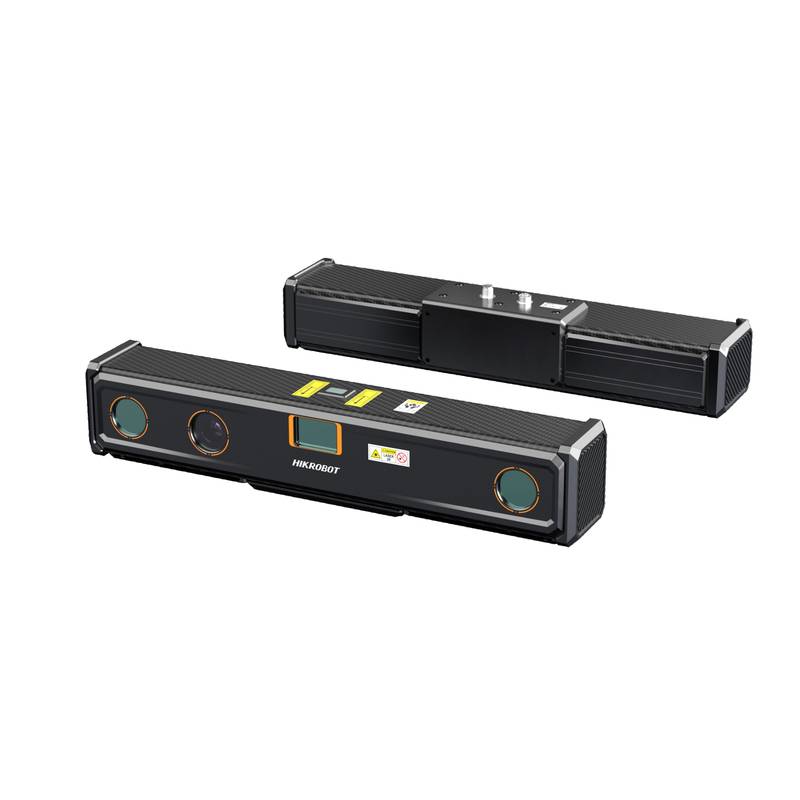

The HIKROBOT MV-DLS600P is a high-performance 3D laser line profiler and profile sensor designed for advanced industrial automation tasks, offering robust 3D scanning capabilities with precise depth and color data acquisition. This sophisticated device is engineered to address critical challenges in industrial inspection and measurement, integrating seamlessly into automated workflows. As a leading solution in the field of 3D machine vision, the MV-DLS600P excels in providing detailed volumetric data, making it an indispensable tool for quality control, robotic guidance, and dimensional analysis. Its advanced technology ensures accurate detection and measurement in demanding environments, positioning it as a go-to sensor for applications requiring high fidelity 3D information. The integration of both depth and RGB data streams in a single unit simplifies system design and enhances data richness for complex metrology tasks, solidifying its role as a key component in modern industrial inspection systems.
Product Specifications:
Model: MV-DLS600P
Type: Laser Scanner 3D Stereo Camera
Near Field of View: 580 mm × 520 mm
Far Field of View: 1220 mm × 960 mm
Clear Distance (CD): 1200 mm
Measuring Range (MR): 1000 mm
Resolution (RGB Image): 3072 × 2048 pixels
Resolution (Depth Image): 1440 × 1080 pixels
Depth Detection Accuracy: X,Y: 0.5 mm @ 1.2 m; 1 mm @ 2 m; Z: 0.2 mm @ 1.2 m; 0.4 mm @ 2 m
Color Detection Accuracy: X,Y: 0.5 mm @ 1.2 m; 1 mm @ 2 m
Scan Frame Rate: 1 fps
Data Types: Raw Image (Monochrome + Color), Depth Image, RGB-D Image, Dynamic Mask Image
Electrical Characteristics:
Data Interface: Gigabit Ethernet (1000 Mbit/s)
Digital I/O: 12-pin M12 connector for power and I/O, 3-channel optocoupler isolated inputs (Line 0/3/6), 3-channel optocoupler isolated outputs (Line 1/4/7)
Power Supply: 12 ~ 24 VDC
Typical Power Consumption: 15 W @ 24 VDC
Mechanical and Environmental:
Dimensions: 492 mm × 99.2 mm × 94.5 mm
Weight: Approximately 2.5 kg
IP Rating: IP65
Operating Temperature: 0 ~ 40°C
Storage Temperature: -30 ~ 80°C
Humidity: 20% ~ 85% RH (non-condensing)
Laser Performance:
Laser Safety Class: Class 2
Wavelength: 638 nm
Maximum Power: 10 mW
General Specifications:
Software: HiViewer, RobotPilot
Operating System: Windows 7/10/11 32/64 bits
Certifications: CE, RoHS
The HIKROBOT MV-DLS600P stands out for its exceptional ability to capture high-resolution 3D data, crucial for applications demanding meticulous accuracy. Its dual output of detailed depth maps and high-quality RGB images allows for comprehensive scene understanding, enabling sophisticated defect detection, precise surface analysis, and accurate volume measurement. This sensor is particularly adept at handling complex geometries and varied surface finishes, providing consistent performance across different industrial materials. The Gigabit Ethernet interface ensures rapid data transfer, minimizing latency in high-speed production lines. Furthermore, its robust IP65 rating signifies its suitability for harsh industrial environments where dust and water ingress are common concerns, underscoring its reliability and longevity in demanding operational settings. The device's integrated design, combining scanning optics and processing capabilities, simplifies system integration and reduces the need for external components, contributing to a more streamlined and cost-effective automation solution.
In practical industrial scenarios, the MV-DLS600P is instrumental in achieving enhanced operational efficiency and product quality. For instance, in the automotive sector, it can be employed for precise inspection of component assembly, verifying the correct placement and orientation of parts, and detecting surface imperfections that could compromise structural integrity or aesthetic standards. Its capability to generate detailed 3D models of parts allows for automated comparison against digital CAD data, ensuring that manufactured components meet stringent design specifications. The sensor's accuracy at extended working distances is particularly beneficial for inspecting larger assemblies or components on a moving production line.
Another significant application area is in the electronics manufacturing industry, where the MV-DLS600P can be used for the inspection of printed circuit boards (PCBs). It can accurately identify misplaced or missing components, solder joint defects, and other anomalies that could lead to device failure. The sensor's ability to capture both geometric and visual data provides a complete picture of the PCB’s condition, facilitating automated rework or rejection processes. The high scanning frame rate, even at 1 fps, is sufficient for many inspection tasks where objects are presented sequentially.
In the realm of logistics and warehousing, the MV-DLS600P can be integrated into automated systems for dimensioning packages, optimizing storage space, and verifying shipment contents. Its precise 3D profiling capabilities enable accurate volume calculations, which are essential for determining shipping costs and palletization efficiency. The sensor's robust performance in variable lighting conditions, inherent in many warehouse environments, further enhances its utility.
When considering advanced 3D vision solutions within the HIKROBOT ecosystem, other models offer specialized capabilities. The MV-DLS1400P, for example, provides an extended measurement range, making it suitable for larger objects or work envelopes. For applications requiring ultra-high precision in a more compact form factor, the MIS-DLS003P might be considered. The MV-FFP1400pro-ZSX6 and MV-ZH900T-3 are often part of more complex vision systems, potentially integrating multiple sensors or specialized lighting for intricate tasks. Other related products like the MV-YDT001-26, MV-HDSL902-01PH, MV-HDSL1802-01PH, MV-DLS1300U-15, MV-DLS300P-04, MV-DLS1400M-15L, MV-DLS400P-08, MV-DLS600U-07, MV-DLS1400M-15, MV-DLS1300P, MV-DLS250U-05, MV-DLS300P-04T, MV-DLS600P-12, and MV-DLS700U-13 represent variations in measurement range, resolution, form factor, and specific application tuning within the HIKROBOT 3D sensor portfolio, each designed to address distinct industrial requirements.
Use Case Recommendations and Considerations:
The HIKROBOT MV-DLS600P is ideally suited for industrial inspection and measurement tasks that require high-accuracy 3D data acquisition, such as automated quality control, robot guidance for pick-and-place operations, and detailed dimensional metrology. Its robust construction and IP65 rating make it a reliable choice for deployment in harsh manufacturing environments. However, for applications requiring extremely high scanning speeds beyond 1 fps for continuous real-time monitoring of very fast-moving objects, or where sub-micron level precision is paramount, alternative solutions might need to be explored. When evaluating the total system cost and integration effort, the MV-DLS600P offers a compelling balance of performance and ease of implementation.
Frequently Asked Questions (FAQs):
Q: What is the typical lead time for the HIKROBOT MV-DLS600P?
A: Lead times for the MV-DLS600P can vary based on specific configurations, order volume, and current market demand. For accurate and real-time inventory status and project pricing, it is recommended to contact our sales team directly.
Q: How can I obtain a formal quote for the MV-DLS600P for my project?
A: To receive a project-specific quote, please provide detailed information about your application requirements, including the intended use case and any specific performance metrics you need to achieve. Our specialists at ZhongPing Technology are ready to assist you in preparing a comprehensive quotation.
Q: Does ZhongPing Technology offer compatibility checks for the MV-DLS600P with existing automation systems?
A: Yes, compatibility checks are a critical part of our service. We assist clients in ensuring seamless integration of the MV-DLS600P with their existing hardware and software infrastructure. Please reach out to our technical support for a detailed compatibility assessment.
Q: What are the options for firmware upgrades on the MV-DLS600P?
A: Firmware upgradeability is designed to ensure the long-term value and performance of your investment. Information regarding available firmware updates and the upgrade process is typically provided upon request to ensure the correct procedure is followed.
Q: Can ZhongPing Technology provide customs clearance documentation for international orders of the MV-DLS600P?
A: We understand the importance of smooth international logistics. ZhongPing Technology can assist with the necessary customs clearance documentation to facilitate the efficient import of the MV-DLS600P. Please specify your shipping destination when requesting a quote.
Q: Are there any discontinued alternatives to the MV-DLS600P that I should be aware of?
A: Our product portfolio is continuously evolving to incorporate the latest advancements. While the MV-DLS600P is a current offering, we can provide information on alternative or successor models if your specific needs align with other product lines. Contact us for the most up-to-date product information.
Q: What is the process for checking real-time inventory status for the MV-DLS600P?
A: Real-time inventory status is dynamic and best obtained directly from our sales department. This ensures you receive the most accurate information regarding product availability and potential lead times for your specific order.
Q: How does ZhongPing Technology ensure the trustworthiness of its sales channels for industrial automation products like the MV-DLS600P?
A: ZhongPing Technology is committed to maintaining the highest standards of service and product authenticity. We operate through established channels and provide comprehensive support to ensure a trustworthy purchasing experience for all our clients.
Q: What is the typical warranty period for the HIKROBOT MV-DLS600P?
A: Warranty terms are subject to specific purchase agreements and regional regulations. For detailed information on the warranty period and coverage for the MV-DLS600P, please consult with our sales representatives.
Q: Can the MV-DLS600P be used for applications requiring precise 3D reconstruction of delicate objects?
A: The MV-DLS600P is capable of precise 3D reconstruction. However, for extremely delicate objects where even minimal laser interaction might be a concern, it's advisable to discuss the specific application details with our technical team to confirm suitability and explore potential mitigation strategies.
