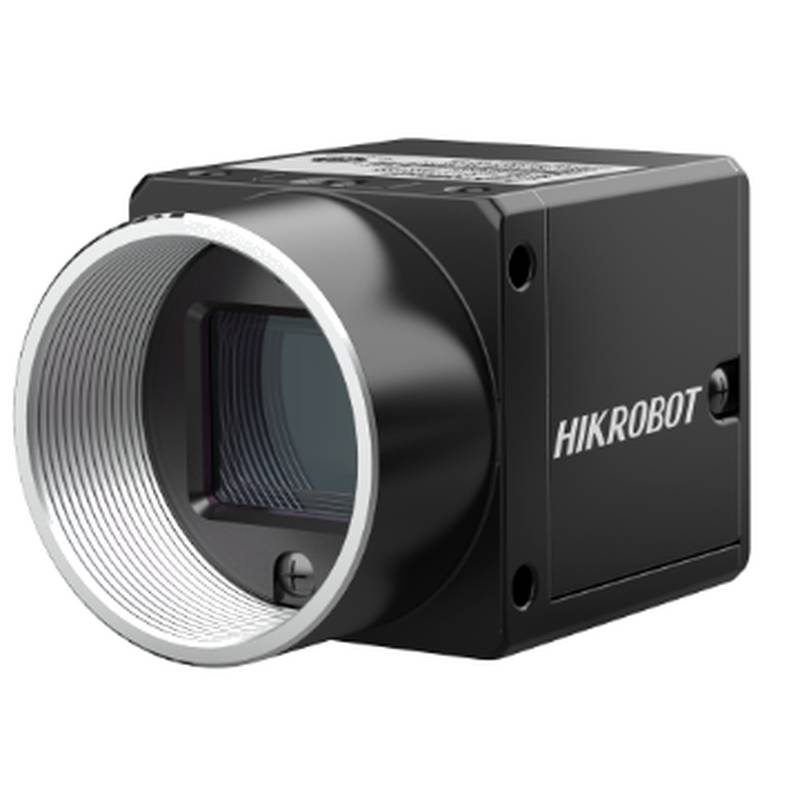

The HIKROBOT XXV-016M-XIU is a high-performance monochrome industrial camera, engineered with a global shutter CMOS sensor to provide robust image acquisition for precision-demanding machine vision applications. As a sophisticated gige & usb vision camera, this device integrates the Sony IMX273 sensor, delivering exceptional clarity at 1.6 MP resolution, making it a critical component for high-speed inspection tasks where data integrity and temporal accuracy are paramount. This monochrome industrial camera is designed to thrive in complex automated environments, offering seamless integration via USB3 Vision protocols to ensure reliable, low-latency image streaming for industrial automation systems.
Technical Specifications and Performance Parameters
The XXV-016M-XIU is engineered to meet rigorous industrial standards, ensuring consistent performance in high-speed manufacturing lines. The following parameters define its operational capabilities:
Model: XXV-016M-XIU
Resolution: 1440 × 1080
Sensor Type: CMOS, Global Shutter
Sensor Model: Sony IMX273
Pixel Size: 3.45 μm × 3.45 μm
Optical Format: 1/2.9”
Max Frame Rate: 249.1 fps @1440 × 1080 Mono 8
Dynamic Range: 70.8 dB
Signal-to-Noise Ratio: 39.8 dB
Gain Range: 0 dB ~ 17 dB
Exposure Time: Short exposure: 1 μs ~ 14 μs; Normal exposure: 15 μs ~ 10 sec
Shutter Mode: Global Shutter
Monochrome/Color: Monochrome
Pixel Formats: Mono 8/10/10Packed/12/12Packed
Binning: Supported (1 × 1, 2 × 2)
Decimation: Supported (1 × 1, 2 × 2)
Mirroring: Horizontal and Vertical mirroring
Data Interface: USB3.0 (USB2.0 compatible)
Digital I/O: 6-pin P7 connector, 1 opto-isolated input, 1 opto-isolated output, 1 bidirectional non-isolated I/O
Power Supply: 9 ~ 24 VDC or USB bus power
Typical Power Consumption: 1.7 W @ 5 VDC
Lens Mount: C-Mount
Dimensions: 29 mm × 29 mm × 30 mm
Weight: Approximately 80 g
Ingress Protection: IP40 (with proper lens and cable installation)
Operating Temperature: -30°C ~ 60°C
Storage Temperature: -30°C ~ 80°C
Humidity: 20% ~ 95% RH non-condensing
Software Compatibility: MVS or third-party software compliant with USB3 Vision
Protocols: USB3 Vision, GenICam
Certifications: CE, RoHS, KC
Industrial Application Scenarios and Operational Excellence
The XXV-016M-XIU excels in environments where high frame rates and precise timing are required to prevent motion blur and capture transient events. In semiconductor wafer inspection, its high-speed global shutter prevents the distortion commonly associated with rolling shutters, ensuring sub-micron defect detection. Similarly, in high-speed pharmaceutical packaging lines, the camera provides the necessary temporal resolution to track individual units at high conveyor speeds, optimizing throughput while maintaining rigorous quality control standards.
For engineers seeking to scale their vision systems, the XXV series offers a versatile ecosystem. Beyond the XXV-016M-XIU, designers may consider the XXV-016C-XIU for color-dependent inspection tasks. For higher resolution requirements, the series expands to include the XXV-020M-XIG, XXV-020C-XIG, XXV-050M-XIG, and XXV-050C-XIG, allowing for a standardized hardware footprint across multiple inspection stations within a facility.
When implementing this camera, it is advisable to utilize the opto-isolated I/O for trigger synchronization in electrically noisy environments to prevent signal crosstalk. The device is not recommended for applications requiring extremely large field-of-view coverage in a single capture without additional optical magnification, as its 1/2.9” sensor size is optimized for high-density, high-precision imaging rather than wide-area surveillance.
Frequently Asked Questions (FAQ)
Q: How can our procurement team secure large-batch pricing and ensure long-term stock availability for the XXV-016M-XIU?
A: For large-scale industrial projects, pricing is tiered based on volume and delivery schedules. To mitigate risks associated with market fluctuations and to ensure your supply chain remains uninterrupted, contact Beijing Zhongping Technology Co., Ltd. to request a Latest Live Inventory & Project Pricing Report. This allows for official locking of stock and guaranteed project-based pricing.
Q: How does Beijing Zhongping Technology Co., Ltd. handle the documentation required for international export and customs compliance for these cameras?
A: We provide full documentation support, including Certificates of Conformity (CoC), origin declarations, and technical specifications required for international customs clearance. To initiate a secure shipment and ensure all regulatory paperwork is prepared correctly for your specific destination, please consult with the specialists at Beijing Zhongping Technology Co., Ltd.
Q: Is there an authentication process to verify that the units we receive are original HIKROBOT hardware?
A: To guarantee the authenticity of your equipment and avoid the performance risks of non-certified hardware, it is imperative to source through authorized channels. Beijing Zhongping Technology Co., Ltd. serves as an authorized partner, providing full traceability and serial number validation to ensure you receive genuine, factory-supported products.
Q: How should we manage firmware updates for a fleet of XXV-016M-XIU cameras to ensure version consistency across our production line?
A: Maintaining consistent firmware versions across multiple units is vital for uniform system behavior. Beijing Zhongping Technology Co., Ltd. provides dedicated technical support for firmware lifecycle management. Please reach out to our team to obtain the correct firmware files and compatibility validation for your specific batch of cameras.
Q: What are the best practices for replacing a legacy or discontinued camera with the XXV-016M-XIU?
A: Replacing legacy equipment requires a thorough analysis of interface protocols, I/O mapping, and optical compatibility. To ensure a seamless transition, contact Beijing Zhongping Technology Co., Ltd. with your existing system specifications, and our FAE team will provide a compatibility assessment and migration guide to minimize downtime.
Q: Can this camera operate reliably if our machine vision environment has high levels of electromagnetic interference?
A: The XXV-016M-XIU features opto-isolated I/O to mitigate noise, but the integrity of your cabling is equally critical. For professional advice on shielding, grounding, and cable routing in high-EMI environments, Beijing Zhongping Technology Co., Ltd. can provide specialized integration reports based on your specific cabinet layout.
Q: What are the technical considerations when migrating from a different interface, such as Camera Link, to the USB3 Vision standard?
A: Migrating to USB3 Vision involves evaluating the host controller's bandwidth capacity and cable length constraints. Because these transitions involve complex topology adjustments, Beijing Zhongping Technology Co., Ltd. provides expert consultation to verify that your PC hardware and software environment are optimized for the XXV-016M-XIU.
Q: Are there specific derating guidelines for using the XXV-016M-XIU near its maximum operating temperature?
A: Operating the camera at the high end of its thermal range (60°C) requires adequate passive or active heat sinking. To obtain the specific thermal derating curves and mechanical mounting recommendations for your enclosure, reach out to Beijing Zhongping Technology Co., Ltd. for an engineering-grade thermal assessment.
Q: How do we ensure the XXV-016M-XIU is compatible with our custom-developed C++ or C# vision software?
A: The camera is compliant with the USB3 Vision and GenICam protocols, which ensures broad compatibility. However, if you face challenges with specific register mappings or event handling in your software stack, contact Beijing Zhongping Technology Co., Ltd. to receive professional assistance from our FAE team regarding software API integration.
Q: If our production requirements evolve and we need to upgrade to a higher resolution model like the XXV-050M-XIG, will the mechanical and software integration change significantly?
A: While the XXV series shares a common design language, moving between models may involve changes in optical focal length requirements or data throughput management. To double-check the system topology or request an official quotation for an upgrade path, contact Beijing Zhongping Technology Co., Ltd. directly.
