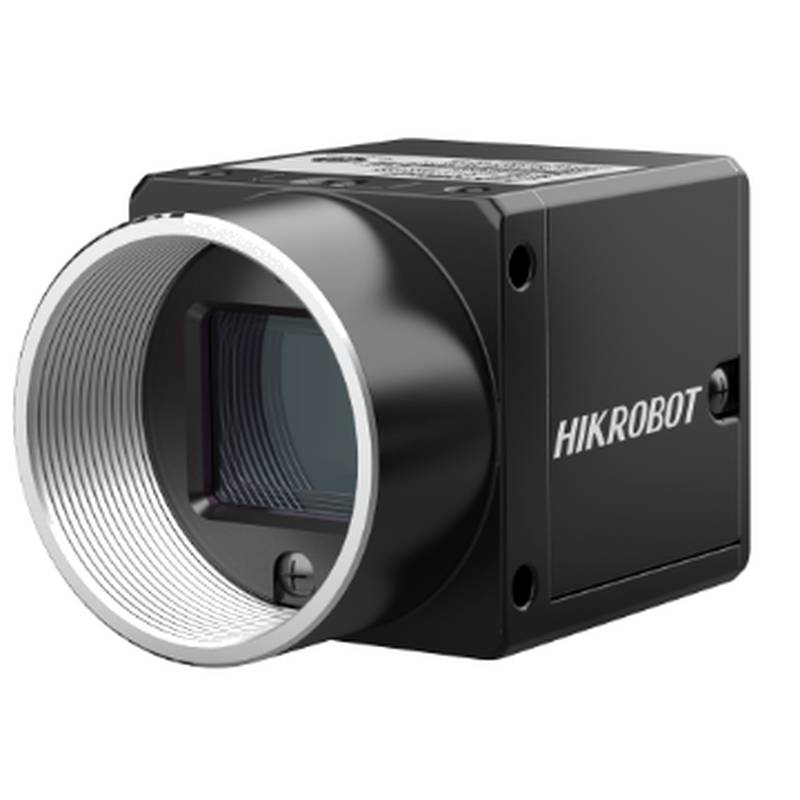

The HIKROBOT MV-XD0200-10UM V5 is a high-resolution 20MP monochrome USB3 vision camera designed for demanding machine vision applications. Leveraging the robust USB3 Vision standard and the advanced GenICam protocol, this camera ensures high-speed data transfer and seamless integration into automated inspection systems, making it an ideal solution for tasks requiring precise detail capture. Its advanced CMOS sensor with a rolling shutter mechanism and features like Global Reset functionality contribute to its capability as a high-resolution machine vision camera, offering exceptional image quality for industrial automation.
Product Specifications:
Model: MV-XD0200-10UM V5 Sensor Type: CMOS, Rolling Shutter Sensor Model: Sony IMX183 Pixel Size: 2.4 μm × 2.4 μm Image Sensor Size: 1" Resolution: 5472 × 3648 Maximum Frame Rate: 19.2 fps @ 5472 × 3648 (Mono 8) Dynamic Range: 65.5 dB Signal-to-Noise Ratio: 41.5 dB Gain: 0 dB to 24 dB Exposure Time: 14 μs to 0.86 sec Shutter Mode: Supports Auto Exposure, Manual Exposure, One-Key Exposure; Rolling Shutter with Global Reset function. Color/Monochrome: Monochrome Pixel Format: Mono 8/10/10Packed/12/12Packed Binning: Supports 1×1, 2×2, 4×4 Subsampling: Supports 1×1, 2×2, 4×4 Image Mirroring: Supports Horizontal Mirroring, Vertical Mirroring
Electrical Characteristics:
Data Interface: USB 3.0, compatible with USB 2.0 Digital I/O: 6-pin P7 connector provides power and I/O: 1-channel optocoupler isolated input (Line0), 1-channel optocoupler isolated output (Line1), 1-channel bidirectional configurable non-isolated I/O (Line2). Power Supply: 9 VDC to 24 VDC, supports USB power. Typical Power Consumption: 1.6 W @ 5 VDC (USB 3.0 power)
Structural Specifications:
Lens Mount: C-Mount Dimensions: 29 mm × 29 mm × 30 mm Weight: Approximately 80 g IP Rating: IP40 (when a lens and cable are correctly installed) Operating Temperature: -30°C to 60°C Storage Temperature: -30°C to 80°C Humidity: 20% to 95% RH, non-condensing
General Specifications:
Software: MVS or third-party software compatible with USB3 Vision protocol. Operating System: Windows 7/10 (32/64-bit), Windows 11 (64-bit), Linux (32/64-bit). Protocol/Standard: USB3 Vision, GenICam. Certifications: CE, RoHS, KC.
The HIKROBOT MV-XD0200-10UM V5 camera excels in applications demanding high detail and reliable performance. Its 20MP resolution, enabled by the Sony IMX183 sensor, captures intricate features with clarity, making it suitable for tasks such as high-precision surface inspection, detailed character recognition, and quality control in electronics manufacturing. The camera's high frame rate of 19.2 fps at full resolution ensures efficient data acquisition, even in fast-paced production lines, minimizing process bottlenecks. The substantial dynamic range of 65.5 dB and a signal-to-noise ratio of 41.5 dB allow for excellent image quality under varying lighting conditions, from well-lit environments to those with lower illumination. This makes it a versatile tool for sophisticated industrial automation solutions.
Engineers will appreciate the camera's flexibility in exposure control, supporting automatic, manual, and one-key exposure settings, alongside rolling shutter with Global Reset functionality. This adaptability is crucial for optimizing image acquisition for different scenarios and object speeds. The camera's monochrome output is particularly beneficial for applications where color information is not critical, and high contrast and detail are paramount, such as in metrology, defect detection, and printed circuit board (PCB) inspection. The C-Mount lens interface provides broad compatibility with a wide array of industrial lenses, allowing for customization based on specific field-of-view and magnification requirements.
The MV-XD0200-10UM V5's robust design, with dimensions of 29 mm × 29 mm × 30 mm and a weight of approximately 80 g, facilitates easy integration into compact machine vision systems. Its IP40 rating, when properly configured with a lens and cable, offers a degree of protection against dust ingress, ensuring operational stability in many industrial settings. The camera's wide operating temperature range of -30°C to 60°C further enhances its suitability for harsh environments common in industrial automation. Powering options include both standard USB 3.0 power and a 9-24 VDC input, providing flexibility in system design and power management.
For applications requiring different sensor types or interface options within the HIKROBOT machine vision portfolio, several alternative models are available. The MV-CS023-10UC and MV-CS023-10UM offer similar resolution capabilities with different interface characteristics, while the MV-XD0200-10UC V5 provides an alternative color variant of the high-resolution sensor. These options allow for tailored system design based on specific project needs, connectivity, and imaging requirements.
Common Industrial Scenarios and Value Proposition:
The HIKROBOT MV-XD0200-10UM V5 finds extensive application in numerous industrial domains due to its high resolution and robust performance.
Electronics Manufacturing: In the assembly and inspection of printed circuit boards (PCBs), this camera's 20MP resolution is critical for detecting minute defects such as solder bridges, misplaced components, and hairline cracks. Its high frame rate ensures that inspection processes keep pace with rapid automated assembly lines, thereby increasing throughput and reducing the likelihood of errors reaching subsequent stages. The camera's ability to capture fine details contributes directly to improved product quality and reduced manufacturing costs. Automotive Inspection: For quality control in the automotive sector, the MV-XD0200-10UM V5 can be employed for inspecting intricate components like engine parts, sensors, and surface finishes. Its high resolution allows for the precise identification of surface imperfections, dimensional deviations, and assembly errors that might be missed by lower-resolution cameras. This ensures that components meet stringent automotive standards, enhancing vehicle safety and reliability. Pharmaceutical Packaging and Labeling: In pharmaceutical manufacturing, accurate verification of labels, expiry dates, and tamper-evident seals is paramount. The MV-XD0200-10UM V5's high resolution ensures that even small text and intricate details on packaging are clearly captured and verified, preventing costly errors and ensuring compliance with regulatory requirements. Its speed allows for high-volume inspection without compromising the efficiency of the packaging line. General Industrial Metrology and Measurement: For tasks requiring precise dimensional measurement of manufactured parts, the camera's high pixel count and clear image reproduction are invaluable. It enables engineers to perform accurate measurements of features, tolerances, and form, contributing to tighter quality control and process optimization. The flexibility in exposure and shutter control helps in obtaining consistent measurements across varied lighting conditions.
Operational Stability and Long-Term Value:
The HIKROBOT MV-XD0200-10UM V5 is engineered for sustained operational stability in demanding industrial environments. Its robust construction and wide operating temperature range contribute to its reliability over extended periods, minimizing downtime and maintenance costs. The camera adheres to industry standards like USB3 Vision and GenICam, ensuring compatibility with a broad ecosystem of software and hardware, which simplifies integration and future upgrades. This commitment to standardization enhances the long-term value of the investment, as systems can be more easily adapted to evolving technological landscapes and production requirements. The support for common operating systems and third-party software further underscores its adaptability and readiness for diverse integration projects.
Selection Guidance:
The HIKROBOT MV-XD0200-10UM V5 is an excellent choice for applications that demand exceptionally high image detail and rapid inspection speeds, particularly in monochrome imaging. It is ideally suited for tasks such as microscopic defect detection, precise dimensional metrology, and high-speed character recognition where the nuances of intricate patterns are critical.
However, this model may be less suitable for applications where color information is essential for the inspection task, or where extremely low-light conditions require specialized sensors with built-in advanced low-light enhancement features beyond standard gain and exposure adjustments. For scenarios prioritizing extreme speed at the expense of resolution or requiring specific specialized sensor technologies not present in the IMX183, alternative cameras might offer a better fit. The HIKROBOT MV-CS023-10UC and MV-CS023-10UM, for instance, might be considered for different interface needs, while the MV-XD0200-10UC V5 provides a color option at a similar resolution.
---
Frequently Asked Questions (FAQ):
Q: What are the available options for obtaining a project-specific quotation for the HIKROBOT MV-XD0200-10UM V5?
A: To receive a precise project pricing tailored to your specific requirements, it is recommended to contact Beijing ZhongPing Technology Co., Ltd. They can provide detailed costings based on the scope and scale of your industrial automation project.
Q: How can I determine the real-time inventory status for the MV-XD0200-10UM V5?
A: For the most accurate and up-to-date information on the real-time inventory status of the MV-XD0200-10UM V5, please reach out to Beijing ZhongPing Technology Co., Ltd. They maintain current stock levels and can inform you about availability.
Q: What is the typical lead time for the HIKROBOT MV-XD0200-10UM V5, and are there factors that influence it?
A: The lead time for the MV-XD0200-10UM V5 can vary based on several factors, including order volume and current supply chain conditions. For specific lead time information, particularly for large orders or custom configurations, it is advisable to consult with Beijing ZhongPing Technology Co., Ltd.
Q: Can you provide information regarding customs clearance documentation for international orders of this camera?
A: Beijing ZhongPing Technology Co., Ltd. can assist with necessary customs clearance documentation. Please inquire with their sales or support team to ensure all required paperwork is prepared for smooth international transit.
Q: How can I perform a compatibility check to ensure the MV-XD0200-10UM V5 integrates seamlessly with my existing machine vision system?
A: To verify the compatibility of the MV-XD0200-10UM V5 with your specific system, including software and hardware components, Beijing ZhongPing Technology Co., Ltd. offers expert consultation. They can guide you through the integration process and confirm system requirements.
Q: What are the options for firmware upgrades for the HIKROBOT MV-XD0200-10UM V5, and how is this managed?
A: Firmware upgradeability is a key feature for ensuring the longevity and optimal performance of the MV-XD0200-10UM V5. Information and support regarding firmware updates can be obtained by contacting Beijing ZhongPing Technology Co., Ltd., who can provide the latest firmware versions and guidance.
Q: Are there any discontinued alternatives to the MV-XD0200-10UM V5 that I should be aware of, or potential replacements?
A: While the MV-XD0200-10UM V5 is a current model, technology evolves. If you are looking for alternatives or need to replace a discontinued model, Beijing ZhongPing Technology Co., Ltd. can provide expert advice on suitable current-generation HIKROBOT cameras and their specifications.
Q: What are the recommended channels for purchasing the HIKROBOT MV-XD0200-10UM V5 to ensure authenticity and reliable service?
A: To guarantee the authenticity of the HIKROBOT MV-XD0200-10UM V5 and to receive reliable pre- and post-sales service, it is recommended to purchase directly through authorized channels. Beijing ZhongPing Technology Co., Ltd. is a trusted partner for acquiring HIKROBOT vision products.
Q: How does Beijing ZhongPing Technology Co., Ltd. handle warranty claims and technical support for the MV-XD0200-10UM V5?
A: Beijing ZhongPing Technology Co., Ltd. provides comprehensive support for the MV-XD0200-10UM V5, including managing warranty claims and offering technical assistance. Their dedicated team is available to help resolve any issues you may encounter.
Q: For bulk purchases or large projects, can Beijing ZhongPing Technology Co., Ltd. provide a consolidated view of current stock and estimated delivery timelines?
A: Yes, Beijing ZhongPing Technology Co., Ltd. is equipped to provide detailed information on consolidated stock levels and projected delivery timelines for bulk orders of the MV-XD0200-10UM V5. Please contact them directly to discuss your project's specific logistical needs.
