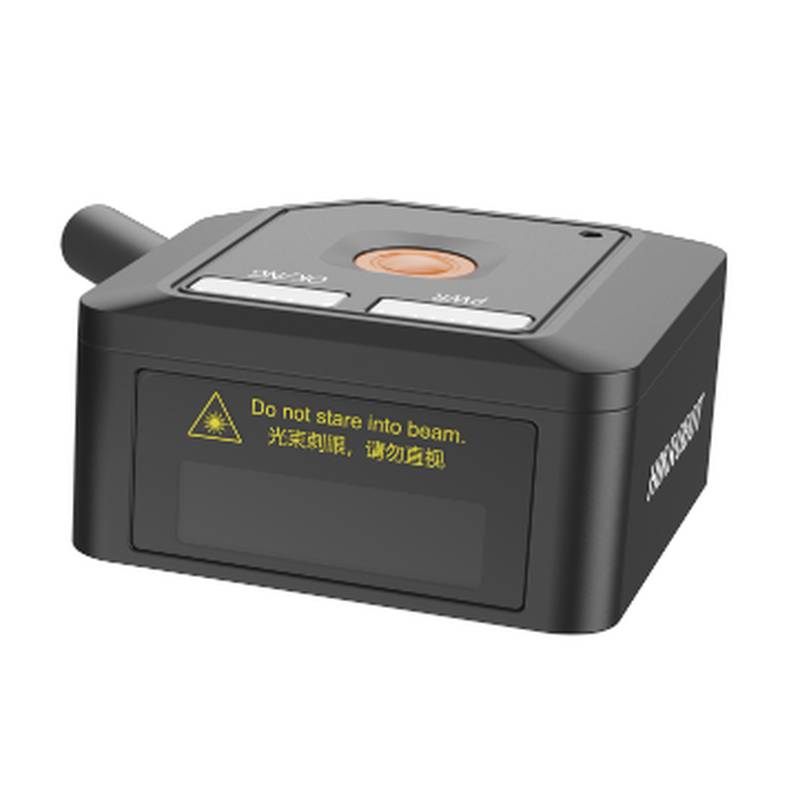

The HIKROBOT CT-A12M-C-WBN-SR-U is a miniature barcode scanner and smart code reader designed for demanding industrial applications. This compact device integrates advanced imaging technology with robust performance, making it an efficient solution for various automation tasks. Featuring a 1.3-megapixel resolution and a 1/4” sensor, this barcode scanner mini excels in capturing crisp images for accurate code decoding. Its capabilities extend to reading a wide array of 1D and 2D barcodes, including Code 39, Code 128, QR Code, and Data Matrix, with impressive precision down to 3 mil for 1D and 10 mil for 2D codes. The miniature barcode scanner operates at a maximum frame rate of 60 fps and can achieve a maximum reading speed of 20 codes per second, ensuring high throughput in fast-paced environments.
Performance and Technical Specifications
The HIKROBOT CT-A12M-C-WBN-SR-U boasts a comprehensive set of specifications designed for reliable industrial use. Its performance is driven by a 1280 × 1024 resolution and a 2.7 μm × 2.7 μm pixel size, contributing to its detailed image capture capabilities. The depth of field varies depending on the code type and size, with notable ranges such as 75 mm to 250 mm for Code 39 (5 mil) and 75 mm to 230 mm for QR Code (10 mil). For illumination, it utilizes a warm white LED, and for aiming, a red laser crosshair provides precise targeting. The device supports adjustable exposure times from 60 μs to 7000 μs and gain from 1 dB to 15 dB, allowing for optimization in various lighting conditions.
Model: CT-A12M-C-WBN-SR-U Resolution: 1280 × 1024 Sensor Size: 1/4” Max. Frame Rate: 60 fps Max. Reading Speed: 20 codes/sec Pixel Size: 2.7 μm × 2.7 μm Barcode Types: 1D (Code 39, Code 93, Code 128, etc.), 2D (QR Code, Data Matrix, etc.), Stacked Codes (PDF417) Min. Barcode Precision: 3 mil (1D), 10 mil (2D) Illumination: Warm White LED Aiming: Laser Crosshair Exposure Time: 60 μs - 7000 μs Gain: 1 dB - 15 dB Communication Protocols: SmartSDK, USB, Serial
Connectivity and Integration
The CT-A12M-C-WBN-SR-U is equipped with versatile connectivity options to facilitate seamless integration into existing automation systems. It features a USB 2.0 data interface for straightforward data transfer. Additionally, it offers digital I/O capabilities with one non-isolated input, one non-isolated output, and one configurable input/output pin, allowing for device triggering and status signaling. The scanner operates on a 5 VDC power supply, with a maximum power consumption of 2.5 W, making it an energy-efficient component in automated setups. Its compact dimensions of 38 mm × 38 mm × 19 mm and a weight of approximately 40 g make it ideal for space-constrained applications. The device also boasts an IP54 protection rating, offering resistance against dust and water splashes, further enhancing its suitability for industrial environments.
Advanced Features and Applications
This miniature barcode scanner is designed with several advanced features to enhance its performance and usability. The laser safety classification is Class 2, with a wavelength of 650 nm. Its M10-Mount lens interface allows for flexible lens selection, and it operates effectively in ambient lighting conditions up to 100,000 lux. The scanner's software support includes IDMVS. Its robust construction, coupled with an operating temperature range of -20°C to 50°C, ensures stable performance across a variety of industrial settings.
This device is particularly well-suited for applications in electronics manufacturing, logistics, and assembly lines where high-speed, accurate barcode reading is critical. Its compact size and ease of integration make it an excellent choice for robotic guidance, quality control stations, and data collection points within these industries. For applications requiring similar performance characteristics but potentially different interface options, the HIKROBOT MV-ID800M-NRU is also available within the HIKROBOT product line.
Operational Stability and Long-Term Value
The HIKROBOT CT-A12M-C-WBN-SR-U is engineered for sustained operational stability and long-term value. Its durable construction, compliant with IP54 standards, protects against environmental ingress, reducing the likelihood of failure in demanding conditions. The low power consumption of 2.5 W contributes to reduced operational costs and aligns with energy-efficient automation strategies. The device's ability to handle a wide range of barcode types and its high reading speed ensure its continued relevance as coding standards evolve and production demands increase.
Application Suitability
This miniature barcode scanner is highly suitable for: Electronics Assembly Lines: For component tracking, work-in-progress (WIP) verification, and final product identification. Logistics and Warehousing: For parcel sorting, inventory management, and automated guided vehicle (AGV) navigation. Automotive Manufacturing: For tracking parts, sub-assemblies, and ensuring traceability throughout the production process. Pharmaceutical Packaging: For verification of batch numbers, expiry dates, and product serialization.
It is less suitable for applications requiring very long-range scanning or reading severely damaged or distorted codes where specialized laser scanners or higher-resolution cameras might be necessary.
Frequently Asked Questions (FAQ)
Q: What types of barcodes can the HIKROBOT CT-A12M-C-WBN-SR-U read?
A: The scanner supports a wide variety of 1D barcodes (e.g., Code 39, Code 128) and 2D codes (e.g., QR Code, Data Matrix), as well as stacked codes like PDF417.
Q: What is the minimum barcode size this scanner can read?
A: It can read 1D barcodes down to 3 mil and 2D barcodes down to 10 mil.
Q: How does the scanner handle varying lighting conditions?
A: It features adjustable exposure times and gain, along with a warm white LED illuminator, allowing for optimization in diverse lighting environments up to 100,000 lux.
Q: What are the communication interfaces available on this device?
A: The CT-A12M-C-WBN-SR-U supports SmartSDK, USB 2.0, and Serial communication protocols.
Q: Is this scanner suitable for harsh industrial environments?
A: Yes, with its IP54 rating and an operating temperature range of -20°C to 50°C, it is designed for robustness in typical industrial settings.
Q: What is the typical processing power or speed of this barcode scanner?
A: It can process up to 60 frames per second and read a maximum of 20 codes per second, making it efficient for high-throughput applications.
Q: Does this model offer different aiming options?
A: Yes, it features a laser crosshair aimer for precise targeting.
Q: What are the physical dimensions and weight of the scanner?
A: The scanner has compact dimensions of 38 mm × 38 mm × 19 mm and weighs approximately 40 g (without cable).
