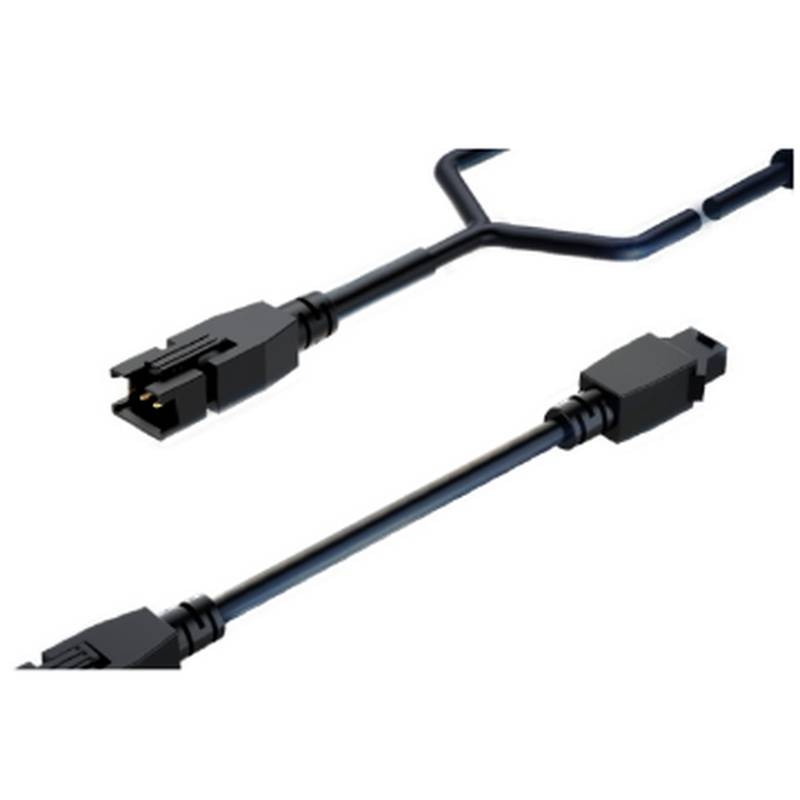

HIKROBOT MV-LW-005-1-B19 5m Industrial Lighting Single Splitter Cable

The HIKROBOT MV-LW-005-1-B19 5m industrial lighting single splitter cable ensures stable power delivery and signal integrity for machine vision illuminators. By extending the operational reach up to 5 m without voltage drops, this single splitter cable eliminates motion blur and illumination inconsistency in high-speed automated inspection lines.

Industrial machine vision systems often experience severe bandwidth limitations, dropped frames, and lighting attenuation when controllers are placed far from optical fixtures. The HIKROBOT MV-LW-005-1-B19 resolves these deployment bottlenecks by providing a robust, low-resistance physical link between high-intensity LED illuminators and dedicated machine vision controllers. Utilizing specialized 19M-2A connectors paired with multi-core shielded architecture, this industrial cable lighting solution maintains constant current flow and protects sensitive strobe signals against severe electromagnetic interference generated by nearby servo drives and high-frequency inverters. Field engineers can deploy this 5 m harness across complex factory floors to ensure uniform photon emission, which is essential for accurate CMOS global shutter exposures and high-resolution defect detection.

Technical Specifications

Model Name: MV-LW-005-1-B19 @ Factory Standard

Cable Length: 5.0 m @ 20°C

Connector Type A: 19M-2A Male @ Terminal End

Connector Type B: 19M-2A Female @ Controller End

Conductor Resistance: ≤ 0.05 Ω/m @ 25°C

Current Rating: 3.0 A @ 24 VDC

Operating Temperature: -20°C - 55°C @ 50% RH

Storage Temperature: -20°C - 60°C @ 20% - 85% RH

IP Protection Rating: IP30 @ Proper Installation

Bending Radius: 48 mm @ Dynamic Flexing

Mating Durability: 20,000 Cycles @ Standard Insertion

System Integration and Hardware Setup

The physical installation of the HIKROBOT MV-LW-005-1-B19 requires strict adherence to industrial routing standards to prevent mechanical strain on the 19M-2A locking connectors. Technicians must secure the cable using designated cable trays or aluminum profiles, ensuring a minimum bending radius of 48 mm to prevent inner copper conductor fatigue during continuous machine flexing. Strain relief clamps should be installed within 100 mm of each connector interface to absorb pulling forces and protect the terminal solder joints from premature failure in high-vibration environments.

Electrical integration demands proper separation between low-voltage lighting extension lines and high-voltage power conduits to eliminate electromagnetic coupling. Installers must route the shielded harness away from variable frequency drives and high-current inductive loads, while ensuring the cable shield is grounded correctly at the controller chassis to drain high-frequency noise. Verification of pinout continuity using a digital multimeter is recommended prior to system power-up to confirm zero open-circuit faults or accidental pin reversals across the 24 VDC power rails.

Reliability and Environmental Durability

Operating within harsh manufacturing environments requires exceptional thermal and mechanical endurance, which this cable delivers through its robust TPU outer jacket formulation. The assembly is rated for continuous operation across ambient temperatures ranging from -20°C to 55°C, resisting degradation caused by intermittent oil mist, mild chemical exposure, and ultraviolet radiation on factory floors. When installed correctly, the connection achieves an IP30 protection rating, shielding internal contact points from particulate accumulation while maintaining structural integrity during dynamic movements.

Preventive maintenance protocols should include quarterly visual inspections of the outer sheath for signs of abrasion, cracking, or pinching caused by moving machine parts. Technicians must verify that the 19M-2A locking rings remain firmly tightened to prevent intermittent contact resistance that can trigger strobe synchronization errors. Built with high-grade copper alloys and precision molding, the cable supports an expected Mean Time Between Failures exceeding 50,000 hours under standard industrial operating cycles.

Selection Guidance and Alternative Options

Choosing the correct illumination accessory depends on evaluating the exact spatial layout between the machine vision controller and the target inspection zone. While the 5 m length of the MV-LW-005-1-B19 suits medium-range cabinet-to-camera configurations, applications requiring extended reaches can utilize alternative variants such as the MV-LW-015-1-B19 for 15 m spans. System designers must calculate total voltage drop across extended runs to ensure that LED lighting intensity remains within the threshold required for high-speed image acquisition.

When factory supply chains face unexpected OEM allocation delays, Beijing Zhongping Technology provides comprehensive cross-reference selection and direct inventory replacement support to maintain uninterrupted production schedules. Their technical engineering team evaluates electrical pinouts, current ratings, and mechanical interface dimensions to supply fully compatible alternative cables from local stock without requiring system redesigns.

Frequently Asked Questions (FAQ)

1. What is the standard stock availability and delivery timeline for this cable?

Beijing Zhongping Technology maintains active regional inventory for this model, allowing for rapid same-day or next-day dispatch to minimize unexpected factory downtime.

2. What warranty coverage and return policies apply to this industrial component?

This unit is backed by a comprehensive 12-month manufacturing warranty, supported by pre-shipment quality verification and streamlined local RMA processing handled by Beijing Zhongping Technology.

3. What is the maximum voltage and current rating supported by the internal conductors?

The wiring harness is rated for a continuous current of up to 3.0 A at a nominal operational voltage of 24 VDC.

4. Does the cable require specific shielding or grounding to combat electrical noise?

Yes, the integrated braided shield must be terminated securely to the machine control cabinet ground lug to suppress electromagnetic interference from neighboring servo motors.

5. What is the official IP protection rating when installed in industrial enclosures?

The assembly achieves an IP30 protection rating when connectors are fully mated and secured in clean, controlled machine vision environments.

6. What are the designated storage and operating temperature limits?

The cable operates reliably between -20°C and 55°C, and can be stored safely in environments ranging from -20°C to 60°C.

7. What preventive maintenance steps are required to ensure long operational life?

Inspect the outer TPU jacket periodically for mechanical wear, and verify that the 19M-2A threaded locking rings remain tight to prevent signal intermittency.

8. Can this cable be integrated with other length variants or splitter accessories?

It is designed as a dedicated single extension link; mixing non-standard splitters without matching impedance ratings may cause voltage drops and unstable strobe performance.
