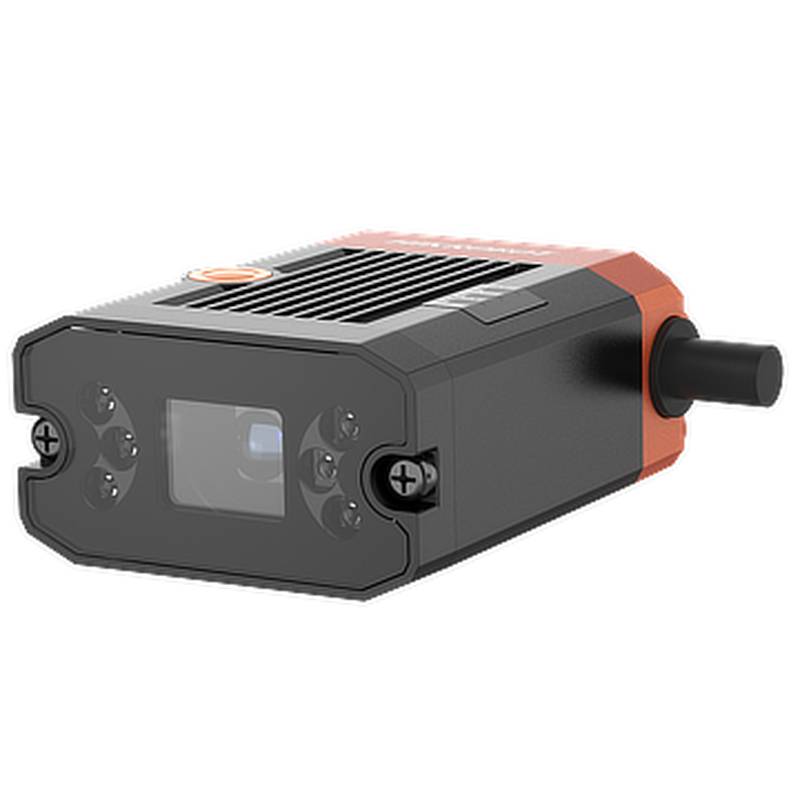

The HIKROBOT HK-TD032-8-WBN is a high-performance 1.6MP monochrome industrial smart vision sensor designed for demanding automation and quality control tasks. As a leading provider of industrial smart sensors and vision camera sensors, HIKROBOT integrates advanced imaging, processing, and communication capabilities into a compact and robust form factor. This vision camera sensor excels in applications requiring precise defect detection, identification, and measurement, making it an indispensable tool for modern manufacturing environments.
Key Specifications and Features:
Model: HK-TD032-8-WBN Resolution: 1408 x 1024 pixels (1.6MP) Sensor Type: CMOS, global shutter Pixel Size: 3.45 µm × 3.45 µm Sensor Size: 1/2.9" Frame Rate: Up to 60 fps Dynamic Range: 71.4 dB Signal-to-Noise Ratio (SNR): 41 dB Gain: 0 to 15 dB Exposure Time: 16 µs to 1 sec Pixel Format: Mono 8 Color/Monochrome: Monochrome (BW) Lens Mount: M12-mount, manual focus Focal Length: 8 mm Light Source: Integrated white light
Advanced Vision Tools and Capabilities:
The HK-TD032-8-WBN is equipped with a comprehensive suite of vision tools powered by the SCMVS software, enabling sophisticated image analysis and decision-making. These tools include:
Counting: Spot count, edge count, pattern count, contour count. Presence/Absence Detection: Circle, line, spot, edge, pattern, and contour presence. Positioning: Position correction. Logic Operations: Conditional judgment, logical judgment, character comparison, variable calculation, combination judgment. Measurement: Line-to-line angle, diameter measurement, average brightness, contrast measurement, width measurement, point-to-line measurement, grayscale area, line angle, and pitch detection. Recognition: Character recognition (OCR) and classification registration.
Connectivity and Electrical Characteristics:
Data Interface: Fast Ethernet (100 Mbit/s) Digital I/O: A 17-pin M12 connector provides power, Ethernet, digital I/O, and serial port functionality. This includes 1 non-isolated input (LINE2), 1 non-isolated output (LINE3), 2 bidirectional configurable non-isolated I/O (LINE0/1), 1 RS-232 port, and 1 external button input (BUTTON). Power Supply: 12 ~ 24 VDC Max Power Consumption: 22 W @ 24 VDC
Structural and Environmental Specifications:
Dimensions: 46 mm × 57.6 mm × 25 mm Weight: Approximately 220 g IP Protection Rating: IP65, ensuring resistance to dust and water ingress. Operating Temperature: 0°C to 50°C Storage Temperature: -30°C to 70°C Humidity: 20% to 95% RH (non-condensing)
Communication Protocols:
The HK-TD032-8-WBN supports a wide range of industrial communication protocols, facilitating seamless integration into various automation systems: RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, FINS, MELSEC/SLMP, and Keyence KV.
Other Models in the Series:
HIKROBOT offers a range of vision sensors with varying specifications to meet diverse application needs. Notable models include the HK-TD032-12-WBN and HK-TD032-15-WBN, as well as the MV-SCP16M-H-WX-08S-WBN, MV-SCP16M-H-WX-12S-WBN, and MV-SCP16M-H-WX-15S-WBN.
Industrial Applications and Scenario-Based Value:
The HIKROBOT HK-TD032-8-WBN is ideally suited for critical applications in industries such as:
Automotive Manufacturing: For precise component inspection, assembly verification, and quality control on production lines. Electronics Assembly: To ensure the accurate placement of components, detect solder defects, and verify product integrity. Food and Beverage Packaging: For label inspection, fill level verification, and package integrity checks, enhancing product safety and compliance. Pharmaceuticals: For stringent quality control of medicines, including vial inspection, label verification, and counterfeit detection.
In these scenarios, the HK-TD032-8-WBN contributes to:
Enhanced Efficiency: By automating inspection processes, reducing manual labor, and increasing throughput. Improved Accuracy: Providing consistent and precise measurements and defect detection, minimizing errors. Reduced Costs: Lowering scrap rates, preventing costly recalls, and optimizing resource utilization. Increased Safety: Ensuring product quality and compliance, thereby protecting consumers and brand reputation.
Frequently Asked Questions (FAQ):
Q: What is the primary advantage of using the HK-TD032-8-WBN over traditional sensors?
A: The HK-TD032-8-WBN, as an industrial smart sensor and vision camera sensor, offers advanced image processing capabilities and a wider range of vision tools for complex detection tasks that go beyond the scope of simple industrial sensors. Q: How does the global shutter on the HK-TD032-8-WBN benefit industrial applications?
A: The global shutter captures entire images simultaneously, eliminating motion blur and distortion, which is crucial for inspecting fast-moving objects or during high-speed production processes. Q: Is the HK-TD032-8-WBN suitable for harsh industrial environments?
A: With an IP65 protection rating, the sensor is designed to withstand dust and water ingress, making it robust for many demanding industrial applications. However, for extremely harsh conditions, higher IP ratings might be necessary. Q: What are the main differences between the HK-TD032-8-WBN and the HK-TD032-12-WBN or HK-TD032-15-WBN?
A: The primary difference lies in their focal lengths (8mm, 12mm, and 15mm respectively), which affect the field of view and working distance. The selection depends on the specific application requirements for object size and viewing area. Q: Can the HK-TD032-8-WBN integrate with existing industrial control systems?
A: Yes, it supports a wide array of industrial communication protocols such as PROFINET, Modbus, and EtherNet/IP, ensuring broad compatibility with PLCs and other control systems. Q: What is the typical lifespan or expected operational reliability of this vision camera sensor?
A: Hikrobot products are manufactured to industrial standards, offering high reliability and long operational lifespans when used within specified environmental and operational parameters. Specific warranty information should be confirmed with the supplier. Q: Does the SCMVS software require programming knowledge to configure the sensor?
A: The SCMVS software is designed with a user-friendly interface and guided operations, significantly reducing the need for advanced programming skills for many common visual inspection tasks. Q: What are the advantages of using a monochrome vision sensor like the HK-TD032-8-WBN?
A: Monochrome sensors often provide higher sensitivity, better image quality in low light conditions, and can offer a higher dynamic range and faster frame rates compared to their color counterparts, making them ideal for precise measurement and inspection tasks where color information is not critical. Q: How does the HK-TD032-8-WBN handle variations in lighting conditions?
A: The sensor features adjustable gain and exposure time, and the integrated white light source provides consistent illumination. The SCMVS software also includes algorithms for handling variations in brightness and contrast. Q: What industries commonly benefit from the advanced vision tools offered by this sensor?
A: Industries that rely heavily on automated quality control, such as automotive, electronics, pharmaceuticals, and food processing, benefit significantly from the precise measurement, recognition, and defect detection capabilities of the HK-TD032-8-WBN.
Selection Considerations:
The HIKROBOT HK-TD032-8-WBN is an excellent choice for applications demanding high precision, speed, and reliability in industrial smart sensor and vision camera sensor roles. For scenarios requiring a different field of view or working distance, consider the HK-TD032-12-WBN or HK-TD032-15-WBN. For applications with more complex AI-driven tasks or different resolution needs, exploring other HIKROBOT series like the MV-SCP series may be beneficial.
