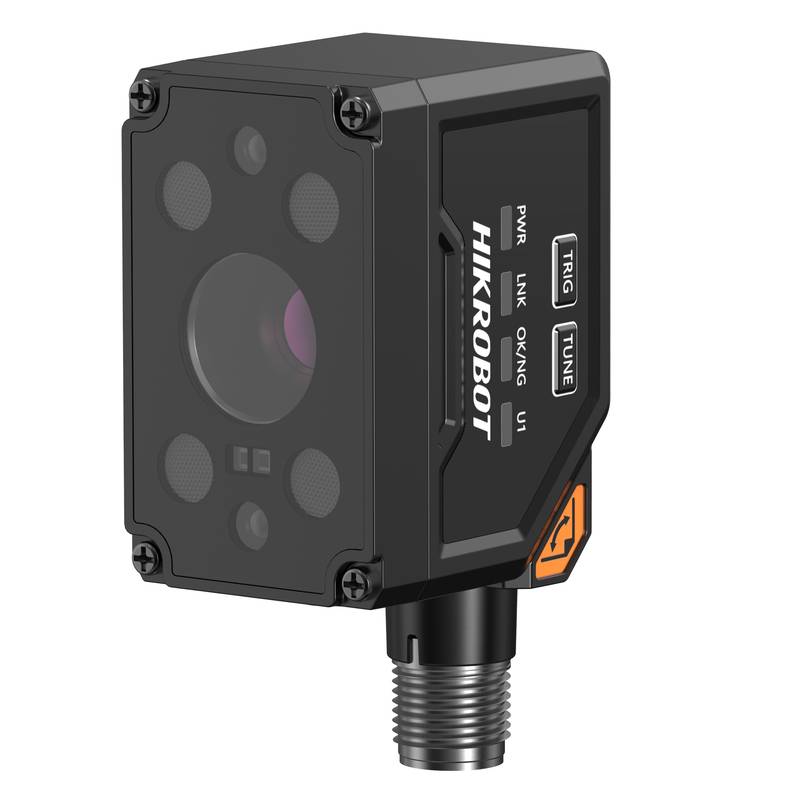

The HIKROBOT MV-SC2023XM-05M-WBN is a high-performance industrial automation sensor designed for sophisticated machine vision applications. This vision sensor, featuring a 2.4-megapixel resolution and a 5mm lens with electric focus, is engineered to deliver precise and reliable inspection capabilities in demanding industrial environments. It is a key component for system integrators and engineers seeking robust solutions for quality control, guidance, and measurement tasks. The MV-SC2023XM-05M-WBN excels as one of the leading vision sensors in the market, offering advanced functionalities that significantly enhance automation processes.
Key Specifications and Features:
Model: MV-SC2023XM-05M-WBN Resolution: 1920 × 1280 pixels Sensor Type: CMOS with global shutter Pixel Size: 2.2 μm × 2.2 μm Optical Format: 1/3.52" Frame Rate: Up to 75 fps Gain: 0 dB to 48 dB Exposure Time: 36 μs to 100 ms Pixel Format: Mono 8 Color: Black and White Lens Mount: M12-Mount with mechanical focus adjustment Focal Length: 5 mm Lens Cover: Transparent, with options for semi-polarized or fully polarized filters Illumination: Integrated white LED, with optional red, blue, infrared, ultraviolet, or dual red/blue light modules Reticle: Two green LEDs for aiming Indicators: PWR (Power), LNK (Network), OK/NG (Result Display), U1 (User-defined) Dimensions:
* Flat Angle: 72.7 mm × 31.5 mm × 41 mm
* Right Angle: 51.5 mm × 31.5 mm × 61 mm Weight: 118 g Ingress Protection: IP65 Operating Temperature: 0 ~ 50°C Storage Temperature: -30 ~ 70°C Operating Humidity: 20% ~ 95% RH (non-condensing) Vibration Resistance: Meets IEC 60068-2-6:2007 standards Shock Resistance: Meets IEC 60068-2-27:2008 standards Data Interface: Fast Ethernet (100 Mbit/s) Digital I/O: 17-pin M12 connector providing power and I/O: 2 isolated inputs (Line 0/1), 2 isolated outputs (Line 2/3), 1 RS-232. Supports device triggering via side button. Power Supply: 24 VDC Power Consumption: Average: 5 W @ 24 VDC (with integrated light enabled); Maximum: 12 W @ 24 VDC (with integrated light enabled) Software: SCMVS Certifications: CE, KC
Advanced Vision Tools and Capabilities:
The MV-SC2023XM-05M-WBN is equipped with a comprehensive suite of vision tools designed to address a wide range of inspection challenges. These tools enable sophisticated analysis for measurement, counting, identification, presence detection, and defect detection.
Measurement Tools: Point-to-Point, Point-to-Line, Contrast, Grayscale Area, Pitch, Width, Average Intensity, Line-to-Line Angle, Diameter, Line Angle. Counting Tools: Blob Count, Edge Count, Contour Count, Pattern Count. Recognition Tools: Code Reading, Type Recognition, Character Recognition. Presence/Absence Detection: Blob Presence/Absence, Edge Presence/Absence, Contour Presence/Absence, Pattern Presence/Absence, Anomaly Judgment, Circle Presence/Absence, Line Presence/Absence. Logic and Control: Variable Calculation, Branch Control, Logical Judgment, Data Formatting, Conditional Judgment, Character Comparison, Combined Judgment. Positioning Tools: Calibration Conversion, Single Point Alignment, Single Point Correction, Single Point Grasp, Unit Conversion, Position Correction. Defect Tools: Anomaly Detection.
The sensor supports the import and export of up to 16 distinct configurations (schemes), each capable of housing up to 40 individual modules, offering significant flexibility for complex applications.
Communication Protocols:
Seamless integration into existing industrial networks is facilitated by a wide array of supported communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, and Keyence KV.
Operational Environment and Durability:
Designed for robust industrial operation, the MV-SC2023XM-05M-WBN boasts an IP65 rating, ensuring protection against dust and water ingress. Its operational temperature range of 0 to 50°C, combined with high resistance to vibration and shock as per IEC standards, makes it suitable for challenging manufacturing environments. The integrated transparent lens cover can be optionally enhanced with semi-polarized or fully polarized filters for specific optical needs.
Applications and Scene-Specific Benefits:
This vision sensor is particularly well-suited for demanding applications within industries such as electronics manufacturing, automotive production, and packaging.
Electronics Assembly: The MV-SC2023XM-05M-WBN can ensure precise component placement, verify solder joint quality, and inspect for surface defects on PCBs. Its high resolution and frame rate allow for rapid and accurate inspection of fine details, leading to increased production yields and reduced assembly errors. Automotive Manufacturing: In automotive assembly lines, it can be employed for part verification, ensuring correct component installation, and for quality checks on finished products. The sensor's ruggedness and communication flexibility enable its integration into high-throughput production lines where reliability is paramount. Food and Beverage Packaging: For packaging operations, the sensor can perform label verification, seal inspection, fill level checks, and detect foreign objects, ensuring product integrity and compliance with safety standards. Its ability to work with various lighting conditions and its robust measurement tools aid in maintaining consistent quality control.
Extended Product Line:
HIKROBOT offers a comprehensive series of vision sensors that cater to diverse application requirements. In addition to the MV-SC2023XM-05M-WBN, users may consider models such as the MV-SC2023XM-12M-WBN and MV-SC2023XM-16M-WBN, which offer different lens options. The MV-SC2023XC-05M-WBN, MV-SC2023XC-12M-WBN, and MV-SC2023XC-16M-WBN represent variants with specific feature sets. For applications requiring smaller form factors or different resolutions, the MV-SC2004EM-06S-WBN-Mini, MV-SC2004EM-08S-WBN, MV-SC2004EC-12S-WBN, MV-SC2004EC-08S-WBN, MV-SC2004EM-15S-WBN, MV-SC2004EM-12S-WBN, MV-SC2004EC-15S-WBN, MV-SC2016EM-06S-WBN-Mini, MV-SC2016EM-06S-WBN-S, MV-SC2016EM-08S-WBN, MV-SC2016EM-12S-WBN, MV-SC2016EM-15S-WBN, MV-SC2016EC-03S-MED, MV-SC2016EC-06S-MED, MV-SC2016EC-08S-WBN, MV-SC2016EC-08S-WBN-S, MV-SC2016EC-12S-WBN, MV-SC2016EC-15S-WBN, MV-SCB003EM-06S-WBN, MV-SCB003EM-08S-WBN, MV-SCB003EM-12S-WBN, MV-SCB003EM-15S-WBN, MV-SCB003EC-08S-WBN, MV-SCB003EC-12S-WBN, MV-SCB003EC-15S-WBN, MV-SCB007EM-06S-WBN, MV-SCB007EM-08S-WBN, MV-SCB007EM-12S-WBN, MV-SCB007EM-15S-WBN, MV-SCB007EC-08S-WBN, MV-SCB008XM-05M-WBN, MV-SCB008XM-12M-WBN, MV-SCB008XM-16M-WBN, MV-SCB008XC-05M-WBN, MV-SCB008XC-12M-WBN, MV-SCB008XC-16M-WBN, MV-SCB007EC-12S-WBN, and MV-SCB007EC-15S-WBN are available. These models offer variations in resolution, sensor type, and form factor to match specific integration needs.
Frequently Asked Questions (FAQ):
Q: Is the MV-SC2023XM-05M-WBN compatible with standard industrial Ethernet networks?
A: Yes, the sensor supports multiple industrial Ethernet protocols including PROFINET, EtherNet/IP, and Modbus TCP, ensuring broad compatibility with common industrial control systems.
Q: What level of precision can be expected from the measurement tools on this vision sensor?
A: The precision of the measurement tools is dependent on factors such as lens selection, working distance, and the nature of the object being measured. However, the 2.4-megapixel resolution and high-quality optics provide the foundation for highly accurate measurements in industrial settings.
Q: How does the MV-SC2023XM-05M-WBN perform in environments with varying lighting conditions?
A: The sensor features adjustable gain and exposure time controls, along with support for external illumination, allowing it to adapt to a wide range of lighting conditions for consistent performance.
Q: What are the advantages of using the global shutter CMOS sensor in this model?
A: The global shutter CMOS sensor captures entire image frames simultaneously, effectively eliminating motion blur and distortion, which is critical for inspecting fast-moving objects or machinery.
Q: Can this vision sensor be used for simple presence/absence detection tasks, or is it limited to complex inspections?
A: The MV-SC2023XM-05M-WBN is versatile and can be configured for simple presence/absence detection using its dedicated tools, as well as for more complex tasks like code reading, measurement, and anomaly detection.
Q: What is the recommended operational environment for this sensor in terms of temperature and humidity?
A: The sensor is designed to operate reliably within a temperature range of 0°C to 50°C and a humidity range of 20% to 95% RH (non-condensing), making it suitable for most factory floor environments.
Q: How does the MV-SC2023XM-05M-WBN differ from other models in the SC2000 series?
A: While sharing a common software platform, models like the MV-SC2023XM-12M-WBN and MV-SC2023XM-16M-WBN offer different focal length lenses, catering to varying working distances and field of view requirements. Other series variants, such as the MV-SC2004 and MV-SCB series, may offer different resolutions, form factors, or sensor types.
Q: What are the benefits of the integrated LED indicators on the sensor?
A: The PWR, LNK, OK/NG, and U1 indicators provide immediate visual feedback on the sensor's operational status, network connectivity, inspection results, and user-defined states, simplifying troubleshooting and system monitoring.
