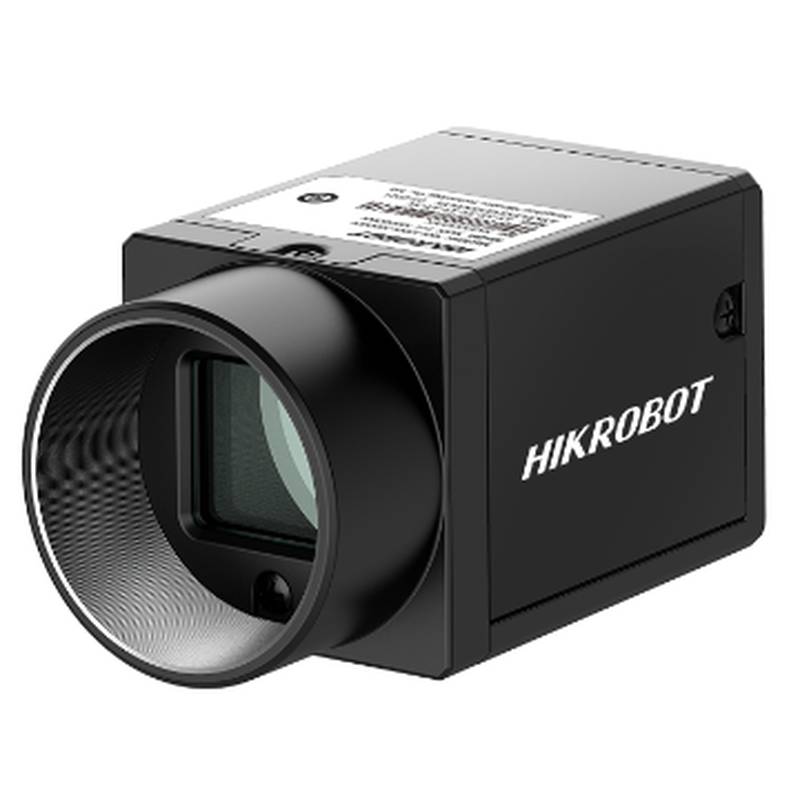

The HIKROBOT MV-CU020-19GC V3 is a high-performance 2MP color GigE industrial vision camera designed for demanding machine vision applications. This gige vision camera leverages the GigE Vision 2.0 standard and GenICam compatibility, ensuring seamless integration with various software platforms and industrial control systems. Its robust design and advanced features make it a reliable component for automation, inspection, and quality control processes in diverse industrial sectors. The camera's ability to transmit data over long distances via a single Ethernet cable, coupled with Power over Ethernet (PoE) support, simplifies installation and reduces cabling complexity. As a professional-grade industrial camera, the MV-CU020-19GC V3 is engineered to deliver consistent and accurate image acquisition, contributing to enhanced efficiency and precision in automated workflows.
Product Specifications
Model: MV-CU020-19GC V3 Name: 2MP Network Area Scan Camera, V3, Color Sensor Type: CMOS, Rolling Shutter Pixel Size: 2.9 μm × 2.9 μm Sensor Size: 1/2.8'' Resolution: 1920 × 1080 Max Frame Rate: 56 fps @ 1920 × 1080 (Mono8) Dynamic Range: 74 dB Signal-to-Noise Ratio (SNR): 45.6 dB Gain: 0 dB to 30 dB Exposure Time: 128 μs to 260 ms Exposure Mode: Supports Auto Exposure, Manual Exposure, One-key Exposure Color: Color Pixel Format: Mono 8, YUV422Packed Binning: Not Supported Decimation: Not Supported Mirroring: Supports horizontal and vertical mirroring output Data Interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) Digital I/O: 6-pin P7 interface provides power and I/O: 1-ch optocoupler isolated input (Line 0), 1-ch optocoupler isolated output (Line 1), 1-ch bi-directional configurable non-isolated I/O (Line 2) Power Supply: 9~24 VDC, supports PoE Power Consumption: 2.3 W @ 12 VDC Lens Mount: C-Mount Dimensions: 29 mm × 29 mm × 42 mm Weight: Approx. 100 g IP Protection Rating: IP30 (with correct lens and cable installation) Operating Temperature: 0~50 °C Storage Temperature: -30~80 °C Humidity: 20%~80% RH (non-condensing) Software: MVS or third-party software supporting GigE Vision protocol Operating System: Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits Protocol/Standard: GigE Vision 2.0, GenICam Certifications: CE, RoHS, KC
Advanced Features and Performance
The HIKROBOT MV-CU020-19GC V3 is equipped with a 1/2.8'' CMOS sensor, delivering a resolution of 1920 × 1080 pixels. Its rolling shutter mechanism, combined with a maximum frame rate of 56 fps at full resolution, ensures smooth image capture for dynamic scenes. The camera boasts a dynamic range of 74 dB and a signal-to-noise ratio of 45.6 dB, enabling it to produce clear images even in challenging lighting conditions. The flexible exposure control, including auto, manual, and one-key modes, allows for precise image adjustments. The GigE interface provides high-bandwidth data transfer up to 100 meters, making it suitable for distributed systems and applications requiring extended reach without signal degradation. The camera also supports both horizontal and vertical image mirroring, offering additional flexibility in image orientation.
Industrial Applications and Benefits
This gige vision camera is ideally suited for a wide array of industrial automation tasks. Its high-resolution sensor and fast frame rates are beneficial for applications such as:
Automotive Manufacturing: For detailed inspection of components, assembly verification, and quality control on production lines. Food and Beverage Packaging: For accurate package inspection, label verification, and quality assurance in high-speed packaging processes. Electronics Manufacturing: For precise component placement, defect detection, and quality control in the assembly of electronic devices. Logistics and Warehousing: For automated sorting, identification, and tracking of goods. Robotics and Automation: For guiding robotic arms in pick-and-place operations, assembly, and intricate manipulation tasks.
The MV-CU020-19GC V3's compatibility with the GigE Vision 2.0 standard and GenICam ensures interoperability with a broad ecosystem of machine vision software and hardware, reducing integration cycles and system development costs. Its compact design (29 mm × 29 mm × 42 mm) and lightweight construction (approx. 100 g) facilitate integration into space-constrained environments.
Related HIKROBOT Models
The HIKROBOT CU series offers a range of industrial cameras catering to various resolution and performance needs. Notable models within or related to this series include:
MV-CU020-19GM V3 MV-CU020-19GC(850nm带通) V3 MV-CU020-80GM MV-CU020-80GM(NPOE) MV-CU020-80GC MV-CU020-80GC(NPOE) MV-CU020-90GM MV-CU020-90GC MV-CU050-30GM MV-CU050-30GM V2 MV-CU050-30GC MV-CU050-30GC V2 MV-CU050-90GM MV-CU050-90GC MV-CU060-60GM MV-CU060-60GM(NPOE) MV-CU060-60GC MV-CU200-20GM MV-CU200-20GM(NPOE) MV-CU200-20GC MV-CU200-20GC(NPOE)
These models share the core GigE Vision capabilities but differ in resolution, sensor type, frame rates, and specific features, allowing users to select the optimal camera for their precise application requirements. For instance, models like the MV-CU020-90GM and MV-CU020-90GC offer different resolutions and frame rates within the same form factor. Higher resolution cameras like the MV-CU200-20GC provide detailed imaging for applications demanding greater clarity.
Frequently Asked Questions (FAQ)
Q: What is the typical lead time for the HIKROBOT MV-CU020-19GC V3?
A: Lead times for industrial equipment can vary based on current demand, supply chain factors, and specific configurations. To obtain the most accurate and up-to-date inventory status and lead time for the HIKROBOT MV-CU020-19GC V3, we recommend contacting Beijing ZhongPing Technology Co., Ltd. directly for a real-time inventory report.
Q: How does the HIKROBOT MV-CU020-19GC V3 handle firmware upgrades?
A: Firmware upgradeability is a crucial aspect of maintaining optimal performance and security for industrial cameras. Beijing ZhongPing Technology Co., Ltd. can provide detailed information and support regarding firmware updates for the MV-CU020-19GC V3, ensuring your system remains current.
Q: Can the HIKROBOT MV-CU020-19GC V3 be integrated with existing machine vision software?
A: Yes, the MV-CU020-19GC V3 is designed to be highly compatible. It adheres to the GigE Vision 2.0 and GenICam standards, facilitating integration with a wide range of third-party machine vision software. For specific compatibility checks with your existing software suite, please consult with Beijing ZhongPing Technology Co., Ltd.
Q: What documentation is required for customs clearance when importing HIKROBOT cameras?
A: Customs clearance documentation requirements can differ by region and shipment. Beijing ZhongPing Technology Co., Ltd. is experienced in international logistics and can assist in providing the necessary documentation to ensure smooth customs clearance for your HIKROBOT camera orders.
Q: What are the options for project pricing or bulk orders of the HIKROBOT MV-CU020-19GC V3?
A: For project-specific pricing, bulk order discounts, or to request a quote for the HIKROBOT MV-CU020-19GC V3, please reach out to our sales team at Beijing ZhongPing Technology Co., Ltd. We are equipped to handle inquiries for various project scales.
Q: Are there any discontinued alternatives or direct replacements for the HIKROBOT MV-CU020-19GC V3?
A: While the MV-CU020-19GC V3 is a current model, understanding alternative options or potential future replacements is part of our commitment to long-term support. For information on alternative models or to discuss your application's evolving needs, please contact Beijing ZhongPing Technology Co., Ltd.
Q: How can I verify real-time inventory status for the HIKROBOT MV-CU020-19GC V3?
A: Real-time inventory status is best obtained directly from our dedicated sales and support channels. Please contact Beijing ZhongPing Technology Co., Ltd. for the most accurate and up-to-the-minute inventory reports for the MV-CU020-19GC V3.
Q: What is the typical warranty period for HIKROBOT industrial cameras?
A: Warranty terms can vary. Beijing ZhongPing Technology Co., Ltd. can provide detailed information on the warranty coverage and duration for the HIKROBOT MV-CU020-19GC V3 and other models to ensure your purchase is protected.
Q: Is Power over Ethernet (PoE) supported by the HIKROBOT MV-CU020-19GC V3?
A: Yes, the HIKROBOT MV-CU020-19GC V3 supports Power over Ethernet (PoE), simplifying installation by allowing power and data to be transmitted over a single Ethernet cable. This feature enhances ease of deployment in various industrial settings.
Q: What are the recommended industrial scenarios for the HIKROBOT MV-CU020-19GC V3?
A: The MV-CU020-19GC V3 is well-suited for applications demanding high-speed inspection, precise measurement, and reliable data acquisition. This includes automotive assembly lines, food packaging inspection, electronics manufacturing quality control, and robotic guidance systems where consistent image quality and robust connectivity are paramount. Beijing ZhongPing Technology Co., Ltd. can help tailor recommendations based on your specific operational needs.
