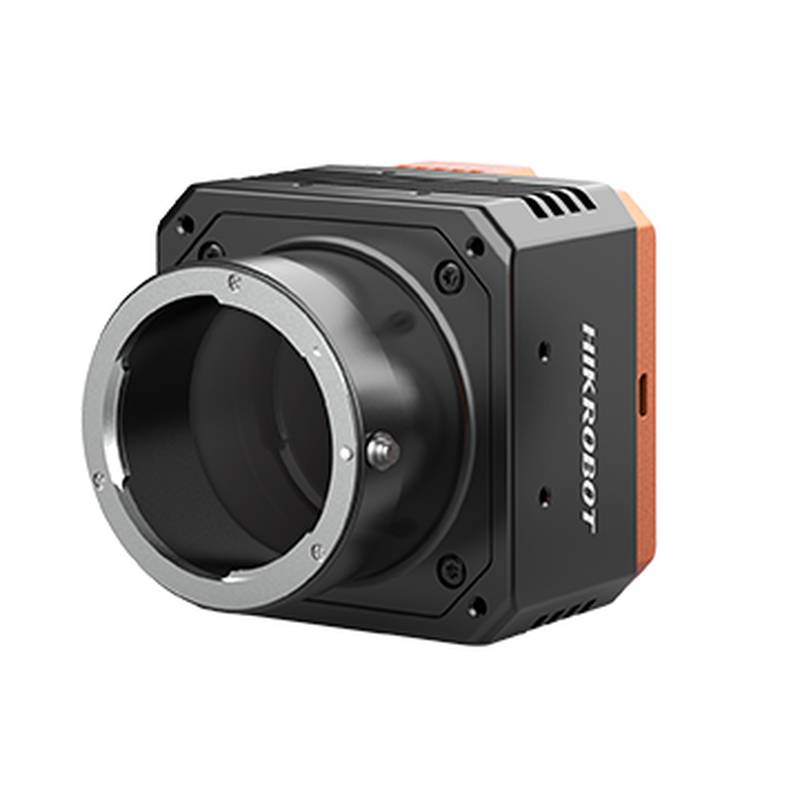

The HIKROBOT MV-CH650-90XM-F-NF is a cutting-edge 65MP high-resolution industrial camera designed for demanding machine vision applications. Leveraging the Gpixel GMAX3265 CMOS sensor with a global shutter, this area scan camera delivers exceptional image quality and performance. Its robust design and advanced features make it an ideal solution for detailed inspection and precise measurement tasks, positioning it as a key component in modern industrial automation. This high-resolution industrial camera is engineered to meet the rigorous demands of complex vision systems.
Key Specifications:
Model: MV-CH650-90XM-F-NF Sensor Type: CMOS, Global Shutter Sensor Model: Gpixel GMAX3265 Pixel Size: 3.2 μm × 3.2 μm Image Circle: 29.9 mm × 22.4 mm Resolution: 9344 × 7000 Maximum Frame Rate: 31.5 fps (at 9216 × 7000 Mono 8) Dynamic Range: 66 dB Signal-to-Noise Ratio: 40 dB Gain: 1.25x to 6x Exposure Time: 14 μs to 10 sec Shutter Mode: Supports auto, manual, and one-key exposure modes Monochrome/Color: Monochrome Pixel Format: Mono 8/10/12 Binning: Supports 1x1, 1x2, 1x4, 2x1, 2x2, 2x4, 4x1, 4x2, 4x4 Subsampling: Not supported Mirroring: Supports horizontal and vertical mirroring output
Electrical Characteristics:
Data Interface: CoaXPress (DIN connector) Digital I/O: 12-pin P10 connector for power and I/O: 1 channel optically isolated input (Line 0), 1 channel optically isolated output (Line 1), 1 channel bidirectional configurable non-isolated I/O (Line 2), 1 channel RS-232 Power Supply: 9-24 VDC Typical Power Consumption: 10.5 W @ 24 VDC
Structural Details:
Lens Mount: F-mount, Flange back focal length 46.5 mm Dimensions: 74 mm × 74 mm × 76.4 mm Weight: Approximately 500 g IP Rating: IP40 (when correctly installed with lens and cables) Operating Temperature: 0°C to 50°C Storage Temperature: -30°C to 70°C Humidity: 20% to 95% RH non-condensing
General Specifications:
Software: Compatible with CoaXPress frame grabber control software Operating System: Windows 7/10/11 64-bit (requires 8 GB RAM or more) Protocols/Standards: CoaXPress, GenICam Certifications: CE, RoHS, KC
The HIKROBOT MV-CH650-90XM-F-NF stands out as a premier high-resolution industrial camera, engineered for applications demanding superior detail capture. Its 65MP resolution, powered by the advanced Gpixel GMAX3265 sensor, enables unparalleled clarity, making it suitable for intricate inspection tasks in sectors such as electronics manufacturing, semiconductor inspection, and quality control of high-value components. The global shutter technology effectively eliminates motion blur, ensuring crisp images even in high-speed production lines, a critical feature for an area scan camera operating in dynamic industrial environments.
Performance Under Diverse Conditions
The camera’s robust design and extensive parameter control facilitate its deployment in challenging industrial settings. With a dynamic range of 66 dB and a signal-to-noise ratio of 40 dB, the MV-CH650-90XM-F-NF captures detailed images even in scenes with significant variations in lighting. The flexible gain adjustment (1.25x to 6x) and a wide exposure time range (14 μs to 10 sec) allow operators to fine-tune image acquisition for optimal results, whether dealing with rapid movements or static subjects. The support for various pixel formats (Mono 8/10/12) and binning options further enhances its adaptability to different imaging requirements, providing users with granular control over image data. The camera’s ability to support advanced binning configurations (e.g., 2x4, 4x2) allows for improved sensitivity or frame rates when full resolution is not paramount, offering a tactical advantage in optimizing acquisition speed versus detail.
Connectivity and Integration
Designed for seamless integration into existing industrial systems, the MV-CH650-90XM-F-NF features a CoaXPress interface, which provides high bandwidth and reliable data transmission essential for machine vision applications. The 12-pin P10 connector simplifies power and I/O integration, offering optically isolated inputs and outputs, as well as a configurable non-isolated I/O and an RS-232 interface for communication. This comprehensive connectivity ensures compatibility with a wide range of industrial controllers and automation equipment. The F-mount lens interface, with a flange back focal length of 46.5 mm, offers flexibility in lens selection, allowing users to choose optics that best suit their specific application needs. The robust construction, with dimensions of 74 mm × 74 mm × 76.4 mm and a weight of approximately 500 g, combined with an IP40 rating when properly installed, ensures durability in industrial environments.
Applications and Industrial Scenarios
The HIKROBOT MV-CH650-90XM-F-NF is particularly well-suited for applications where meticulous detail and accuracy are paramount. Its high resolution makes it an excellent choice for:
Electronics Manufacturing Inspection: Detecting minute defects on printed circuit boards (PCBs), verifying component placement, and inspecting solder joints with exceptional precision. The 65MP sensor can resolve incredibly small features, crucial for ensuring the reliability of modern electronic devices. Semiconductor Wafer Inspection: Examining semiconductor wafers for microscopic flaws, contaminants, or process anomalies that could affect chip performance. The ability to capture extremely fine details is vital in this high-stakes industry. Automotive Component Inspection: Verifying the quality and integrity of automotive parts, such as engine components, sensors, and connectors, where even minor defects can have significant safety implications. Medical Device Manufacturing: Ensuring the quality and conformity of intricate medical devices and components, where precision and defect detection are critical for patient safety. High-Accuracy Metrology: Performing precise measurements on small or complex objects where high pixel density is required for accurate dimensional analysis.
The camera’s efficient operation, with a typical power consumption of 10.5 W @ 24 VDC, contributes to energy savings in large-scale deployments. Its operating temperature range of 0°C to 50°C and humidity tolerance of 20% to 95% RH ensure reliable performance across various industrial climates. The software compatibility with GenICam and CoaXPress protocols streamlines integration into diverse automation platforms, reducing engineering effort and accelerating deployment cycles.
Comparison with Other HIKROBOT Models
HIKROBOT offers a range of industrial cameras designed to meet varying resolution and performance needs. For applications requiring similar high resolution but potentially different form factors or interface options, users might consider models such as the MV-CH650-90XM-M58S-NF and MV-CH650-90XC-M58S-NF, which likely offer variations in lens mount or feature sets. For scenarios demanding extremely high frame rates at lower, though still substantial, resolutions, models like the MV-CH1510-10XM-M72-NF, MV-CH1510-10XC-M72-NF, MV-CH1510-10XM-M72-TF V2, MV-CH1510-10XC-M72-TF V2, MV-CH1510-11XM-M72-TF, and MV-CH1510-11XC-M72-TF provide alternative solutions. When even higher resolutions are needed, such as those found in specialized inspection tasks, the MV-CH2450-10YM-M72-TF and MV-CH2450-10YC-M72-TF present further options. For broad area coverage with advanced capabilities, the MV-CH6040-10XM-M72-NF and MV-CH6040-10XC-M72-NF are also part of HIKROBOT's extensive lineup. Additionally, for specific applications that might benefit from different sensor technologies or resolutions, the MVGL-AC512G-150YC offers another dimension of choice within HIKROBOT's product portfolio, showcasing the breadth of their offerings in the industrial imaging market.
Selection Considerations and Recommendations
The HIKROBOT MV-CH650-90XM-F-NF is exceptionally well-suited for applications where image fidelity and the detection of very fine details are critical. Its 65MP resolution is ideal for scenarios requiring significant magnification or the analysis of complex textures and minute defects. This camera is a strong choice for static or slow-moving subjects where frame rate is secondary to image quality, such as in precise measurement, metrology, and detailed surface inspection. For applications involving extremely high-speed motion where frame rates exceeding 31.5 fps at full resolution are necessary, or where color information is paramount and not obtainable through specialized monochrome processing, alternative models offering higher frame rates or color sensors might be more appropriate. The monochrome nature of this specific model is advantageous for applications that benefit from higher sensitivity and reduced noise, especially in low-light conditions, and where color is not a distinguishing factor for defect detection.
Frequently Asked Questions (FAQ) - Beijing ZhongPing Technology Co., Ltd.
Q: What is the typical lead time for the HIKROBOT MV-CH650-90XM-F-NF camera?
A: Lead times can vary based on current demand and specific order configurations. For the most accurate and up-to-date inventory status and project pricing, we recommend contacting Beijing ZhongPing Technology Co., Ltd. directly. Our team can provide a real-time inventory report tailored to your project needs.
Q: How can I obtain a formal quote or project pricing for the MV-CH650-90XM-F-NF?
A: To receive a formal quote or discuss project pricing, please submit a request to our sales department at Beijing ZhongPing Technology Co., Ltd. We will assess your specific requirements, including potential volume and integration needs, to provide a competitive offer.
Q: What are the available sales channels and how can I ensure I am purchasing from a trusted source?
A: Beijing ZhongPing Technology Co., Ltd. is an authorized distributor committed to providing genuine HIKROBOT products and reliable service. We advise all customers to procure directly from us or through our officially recognized partners to ensure product authenticity and access to support.
Q: Is firmware upgradeability a concern for this industrial camera model?
A: HIKROBOT actively supports its product lines with firmware updates to enhance performance and security. For information regarding the latest firmware versions and upgrade procedures, or to discuss specific batch firmware requirements, please contact Beijing ZhongPing Technology Co., Ltd.
Q: What documentation is typically provided for customs clearance when importing this camera?
A: Standard documentation includes commercial invoices, packing lists, and certificates of origin. Depending on the destination country and specific import regulations, additional documentation may be required. Beijing ZhongPing Technology Co., Ltd. can assist with generating the necessary customs clearance documentation for your order.
Q: Are there any known discontinued alternatives or successors to the MV-CH650-90XM-F-NF that I should be aware of?
A: HIKROBOT continuously innovates its product offerings. While the MV-CH650-90XM-F-NF is a current and highly capable model, we recommend consulting with Beijing ZhongPing Technology Co., Ltd. regarding product roadmaps and potential future or alternative solutions that may better suit evolving project requirements.
Q: Can you perform a compatibility check to ensure this camera will integrate with my existing machine vision system?
A: Yes, Beijing ZhongPing Technology Co., Ltd. offers compatibility checks. Please provide detailed specifications of your current system, including the frame grabber, software, and other connected hardware, and our technical team will perform a thorough compatibility assessment.
Q: What is the typical delivery timeframe once an order is confirmed?
A: Delivery timeframes are dependent on stock availability and shipping logistics. For specific lead time estimations, please inquire with Beijing ZhongPing Technology Co., Ltd., especially if you require a real-time inventory status update prior to placing your order.
Q: How does HIKROBOT ensure the long-term availability and support for this camera model?
A: HIKROBOT is committed to long-term product support. However, as technology advances, certain models may eventually be superseded. For assurances on long-term availability and support for the MV-CH650-90XM-F-NF, or to discuss the product lifecycle, please reach out to Beijing ZhongPing Technology Co., Ltd.
Q: What are the warranty terms and conditions for the HIKROBOT MV-CH650-90XM-F-NF?
A: Standard warranty terms apply to HIKROBOT products. For detailed information on warranty coverage, duration, and claims procedures, please contact Beijing ZhongPing Technology Co., Ltd. We can provide you with the most current warranty policy.
