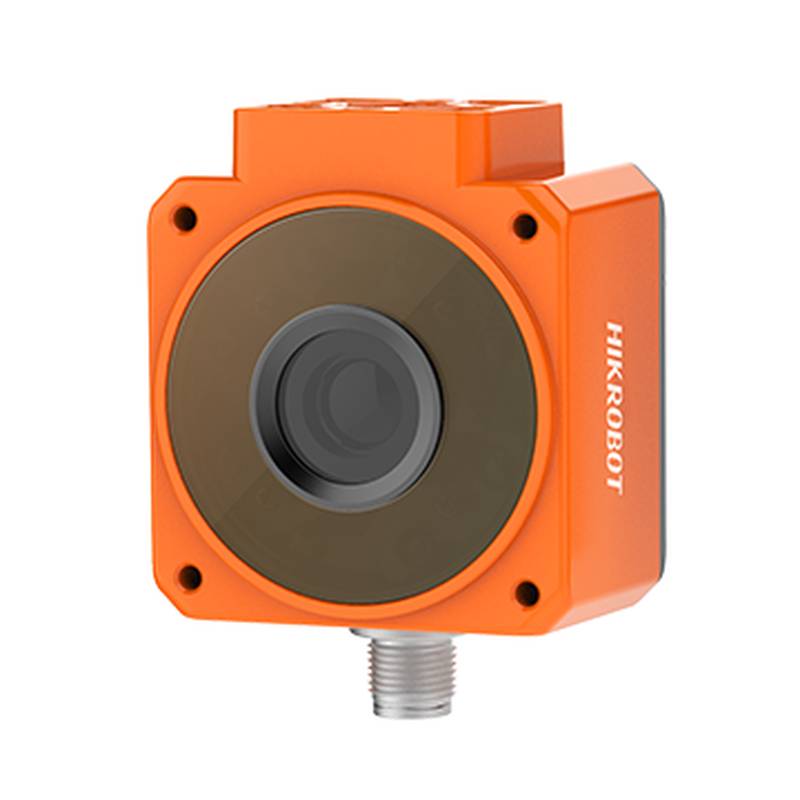

The HIKROBOT MV-SC2005AM-02WBN is a high-performance AGV navigation sensor designed to equip autonomous mobile robots with sophisticated environmental perception and precise positioning capabilities. This sensor is a critical component for autonomous mobile robot sensors and agv navigation sensor applications, ensuring reliable operation in dynamic industrial environments. Leveraging advanced imaging technology, the MV-SC2005AM-02WBN provides robust data acquisition for complex navigation tasks, enabling AGVs and AMRs to operate efficiently and safely.
This monochrome smart camera features a 0.5MP CMOS sensor with a global shutter, delivering crisp 800 × 600 resolution images at a maximum processing frame rate of 100 fps. Its M12-mount lens with a fixed focal length of 2.5mm and a working distance of 100 mm ± 5 mm, combined with a 4.8 μm × 4.8 μm pixel size and a 1/3.6” sensor format, allows for highly detailed and accurate readings. The sensor supports a wide range of barcode types, including DM-12 and DM-14, with a maximum reading speed of 100 codes per second and a maximum processing speed of 3 meters per second. Communication is facilitated through SmartSDK, UDP, and Serial protocols, with data interfaces including Fast Ethernet (100 Mbit/s) and RS-485. The device is powered by a 24 VDC supply and has a maximum power consumption of 18 W with the integrated backlight enabled. Its compact dimensions (68 mm × 60 mm × 40.8 mm) and IP65 protection rating (when properly installed with a lens cover) make it suitable for demanding industrial settings. The operating temperature range is -10 ~ 50°C, with storage temperatures from -30 ~ 70°C. The MV-SC2005AM-02WBN is CE and RoHS certified, underscoring its compliance with international standards.
The HIKROBOT SC2000A series, to which the MV-SC2005AM-02WBN belongs, is specifically engineered for AGV positioning and navigation, offering stable, efficient, and accurate data critical for autonomous vehicle operation. Its integrated algorithms and robust hardware design allow it to effectively analyze QR codes and other 2D codes, even in challenging conditions with spots, defects, or low contrast. The sensor's ability to provide reliable positioning information makes it an ideal choice for industries such as unmanned warehousing, lithium battery production, and photovoltaics.
The MV-SC2005AM-02WBN excels in applications requiring precise code reading and navigation. Its high processing frame rate and reading speed allow it to keep pace with the dynamic movements of AGVs, ensuring continuous and accurate data flow. The sensor's wide field of view (93.8°) and detailed displacement and angular accuracy (0.1 mm and 0.1°, respectively) further enhance its navigation capabilities, enabling precise maneuvering in complex environments. Supported by software like IDMVS, the sensor can be easily configured and managed for various AGV platforms.
Other models in the SC2000A series, such as the MV-SC2005AC-02WBN and MV-SC2005AC-03WBN, offer similar functionalities with variations in color output and lens specifications, catering to a broader range of application needs within the AGV and AMR ecosystem.
Industrial Scene Applications:
The HIKROBOT MV-SC2005AM-02WBN is ideally suited for several industrial scenarios where autonomous navigation and precise identification are paramount. In logistics and warehousing, it enables AGVs to autonomously navigate through aisles, identify pick-up and drop-off locations, and read package labels or pallet codes with high accuracy, optimizing inventory management and order fulfillment. In manufacturing assembly lines, particularly for high-volume production like electronics or automotive components, this sensor allows AGVs to precisely position themselves for material delivery, component retrieval, or transfer operations, ensuring seamless integration into the production flow and reducing downtime. Furthermore, in battery production and photovoltaic systems, where complex handling and precise placement are critical, the MV-SC2005AM-02WBN facilitates the accurate navigation of AGVs for moving delicate materials or positioning components, contributing to enhanced efficiency and reduced risk of damage.
Operational Stability and Long-Term Value:
The robust design of the MV-SC2005AM-02WBN, including its IP65 rating and wide operating temperature range, ensures reliable performance even in harsh industrial conditions. Its efficient power consumption and durable construction contribute to a longer operational lifespan, reducing maintenance costs and increasing the overall return on investment for AGV systems. By providing consistent and accurate navigation data, this sensor plays a vital role in maintaining the operational stability of autonomous fleets, minimizing errors, and maximizing productivity over the long term.
Selection Recommendations:
The HIKROBOT MV-SC2005AM-02WBN is highly recommended for applications demanding precise 2D code reading and reliable navigation in structured or semi-structured industrial environments. It is particularly well-suited for AGVs operating in logistics, warehousing, and manufacturing where accurate positioning and identification are critical for process efficiency. However, for applications requiring navigation in extremely dynamic or unstructured environments with significant visual clutter, or where real-time 3D environmental mapping is the primary requirement, supplementary sensors like LiDAR or advanced 3D vision systems might be considered in conjunction with this sensor for a comprehensive perception solution.
Frequently Asked Questions (FAQ):
Q: What types of barcodes can the HIKROBOT MV-SC2005AM-02WBN read?
A: The sensor can read various 2D barcodes, including DM-12 and DM-14, with high accuracy, even those with defects or low contrast.
Q: How does the MV-SC2005AM-02WBN ensure accurate positioning for AGVs?
A: It utilizes advanced image processing algorithms to analyze visual cues and codes within its field of view, providing precise positional data to the AGV's navigation system.
Q: Is the MV-SC2005AM-02WBN suitable for outdoor use?
A: While it has an IP65 rating for dust and water resistance, its primary design and optimal performance are for controlled indoor industrial environments; outdoor use would require additional environmental protection and consideration of lighting conditions.
Q: What is the communication interface of the MV-SC2005AM-02WBN?
A: It supports Fast Ethernet (100 Mbit/s) and RS-485 interfaces, along with SmartSDK, UDP, and Serial communication protocols.
Q: How does the MV-SC2005AM-02WBN compare to color AGV navigation sensors?
A: As a monochrome sensor, it excels in high-contrast barcode reading and detailed image acquisition under consistent lighting. Color sensors, like the MV-SC2005AC variants, offer additional benefits for applications where color differentiation is important, but may have different optimal conditions for code reading.
Q: What is the typical power requirement for the MV-SC2005AM-02WBN?
A: It operates on a 24 VDC power supply, with a maximum consumption of 18 W when its integrated backlight is enabled.
Q: Can this sensor be used for SLAM (Simultaneous Localization and Mapping) applications?
A: While it provides crucial positioning data, SLAM typically relies on a fusion of sensor data, often including LiDAR or depth cameras, for comprehensive environmental mapping. This sensor is a key component for localization within a SLAM system.
Q: What is the typical operating distance for reading codes with this sensor?
A: The specified working distance is 100 mm ± 5 mm, with a focal length of 2.5 mm, making it ideal for close-range, high-resolution scanning tasks.
