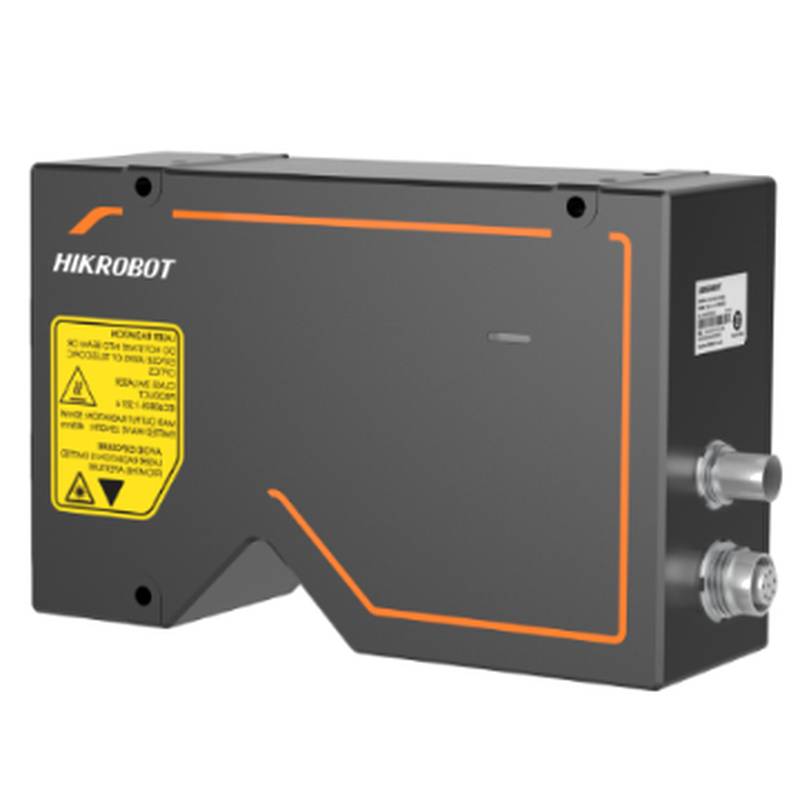

The HIKROBOT MV-DP2050-01P V2.0 is a high-performance 3D laser profilometer and scanner designed for precision measurement applications across various industrial automation fields. This advanced 3D scanner laser utilizes laser triangulation technology to capture detailed point cloud data, depth images, and intensity images with micrometer-level accuracy in real-time. Its robust design and sophisticated algorithms make it an indispensable tool for quality control, dimensional inspection, and defect detection.
The MV-DP2050-01P V2.0 is engineered with a single profile point count of 3200, ensuring a high level of detail in its measurements. It features a reference distance of 47 mm and an X-axis measurement range of 30.5 mm at the near end, 31.5 mm at the reference distance, and 32.5 mm at the far end. The Z-axis measurement range is 6 mm, with a Z-axis resolution between 1.58 and 1.74 μm, and a Z-axis repeatability of 0.41 μm. The sensor boasts exceptional Z-axis linearity of ±0.01% of MR and a contour data interval ranging from 9.9 to 10.4 μm. Its scanning frame rate can achieve between 3.3 kHz and an impressive 23.9 kHz in high-frame-rate mode, enabling rapid data acquisition. Data output types include raw images, profile data, depth maps, and brightness maps. The device supports both soft and hard trigger modes, including differential encoder triggering. For laser safety, it operates at Class 3R, with a laser wavelength of 405 nm, utilizing ultra-uniform fine blue light for precise contour extraction.
In terms of electrical characteristics, the MV-DP2050-01P V2.0 is equipped with a Gigabit Ethernet interface, also compatible with Fast Ethernet (100 Mbit/s). Power and I/O are managed through a 12-pin M12 connector, providing two optocoupler isolated inputs (line 0/9), two differential signal inputs (line 3/6), and one differential signal output (line 1). It operates on a 24 VDC power supply, with a typical power consumption of 15.2 W at 24 VDC. The unit's physical dimensions are 155.5 mm × 101 mm × 53.5 mm, and it weighs approximately 992 g. Its robust construction ensures an IP67 protection rating, making it suitable for harsh industrial environments. The operating temperature range is 0 to 45°C, with a storage temperature range of -30 to 80°C. It can operate in humidity levels of 20% to 85% RH (non-condensing). The sensor is compatible with 3DMVS/VM3D software and other third-party software, and supports Windows 7/10 32/64-bit and Windows 11 64-bit operating systems, requiring a minimum of 8GB RAM and an i5 processor.
The HIKROBOT MV-DP2050-01P V2.0 finds extensive application in industries demanding high precision and reliability. Its capabilities are particularly valuable in the manufacturing of consumer electronics, lithium batteries, and printed circuit boards (PCBs), where intricate details and precise dimensions are critical. For instance, in consumer electronics manufacturing, it aids in inspecting components and ensuring the quality of intricate parts like mobile phone card slots and camera modules, where measuring step and flatness is crucial. In the automotive industry, it contributes to the precise measurement of accessory dimensions and the detection of minute defects on parts. The DP2000 series, to which the MV-DP2050-01P V2.0 belongs, is known for its 3200 points/profile and scanning rates of 1.7-23.9 kHz, making it suitable for applications requiring detailed surface profiling.
Other models in the HIKROBOT DP2000 series and related 3D camera lines, such as the MV-DP2060-01P V2.0, MV-DP2061-01P V2.0, MV-DP2062-01P V2.0, MV-DP2080-01P V2.0, MV-DP2120-01P V2.0, MV-DP2140-01P V2.0, MV-DP2240-01P V2.0, MV-DP2240-03P V2.0, MV-DP2470-01P V2.0, MV-DP2470-03P V2.0, MV-DP2900-03P V2.0, MV-DP2060-01D V2.0, and MV-DP2120-01D V2.0, offer a range of specifications to meet diverse application needs, from medium to large fields of view and varying measurement ranges and scanning speeds. For example, the MV-DP2060-01P offers 2048 data points/profile with a scan frame rate of 700 Hz to 10 KHz.
Frequently Asked Questions (FAQ):
Q: What industries can benefit from the HIKROBOT MV-DP2050-01P V2.0?
A: The MV-DP2050-01P V2.0 is highly beneficial for industries requiring high-precision, non-contact 3D measurement, including consumer electronics, lithium batteries, PCBs, and automotive manufacturing.
Q: How does the MV-DP2050-01P V2.0 achieve its high accuracy?
A: It achieves high accuracy through its advanced laser triangulation measurement, a 405 nm ultra-uniform fine blue laser, a customized large-iris lens for high MTF resolution, and sophisticated image processing algorithms, including subpixel super-resolution processing, resulting in submicron-level accuracy.
Q: What environmental conditions can the MV-DP2050-01P V2.0 withstand?
A: The sensor has an IP67 protection rating, an operating temperature range of 0 to 45°C, and can function in humidity levels of 20% to 85% RH (non-condensing), making it robust for industrial environments.
Q: What are the key advantages of using a 3D laser profilometer like the MV-DP2050-01P V2.0 over traditional 2D inspection methods?
A: The MV-DP2050-01P V2.0 provides comprehensive 3D data, enabling the detection of surface irregularities, height differences, and complex geometric features that are invisible to 2D methods, leading to more thorough quality control and defect identification.
Q: Is the MV-DP2050-01P V2.0 compatible with standard industrial software?
A: Yes, it is compatible with 3DMVS/VM3D software and other third-party software, and adheres to GigE Vision V2.0 Protocol and GenICam Standard, ensuring broad integration capabilities.
Q: How fast is the data acquisition and processing speed of this device?
A: The scanning frame rate can reach up to 23.9 kHz, and the integrated high-speed processing unit enables maximum processing speeds, facilitating real-time data acquisition and analysis.
