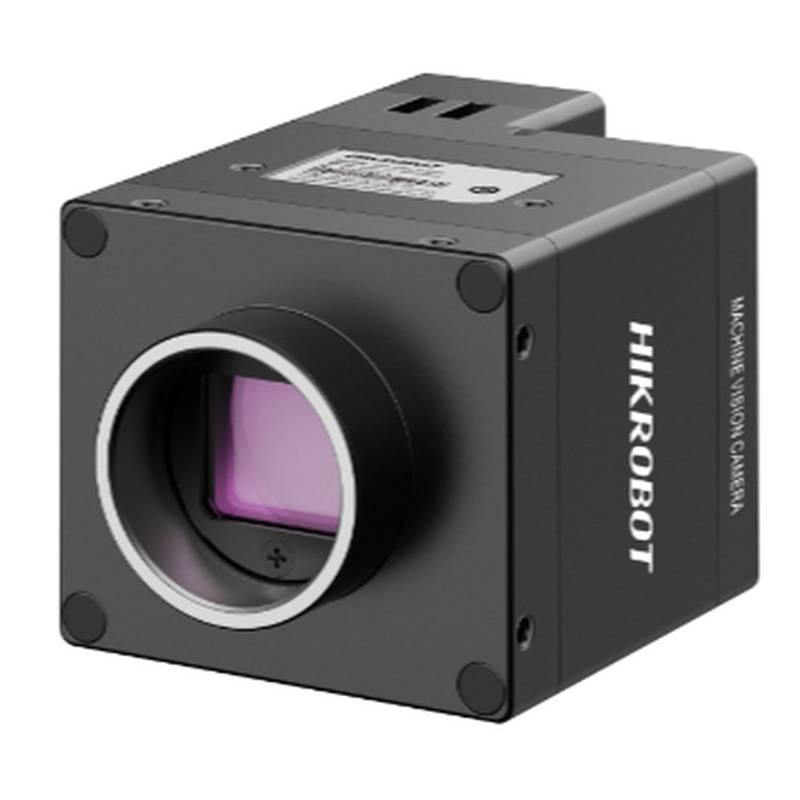

The HIKROBOT MV-CH050-90TM-C-NF is a high-performance industrial vision camera designed for demanding machine vision applications, utilizing a 10GigE interface to ensure rapid data transmission and high-resolution imaging. As a sophisticated industrial vision camera, this device integrates the Gpixel GMAX3405 global shutter CMOS sensor to provide precise image acquisition, effectively addressing common industrial challenges such as motion blur and high-speed inspection requirements in automated manufacturing environments.
Technical Specifications and Performance Parameters
The following technical data outlines the fundamental operational metrics of the MV-CH050-90TM-C-NF, providing engineers with the necessary criteria for system integration and performance verification.
Model: MV-CH050-90TM-C-NF
Sensor Type: CMOS, Global Shutter
Sensor Model: Gpixel GMAX3405
Pixel Size: 3.4 μm × 3.4 μm
Sensor Format: 2/3"
Resolution: 2448 × 2048
Maximum Frame Rate: 163.4 fps @2448 × 2048 Mono 8
Dynamic Range: 64.6 dB
Signal-to-Noise Ratio: 39 dB
Gain Range: 0 dB ~ 6.1 dB
Exposure Time: 2 μs ~ 10 sec
Shutter Mode: Automatic, Manual, One-push, and Trigger Width
Monochrome/Color: Monochrome
Pixel Format: Mono 8/10/10Packed/12/12Packed
Binning Modes: 1 × 1, 2 × 2, 4 × 4
Downsampling: 1 × 1, 2 × 2, 4 × 4
Mirroring: Horizontal and Vertical
Data Interface: 10 Gigabit Ethernet (10000Mbit/s), backward compatible with Gigabit Ethernet (1000Mbit/s)
Digital I/O: 6-pin P7 connector (1x opto-isolated input, 1x opto-isolated output, 1x non-isolated bi-directional I/O)
Power Supply: 9 ~ 24 VDC
Typical Power Consumption: 8.0 W @12 VDC
Lens Mount: C-Mount
Dimensions: 50 mm × 45 mm × 68.6 mm
Weight: Approximately 212 g
IP Rating: IP40 (when lens and cables are correctly installed)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -30 ~ 80°C
Relative Humidity: 20% ~ 95% RH (non-condensing)
Supported Software: MVS or third-party software compliant with GigE Vision
Operating Systems: Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits
Standards Compliance: GigE Vision V2.0, GenICam, CE, RoHS, KC
Industrial Application Scenarios and Operational Value
The MV-CH050-90TM-C-NF is engineered for versatility in high-speed, precision-critical industrial sectors. In semiconductor wafer inspection, the camera’s high frame rate and global shutter technology facilitate the detection of microscopic defects on moving substrates, significantly reducing inspection cycle times. In high-speed packaging and sorting lines, the device’s 10GigE bandwidth ensures that massive amounts of image data are processed in real-time without bottlenecks, enabling accurate item identification and reducing system latency. Furthermore, in automotive component assembly, the robust build and reliable global shutter ensure consistent image capture quality under the variable lighting conditions often found on factory floors.
Series Overview and Integration Compatibility
The HIKROBOT high-resolution series offers an extensive range of configurations to satisfy varying requirements in resolution, frame rate, and interface standards. While the MV-CH050-90TM-C-NF serves as a high-speed, high-resolution solution, engineers may also consider other models within the same product family for specific system optimization:
MV-CH050-90TC-C-NF, MV-CH120-15TM-M58S-NF, MV-CH120-15TC-M58S-NF, MV-CH120-60TC-C-NF, MV-CH120-90TM-C-NF, MV-CH120-90TC-C-NF, MV-CH240-10TM-C-NN, MV-CH240-10TM-M58S-NN, MV-CH250-25TC-F-NF, MV-CH250-25TC-M58S-NF, MV-CH250-60TM-M58S-NF, MV-CH250-90TM-C-NF, MV-CH250-90TM-M58S-NF, MV-CH250-90TC-C-NF, MV-CH250-90TC-M58S-NF, MV-CH250-90TN-M58S-NF, MV-CH250-92TM-C-NF, MV-CH310-10TM-M58S-NN, MV-CH310-10TC-M58S-NN, MV-CH500-90TM-M58S-NF, MV-CH500-90TM-F-NF, MV-CH500-90TC-M58S-NF, MV-CH650-90TM-F-NF, MV-CH650-90TM-M58S-NF, MV-CH650-90TC-F-NF, MV-CH650-90TC-M58S-NF, MV-CH1030-90TM-M58S-NN, MV-CH1030-90TC-M58S-NN, MV-CH1510-10FM-M72-TF, MV-CH1510-10FC-M72-TF, MV-CH610-10TC-F-TF, MV-CH610-10TM-F-TF, MV-CH250-92TM-C-NF V2, MV-CH120-60TM-C-NF.
When transitioning between these models, engineers should evaluate the specific sensor characteristics, lens mount requirements (C-mount vs. M58S/M72), and interface protocols to ensure seamless hardware and firmware compatibility.
Frequently Asked Questions (FAQ)
Q: How can procurement teams secure volume pricing and ensure immediate inventory allocation for large-scale automation projects?
A: Pricing for high-volume orders is structured based on project scale and long-term supply agreements. Due to the rapid turnover of industrial-grade vision sensors in the global market, it is essential to request a Latest Live Inventory & Project Pricing Report from Beijing Zhongping Technology Co., Ltd. to guarantee current stock availability and valid project-based quotes.
Q: What mechanisms are in place to verify the authenticity of HIKROBOT products and prevent the procurement of refurbished units?
A: Beijing Zhongping Technology Co., Ltd. serves as an authorized channel that provides full factory-traceability documentation for all units. By procuring through our verified supply chain, you ensure that every camera comes with original manufacturing certification, mitigating the risk of counterfeit hardware in your production line.
Q: How do fluctuations in global logistics and currency affect the final procurement cost for international clients?
A: Industrial component pricing is subject to dynamic market shifts. To maintain cost stability, Beijing Zhongping Technology Co., Ltd. provides firm price protection windows for confirmed projects. Contact our procurement desk to secure your current pricing and avoid potential cost escalations due to global supply chain volatility.
Q: Are there formal procedures for obtaining Certificates of Conformity (CoC) for international customs clearance?
A: Compliance with international customs regulations is a standard part of our service. Beijing Zhongping Technology Co., Ltd. provides comprehensive documentation, including CoC and original import/export compliance files, to ensure that your industrial equipment clears customs without delays.
Q: What is the official process for updating firmware on these cameras to ensure compatibility across different batches?
A: Firmware consistency is critical for multi-camera setups. We provide official factory-validated firmware versions and compatibility matching reports. For specific version requirements or field-upgrade support, please consult with the engineering team at Beijing Zhongping Technology Co., Ltd. to ensure stable system performance.
Q: How does the supply chain team at Beijing Zhongping Technology Co., Ltd. manage the risk of component end-of-life (EOL) for critical industrial cameras?
A: We maintain a proactive monitoring system for product lifecycles. If a model is nearing EOL, we offer migration paths and recommended alternatives from the current HIKROBOT catalog. Please reach out to our team to discuss your long-term maintenance plans and inventory buffering.
Q: Can this camera be integrated into existing systems using different GigE Vision standards or legacy architectures?
A: Yes, the 10GigE interface is backward compatible with standard Gigabit Ethernet. However, achieving full performance requires specific network interface card (NIC) and cabling standards. To double-check the system topology or request an official quotation, contact Beijing Zhongping Technology Co., Ltd. directly.
Q: How does the camera perform in high-temperature or vibration-heavy environments compared to standard commercial imaging devices?
A: This industrial-grade unit is tested for operation within a specified 0 to 50°C range. For environments exceeding these standards, we provide professional derating curves and thermal management recommendations. Contact the technical team at Beijing Zhongping Technology Co., Ltd. to receive a custom integration assessment for your specific site conditions.
Q: Is it possible to receive technical support for mechanical and electrical migration when replacing a legacy camera with the MV-CH050-90TM-C-NF?
A: Replacing legacy hardware requires careful consideration of I/O mapping and lens mount compatibility. Our Field Application Engineers (FAE) provide one-on-one technical consultation to ensure a seamless drop-in replacement. Please submit your current hardware specifications to Beijing Zhongping Technology Co., Ltd. to obtain a customized compatibility report.
Q: Are there specific software development kit (SDK) requirements for integrating this camera into custom machine vision algorithms?
A: The camera is compliant with the standard GigE Vision V2.0 and GenICam protocols, ensuring broad compatibility with common SDKs and third-party software. If you require specific API documentation or integration assistance, contact Beijing Zhongping Technology Co., Ltd. for direct access to engineering resources.
