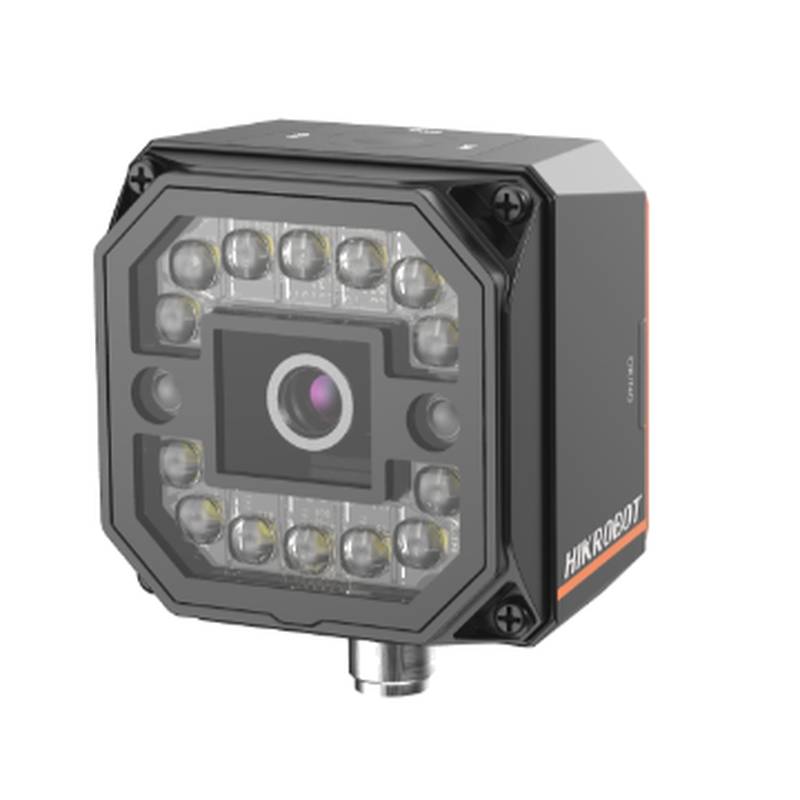

The HIKROBOT MV-SCT16C-H-WX-06M-WBN is a high-performance 1.6MP machine vision sensor designed for demanding industrial automation tasks. Leveraging advanced machine vision sensors and industrial smart sensor technology, this device offers exceptional image acquisition and processing capabilities. Its global shutter CMOS sensor ensures distortion-free imaging, even with fast-moving objects, making it ideal for applications requiring precise motion capture. The sensor's robust construction, with an IP67 rating, provides excellent protection against dust and water ingress, suitable for harsh industrial environments.
Key Specifications:
Model: MV-SCT16C-H-WX-06M-WBN Resolution: 1408 × 1024 Sensor Type: CMOS, Global Shutter Pixel Size: 3.45 μm × 3.45 μm Sensor Size: 1/2.9" Max. Frame Rate: 60 fps Dynamic Range: 71.4 dB Signal-to-Noise Ratio (SNR): 41 dB Gain: 0–15 dB Exposure Time: 16 μs – 1 sec Pixel Format: RGB 8, Mono 8 Color/Monochrome: Color
Advanced Vision Tools for Precision Tasks
The MV-SCT16C-H-WX-06M-WBN is equipped with a comprehensive suite of vision tools designed for precise industrial inspection and measurement. These tools include:
Measurement: Point-to-point, point-to-line, contrast, grayscale area, pitch, width, average brightness, line-to-line angle, color, diameter, and line angle measurements. Presence/Absence Detection: Spot, edge, contour, pattern, circle, and line presence detection, along with anomaly judgment and general presence/absence checks. Counting: Spot, edge, contour, pattern, learned count, and color count. Recognition: Multi-object counting, code recognition, color comparison, color recognition, type recognition, registration classification, target detection, and character recognition. Logic Operations: Variable calculation, branching control, logical judgment, data formatting, conditional judgment, character comparison, and combination judgment. Positioning: Calibration conversion, single-point alignment, single-point correction, single-point grasping, unit conversion, and position correction. Deep Learning: Classification and object detection. Defect Tools: Anomaly detection.
This extensive toolset enables the sensor to perform complex tasks such as quality control, defect detection, dimensional measurement, and robotic guidance with high accuracy and reliability.
Seamless Integration and Communication
Designed for industrial environments, the MV-SCT16C-H-WX-06M-WBN supports a wide array of communication protocols, ensuring easy integration into existing automation systems. These include:
Serial: RS-232 Network: TCP, UDP, FTP Industrial Ethernet: PROFINET, Modbus, EtherNet/IP
The sensor features a Fast Ethernet (100Mbit/s) data interface and a 17-pin M12 connector that provides power, Ethernet, digital I/O, and serial port functionality. It offers 2 input signals, 3 output signals, 3 configurable I/O lines, and 1 external button input, with configurable NPN or PNP output types. Power is supplied via a 24 VDC input with a maximum power consumption of 48 W.
Robust Design for Demanding Environments
The MV-SCT16C-H-WX-06M-WBN boasts a robust mechanical design and an IP67 protection rating, making it suitable for harsh industrial conditions. It has an M12-mount lens interface with mechanical focus and a 6 mm focal length lens. The device includes a transparent lens cap, with optional polarized or full-polarized lens caps available. Integrated LED lighting (white, red, or blue) ensures uniform illumination. Status indicators for PWR, LNK, STS, and OK/NG provide at-a-glance operational status.
Dimensions: 65.2 mm × 65.2 mm × 47 mm Weight: Approximately 280 g Operating Temperature: 0°C to 50°C Storage Temperature: -30°C to 70°C Humidity: 20% to 95% RH (non-condensing)
The device is certified with CE, FCC, and KC standards.
Applications in Industrial Automation
The HIKROBOT MV-SCT16C-H-WX-06M-WBN is highly effective in various industrial automation sectors. Its precise measurement and inspection capabilities are invaluable in:
Automotive Manufacturing: For quality control, component placement verification, and defect detection on assembly lines. Electronics Manufacturing: Ensuring precision in component placement, soldering inspection, and quality assurance of small parts. Food and Beverage Industry: For inspection of packaging, fill levels, and product quality, ensuring compliance with stringent standards. Consumer Electronics: High-precision inspection for miniaturized components and complex assemblies. Logistics and Warehousing: For automated sorting, tracking, and inventory management through barcode reading and OCR.
By automating visual inspection tasks, this sensor enhances productivity, reduces errors, and optimizes resource utilization, contributing to increased efficiency and profitability.
Related Models
For applications requiring different resolutions or specifications, HIKROBOT offers related models such as the MV-SCT16C-H-WX-12M-WBN and MV-SCT16C-H-WX-15M-WBN. Additionally, models like the SC016M-12M-01 are part of the broader HIKROBOT vision sensor family, providing a range of options to suit diverse industrial needs.
Frequently Asked Questions (FAQ)
Q: What are the primary benefits of using a global shutter sensor like the MV-SCT16C-H-WX-06M-WBN?
A: The global shutter technology eliminates motion distortion, allowing for crystal-clear images of fast-moving objects. This is crucial for high-speed applications in industrial automation where precise capture of moving parts is essential.
Q: How does the IP67 rating benefit the sensor in industrial environments?
A: The IP67 rating signifies that the sensor is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. This ensures reliable operation in harsh industrial settings with exposure to dust, water, and cleaning processes.
Q: What communication protocols are supported by the MV-SCT16C-H-WX-06M-WBN?
A: The sensor supports a wide range of protocols including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP, facilitating seamless integration with various industrial control systems and networks.
Q: Can this sensor be used in varying lighting conditions?
A: Yes, the sensor is equipped with integrated LED lighting (white, red, or blue) and features a dynamic range of 71.4 dB and an SNR of 41 dB, allowing it to perform effectively in diverse lighting environments. The SCMVS software also aids in optimizing imaging parameters.
Q: What types of industrial applications are best suited for this machine vision sensor?
A: This sensor is ideal for applications requiring high-precision inspection, measurement, and quality control, such as automotive manufacturing, electronics assembly, food packaging inspection, and logistics automation where accurate defect detection and part verification are critical.
