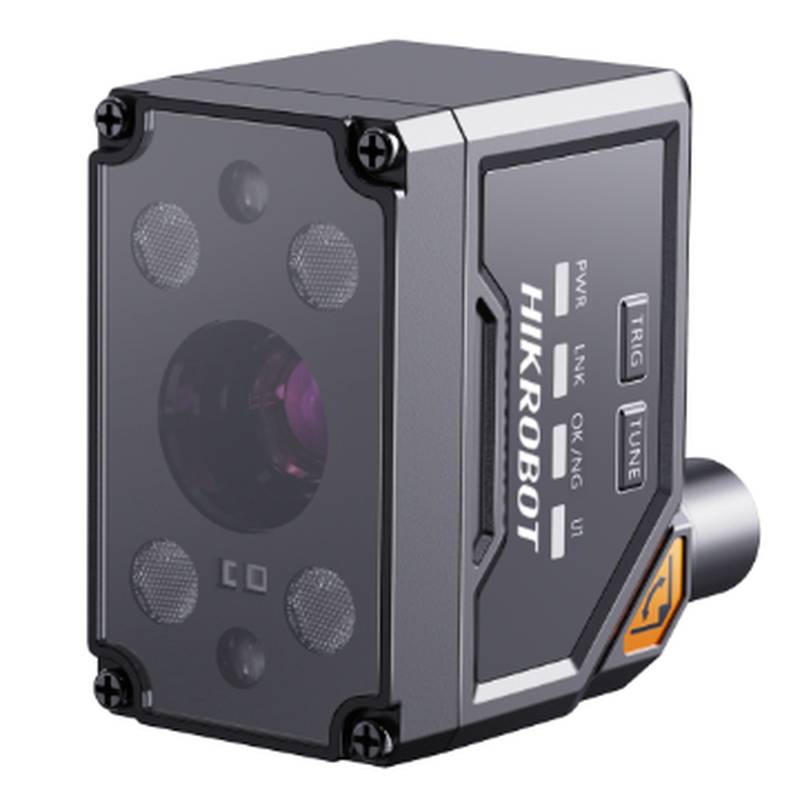

The HIKROBOT MV-ID2023XM-08L-RBN is a high-resolution industrial barcode reader designed for demanding automated identification tasks. This sophisticated device leverages advanced imaging technology to deliver exceptional performance in reading a wide variety of 1D and 2D barcodes with speed and accuracy. Engineered for reliability in harsh industrial environments, the MV-ID2023XM-08L-RBN excels as an industrial barcode reader and a high-resolution scanner, crucial for applications requiring precise data capture and seamless integration into manufacturing and logistics workflows. Its robust construction and versatile communication options make it a cornerstone for modern industrial automation, ensuring efficient and error-free product tracking and verification.
Product Specifications:
Model: MV-ID2023XM-08L-RBN Name: 240W Resolution, 08mm Focal Length, Red Light, Semi-Polarized, Ethernet Interface, Liquid Focus Industrial Barcode Reader Barcode Types Supported:
* 1D Codes: Code 39, Code 93, Code 128 (including GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode (single/double track)
* Stacked 2D Codes: PDF417, MicroPDF417
* Matrix 2D Codes: QR Code (including GS1-QR), Data Matrix (including GS1-DM), MicroQR, AZTEC, HanXin Maximum Processing Frame Rate: 60 fps Maximum Reading Speed: 80 codes/second Sensor: Global Shutter, Monochrome, 1/3.52", 2.2µm x 2.2µm Resolution: 1920 × 1280 Exposure Time: 36 µs ~ 100 ms Gain: 0 dB ~ 48 dB Data Interface: Fast Ethernet (100 Mbit/s) Communication Protocols: SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS Digital I/O: 17-pin M12 connector providing power and I/O, including 2 isolated inputs (LineIn 0/1), 2 isolated outputs (LineOut 3/4), 1 RS-232, with side button trigger capability. Power Supply: 24 VDC Power Consumption: Average: 5 W @ 24 VDC (with integrated illumination enabled); Maximum: 12 W @ 24 VDC (with integrated illumination enabled) Focal Length: 8 mm Lens Mount: D14-Mount, Liquid Lens focusing Lens Hood: Semi-polarized lens hood; transparent or fully polarized options available for purchase. Light Source: Red light; white, blue, infrared, ultraviolet, or red/blue dual-color options available for purchase. Aimer: 2 green LEDs Indicator Lights: Power (PWR), Link (LNK), OK/NG (Read status), User (U1) Housing Material: Metal Dimensions: Flat corner: 72.7 mm × 31.5 mm × 41 mm; Right-angle corner: 51.5 mm × 31.5 mm × 61 mm Weight: 118 g IP Protection Rating: IP65 Operating Temperature: 0 ~ 50°C Storage Temperature: -30 ~ 70°C Humidity: 20% ~ 95% RH non-condensing Vibration Resistance: Bare device: 10 Hz ~ 55 Hz, 1.5 mm amplitude, for 2 hours in X, Y, and Z directions (IEC 60068-2-6:2007 / GB/T 2423.10-2019) Shock Resistance: Bare device: 30 g / 11 ms, half-sine wave, across six axes, 500 impacts per axis (IEC 60068-2-27 / GB/T 2423.5-2019) Software: IDMVS Certifications: CE, RoHS, KC
The HIKROBOT MV-ID2023XM-08L-RBN is engineered with a high-resolution 1920 × 1280 sensor, enabling it to capture intricate details on even the smallest or most densely populated barcodes. This high-resolution scanner capability is critical in sectors where product identification accuracy is paramount, such as electronics manufacturing and pharmaceutical packaging. The integrated red light source, coupled with the option for a semi-polarized lens hood, effectively mitigates glare and reflections, ensuring consistent read performance on varied surfaces. The liquid lens technology allows for rapid and precise focusing across a range of working distances, a significant advantage in dynamic industrial environments where items may not maintain a fixed position. This advanced focusing mechanism, combined with a fast processing frame rate of 60 fps, ensures that the device can keep pace with high-speed production lines.
Industrial Applications and Performance Enhancement:
The MV-ID2023XM-08L-RBN finds its optimal application in high-volume, fast-paced manufacturing and logistics environments where efficiency and accuracy are non-negotiable. In the automotive assembly line, this industrial barcode reader can reliably capture VIN numbers and component IDs, ensuring accurate tracking throughout the production process, thereby minimizing errors and streamlining inventory management. Its robust performance under vibration and shock conditions, as evidenced by its resistance ratings, makes it suitable for integration into machinery that experiences significant physical stress. For food and beverage packaging, the device's ability to read various barcode types, including GS1-compliant codes, is crucial for traceability and compliance with regulatory standards. The fast Ethernet interface facilitates rapid data transfer to supervisory systems, enabling real-time monitoring and control. The device’s IP65 rating ensures protection against dust and water ingress, making it suitable for humid or dusty processing areas common in this industry.
In electronics manufacturing, where tiny components and densely packed circuit boards require precise identification, the MV-ID2023XM-08L-RBN's high-resolution scanning capability is a key differentiator. It can accurately decode miniature 2D Data Matrix codes on PCBs or individual electronic components, supporting automated assembly and quality control processes. The wide range of supported communication protocols, including Ethernet/IP and Profinet, ensures seamless integration with various industrial automation platforms, reducing complexity and integration cycles for system integrators. Furthermore, its ability to operate in a wide temperature range (0-50°C) makes it adaptable to diverse factory floor conditions.
Extended Series and Model Variations:
HIKROBOT offers a comprehensive series of industrial barcode readers to meet varied application needs. Alongside the MV-ID2023XM-08L-RBN, users may also consider models such as the MV-ID2023XM-12L-RBN and MV-ID2023XM-16L-RBN, which typically offer different focal lengths or lens options suitable for longer working distances. For applications requiring enhanced environmental resilience or specific interface configurations, variants like the MV-ID2023XM-08L-RBN-U, MV-ID2023XM-12L-RBN-U, and MV-ID2023XM-16L-RBN-U are available. These "-U" variants may offer specific housing enhancements or advanced connectivity features tailored for more specialized industrial settings. The selection of the appropriate model depends on factors such as the required field of view, working distance, and environmental conditions.
Operational Stability and Long-Term Value:
The HIKROBOT MV-ID2023XM-08L-RBN is built for sustained operational stability, a critical factor for minimizing downtime and maximizing productivity in industrial settings. Its robust metal housing, coupled with stringent IP65 protection, guards against common industrial hazards, ensuring longevity even in challenging environments. The device's low average power consumption of 5 W (when illumination is active) contributes to energy efficiency, aligning with modern industrial sustainability goals. Tested for vibration and shock resistance according to international standards, it is designed to withstand the rigors of continuous operation on moving machinery or assembly lines. The comprehensive suite of communication protocols supported ensures that the MV-ID2023XM-08L-RBN can be readily integrated into existing or new automation systems, supporting a reduced integration period and long-term system scalability.
Selection Guidance:
The MV-ID2023XM-08L-RBN is exceptionally well-suited for applications demanding high accuracy in reading small or densely packed barcodes at moderate working distances, such as on conveyor belts or within robotic work cells where precise object positioning is common. Its 8mm focal length and liquid lens are ideal for rapid scanning of items moving at high speeds or presented at slightly varying distances. However, for applications requiring very long working distances or the scanning of extremely large areas, alternative models within the HIKROBOT industrial barcode reader series, potentially with longer focal lengths or different lens configurations, might be more appropriate. It is also important to consider the specific lighting conditions of the environment; while the red light source is versatile, environments with extreme ambient light might benefit from alternative illumination options or advanced optical filtering.
FAQ Section:
Q: How does the MV-ID2023XM-08L-RBN handle varying lighting conditions in an industrial setting?
A: The MV-ID2023XM-08L-RBN is equipped with a controllable red light source and a global shutter sensor that minimizes motion blur, allowing for consistent performance even in environments with fluctuating ambient light. Optional lens hoods, such as the semi-polarized version, also help to reduce glare and improve readability on reflective surfaces.
Q: What is the advantage of the liquid lens technology in this high-resolution scanner?
A: The liquid lens technology enables rapid and precise electronic focusing, allowing the MV-ID2023XM-08L-RBN to adjust its focal point quickly and accurately. This is crucial for reading barcodes at varying distances or on objects that are not perfectly positioned, significantly improving read rates and reducing processing times.
Q: Is the MV-ID2023XM-08L-RBN compatible with common industrial automation protocols?
A: Yes, the device supports a wide array of industrial communication protocols, including Profinet, Ethernet/IP, ModBus, and FINS, ensuring robust compatibility and seamless integration with various PLC and SCADA systems, thereby simplifying system implementation.
Q: How does the MV-ID2023XM-08L-RBN perform in dusty or wet industrial environments?
A: With its IP65 rating, the MV-ID2023XM-08L-RBN is protected against dust ingress and low-pressure water jets, making it suitable for use in many challenging industrial environments commonly found in food processing, chemical manufacturing, and heavy industry.
Q: What are the key differences between the MV-ID2023XM-08L-RBN and the MV-ID2023XM-12L-RBN?
A: The primary difference typically lies in the focal length of the lens. The MV-ID2023XM-08L-RBN has an 8mm focal length, optimized for closer working distances, while the MV-ID2023XM-12L-RBN usually features a 12mm focal length, making it more suitable for slightly longer working distances.
Q: Can this industrial barcode reader handle damaged or poorly printed barcodes?
A: The high-resolution sensor and advanced decoding algorithms of the MV-ID2023XM-08L-RBN enhance its ability to read barcodes that may be partially damaged, obscured, or have low print quality, providing more reliable data capture compared to standard readers.
Q: What is the maximum throughput rate for this device?
A: The MV-ID2023XM-08L-RBN can achieve a maximum reading speed of 80 codes per second, supported by a maximum processing frame rate of 60 fps, enabling it to keep up with the demands of high-speed production and packaging lines.
Q: What are the advantages of using a global shutter sensor in this industrial barcode reader?
A: A global shutter sensor captures the entire image at once, unlike rolling shutter sensors which scan line by line. This eliminates motion artifacts and distortion, ensuring sharp and accurate images of fast-moving objects, which is critical for reliable barcode reading in industrial applications.
Q: Does the device require specific software for configuration and operation?
A: Yes, the MV-ID2023XM-08L-RBN utilizes the IDMVS software for configuration, control, and image management. This software provides a user-friendly interface for setting up reading parameters and integrating the scanner into the production line.
