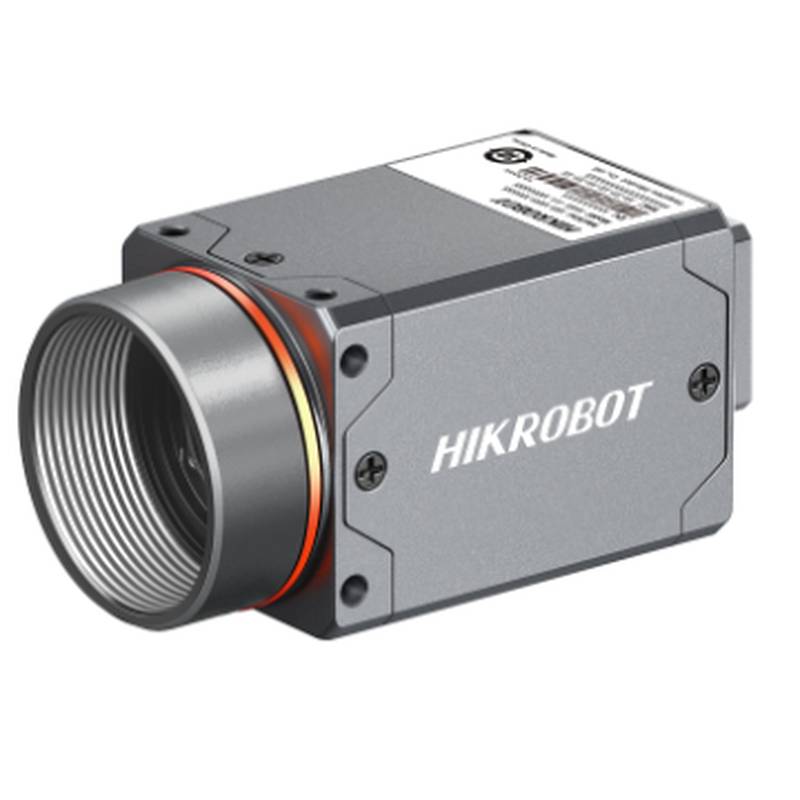

The HIKROBOT MV-CT004G-200GC01-BASE is a high-performance 0.4MP color GigE machine vision camera designed for demanding industrial automation tasks. This camera leverages a stacked BSI CMOS sensor with a global shutter, ensuring sharp, artifact-free images even in fast-moving scenarios. Its 720 × 540 resolution combined with a maximum frame rate of 200.5 fps at this resolution makes it ideal for applications requiring rapid inspection and precise measurements. The 6.9 μm × 6.9 μm pixel size contributes to its sensitivity and ability to capture fine details.
This machine vision camera is built with a C-Mount lens interface, providing flexibility in lens selection for various fields of view and magnifications. The compact dimensions of 29 mm × 29 mm × 42 mm and a weight of approximately 116 g make it suitable for integration into space-constrained automated systems. Electrical characteristics include a Gigabit Ethernet interface (1000 Mbit/s) compatible with Fast Ethernet, offering robust and high-speed data transfer. Power is supplied via a 9 ~ 24 VDC input, with support for Power over Ethernet (PoE), simplifying cabling. The camera also features versatile digital I/O with one optocoupler isolated input (Line0), one optocoupler isolated output (Line1), and one bi-directional configurable non-isolated I/O (Line2). Adherence to the GigE Vision V2.0 and GenICam standards ensures broad compatibility with third-party software and hardware.
The HIKROBOT MV-CT004G-200GC01-BASE is part of a comprehensive series of machine vision cameras designed to meet diverse industrial needs. Other models in this series include the MV-CT016G-78GC01-BASE, MV-CT020G-60GC01-BASE, MV-CT032G-38GC01-BASE, MV-CT032G-38GC01-PRO, MV-CT032G-38GC01-MAX, MV-CT050G-24GC01-BASE, MV-CT050G-24GC01-PRO, MV-CT050G-24GC01-MAX, MV-CT060R-19GC01-BASE, MV-CT060R-19GC01-PRO, MV-CT060R-19GC01-MAX, MV-CT089G-13GC01-BASE, MV-CT089G-13GC01-PRO, MV-CT089G-13GC01-MAX, MV-CT120G-9GC01-BASE, MV-CT120G-9GC01-PRO, MV-CT120G-9GC01-MAX, MV-CT200R-5GC01-BASE, MV-CT200R-5GC01-PRO, MV-CT200R-5GC01-MAX, MV-CT004G-200GC01-MAX, MV-CT004G-200GC01-PRO, MV-CT016G-78GC01-PRO, MV-CT016G-78GC01-MAX, MV-CT020G-60GC01-MAX, and MV-CT020G-60GC01-PRO. These models offer a range of resolutions, frame rates, and features to suit various application requirements.
Specifications: Model: MV-CT004G-200GC01-BASE Resolution: 720 × 540 Sensor Type: CMOS, Global Shutter Sensor Model: Stacked BSI Pixel Size: 6.9 μm × 6.9 μm Sensor Size: 1/2.9” Max. Frame Rate: 200.5 fps @ 720 × 540 Bayer GB 8 Dynamic Range: 62.6 dB Signal-to-Noise Ratio (SNR): 43.9 dB Gain: 0 dB ~ 24 dB Exposure Time: 23 μs ~ 10 sec Shutter Mode: Auto Exposure, Manual Exposure, One-key Exposure; Trigger Width and Trigger Controlled supported Color/Mono: Color Pixel Format: Mono 8, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 Binning: Not Supported Subsampling: Not Supported Mirroring: Horizontal and Vertical Mirroring supported Data Interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) Data Interface Type: RJ45 Connector Control Interface: Not Supported Digital I/O: 8-pin M8 A-Code connector for power and I/O: 1x Optocoupler Isolated Input (Line0), 1x Optocoupler Isolated Output (Line1), 1x Bi-directional Configurable Non-Isolated I/O (Line2) Power Supply: 9 ~ 24 VDC, PoE Supported Typical Power Consumption: 1.6 W @ 12 VDC Lens Mount: C-Mount Dimensions: 29 mm × 29 mm × 42 mm Weight: Approx. 116 g IP Rating: IP40 (with correct lens and cable installation) Operating Temperature: -30°C to 60°C Storage Temperature: -30°C to 80°C Humidity: 20% to 95% RH (non-condensing) Software: MVS or third-party GigE Vision protocol supporting software Operating System: Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits Protocols/Standards: GigE Vision V2.0, GenICam Certifications: CE, RoHS, KC
The HIKROBOT MV-CT004G-200GC01-BASE is exceptionally well-suited for industrial automation scenarios where high-speed imaging and precise detail capture are paramount. Its robust GigE Vision interface, compliant with GigE Vision V2.0 and GenICam standards, ensures seamless integration into existing automation systems and compatibility with a wide range of machine vision software. This makes it a reliable choice for applications such as high-speed product inspection on assembly lines, quality control in packaging processes, or precise object detection for robotic guidance. The camera's ability to achieve high frame rates at its native resolution is a significant advantage for tasks requiring real-time analysis and rapid defect detection, thereby enhancing overall production efficiency and reducing error rates.
Industrial Applications and Value Proposition:
This machine vision camera excels in environments demanding high throughput and accuracy. Industries such as electronics manufacturing, automotive assembly, food and beverage processing, and pharmaceuticals can leverage its capabilities for:
Automated Inspection: Identifying defects, verifying component placement, and ensuring product quality at high speeds. High-Speed Measurement: Performing precise dimensional checks and measurements in real-time on moving parts. Robotic Guidance: Providing accurate visual feedback for robotic arms in pick-and-place operations, assembly, and packaging. Code Reading and Verification: Ensuring the accurate reading and verification of barcodes and 2D codes on fast-moving products.
The MV-CT004G-200GC01-BASE contributes to increased productivity by minimizing manual inspection, reducing waste, and ensuring consistent product quality. Its durable design and wide operating temperature range (-30°C to 60°C) also make it suitable for challenging industrial environments.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for bulk orders of the HIKROBOT MV-CT004G-200GC01-BASE camera for a large-scale manufacturing project?
A: For significant projects, Beijing Zhongping Technology Co., Ltd. implements a tiered pricing structure and dynamic inventory allocation to optimize cost and availability. Given the rapid global turnover of industrial automation components, obtaining the most current "Latest Live Inventory & Project Pricing Report" directly from Beijing Zhongping Technology Co., Ltd. is essential to ensure accurate pricing and delivery timelines that reflect real-time market conditions.
Q: If our existing system uses a different brand of GigE vision camera, can the HIKROBOT MV-CT004G-200GC01-BASE be seamlessly integrated, and what are the potential compatibility challenges?
A: The GigE Vision standard, which the MV-CT004G-200GC01-BASE adheres to, is designed for interoperability between different vendors. As an experienced application engineer, I can confirm that for standard GigE Vision implementations, integration is typically straightforward. However, nuanced system topology and specific PLC communication protocols can introduce complexities. Beijing Zhongping Technology Co., Ltd. offers tailored compatibility reports and integration support, ensuring a smooth transition by analyzing your specific system architecture and providing a detailed technical consultation.
Q: What are the advantages of using GigE Vision cameras like the MV-CT004G-200GC01-BASE over older interfaces such as USB 2.0 or Camera Link in an industrial setting?
A: GigE Vision cameras offer significant advantages, including longer cable lengths (up to 100 meters) and higher bandwidth compared to USB 2.0, facilitating more flexible system layouts in large facilities. While Camera Link offers higher bandwidth in some configurations, GigE Vision leverages standard Ethernet infrastructure, making it more cost-effective for integration and reducing the need for specialized frame grabbers. The MV-CT004G-200GC01-BASE's compliance with GigE Vision V2.0 further enhances its capabilities for multi-camera synchronization and precise triggering, crucial for advanced automation tasks.
Q: Does HIKROBOT offer an extended warranty or service plan for the MV-CT004G-200GC01-BASE camera, especially for critical 24/7 production lines?
A: Beijing Zhongping Technology Co., Ltd. understands the critical nature of continuous operation in industrial automation. While standard warranties apply, for mission-critical applications, we recommend discussing customized service agreements and extended support options. To ensure you receive the most suitable coverage and proactive maintenance solutions tailored to your operational demands, please contact our sales specialists to explore comprehensive support packages.
Q: How does the HIKROBOT MV-CT004G-200GC01-BASE camera handle extreme temperature fluctuations on the factory floor, and what are the implications for its operational lifespan?
A: The MV-CT004G-200GC01-BASE is rated for an operating temperature range of -30°C to 60°C, which is well-suited for many industrial environments. For applications exceeding these parameters or requiring enhanced environmental resilience, such as in sub-zero cold storage or high-heat processing areas, Beijing Zhongping Technology Co., Ltd. can provide guidance on specialized enclosures or alternative HIKROBOT models that offer enhanced environmental protection, ensuring longevity and consistent performance.
Q: Can the HIKROBOT MV-CT004G-200GC01-BASE be used for high-accuracy 3D measurements, or is it primarily designed for 2D imaging applications?
A: The HIKROBOT MV-CT004G-200GC01-BASE is an area scan camera designed for 2D imaging applications. While it provides high-resolution and high-speed image acquisition crucial for many machine vision tasks, it does not inherently perform 3D measurements. For 3D applications, HIKROBOT offers specialized 3D cameras, such as structured light or stereo vision cameras, which are engineered to capture depth information. Beijing Zhongping Technology Co., Ltd. can assist in selecting the appropriate 3D vision solution if your application requires depth perception.
Q: What are the critical documentation requirements, such as Certificates of Origin or Conformity, that Beijing Zhongping Technology Co., Ltd. can provide for the MV-CT004G-200GC01-BASE to ensure smooth international customs clearance for a multi-national project?
A: Beijing Zhongping Technology Co., Ltd. is committed to facilitating international trade by providing comprehensive customs clearance documentation. We ensure all exported HIKROBOT equipment is accompanied by necessary Certificates of Origin, Certificates of Conformity (CoC), and other compliance documents as required by destination country regulations. For specific project needs, particularly concerning import regulations in regions with stringent requirements, our dedicated logistics team will liaise with you to ensure all documentation aligns with global trade compliance, minimizing delays and ensuring lawful entry of goods.
Q: How does the MV-CT004G-200GC01-BASE's Global Shutter technology contribute to improved image quality in high-speed industrial automation compared to a rolling shutter?
A: The Global Shutter technology in the MV-CT004G-200GC01-BASE captures the entire image frame simultaneously. This is critical for high-speed applications where the subject or camera is in motion, preventing motion artifacts such as skewing or smearing that are common with rolling shutters. This simultaneous capture ensures accurate geometric representation and reliable data for precise measurement, inspection, and robotic guidance, leading to higher quality control and improved automation performance.
Q: Are there specific software requirements or driver installations necessary for the HIKROBOT MV-CT004G-200GC01-BASE to operate with common machine vision platforms like Halcon or LabVIEW?
A: The HIKROBOT MV-CT004G-200GC01-BASE is designed to be compatible with the GigE Vision V2.0 and GenICam standards. This adherence ensures broad compatibility with most leading machine vision software development kits (SDKs) and platforms, including Halcon and LabVIEW, typically through generic GigE Vision drivers or specific vendor SDKs. Beijing Zhongping Technology Co., Ltd. provides comprehensive SDKs and technical support to facilitate seamless integration with your chosen software environment, ensuring a rapid and efficient development cycle.
Q: What is the expected lifespan and reliability of the HIKROBOT MV-CT004G-200GC01-BASE camera when operated continuously in a demanding industrial environment?
A: HIKROBOT cameras are engineered for industrial robustness and reliability, with the MV-CT004G-200GC01-BASE designed for continuous operation in demanding environments. While specific lifespan figures vary based on operating conditions and maintenance, these cameras are built to industrial standards, including a wide operating temperature range and robust component selection. Beijing Zhongping Technology Co., Ltd. can provide detailed reliability data and recommendations for system design and maintenance to maximize the operational lifespan of the camera within your specific application context.
