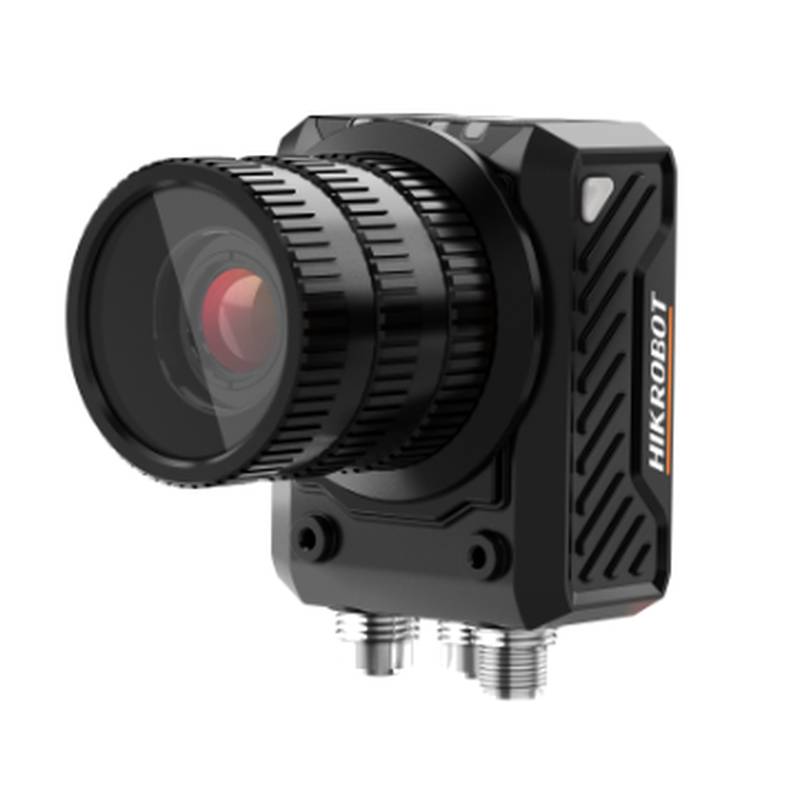

HIKROBOT MV-SC6016M-00C-NNN/V2 1.6MP Industrial AI Machine Vision Smart Camera

The HIKROBOT MV-SC6016M-00C-NNN/V2 1.6MP industrial ai camera delivers exceptional image clarity and high-speed processing capabilities for automated defect detection. Engineered with advanced machine vision smart camera architecture, it effectively eliminates motion blur and resolves high-speed assembly line bottlenecks. Beijing Zhongping Technology ensures seamless integration by providing direct local access to this sophisticated optical inspection hardware.

Integrating high-performance machine vision components into demanding industrial environments requires meticulous attention to bandwidth management and frame rate synchronization. Large-format surface inspection applications often suffer from data transmission latency and processing bottlenecks when standard frame grabbers fail to handle high-resolution data streams. This intelligent device leverages a high-speed 10GigE interface paired with a global shutter CMOS sensor to capture crisp images of fast-moving targets without artifacts or rolling shutter distortion. The onboard deep learning algorithm executes complex feature extraction directly at the edge, reducing host CPU utilization and eliminating network congestion. Engineers must ensure proper bandwidth allocation within the switch architecture and maintain stable illumination parameters to achieve optimal inference accuracy across continuous multi-shift operations.

Technical Specifications

Sensor Type: CMOS, Global Shutter @ Full Resolution

Resolution: 1440 x 1080 @ 60.0 fps

Pixel Size: 3.45 um x 3.45 um @ Standard Calibration

Lens Mount: C-Mount @ 20°C

Data Interface: 10GigE Interface @ 10 Gbps Bandwidth

Power Supply: 24 VDC ± 10% @ 12.5 W Max Consumption

Operating Temperature: 0°C - 50°C @ Ambient Air

Protection Class: IP67 @ With Lens Tube Attached

Dimensions: 62.0 mm x 62.0 mm x 48.5 mm @ Excluding Connectors

Weight: 350 g @ Approximate Net Mass

System Integration and Hardware Setup

Proper mechanical installation relies on utilizing the integrated M4 mounting holes located on the bottom and side chassis surfaces to secure the unit onto rigid aluminum extrusion brackets or vibration-damped machine frames. The electrical interface utilizes a robust M12 12-pin circular aviation connector providing designated pins for opto-isolated trigger inputs, strobe outputs, and power distribution. Field technicians must wire the DC power supply lines using twisted-pair cables with a cross-sectional area of at least 0.5 mm² to minimize voltage drop over long cable runs.

In high-noise electrical cabinets, signal integrity depends heavily on routing shielded Ethernet cables away from high-voltage motor drives and variable frequency drives to prevent electromagnetic interference. The cable shield must establish a 360-degree low-impedance ground connection at the cable gland entry point to eliminate ground loops and potential data packet corruption. Strain relief clamps should be installed within 150 mm of the rear connector interface to absorb mechanical stress caused by continuous cable flexing in dynamic robotic arm applications.

Reliability and Environmental Durability

The camera enclosure is constructed from high-grade anodized aluminum, providing robust thermal dissipation and structural integrity capable of withstanding severe industrial shocks up to 50 g and vibrations up to 10 g according to IEC standards. Operating environmental parameters span a temperature range of 0°C to 50°C with relative humidity levels up to 95% non-condensing. When fitted with an appropriate protective lens tube, the housing achieves an IP67 rating, effectively sealing internal optical components against airborne dust, oil mist, and washdown cleaning procedures.

Preventive maintenance schedules dictate inspecting the front optical glass window monthly using isopropyl alcohol and lint-free microfiber wipes to remove particulate accumulation that could degrade image contrast. Technicians should verify the mechanical tightness of all M12 connectors and grounding screws every 5,000 operational hours to prevent intermittent contact faults. Under standard factory operating conditions, the calculated mean time between failures exceeds 50,000 hours of continuous deployment.

Selection Guidance and Alternative Options

Selecting the correct machine vision hardware requires evaluating specific optical metrics, including the required field of view, working distance, and object resolution constraints. Engineers should calculate the spatial resolution using the formula pixel size multiplied by working distance divided by focal length to ensure sub-millimeter defects remain detectable. For applications demanding higher spatial granularity or wider inspection swaths, variant models within the same series offering 5.0MP or 12.0MP resolutions should be evaluated against processing speed trade-offs.

When OEM supply chains experience extended lead times, the technical specialists at Beijing Zhongping Technology can evaluate alternative optical and electrical parameters to recommend fully compatible drop-in replacements from available inventory. This cross-reference process ensures that replacement components match mounting hole patterns, communication protocols, and software SDK compatibility without requiring costly mechanical redesigns.

Frequently Asked Questions (FAQ)

1. What is the current local inventory status and typical delivery lead time for this model?

Beijing Zhongping Technology maintains active regional stock of this industrial ai camera model, enabling same-day dispatch and expedited delivery to minimize equipment downtime.

2. What are the terms of the product warranty and the RMA return process?

This unit is backed by a comprehensive 12-month manufacturer warranty supported by rigorous pre-shipment quality checks and rapid local RMA turnaround handled by Beijing Zhongping Technology.

3. What is the required operating voltage and power consumption limit?

The camera requires a regulated DC power supply ranging from 21.6 VDC to 26.4 VDC, with a maximum power consumption of 12.5 W under full load operation.

4. Which communication protocols and data interfaces are supported for high-speed transfer?

The device supports GigE Vision and GenICam standards over a high-speed 10GigE network interface, ensuring deterministic data transmission across industrial Ethernet topologies.

5. What environmental protection rating does the enclosure provide against dust and moisture?

The unit achieves an IP67 environmental protection rating when combined with a sealed lens tube, safeguarding internal circuitry against dust ingress and temporary water immersion.

6. What are the physical dimensions and mounting specifications for cabinet integration?

The physical chassis measures 62.0 mm x 62.0 mm x 48.5 mm and features standardized M4 threaded mounting holes designed for direct attachment to machine frames or optical breadboards.

7. What is the recommended procedure for routine maintenance and optical cleaning?

Routine maintenance involves inspecting cable connections and gently cleaning the optical sensor glass using optical-grade solvent and lint-free wipes to prevent signal degradation.

8. Is the camera compatible with third-party machine vision software development kits?

The device integrates seamlessly with major third-party image processing software packages through standard GenICam compliant transport layers and supplied application programming interfaces.
