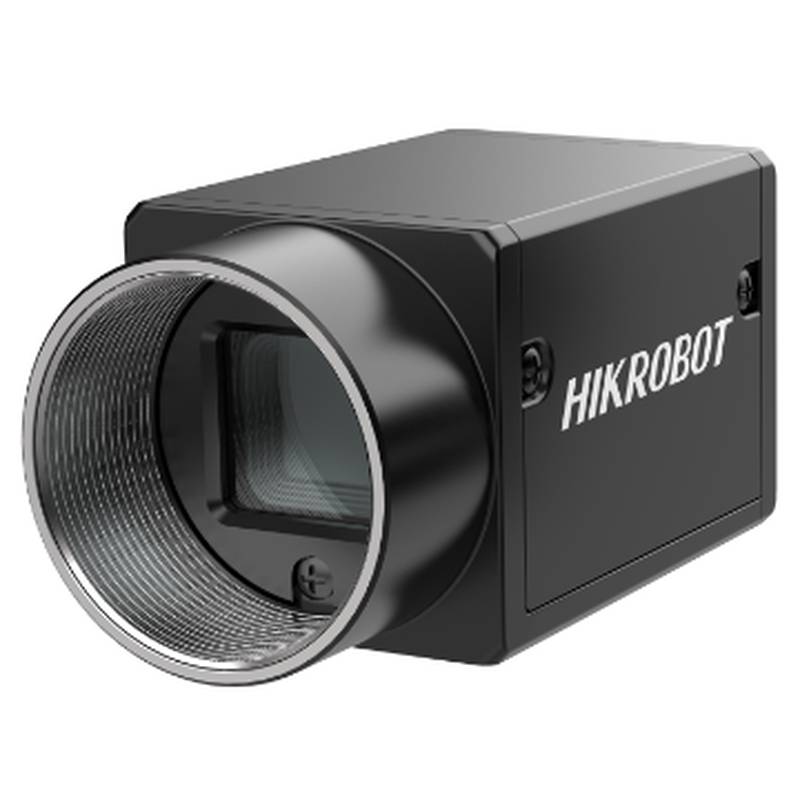

The HIKROBOT MV-CE013-80GM is a high-performance 1.3MP Industrial GigE Vision Area Scan Camera designed for demanding machine vision applications. Leveraging the robust GigE Vision protocol, this camera ensures reliable, high-speed data transmission, making it an excellent choice for industrial automation where precision and efficiency are paramount. Its advanced CMOS sensor with a global shutter captures crisp, distortion-free images, crucial for applications like quality inspection, robotic guidance, and measurement tasks. The MV-CE013-80GM is engineered to deliver exceptional image quality and operational stability in challenging factory environments.
Performance Specifications: Model: MV-CE013-80GM Sensor Type: CMOS, Global Shutter Sensor Model: SS Pixel Size: 4.0 μm × 4.0 μm Optical Format: 1/2.7" Resolution: 1280 × 1024 Max Frame Rate: 89.9 fps @ 1280 × 1024 Mono 8 Dynamic Range: 60 dB Signal-to-Noise Ratio (SNR): 40 dB Gain: 0 dB to 20 dB Exposure Time: 31 μs to 1 sec Shutter Mode: Supports Auto Exposure, Manual Exposure, One-Key Exposure Color/Mono: Monochrome Pixel Format: Mono 8/10/10Packed/12/12Packed Binning: Supports 1 × 1, 2 × 2 Downsampling: Supports 1 × 1, 2 × 2 Image Mirroring: Supports Horizontal Mirror, Vertical Mirror
Electrical Characteristics: Data Interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) Digital I/O: 6-pin P7 connector for power and I/O: 1 x Optocoupler Isolated Input (Line0), 1 x Optocoupler Isolated Output (Line1), 1 x Bi-directional Configurable Non-isolated I/O (Line2) Power Supply: 9 to 24 VDC, supports PoE Typical Power Consumption: 2.4 W @ 12 VDC
Structural Features: Lens Mount: C-Mount Dimensions: 29 mm × 29 mm × 42 mm Weight: Approximately 96 g IP Rating: IP30 (when properly installed with lens and cables) Operating Temperature: 0 to 50°C Storage Temperature: -30 to 70°C Humidity: 20% to 80% RH, non-condensing
General Specifications: Software: MVS or third-party software supporting GigE Vision protocol Operating Systems: Windows XP/7/10/11 32/64bits, Linux 32/64bits, MacOS 64bits Protocols/Standards: GigE Vision V2.0, GenICam Certifications: CE, FCC, RoHS, KC
The HIKROBOT MV-CE013-80GM industrial area scan camera excels in applications demanding high precision and speed. Its robust GigE Vision interface ensures seamless integration into existing industrial networks, offering high bandwidth and reliable data transfer even over extended cable lengths. The 1.3MP CMOS sensor, equipped with a global shutter, effectively eliminates motion artifacts and rolling shutter distortion, making it ideal for capturing fast-moving objects or intricate details in scenes with high contrast. This camera is particularly well-suited for environments such as automotive assembly lines, where precise defect detection and component verification are critical, and in food and beverage packaging, where consistent quality control at high throughput is essential. The global shutter technology ensures that the entire image is captured at a single moment in time, crucial for accurate measurements and identification of rapidly moving items.
The camera's monochrome output, combined with its high dynamic range of 60 dB and signal-to-noise ratio of 40 dB, allows for exceptional detail visibility in challenging lighting conditions. This capability is vital in industrial inspection scenarios where subtle defects or surface anomalies need to be detected. The flexible exposure control, ranging from 31 μs to 1 second, coupled with support for automatic, manual, and one-key exposure modes, provides engineers with the adaptability needed to optimize image acquisition for various lighting setups and object speeds. Furthermore, the camera supports binning and downsampling functionalities, allowing users to balance resolution with frame rate or enhance sensitivity, depending on the specific application requirements.
Integration into existing systems is streamlined due to the camera's adherence to the GigE Vision V2.0 and GenICam standards, ensuring broad software compatibility with leading machine vision platforms. The inclusion of a versatile C-Mount lens interface offers flexibility in selecting appropriate optics for different fields of view and working distances. Power is efficiently delivered via a wide voltage range (9-24 VDC) or Power over Ethernet (PoE), simplifying cabling and installation. The compact dimensions (29 mm × 29 mm × 42 mm) and relatively low weight (approx. 96 g) facilitate mounting in space-constrained environments. The MV-CE013-80GM is a reliable component for various industrial automation tasks, including but not limited to, PCB inspection, semiconductor manufacturing, and intricate part assembly where accuracy and speed are non-negotiable.
HIKROBOT offers a range of industrial cameras to suit diverse application needs. Within the same series, users may also consider models such as the MV-CE013-80GC, MV-CE050-31GC, MV-CE050-30UC, MV-CE100-30GC, MV-CE120-10GM, MV-CE120-10GC, MV-CE120-10UM, MV-CE120-10UC, MV-CE200-10GM, and MV-CE200-10UM, each offering different resolutions, frame rates, and sensor characteristics tailored for specific industrial vision challenges.
Q&A for Technical Buyers:
Q: How can we verify the authenticity of the HIKROBOT MV-CE013-80GM cameras purchased in bulk to ensure they are factory sealed and have not been tampered with?
A: Authentic factory-sealed products are typically identified by specific tamper-evident seals and batch-specific serial number tracking. Authorized regional distributors follow strict protocols for handling and shipping, ensuring product integrity throughout the supply chain. For large-volume orders, we offer dynamic stock allocation with preferential pricing tiers based on commitment.
Q: What are the procedures for confirming real-time inventory availability for a project requiring 50 units of the MV-CE013-80GM, considering potential fluctuations in demand?
A: Our technical support department manages real-time inventory by employing a reservation system for bulk orders. This allows for a temporary hold on available stock while you finalize your purchase decision. For an official quote and to check real-time stock allocation or request an official quote, contact Beijing Zhongping Technology Co., Ltd. directly.
Q: In a scenario where we need to procure a significant quantity of these industrial GigE vision cameras for a multi-year supply agreement, what are the typical lead times and ordering processes, especially concerning potential currency exchange rate impacts?
A: Supply agreements are structured to mitigate currency risks through phased purchasing and pre-defined exchange rate windows. Lead times for bulk orders are confirmed at the time of quotation, reflecting current production schedules and logistics. Our sourcing experts can provide detailed forecasts and secure inventory commitments to ensure continuity.
Q: We are concerned about the product lifecycle of the MV-CE013-80GM. What is the End-of-Life (EOL) plan, and what are the recommended replacement models if this specific unit is discontinued?
A: We maintain comprehensive product roadmaps and EOL policies. For any potential discontinuation, advance notification is provided, along with recommended alternative models that offer comparable or enhanced specifications. Our technical team proactively identifies suitable drop-in replacements to ensure minimal disruption to your operations.
Q: How does your company ensure compliance with international shipping regulations and provide necessary documentation such as Certificates of Origin (CoC) and traceability records for export shipments of industrial area scan cameras?
A: Compliance is a core tenet of our operations. We provide a full suite of export documentation, including Certificates of Origin and detailed traceability records, verified by our logistics department. Special batch requirements or specific regional compliance needs are handled by specialized sourcing personnel who conduct thorough audits.
Q: Can you provide details on the firmware and hardware revision management for the MV-CE013-80GM? How do you ensure compatibility when integrating different batches or revisions into an existing system?
A: Firmware and hardware revisions are meticulously tracked and version-controlled. We provide detailed release notes for each revision, outlining changes and compatibility information. Our application engineers (FAEs) can assist in assessing the compatibility of specific hardware and firmware versions within your existing system architecture.
Q: For a critical application requiring the MV-CE013-80GM to operate in an environment with fluctuating power conditions, what is the recommended derating factor, and how can we obtain a detailed performance curve under such conditions?
A: The camera is rated for a wide input voltage range (9-24 VDC) and supports PoE, offering robust power management. For specific derating information under non-standard operating conditions or environmental stresses, our technical team can generate detailed performance analysis reports based on your site-specific parameters. Please submit your operational environment details for a tailored assessment.
Q: We are considering replacing an existing vision system with the HIKROBOT MV-CE013-80GM. What are the key mechanical and electrical compatibility considerations to ensure a seamless integration, particularly concerning its GigE Vision interface and C-Mount lens compatibility?
A: The MV-CE013-80GM is designed for straightforward integration. Its standard C-Mount lens interface and GigE Vision V2.0 compliance ensure broad compatibility with existing optics and machine vision software. For detailed mechanical drawings and electrical interface specifications, our technical department can provide comprehensive integration guides to assist with the transition.
Q: How does the camera handle network interference or signal degradation over long cable runs typical in large factory settings, and what measures can be implemented to ensure data integrity with this GigE Vision camera?
A: GigE Vision technology inherently supports long cable runs (up to 100 meters per segment without repeaters) and includes features for error detection and recovery. For environments prone to significant electromagnetic interference, we recommend using high-quality shielded Ethernet cables and potentially network switches with enhanced noise immunity. Our technical specialists can advise on optimal network topology for your specific factory layout.
Q: What are the typical scenarios where the MV-CE013-80GM's specific monochrome output and global shutter are critically advantageous over color cameras or cameras with rolling shutters?
A: Monochrome output is often preferred in industrial inspection where color information is irrelevant or could introduce noise, allowing for better detection of subtle surface defects and higher contrast. The global shutter is essential for accurately capturing fast-moving objects without distortion, making it ideal for high-speed pick-and-place operations, inline inspection of moving parts on assembly lines, and applications requiring precise motion analysis where even slight distortions from a rolling shutter would lead to measurement errors.
