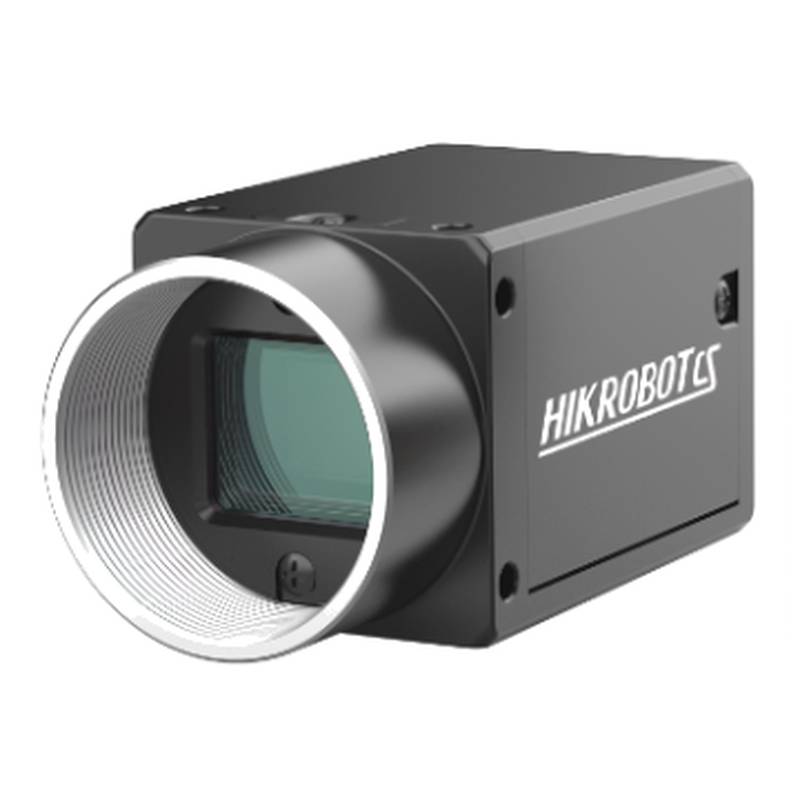

The HIKROBOT MV-XD6010GM V5 is a high-performance 6MP color GigE machine vision camera designed for demanding industrial applications. Leveraging advanced GigE Vision technology, this camera excels in providing high-resolution imaging crucial for detailed inspection tasks. Its robust design and advanced sensor technology make it an ideal solution for applications requiring precision and reliability in machine vision systems. The camera's compatibility with the GigE Vision protocol ensures seamless integration into existing industrial automation setups, offering a versatile and powerful tool for engineers and procurement specialists seeking cutting-edge machine vision solutions.
Key Specifications: Model: MV-XD6010GM V5 Sensor Type: CMOS, Rolling Shutter Sensor Model: Sony IMX178 Pixel Size: 2.4 μm × 2.4 μm Optical Format: 1/1.8” Resolution: 3072 × 2048 Max Frame Rate: 19.5 fps @3072 × 2048 Mono 8 Dynamic Range: 71.3 dB Signal-to-Noise Ratio: 41.3 dB Gain: 0 dB to 24 dB Exposure Time: 25 μs to 2.5 sec Shutter Mode: Supports Auto Exposure, Manual Exposure, One-Key Exposure modes, and Global Reset function. Color/Monochrome: Monochrome Pixel Format: Mono 8/10/10Packed/12/12Packed Binning: Supports 1 × 1, 2 × 2, 4 × 4 Downsampling: Supports 1 × 1, 2 × 2, 4 × 4 Mirroring: Supports horizontal and vertical mirroring output.
Electrical Characteristics: Data Interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) Digital I/O: 6-pin P7 connector provides power and I/O: 1-channel optocoupler isolated input (Line0), 1-channel optocoupler isolated output (Line1), 1-channel bidirectional configurable non-isolated I/O (Line2). Power Supply: 9 to 24 VDC, supports PoE power supply. Typical Power Consumption: 1.4W @ 12 VDC
Structural Features: Lens Mount: C-Mount Dimensions: 29 mm × 29 mm × 42 mm Weight: Approximately 100 g IP Rating: IP40 (when correctly installed with lens and cables) Operating Temperature: -30°C to 60°C Storage Temperature: -30°C to 80°C Humidity: 20% to 95% RH non-condensing
General Specifications: Software: MVS or third-party software supporting GigE Vision protocol. Operating Systems: Windows 7/10/11 32/64bits, Linux 32/64bits. Protocols/Standards: GigE Vision V2.0, GenICam. Certifications: CE, KC, RoHS.
The HIKROBOT MV-XD6010GM V5 is engineered with a Sony IMX178 CMOS sensor, renowned for its excellent light sensitivity and low noise characteristics. This sensor, coupled with a rolling shutter mechanism, enables precise image capture in dynamic industrial environments. The camera's 6MP resolution at 3072 × 2048 pixels, combined with a maximum frame rate of 19.5 fps in monochrome 8-bit mode, ensures that even high-speed processes can be meticulously monitored and analyzed. Its impressive dynamic range of 71.3 dB and a signal-to-noise ratio of 41.3 dB at 0 dB gain allow for clear imaging under varying lighting conditions, from bright factory floors to more subdued operational settings.
The versatility of the MV-XD6010GM V5 is further enhanced by its adjustable gain and exposure time, ranging from 25 μs to 2.5 seconds. This flexibility supports a wide array of imaging needs, including those requiring short bursts of illumination or extended capture periods. The camera also features advanced image manipulation capabilities such as binning and downsampling, allowing users to optimize image data for specific applications, potentially reducing processing load and improving analysis speed. Horizontal and vertical mirroring functions provide additional utility for system integration and alignment.
In terms of connectivity, the MV-XD6010GM V5 utilizes Gigabit Ethernet, adhering to the GigE Vision V2.0 standard, ensuring high bandwidth data transfer and reliable communication. This makes it suitable for applications where large image files need to be transmitted quickly and efficiently. The camera also supports Fast Ethernet compatibility, offering flexibility in network configurations. Power is supplied via a 9 to 24 VDC input, with Power over Ethernet (PoE) support reducing cable clutter and simplifying installation. The digital I/O capabilities, provided through a 6-pin P7 connector, enable synchronization with external devices and control signals, crucial for complex automation tasks.
The compact design of the MV-XD6010GM V5, measuring just 29 mm × 29 mm × 42 mm and weighing approximately 100 g, allows for easy integration into space-constrained industrial setups. Its C-Mount lens interface provides broad compatibility with a wide selection of industrial lenses. Rated for an operating temperature range of -30°C to 60°C and an IP40 protection level (with proper lens and cable installation), this camera is built to withstand harsh industrial environments. Its robust mechanical and environmental specifications ensure reliable performance and longevity in demanding operational conditions.
For users requiring a color imaging solution with similar performance characteristics, the HIKROBOT MV-XD6010GC V5 offers a comparable feature set in a color variant, making it suitable for applications where color information is essential for defect detection or product identification.
Industrial Scene Applications:
The HIKROBOT MV-XD6010GM V5 camera is exceptionally well-suited for a variety of industrial automation scenarios where high-resolution imaging and reliable data acquisition are paramount.
Automotive Manufacturing and Assembly Lines: In automotive production, the camera's high resolution is critical for detailed inspection of components, ensuring weld integrity, verifying part placement, and inspecting for surface defects on painted or molded parts. Its ability to capture clear images at a reasonable frame rate aids in real-time quality control on fast-moving assembly lines, contributing to enhanced product quality and reduced rework. Electronics Manufacturing and SMT Inspection: The electronics industry heavily relies on precise visual inspection. The MV-XD6010GM V5 is ideal for inspecting printed circuit boards (PCBs) for component presence, correct placement, solder joint quality, and detecting micro-defects that could affect functionality. Its high resolution allows for the inspection of very small components and intricate details on the board. Food and Beverage Packaging: In the food and beverage sector, this camera can be employed for quality control of packaging, ensuring correct labeling, seal integrity, and detection of foreign contaminants. The monochrome sensor is particularly effective for high-contrast inspections, such as verifying text on labels or identifying imperfections in packaging materials. Pharmaceutical Packaging and Inspection: For pharmaceutical applications, the camera's precision is vital for inspecting drug packaging for correct fill levels, seal integrity, label accuracy, and the absence of particulate contamination. Its ability to operate reliably in controlled environments and provide consistent imaging is crucial for compliance with stringent industry regulations.
Suggested Use and Limitations:
The HIKROBOT MV-XD6010GM V5 is optimally suited for applications demanding detailed monochrome imaging with a high degree of accuracy. Its strengths lie in inspection tasks where subtle defects, text recognition, or precise dimensional measurements are critical. The camera's robust environmental specifications make it a reliable choice for deployment in factory settings with moderate to challenging conditions.
However, this camera is not recommended for applications where color information is essential for the inspection task, such as distinguishing between different colored components or materials, or for identifying color-based defects. For such scenarios, the HIKROBOT MV-XD6010GC V5 color camera would be a more appropriate selection. Additionally, while the camera supports a maximum frame rate of 19.5 fps at its full resolution, applications requiring significantly higher frame rates for extremely high-speed processes might necessitate exploring cameras with faster sensor technology or lower resolutions.
Frequently Asked Questions (FAQ):
Q: What are the lead times for bulk orders of the HIKROBOT MV-XD6010GM V5, and are there volume discounts available?
A: Lead times for bulk orders are subject to current manufacturing schedules and component availability. Our sourcing experts work closely with authorized regional distributors to provide the most accurate estimates. We offer a tiered pricing structure, providing incremental discounts for larger order volumes to support significant project investments.
Q: How can I verify that the HIKROBOT MV-XD6010GM V5 cameras I receive are genuine, factory-sealed units and not refurbished or tampered with?
A: Genuine, factory-sealed units are identified by specific tamper-evident seals and serial number tracking. Our authorized regional distributors ensure that all products are sourced directly from the manufacturer and handled under strict quality control protocols. Customers can request a factory verification certificate or cross-reference serial numbers with the manufacturer's database through our technical support department.
Q: If I place a large order for the HIKROBOT MV-XD6010GM V5, can we lock in current pricing or reserve inventory to mitigate potential price fluctuations due to currency exchange rates?
A: Blanket orders can be arranged to reserve inventory and secure pricing for a defined period, subject to contract terms. This process helps mitigate risks associated with currency fluctuations and ensures supply continuity for your projects. To explore specific options for your bulk procurement needs, please engage with our dedicated account management team.
Q: What is the typical product lifecycle for the HIKROBOT MV-XD6010GM V5, and what are the options if this model is nearing its End-of-Life (EOL)?
A: HIKROBOT cameras are designed for long-term industrial use. However, like all electronic components, they have a product lifecycle. If a model approaches EOL, our technical support department can provide detailed information on its phase-out timeline and recommend the most compatible or advanced alternative models within the product line that offer similar or improved performance and maintain system compatibility.
Q: Does HIKROBOT provide original firmware versions for the MV-XD6010GM V5, and can you guarantee hardware revision compatibility if I need to replace an older unit in an existing system?
A: Yes, we provide the latest stable firmware versions for the MV-XD6010GM V5. Our supply chain experts can assist in verifying hardware revision compatibility for replacements, ensuring seamless integration into your existing systems. For specific replacement scenarios, please consult with our technical support specialists who can review your current system configuration and provide precise compatibility guidance.
Q: Can you provide Certificates of Compliance (CoC), country of origin documentation, and full traceability records for a shipment of HIKROBOT MV-XD6010GM V5 cameras for international customs clearance?
A: Absolutely. As a reputable supplier, we provide comprehensive compliance documentation, including Certificates of Compliance, country of origin documentation, and traceability records, necessary for smooth international customs clearance. Our logistics team ensures that all required paperwork accompanies each shipment. For unique export requirements or expedited document processing, please inform our international trade specialists in advance.
Q: We are considering integrating the HIKROBOT MV-XD6010GM V5 into a system with multiple GigE Vision cameras from different manufacturers. Are there potential issues with network interference or bandwidth management, and how can these be addressed?
A: While GigE Vision is designed for robust network communication, integrating multiple cameras can present challenges. Our application engineers can provide guidance on network topology, recommend appropriate network switches with Quality of Service (QoS) features, and assist in configuring bandwidth management strategies to minimize interference and ensure optimal performance for all connected devices. For complex network designs, a detailed site survey and network plan are advised.
Q: In harsh industrial environments with elevated temperatures, can the HIKROBOT MV-XD6010GM V5 operate reliably, or would a derating factor need to be applied to its specifications?
A: The MV-XD6010GM V5 is rated for operation up to 60°C. For applications operating at the higher end of this range or in environments with fluctuating extreme temperatures, a derating factor may be necessary to ensure long-term reliability and optimal performance. Our technical team can provide specific derating curves and operational guidelines based on your environmental conditions to determine the appropriate operating parameters.
Q: We need to replace existing cameras from a competitor with the HIKROBOT MV-XD6010GM V5. What level of mechanical and electrical compatibility can we expect, and what support is available for the integration process?
A: The MV-XD6010GM V5 features a standard C-Mount and common GigE Vision interface, facilitating compatibility with many existing systems. However, precise mechanical and electrical drop-in replacement depends on the specific competitor model. Our technical support department can provide detailed mechanical drawings and electrical interface specifications to assess compatibility. We also offer integration support to help engineers map out and execute the transition smoothly.
Q: Are there any specific software configurations or hardware prerequisites recommended for optimizing the performance of the HIKROBOT MV-XD6010GM V5, especially when used with third-party GigE Vision SDKs?
A: For optimal performance, it is recommended to use the latest stable drivers and firmware for the camera and ensure that your system meets or exceeds the recommended hardware specifications for machine vision applications, including a capable CPU and sufficient RAM. When using third-party SDKs, ensuring they adhere to the latest GigE Vision and GenICam standards is crucial. Our technical support can offer guidance on recommended SDK versions and common integration practices for various platforms. To check real-time stock allocation or request an official quote, contact Beijing Zhongping Technology Co., Ltd. directly.
