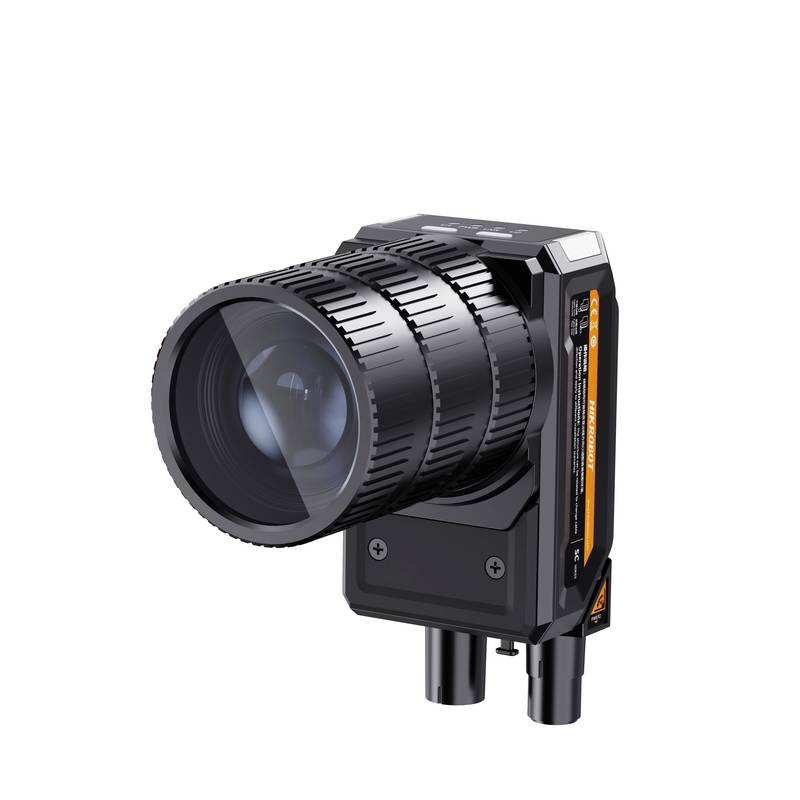

The HIKROBOT MV-SC5020XM-00C-NNN is a high-performance 2MP industrial machine vision smart camera designed for demanding automation tasks. Leveraging the advanced VisionMaster algorithm development platform, which includes robust deep learning modules, this industrial smart camera excels in delivering precise image acquisition and analysis. Its compact design, featuring a C-Mount interface and available in both flat-angle and right-angle configurations, facilitates integration into diverse production line setups. The camera's robust construction, with an IP67 rating when properly equipped with a lens cover, ensures reliable operation in harsh industrial environments, meeting stringent standards for vibration and shock resistance (IEC 60068-2-6:2007 and IEC 60068-2-27:2008 respectively). With a Gigabit Ethernet interface for high-speed data transfer and versatile communication protocol support including TCP, UDP, ModBus, PROFINET, and EtherNet/IP, the MV-SC5020XM-00C-NNN offers exceptional flexibility and seamless integration with existing automation systems.
Key Specifications:
Model: MV-SC5020XM-00C-NNN Name: SC5000X Smart Camera, 2MP, Monochrome, C-Mount, without Lens/Light Sensor Type: CMOS, Global Shutter Pixel Size: 3.45 μm × 3.45 μm Imager Size: 1/2.53" Resolution: 1600 × 1216 Max Frame Rate: 100 fps Gain: 0 dB to 37 dB Exposure Time: 15 μs to 1 sec Pixel Format: Mono 8 Color/Monochrome: Monochrome Platform Memory: 8 GB Platform Storage: 64 GB Data Interface: Gigabit Ethernet (1000 Mbit/s) Digital I/O: 12-pin M12 connector (Power & I/O), 3x Optocoupler Isolated Inputs (Line 0/1/2), 3x Optocoupler Isolated Outputs (Line 3/4/5), 1x RS-232 Power Supply: 24 VDC Power Consumption: Typical 10 W @ 24 VDC, Max 14.4 W @ 24 VDC Lens Mount: C-Mount Lens Housing: Transparent Lens Cover Light Source: Not Included Indicators: PWR (Power), LNK (Network), U1/U2 (User) Dimensions: Flat Angle: 112.3 mm × 54 mm × 110 mm, Right Angle: 88.7 mm × 54 mm × 110 mm Weight: Approx. 370 g IP Rating: IP67 (with appropriate lens cover and proper installation) Operating Temperature: 0 ~ 50°C Storage Temperature: -30 ~ 70°C Humidity: 20% ~ 95% RH Non-condensing Vibration Resistance: Bare device meets IEC 60068-2-6:2007 (10-55 Hz, 1.5 mm amplitude, 2 hours in X, Y, Z directions) Shock Resistance: Bare device meets IEC 60068-2-27:2008 (30 g/11 ms, half-sine wave, 6 axial directions, 500 shocks per axis, total 3000 shocks) Certifications: CE, KC
The HIKROBOT MV-SC5020XM-00C-NNN excels in applications requiring high-precision inspection and measurement. Its global shutter CMOS sensor ensures distortion-free imaging of fast-moving objects, making it ideal for quality control on high-speed production lines such as those found in the automotive industry for component verification and assembly line monitoring. In food and beverage packaging, this industrial smart camera can perform detailed checks for defects, label accuracy, and fill levels at considerable speeds, contributing to enhanced product safety and brand integrity. Furthermore, its robust communication capabilities, including PROFINET and EtherNet/IP, allow for seamless integration into complex manufacturing execution systems (MES) and programmable logic controller (PLC) environments, facilitating efficient data logging and process optimization. The availability of the VisionMaster platform empowers developers to create custom inspection algorithms, including those leveraging deep learning for sophisticated anomaly detection.
The HIKROBOT SC5000X series offers a range of models tailored to different application needs, including the MV-SC5020XC-00C-NNN, MV-SC5050XM-00C-NNN, MV-SC5050XC-00C-NNN, MV-SC5120XM-00C-NNN, and MV-SC5120XC-00C-NNN. For applications requiring specific integrated solutions, models such as the YTH-INA050M-16M-WBN-MF and MV-SC5050XC-08M-WBN-PL are also available within the broader HIKROBOT product portfolio.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for bulk orders of the HIKROBOT MV-SC5020XM-00C-NNN, and are there volume-based discounts?
A: Our technical support department can provide detailed lead time estimates for blanket orders, which are subject to dynamic inventory levels and production schedules. We offer tiered pricing structures designed to benefit large-scale procurements. To check real-time stock allocation or request an official quote, contact Beijing Zhongping Technology Co., Ltd. directly.
Q: How can we verify that the HIKROBOT MV-SC5020XM-00C-NNN cameras we receive are brand new and factory-sealed, especially for international shipments?
A: Authorized regional distributors ensure that all products are handled under strict protocols to maintain their original factory-sealed condition. We provide comprehensive documentation upon request, which can include batch traceability and manufacturer confirmation, to validate the authenticity and condition of the equipment.
Q: If we need to replace older machine vision systems with the MV-SC5020XM-00C-NNN, what is the process for ensuring compatibility and minimizing integration downtime?
A: Our sourcing experts can assist in evaluating your existing setup. We provide detailed mechanical and electrical interface specifications to facilitate a smooth transition. For specific drop-in replacement scenarios, a preliminary compatibility assessment based on your system's parameters is recommended.
Q: What are the options for firmware updates and ensuring we have the latest stable version for the HIKROBOT MV-SC5020XM-00C-NNN, especially if EOL (End-of-Life) alternatives are being considered for long-term projects?
A: We maintain a repository of the latest firmware versions and can provide guidance on update procedures. For projects with extended lifecycles, our supply chain specialists can offer insights into product longevity and available future-proof alternatives, ensuring continuous support and minimizing the risk of obsolescence.
Q: Does HIKROBOT offer support for integrating the MV-SC5020XM-00C-NNN into networks that utilize a mix of industrial protocols like PROFINET and EtherNet/IP simultaneously?
A: Yes, the camera's extensive protocol support is designed for such heterogeneous environments. Our technical team can provide architectural guidance and best practices for multi-protocol network integration to ensure robust and reliable communication.
Q: In very high-temperature environments, can the MV-SC5020XM-00C-NNN operate reliably, or are derating factors necessary?
A: The camera is rated for operation up to 50°C. For environments exceeding this, our application engineers can assess the necessity and extent of derating, providing specific operating guidelines based on ambient conditions and expected duty cycles.
Q: What is the procedure for obtaining CoC (Certificate of Compliance) and other export-related documentation for the MV-SC5020XM-00C-NNN when shipping to new international markets?
A: Our compliance team can furnish the required documentation, including Certificates of Origin and conformity certificates, to facilitate smooth customs clearance. For specific regional requirements, please consult with our authorized regional distributors or our technical support department.
Q: How does the MV-SC5020XM-00C-NNN handle sudden power fluctuations or interruptions on the factory floor?
A: The camera is designed with a 24 VDC power input and includes transient protection. However, for critical applications, we recommend integrating uninterruptible power supplies (UPS) as part of the overall system design. Our technical support can advise on optimal power management strategies.
Q: Can the MV-SC5020XM-00C-NNN be used for applications requiring sub-pixel accuracy in measurement, and what factors influence this precision?
A: The camera's 2MP resolution and precise sensor technology provide a strong foundation for sub-pixel measurement. Achieving optimal accuracy depends on factors such as lens selection, calibration procedures, lighting conditions, and the specific VisionMaster algorithms employed. Our engineers can guide you through the calibration process.
Q: Are there any known incompatibilities when integrating the MV-SC5020XM-00C-NNN with specific PLC brands or SCADA systems not explicitly listed in the communication protocols?
A: While the listed protocols cover most common industrial systems, minor compatibility nuances can arise with less common or older systems. Our sourcing experts recommend providing detailed specifications of your target PLC or SCADA system for a thorough verification to ensure seamless integration.
