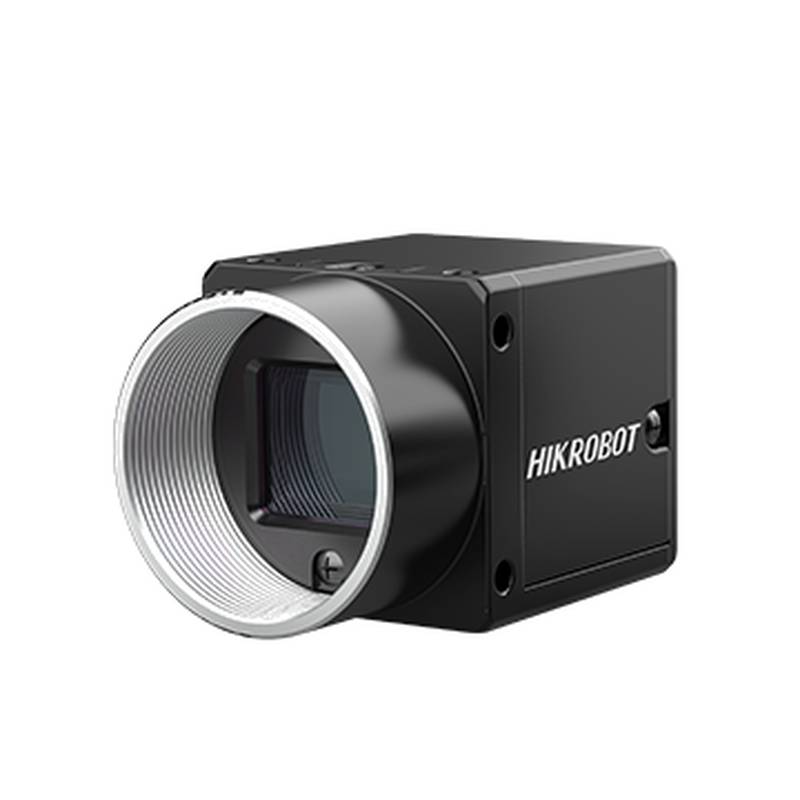

The HIKROBOT MV-CH050-10UM is a high-performance 5MP monochrome industrial USB3 machine vision camera, engineered for demanding automation tasks that require exceptional image clarity and speed. Leveraging the advanced Sony IMX250 CMOS sensor with a global shutter, this camera excels in capturing fast-moving objects without distortion, making it an ideal solution for intricate inspection and guidance applications. Its robust design and compliance with USB3 Vision and GenICam standards ensure seamless integration into diverse industrial environments, solidifying its position as a reliable usb3 machine vision camera and a superior monochrome industrial camera for precision automation.
Key Specifications:
Model: MV-CH050-10UM Sensor Type: CMOS, Global Shutter Sensor Model: Sony IMX250 Pixel Size: 3.45 μm × 3.45 μm Optical Format: 2/3” Resolution: 2448 × 2048 Maximum Frame Rate: 74.1 fps @ 2448 × 2048 (Mono 8) Dynamic Range: 71 dB Signal-to-Noise Ratio: 40 dB Gain: 0 dB to 24 dB Exposure Time: 1 μs - 14 μs (Ultra-short exposure), 15 μs - 10 sec (Normal exposure) Shutter Mode: Supports auto, manual, and one-push exposure Color Type: Monochrome Pixel Format: Mono 8/10/10Packed/12/12Packed Binning: Supports 1 × 1, 2 × 2, 4 × 4 Subsampling: Supports 1 × 1, 2 × 2, 4 × 4 Image Mirroring: Supports horizontal and vertical mirroring
The MV-CH050-10UM is equipped with a C-Mount lens interface, allowing for flexible lens selection to match specific application requirements. Its compact form factor of 29 mm × 29 mm × 30 mm and a lightweight design of approximately 80 g facilitate easy integration into space-constrained automation setups. The camera boasts an IP40 protection rating when properly equipped with a lens and cable, ensuring operational integrity in moderately dusty environments. It operates reliably within a temperature range of -10°C to 50°C and withstands humidity levels from 20% to 95% RH non-condensing.
Electrical Characteristics:
Data Interface: USB3.0, backward compatible with USB2.0 Digital I/O: 6-pin P7 connector for power and I/O, including 1 optical isolation input (Line0), 1 optical isolation output (Line1), and 1 bidirectional configurable non-isolated I/O (Line2). Power Supply: 9 - 24 VDC, with support for USB power. Power Consumption: 3.3 W @ 5 VDC (USB 3.0 power)
This industrial camera operates seamlessly with HIKROBOT's MVS software or any third-party software that supports the USB3 Vision protocol. It is compatible with Windows 7/10/11 (32/64-bit) and Linux (32/64-bit) operating systems. The MV-CH050-10UM adheres to industry-standard protocols and certifications, including USB3 Vision, GenICam, CE, RoHS, and KC, assuring its quality and compliance for global deployment.
Other models in this series include the MV-CH050-10UM(EoL), MV-CH050-10UC, MV-CH050-10UP, MV-CH050-60UM, MV-CH050-60UC, MV-CH089-10UM, MV-CH089-10UC, MV-CH100-60UM, MV-CH100-60UC, MV-CH120-10UM, MV-CH120-10UC, MV-CH120-10UM(EoL), MV-CH120-10UC(EoL), MV-CH120-20UM, MV-CH120-20UC, MV-CH120-60UM, MV-CH120-60UC, MV-CH123-10UM, MV-CH123-10UC, MV-CH140-60UM, MV-CH250-90UM, MV-CH250-90UC, MV-CH250-90UN, MV-CH250-60UC, and MV-CH250-60UM.
Industrial Application Scenarios:
The HIKROBOT MV-CH050-10UM finds its optimal application in scenarios demanding high-precision visual inspection and rapid data acquisition. Its monochrome output and global shutter are particularly advantageous in high-speed packaging inspection, where subtle defects on rapidly moving products can be clearly identified, thereby enhancing product quality control and reducing waste. In semiconductor manufacturing, the camera's high resolution and pixel accuracy are crucial for inspecting minute details on wafers and components, ensuring the integrity and functionality of microelectronic devices. Furthermore, its robust performance makes it suitable for automated assembly lines in the automotive industry, where precise guidance for robotic arms and detailed inspection of parts contribute to increased production efficiency and accuracy. The camera's ability to capture clear images under various lighting conditions and its reliable data transfer via USB3.0 contribute to improved throughput and reduced error rates in these demanding industrial environments.
Selection Guidance:
The MV-CH050-10UM is an excellent choice for applications requiring detailed, high-frame-rate monochrome imaging with a global shutter, such as fast-paced inspection, measurement, and guidance tasks. It is particularly well-suited for environments where subtle defect detection or accurate positioning is critical. However, for applications that necessitate color imaging or where lower resolution and frame rates are acceptable to achieve cost savings, alternative models might be considered. For extremely low-light conditions without active illumination, exploring cameras with enhanced sensitivity or specific NIR capabilities might be beneficial, though the IMX250 sensor offers a solid performance baseline.
Frequently Asked Questions (FAQ):
Q: What are the implications of the MV-CH050-10UM being listed as EoL (End of Life) for new bulk project orders in 2026?
A: While certain configurations like the MV-CH050-10UM(EoL) may be nearing the end of their lifecycle, for substantial new projects in 2026, securing a direct consultation with Beijing Zhongping Technology Co., Ltd. is paramount. They can provide the most current project-based volume pricing structures and confirm guaranteed supply chains for alternative, current-generation models that offer similar or enhanced performance, ensuring your project's long-term viability and cost-effectiveness.
Q: How does currency fluctuation impact large-scale procurement orders for industrial cameras like the MV-CH050-10UM and its variants?
A: Global currency exchange rates can significantly influence the final landed cost of industrial automation components. To mitigate risks associated with market volatility, Beijing Zhongping Technology Co., Ltd. offers mechanisms for locking in pricing for large project orders, providing a buffer against adverse currency movements. We recommend engaging with their sales team to obtain a "Project Pricing & Currency Hedge Report" for your specific volume requirements.
Q: Can Beijing Zhongping Technology Co., Ltd. provide official documentation to verify the authenticity and origin of HIKROBOT monochrome industrial cameras to prevent counterfeit issues in large deployments?
A: Absolutely. Beijing Zhongping Technology Co., Ltd. is committed to supplying only genuine HIKROBOT products. For bulk orders, we provide comprehensive proof of origin and authenticity documentation, including manufacturer certificates and lot traceability information. This ensures compliance and mitigates the risk of counterfeit components entering your supply chain, a critical aspect for any large-scale industrial deployment.
Q: What is the process for obtaining firmware upgrades for the HIKROBOT MV-CH050-10UM and ensuring compatibility across different batches purchased over time?
A: Ensuring firmware consistency and access to the latest updates is vital for sustained performance and security. Beijing Zhongping Technology Co., Ltd. manages firmware distribution for HIKROBOT products, offering tools and support to verify and apply correct firmware versions. For detailed guidance on upgrade procedures and to confirm compatibility for mixed-batch deployments, it's best to consult our technical support specialists.
Q: If a specific configuration of the HIKROBOT MV-CH050 series, such as the MV-CH050-10UM, is officially discontinued, what are the recommended EoL alternatives for ongoing projects, and how can we ensure a smooth transition?
A: When a model like the MV-CH050-10UM(EoL) is phased out, Beijing Zhongping Technology Co., Ltd. proactively identifies and qualifies its direct successors or superior alternatives within the HIKROBOT lineup, such as models within the MV-CH089 or MV-CH100 series. Our team provides detailed cross-reference matrices and technical validation reports to ensure seamless mechanical, electrical, and software compatibility, minimizing integration challenges for your project.
Q: What are the critical components and documentation required for smooth customs clearance of HIKROBOT industrial cameras, especially when importing into regions with stringent regulatory requirements?
A: Navigating international customs regulations for industrial equipment can be complex. Beijing Zhongping Technology Co., Ltd. ensures that all shipments include the necessary customs declarations, Certificates of Origin (CoC), and compliance documents (e.g., CE, RoHS). For expedited and compliant clearance, particularly for high-volume or sensitive international projects, we recommend discussing your specific import destination requirements with our logistics experts in advance.
Q: In a complex industrial network integrating various machine vision protocols, how can we verify the complete compatibility of the HIKROBOT MV-CH050-10UM with existing systems and other USB3 Vision or GenICam compliant devices?
A: While the MV-CH050-10UM adheres to USB3 Vision and GenICam standards, ensuring interoperability in a heterogeneous network requires careful consideration of system topology and device configurations. Beijing Zhongping Technology Co., Ltd. offers detailed compatibility assessments. To receive a tailored interoperability report for your specific setup, please submit your network architecture details and a list of existing devices to our application engineering team.
Q: For applications operating in extreme industrial environments, what are the recommended derating standards or operational limits for the HIKROBOT MV-CH050-10UM to ensure long-term reliability and prevent premature failure?
A: The MV-CH050-10UM is designed to operate within specified environmental parameters, including its rated working temperature of -10°C to 50°C. For applications pushing these boundaries, operating outside the standard specifications may require specific derating considerations, such as enhanced cooling or controlled environmental enclosures. Beijing Zhongping Technology Co., Ltd.'s technical support can provide guidance on derating curves and environmental mitigation strategies based on your specific operational profile.
Q: When replacing an existing machine vision camera with the HIKROBOT MV-CH050-10UM, what factors must be considered to ensure a seamless mechanical and electrical drop-in replacement, minimizing system downtime?
A: A successful camera replacement hinges on matching mechanical dimensions, lens mount compatibility, and electrical interface specifications. The MV-CH050-10UM, with its C-Mount and standard I/O connector, offers broad compatibility. To confirm a perfect fit and to understand any necessary adjustments for your specific legacy system, our application engineers can provide detailed mechanical drawings and pinout comparisons. Submit your existing camera's specifications for a precise integration assessment.
Q: How does HIKROBOT ensure the firmware stability and version control for monochrome industrial cameras like the MV-CH050-10UM when deployed across multiple geographically dispersed facilities?
A: Maintaining consistent firmware across distributed deployments is crucial for operational uniformity and effective troubleshooting. Beijing Zhongping Technology Co., Ltd. works with HIKROBOT to establish clear firmware version management policies. We provide dedicated support to help deploy and verify the correct firmware versions across all your locations, ensuring that your global operations benefit from the latest stable releases. To arrange a consultation on global firmware management, please contact our support team.
