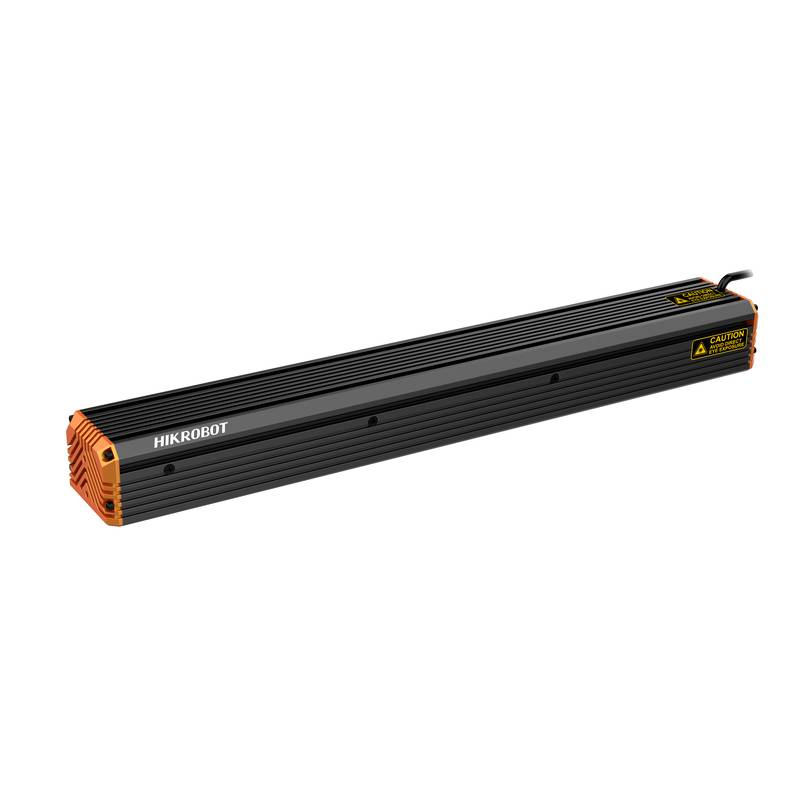

The HIKROBOT MV-LLDS-H-50-30-W is a high-performance industrial LED machine vision bar light, meticulously engineered to illuminate critical inspection areas in automated manufacturing environments. Designed as a robust industrial LED light bar, this model excels in providing consistent and powerful illumination, crucial for accurate image acquisition in machine vision systems. Its specifications are tailored for demanding applications where precise lighting is paramount for defect detection, measurement, and quality control. The MV-LLDS-H-50-30-W is an integral part of HIKROBOT's advanced lighting solutions, offering superior optical performance and reliability for a wide range of industrial automation tasks.
Performance Specifications:
Model: MV-LLDS-H-50-30-W Name: MV-LLDS-H-50-30-W Color: White Optimal Working Distance: 30 ~ 500 mm Wavelength: N/A (for white light) Color Temperature: 6000 ~ 7500K
Electrical Characteristics:
Power: 3.4 W Interface Type: SMR-03V-B
Structural Specifications:
Overall Dimensions: 63 mm × 30 mm × 30 mm Illumination Area Size: 51 mm × 21.6 mm LED Rows: 4 Weight: 0.12 kg Power Cable Length: 1 m Operating Temperature: 0~40°C Storage Temperature: -20~60°C Humidity: 20~90% RH (non-condensing) Diffuser Plate: PMMA
The HIKROBOT MV-LLDS-H-50-30-W is engineered with a focus on delivering uniform and high-intensity illumination, essential for capturing clear images even in challenging industrial settings. The optimal working distance of 30 to 500 mm allows for flexibility in system design, accommodating various object sizes and inspection setups. Its white light emission, with a color temperature between 6000 and 7500K, is ideal for applications requiring accurate color reproduction and detailed surface inspection. The unit's compact dimensions of 63 mm × 30 mm × 30 mm and a weight of only 0.12 kg make it easy to integrate into existing machinery and automated lines without adding significant bulk or load.
This machine vision bar light is built for durability, featuring a robust construction capable of withstanding typical industrial environments. The inclusion of a PMMA diffuser plate ensures even light distribution, minimizing hot spots and glare, which is critical for consistent image quality. The LED rows are strategically arranged to maximize illumination coverage across the target area, with an illumination zone measuring 51 mm × 21.6 mm. The 4 LED rows contribute to the light's overall output and uniformity. With a power consumption of only 3.4 W, it offers an energy-efficient lighting solution without compromising performance, making it suitable for continuous operation in high-throughput manufacturing processes.
The MV-LLDS-H-50-30-W is part of a comprehensive series of HIKROBOT lighting solutions designed to meet diverse machine vision needs. Complementing this white light model are variations such as the MV-LLDS-H-50-30-R (Red), MV-LLDS-H-50-30-B (Blue), and specialized infrared models like the MV-LLDS-H-50-30-IR850 and MV-LLDS-H-50-30-IR940, offering spectral flexibility for different material types and inspection tasks. The series also extends to other dimensions and configurations, including the MV-LLDS-H-50-40-W, MV-LLDS-H-100-30-W, MV-LLDS-H-150-30-W, MV-LLDS-H-200-30-W, and MV-LLDS-H-250-30-W, as well as their corresponding color and infrared variants (e.g., MV-LLDS-H-50-40-R, MV-LLDS-H-100-30-B, MV-LLDS-H-150-30-IR940, MV-LLDS-H-200-40-IR850, MV-LLDS-H-250-40-W). For applications requiring different form factors or specialized lighting, models like the MV-LRSS-H-120-W and MV-LRSS-H-160-W are also available. This extensive range ensures that engineers can find the precise lighting solution to optimize their specific machine vision applications.
Industrial Application Scenarios:
The HIKROBOT MV-LLDS-H-50-30-W industrial LED machine vision bar light is particularly well-suited for a variety of demanding industrial scenarios. Its high-quality illumination ensures excellent performance in Automotive Assembly Lines, where precise inspection of components, welds, and paint finishes is critical for quality assurance and safety. The consistent lighting minimizes variations caused by ambient conditions, enabling reliable detection of even minor defects.
In the Food and Beverage Packaging Industry, this bar light is invaluable for verifying label accuracy, fill levels, seal integrity, and detecting foreign objects. The clear, uniform light allows vision systems to accurately differentiate between product, packaging, and potential contaminants, ensuring compliance with stringent food safety regulations and enhancing product quality.
Furthermore, the MV-LLDS-H-50-30-W is a strong performer in Electronics Manufacturing, assisting in the inspection of printed circuit boards (PCBs), component placement, solder joint quality, and microscopic defect detection. The ability to provide detailed visual information is essential for maintaining high yields and reliability in the production of complex electronic devices.
The consistent illumination provided by this industrial LED light bar contributes significantly to Enhanced Throughput and Reduced Rejection Rates across these applications. By improving the accuracy and reliability of machine vision systems, it enables faster inspection cycles and reduces the likelihood of both under-inspection (leading to escaped defects) and over-inspection (leading to unnecessary rejections). This directly translates to increased operational efficiency and cost savings for manufacturers.
Selection Guidance:
The HIKROBOT MV-LLDS-H-50-30-W is an excellent choice for applications requiring uniform, high-intensity white light illumination for detailed inspection tasks at distances ranging from 30 to 500 mm. It is ideal for general-purpose machine vision, surface defect detection, and dimensional measurement where accurate color rendition is important.
However, this model may not be the optimal selection for applications requiring specific wavelengths outside the visible spectrum, such as deep UV or specific infrared bands for material analysis, or for extremely long-range inspections that necessitate highly focused beams. For applications demanding specialized spectral outputs, users should consider models like the MV-LLDS-H-50-30-IR850 or MV-LLDS-H-50-30-IR940, or consult the broader HIKROBOT lighting portfolio for tailored solutions.
---
Frequently Asked Questions (FAQ):
Q: For a large-scale project requiring several hundred units of the HIKROBOT MV-LLDS-H-50-30-W, what are the possibilities for project-based pricing and ensuring timely delivery amidst global supply chain fluctuations?
A: Beijing Zhongping Technology Co., Ltd. implements a tiered pricing structure for bulk orders and large projects, offering dynamic price adjustments based on order volume and project scope. To guarantee supply and secure optimal pricing for your significant project, we strongly recommend obtaining the "Latest Live Inventory & Project Pricing Report" directly from our sales team. This report reflects real-time stock levels and global market conditions, ensuring your quotation is both competitive and valid for your project timeline.
Q: How can we verify the authenticity of the HIKROBOT MV-LLDS-H-50-30-W units purchased in bulk to prevent counterfeit issues, and what are the procedures for real-time inventory locking for an upcoming production ramp-up?
A: Authenticity of all HIKROBOT products supplied by Beijing Zhongping Technology Co., Ltd. is assured through serial number tracking and original manufacturer documentation. For large-scale procurements, our system allows for "Real-time Inventory Locking" once a confirmed purchase order is processed, safeguarding your required quantity. To initiate this process and receive comprehensive anti-counterfeiting verification protocols, please contact our dedicated account management for project-specific guidance.
Q: Given the volatility in international trade and currency exchange rates, what is the recommended approach to secure fixed pricing and lead times for the MV-LLDS-H-50-30-W when planning a project with a long-term outlook?
A: To mitigate risks associated with currency fluctuations and market volatility, Beijing Zhongping Technology Co., Ltd. advises project-based clients to engage with us for a customized "Global Procurement Strategy." This typically involves leveraging our established supply chain relationships to secure pricing and delivery commitments. For a precise, long-term outlook, please request a "Project-Specific Pricing and Lead Time Assurance Plan" from our sales engineers.
Q: Our application requires specific machine vision bar lights that are no longer in production by the original manufacturer. Does HIKROBOT offer direct replacements for older or discontinued industrial LED light bars, and can you provide documentation for export customs clearance?
A: Beijing Zhongping Technology Co., Ltd. specializes in providing comprehensive solutions for industrial automation, including identifying and supplying compatible alternatives for discontinued components. We ensure all HIKROBOT products, including the MV-LLDS-H-50-30-W and its series, are supplied with complete "Original Manufacturer Documentation" and support for export customs clearance, including Certificates of Origin and compliance paperwork. For specific discontinued alternatives, our technical team will assess compatibility and provide the necessary CoC and supporting documents.
Q: When integrating the MV-LLDS-H-50-30-W into a system with diverse communication protocols, what are the standard compatibility checks and what documentation is available regarding firmware version consistency and upgradeability?
A: For seamless integration, the MV-LLDS-H-50-30-W utilizes standard interfaces and protocols common in machine vision. Beijing Zhongping Technology Co., Ltd. provides detailed technical specifications and can offer a "System Integration Compatibility Report" upon request, outlining communication protocols and potential interferences. We also ensure that all supplied units have consistent factory firmware versions and provide guidance on upgradeability to maintain optimal performance and security.
Q: We are considering replacing an existing lighting solution with the HIKROBOT MV-LLDS-H-50-30-W. What are the typical mechanical and electrical parameters to consider for a "seamless substitute," and how is the firmware upgradeability handled for long-term system maintenance?
A: To ensure a seamless transition, Beijing Zhongping Technology Co., Ltd. recommends a thorough review of the existing lighting's physical dimensions, mounting patterns, power requirements, and optical output compared to the MV-LLDS-H-50-30-W specifications. Our technical support team can provide a "Direct Replacement Assessment Report" to detail mechanical and electrical compatibility. Firmware upgrades for HIKROBOT products are managed through our support portal, ensuring long-term system relevance and access to the latest performance enhancements.
Q: In extreme industrial environments with high temperatures and vibrations, what are the recommended operational derating standards for the MV-LLDS-H-50-30-W, and how does ZhongPing Technology ensure these conditions are accounted for during solution design?
A: For operation in extreme conditions, the HIKROBOT MV-LLDS-H-50-30-W is designed with robust thermal management and vibration resistance, adhering to strict industrial standards. Beijing Zhongping Technology Co., Ltd. provides "Operational Derating Curves and Environmental Resilience Data" based on extensive testing. To ensure optimal performance and longevity, our application engineers will assess your specific environmental parameters and recommend appropriate derating factors and installation guidelines.
Q: We are looking at expanding our inspection capabilities by incorporating more advanced lighting. How does the MV-LLDS-H-50-30-W compare to other specialized lighting types in terms of spectral output and intensity, and what is the process for obtaining a comparative performance analysis?
A: The MV-LLDS-H-50-30-W delivers high-intensity, uniform white light (6000-7500K) ideal for general machine vision. For specialized spectral requirements, HIKROBOT offers variants such as IR (MV-LLDS-H-50-30-IR850, MV-LLDS-H-50-30-IR940), Red (MV-LLDS-H-50-30-R), and Blue (MV-LLDS-H-50-30-B). Beijing Zhongping Technology Co., Ltd. can provide a detailed "Comparative Spectral and Intensity Analysis Report" to help you select the most effective lighting for your specific application, ensuring optimal contrast and feature detection.
Q: What are the typical challenges encountered when integrating machine vision lighting across different factory floor network topologies, and how does ZhongPing Technology assist in ensuring robust communication and control for models like the MV-LLDS-H-50-30-W?
A: Integrating machine vision lighting across diverse network topologies often involves challenges related to signal integrity, protocol compatibility, and power distribution. Beijing Zhongping Technology Co., Ltd. provides comprehensive "Network Integration and Control Strategies" to address these complexities. Our engineers can assist in designing a robust system architecture and can provide a "Site-Specific Integration Plan" to ensure reliable communication and control of the MV-LLDS-H-50-30-W and other vision components within your existing infrastructure.
Q: For critical inspection tasks, what are the recommended methods for verifying the optical alignment and uniformity of illumination from the MV-LLDS-H-50-30-W, especially when replacing older lighting systems?
A: Verifying optical alignment and illumination uniformity is crucial for optimal performance. Beijing Zhongping Technology Co., Ltd. provides detailed guidelines for installation and alignment of the MV-LLDS-H-50-30-W. To ensure accurate results, especially when replacing legacy systems, we recommend utilizing our "Illumination Uniformity and Alignment Verification Protocol." For complex scenarios or to double-check system topology, contact Beijing Zhongping Technology Co., Ltd. directly to request an official quotation or consultation.
