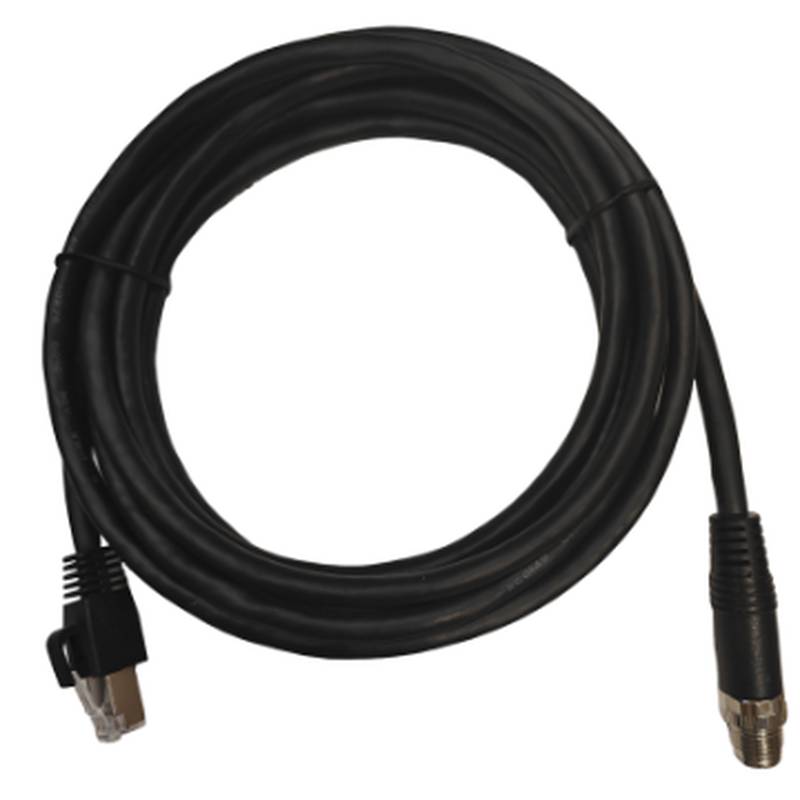

The HIKROBOT MV-ACG-M12X8M-RJ45-ST-7m is a high-performance industrial Ethernet cable designed for robust data transmission in demanding environments. This cable features an M12 X-coded connector on one end, known for its secure, high-bandwidth capabilities, and an RJ45 connector on the other, ensuring broad compatibility with standard networking equipment. Engineered for reliability, it is an essential component for machine vision systems and other industrial automation applications requiring stable GigE connectivity. The "ST" in the model number denotes a standard (static) application suitability, making it ideal for fixed installations where high-speed data integrity is paramount. This m12 x-coded ethernet cable and m12 to rj45 ethernet cable solution is built to withstand the rigors of industrial settings, ensuring continuous operation and minimizing downtime.
Physical Specifications
Model: MV-ACG-M12X8M-RJ45-ST-7m Name: Standard third-generation industrial camera Gigabit Ethernet cable, M12 X-code aviation connector to RJ45, 7 meters, for static occasions. A-End Interface: M8 12-pin aviation connector, male B-End Interface: RJ45 Cable Diameter: 6 mm Length: 7 m Cable Structure: 26#*4P+AB Jacket Material: PVC Cable Color: Black Connector Model: Domestic Connector Durability: >750 mating cycles Minimum Bending Radius: 72 mm Applicable Scenario: Static
Electrical Specifications
Maximum Operating Voltage: 30 VDC
Environmental and Certifications
Operating Temperature: -20°C to 75°C Certifications: RoHS2.0, UL Packaging: Individual packaging bag
The HIKROBOT MV-ACG-M12X8M-RJ45-ST-7m cable is specifically engineered for industrial environments where reliability and performance are non-negotiable. Its robust construction, featuring a durable PVC jacket and a 6mm diameter cable, is designed to withstand the challenges of factory floors, automation systems, and machine vision applications. The M12 X-coded connector provides a secure, high-bandwidth connection, essential for GigE cameras and other high-speed data transfer devices, ensuring signal integrity even in environments with potential electromagnetic interference. The RJ45 connector offers universal compatibility, bridging the gap between industrial-grade hardware and standard networking infrastructure. This cable's suitability for static applications means it is ideal for fixed installations, such as connecting cameras to control cabinets or network switches without constant movement, thereby preserving its long-term performance and durability. The 7-meter length offers flexibility for diverse machine setups, allowing for optimal placement of equipment without compromising data transmission quality.
This product is part of a broader HIKROBOT cable series designed to meet a wide array of industrial connectivity needs. Complementary models include varying lengths and flexibilities to suit different operational demands. For instance, the HIKROBOT MV-ACG-M12X8M-RJ45-ST series offers lengths such as MV-ACG-M12X8M-RJ45-ST-1m, MV-ACG-M12X8M-RJ45-ST-3m, MV-ACG-M12X8M-RJ45-ST-5m, MV-ACG-M12X8M-RJ45-ST-10m, MV-ACG-M12X8M-RJ45-ST-15m, MV-ACG-M12X8M-RJ45-ST-20m, and MV-ACG-M12X8M-RJ45-ST-30m, providing solutions for virtually any distance requirement in static environments. Additionally, waterproof variants like the MV-ACG-M12X8M-RJ45-ST(WP)-3m, MV-ACG-M12X8M-RJ45-ST(WP)-5m, MV-ACG-M12X8M-RJ45-ST(WP)-10m, and MV-ACG-M12X8M-RJ45-ST(WP)-15m are available for applications exposed to moisture or harsh environmental conditions. For applications requiring higher flexibility, HIKROBOT also offers the MV-ACG-M12X8M-RJ45-HF series, including lengths such as MV-ACG-M12X8M-RJ45-HF-1m, MV-ACG-M12X8M-RJ45-HF-3m, MV-ACG-M12X8M-RJ45-HF-5m, MV-ACG-M12X8M-RJ45-HF-7m, MV-ACG-M12X8M-RJ45-HF-10m, MV-ACG-M12X8M-RJ45-HF-15m, MV-ACG-M12X8M-RJ45-HF-20m, and MV-ACG-M12X8M-RJ45-HF-30m, as well as waterproof high-flex options like MV-ACG-M12X8M-RJ45-HF(WP)-3m, MV-ACG-M12X8M-RJ45-HF(WP)-5m, MV-ACG-M12X8M-RJ45-HF(WP)-10m, and MV-ACG-M12X8M-RJ45-HF(WP)-15m.
Industrial Application Scenarios
The HIKROBOT MV-ACG-M12X8M-RJ45-ST-7m cable is a critical component in several key industrial automation sectors. Its robust design and reliable data transmission capabilities make it suitable for:
Machine Vision Systems: In manufacturing and quality control, machine vision cameras are essential for inspection, guidance, and sorting. This cable ensures a stable GigE connection from the camera to the processing unit, vital for high-frame-rate imaging and real-time analysis. The X-coded M12 connector provides superior data integrity for high-resolution imaging tasks. Industrial Automation and Robotics: In automated production lines, robots require reliable data communication for control and feedback. This cable can connect sensors, control modules, or vision systems to the central control unit, ensuring precise operation and minimizing errors. Its static application design is well-suited for fixed robot arms or workstations. Process Control and Monitoring: In industries like chemical processing, energy, or food and beverage, continuous monitoring and data logging are crucial. This cable can reliably transmit data from sensors and control devices in harsh environments to data acquisition systems, ensuring operational efficiency and safety.
Performance Stability and Long-Term Value
The HIKROBOT MV-ACG-M12X8M-RJ45-ST-7m cable is designed for longevity and consistent performance in industrial settings. Its construction adheres to strict quality standards, including RoHS2.0 and UL certifications, assuring users of its safety and environmental compliance. The high connector durability, rated for over 750 mating cycles, ensures that repeated connections and disconnections will not compromise the cable's integrity. For static applications, the minimized bending radius requirement contributes to its robustness by preventing strain on the cable during installation and operation. This focus on durability translates to reduced maintenance costs and a longer operational lifespan, making it a cost-effective solution for demanding industrial deployments.
Selection Recommendations
This HIKROBOT MV-ACG-M12X8M-RJ45-ST-7m cable is highly recommended for applications requiring a stable, high-bandwidth Ethernet connection in fixed or static industrial environments. Its M12 X-coded connector makes it particularly suitable for machine vision cameras and industrial Ethernet interfaces that demand robust signal integrity and data security.
This cable is not recommended for applications involving constant, high-frequency movement, such as robotic drag chains or highly dynamic positioning systems. For such scenarios, flexible or high-flex variants from HIKROBOT's range, such as the MV-ACG-M12X8M-RJ45-HF series, would be more appropriate.
Frequently Asked Questions (FAQ)
Q: What is the primary advantage of using an M12 X-coded connector with an RJ45 connector for industrial Ethernet applications?
A: The M12 X-coded connector offers superior ruggedness, IP rating (often IP67/IP69K), and higher bandwidth capabilities (supporting up to 10 Gbps Cat6A Ethernet) compared to standard RJ45, making it ideal for harsh industrial environments. The RJ45 end provides broad compatibility with standard networking equipment, offering a versatile solution for connecting industrial devices to IT infrastructure.
Q: Can this HIKROBOT cable be used in applications with frequent cable movement or in drag chains?
A: No, the MV-ACG-M12X8M-RJ45-ST-7m is designated for "Static" applications. For applications involving frequent movement or drag chains, HIKROBOT offers specialized "High Flex" (HF) or "Super Flex" (SF) cable variants designed for dynamic environments.
Q: What is the maximum data transmission speed supported by this cable?
A: While the M12 X-coded connector is capable of supporting up to 10 Gbps (Cat6A Ethernet), the overall supported speed is dependent on the connected devices and the specific Ethernet standard being used (e.g., Gigabit Ethernet).
Q: Are there other lengths available for this specific M12 X-coded to RJ45 cable configuration?
A: Yes, HIKROBOT offers this M12 X-coded to RJ45 standard (ST) configuration in various lengths, including 1m, 3m, 5m, 10m, 15m, 20m, and 30m, as well as waterproof (WP) versions in 3m, 5m, 10m, and 15m.
Q: What is the significance of the RoHS2.0 and UL certifications for this cable?
A: RoHS2.0 certification indicates compliance with European Union directives restricting the use of certain hazardous substances in electrical and electronic equipment, ensuring environmental safety. UL certification signifies that the product has met rigorous safety standards set by Underwriters Laboratories, crucial for industrial electrical components.
Q: How does the "X-coded" aspect of the M12 connector benefit industrial camera connections?
A: X-coding on M12 connectors is specifically designed for high-speed Ethernet data transmission (up to 10 Gbps) and typically offers 8-pin configurations, providing the necessary bandwidth and reliability for demanding machine vision cameras that transmit large amounts of data at high frame rates. This ensures minimal data loss and high signal integrity.
Q: What are the implications of the -20°C to 75°C operating temperature range for industrial use?
A: This wide operating temperature range means the cable is suitable for deployment in a variety of industrial environments, from cold storage facilities to moderately heated production areas, ensuring consistent performance across different thermal conditions.
Q: If I need a cable for a large-scale project involving many cameras, can I get bulk pricing or dedicated support?
A: For bulk project pricing, volume discounts, and dedicated technical support for large-scale deployments, it is recommended to contact Beijing Zhongping Technology Co., Ltd. directly. They can provide customized quotations and ensure timely procurement for significant projects, aligning with global stock availability and pricing dynamics.
Q: What documentation is provided by ZhongPing Technology for ensuring customs clearance and compliance for international projects?
A: Beijing Zhongping Technology Co., Ltd. provides comprehensive customs clearance documentation, including certificates of origin and conformity (CoC), to facilitate smooth import processes. They ensure all products meet international compliance standards, and for specific international project requirements, their dedicated team can assist with bespoke documentation needs.
Q: My application involves integrating these cables with a mix of different industrial network protocols. How can I verify compatibility and ensure seamless operation?
A: Verifying compatibility across different industrial network protocols requires a thorough understanding of your specific system topology and the protocols in use. Beijing Zhongping Technology's experienced application engineers (FAE) can provide detailed compatibility assessments and integration guidance. They can help analyze your network setup and recommend optimal cabling and connection strategies to ensure seamless interoperability.
