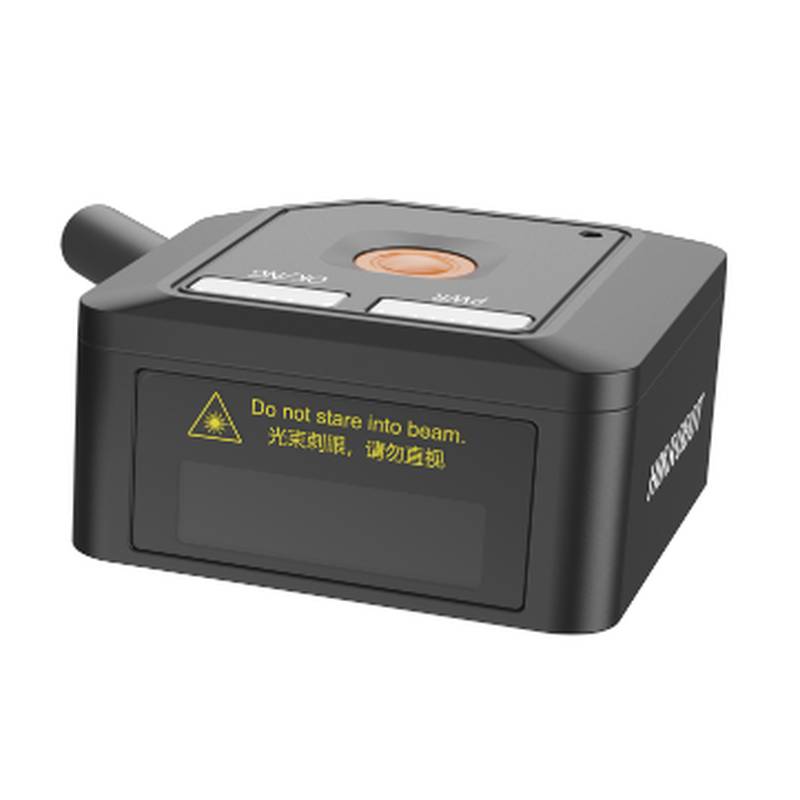

The HIKROBOT MV-IDA02X-03WS is a high-performance fixed mount barcode scanner and wall mount barcode scanner designed for demanding industrial applications. It leverages advanced imaging technology to deliver exceptional reliability and speed in decoding a wide array of 1D, 2D, and stacked codes. Engineered for robust operation, this scanner is an integral component for automated identification systems in manufacturing, logistics, and quality control environments, ensuring accurate data capture even in challenging conditions.
Key Product Specifications:
Model: MV-IDA02X-03WS Resolution: 640 × 480 pixels Focal Length: 3.1 mm Light Source: Warm White LED Target Size: 1/6" Pixel Size: 3.7 μm × 3.7 μm Max. Frame Rate: 60 fps Max. Read Speed: 15 codes/sec Depth of Field:
* EAN13 (13 mil): 40 mm ~ 250 mm
* Code 39 (5 mil): 60 mm ~ 110 mm
* Code 128 (10 mil): 40 mm ~ 250 mm
* Data Matrix (10 mil): 50 mm ~ 140 mm
* QR Code (15 mil): 25 mm ~ 215 mm Exposure Time: 60 μs ~ 7000 μs Gain: 1 dB ~ 15 dB Color Type: Monochrome Communication Protocols: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP Data Interface: RJ45 Digital I/O: 1 non-isolated input, 1 non-isolated output, 1 configurable input/output, 1 RS-232 Power Supply: 12 ~ 24 VDC Max. Power Consumption: 2.5 W @ 12 VDC Lens Mount: M10-Mount Ambient Light: 0 ~ 100000 lux Reticle: Orange circular light indicator Status Indicators: LED indicator, buzzer Dimensions: 38 mm × 38 mm × 19 mm Weight: Approx. 40 g (excluding cables) IP Rating: IP54 Operating Temperature: -20 ~ 50°C Storage Temperature: -40 ~ 70°C Humidity: 5% ~ 95% RH non-condensing Software: IDMVS Certifications: CE, RoHS, KC
Advanced Decoding Capabilities:
The MV-IDA02X-03WS demonstrates superior performance in identifying a broad spectrum of barcode symbologies. For 1D barcodes, it reliably decodes Code 39, Code 93, Code 128 (including GS1-128), ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, and UPCE. Its capabilities extend to 2D codes, supporting QR Code (including GS1-QR), Data Matrix (including GS1-DM), Micro QR, AZTEC, and Han Xin. Furthermore, it can effectively read stacked codes such as PDF417. The scanner achieves a minimum barcode precision of 6 mil for 1D codes and 17 mil for 2D codes, ensuring accuracy even with densely printed or small barcodes.
Performance in Industrial Environments:
With a maximum processing frame rate of 60 fps, the MV-IDA02X-03WS ensures smooth and continuous data acquisition, crucial for high-speed production lines. Its maximum reading speed of 15 codes per second allows for efficient throughput. The scanner's robust depth of field, extending up to 250 mm for certain codes, provides flexibility in mounting position and reading distance. The adjustable exposure time (60 μs to 7000 μs) and gain (1 dB to 15 dB) allow for optimization in varying lighting conditions and with different barcode qualities. The warm white LED illumination is specifically chosen to enhance readability of challenging codes without causing glare or distortion.
Robust Construction and Connectivity:
The MV-IDA02X-03WS is built to withstand industrial rigors, featuring an IP54 protection rating against dust and water ingress. Its compact dimensions (38 mm × 38 mm × 19 mm) and lightweight design (approx. 40 g) facilitate easy integration into space-constrained automated systems, whether mounted directly on machinery or via its wall-mount capability. The device offers versatile connectivity options, including an RJ45 Ethernet port for high-speed data transfer and standard communication protocols like TCP Client, TCP Server, and UDP. For more direct control and integration, it supports Serial communication and includes digital I/O for trigger inputs and status outputs, along with an RS-232 interface. Power is supplied via a standard 12-24 VDC range, with a low maximum power consumption of 2.5 W at 12 VDC, contributing to energy efficiency.
Application Scenarios and Value Proposition:
This scanner is ideally suited for applications requiring precise and rapid barcode identification. Its fixed mount and wall mount configurations make it a versatile solution for assembly lines in sectors such as electronics manufacturing, automotive production, and pharmaceuticals, where consistent tracking of components and finished goods is paramount. In the food and beverage industry, its ability to read various codes on packaging, even in environments with fluctuating light, contributes to improved traceability and compliance. The MV-IDA02X-03WS enhances operational efficiency by minimizing read errors and reducing downtime, leading to increased throughput and cost savings. Its robust build ensures longevity and reliability, providing a strong return on investment.
Exploring the HIKROBOT MV-IDA02X Series:
The MV-IDA02X-03WS is part of a comprehensive product line designed to meet diverse identification needs. Other models within this series include the MV-IDA02X-03WSR, MV-IDA02X-03WSU, MV-IDA02X-03WSP, MV-IDA02X-03WSPR, MV-IDA02X-03WSPU, and MV-IDA02X-03WSPNR. For applications requiring different resolutions or field-of-view characteristics, the MV-IDA05X series offers models such as MV-IDA05X-05WS, MV-IDA05X-05WSU, MV-IDA05X-05WSR, MV-IDA05X-05WSP, MV-IDA05X-05WSPU, MV-IDA05X-05WSPR, MV-IDA05X-05WNU, MV-IDA05X-05WNR, MV-IDA05X-05WNPU, MV-IDA05X-05WNPR, MV-IDA05X-05WN, and MV-IDA05X-05WNP. Additionally, HIKROBOT provides specialized optical readers like the MV-ORF-150H-U, MV-ORF-150GH-R, MV-ORF-150H-R, MV-ORF-150GH-U, MV-ORF-120GH-R, and MV-ORF-120GH-U, catering to a wide range of industrial vision requirements.
Frequently Asked Questions (FAQ):
Q: What is the minimum barcode size the MV-IDA02X-03WS can reliably read?
A: The MV-IDA02X-03WS can reliably read 1D barcodes down to 6 mil and 2D barcodes down to 17 mil.
Q: How does the scanner perform in variable lighting conditions?
A: The scanner is equipped with adjustable exposure times and gain, and utilizes a warm white LED illuminator, allowing it to adapt effectively to ambient light conditions ranging from 0 to 100,000 lux.
Q: Is the MV-IDA02X-03WS suitable for harsh industrial environments?
A: Yes, with an IP54 rating, it offers protection against dust and water splashes, and operates within a wide temperature range of -20 to 50°C, making it suitable for many industrial settings.
Q: What are the primary communication interfaces supported by this barcode scanner?
A: The MV-IDA02X-03WS supports RJ45 Ethernet for high-speed data transfer, Serial communication via RS-232, and standard industrial protocols like TCP Client, TCP Server, and UDP.
Q: Can this scanner be triggered remotely or integrated with other automation equipment?
A: Yes, it features digital I/O ports that include one non-isolated input, one non-isolated output, and one configurable input/output, along with an RS-232 interface that can be triggered via a top-face button, facilitating integration.
Q: What is the main advantage of the warm white LED illumination on this scanner?
A: The warm white LED provides balanced illumination that enhances the contrast and readability of various barcode types, particularly those that might be challenging under different light spectrums, without causing excessive glare.
Q: Does the MV-IDA02X-03WS require specific software for setup and operation?
A: The scanner is compatible with HIKROBOT's IDMVS software, which aids in configuration, testing, and management of the device.
Q: Are there specific scenarios where this scanner might not be the optimal choice?
A: While versatile, this scanner may not be the best choice for applications requiring extremely long-range scanning beyond its specified depth of field, or for decoding extremely low-contrast or heavily damaged barcodes without additional specialized lighting or advanced algorithms found in higher-end models.
