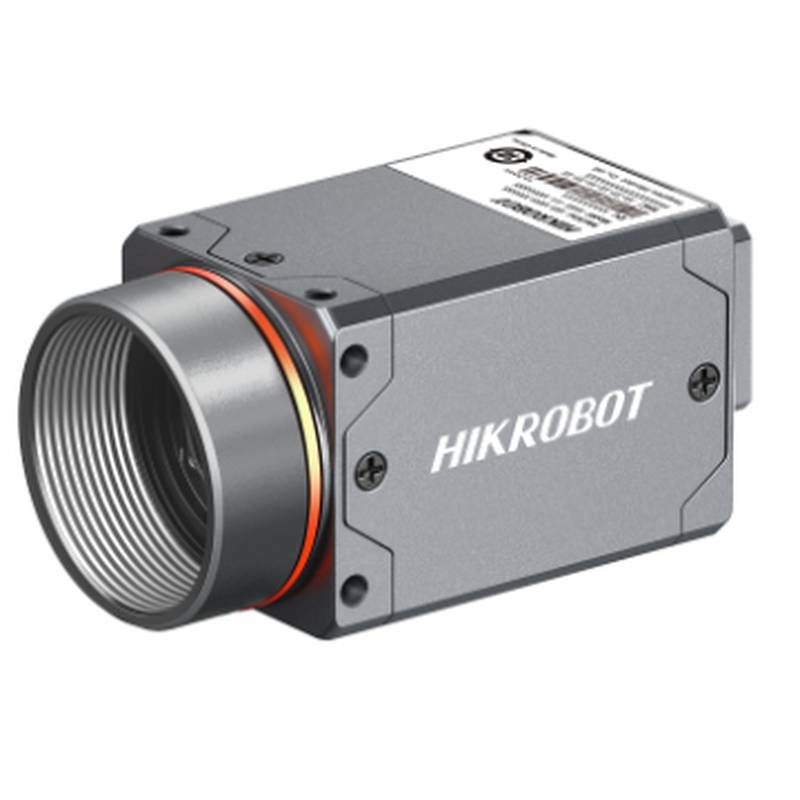

The HIKROBOT MV-CT016G-78GM01-BASE is a high-performance 1.6MP monochrome GigE industrial vision camera engineered for demanding automation tasks. This industrial vision camera leverages a sophisticated CMOS sensor with a stacked BSI structure, ensuring excellent image quality and reliability. Designed to meet the rigorous standards of modern manufacturing, it functions as a robust GigE vision camera, offering high-speed data transfer and seamless integration into existing automation systems. The MV-CT016G-78GM01-BASE is optimized for applications requiring precise image acquisition and processing, providing a critical component for quality control, inspection, and machine guidance.
Performance Specifications:
Model: MV-CT016G-78GM01-BASE Name: 1.6MP Network Area Scan Camera, 3rd Generation, Monochrome, BASE Sensor Type: CMOS, Global Shutter Sensor Model: Stacked BSI Pixel Size: 3.45 μm × 3.45 μm Image Sensor Size: 1/2.9” Resolution: 1440 × 1080 Maximum Frame Rate: 78.2 fps @1440 × 1080 Mono 8 Dynamic Range: 68.5 dB Signal-to-Noise Ratio (SNR): 44 dB Gain: 0 dB ~ 24 dB Exposure Time: 23 μs ~ 10 sec Shutter Mode: Supports Auto Exposure, Manual Exposure, One-Key Exposure modes; supports Trigger Width and Trigger Controlled. Color/Monochrome: Monochrome Pixel Format: Mono 8/10/10Packed/12/12Packed Binning: Supports 1 × 1, 2 × 2, 4 × 4 Downsampling: Supports 1 × 1, 2 × 2, 4 × 4 Image Mirroring: Supports horizontal and vertical mirroring output
Electrical Characteristics:
Data Interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) Data Interface Type: RJ45 connector Control Interface: Not Supported Digital I/O: 8-pin M8 A-Code connector provides power and I/O: 1-channel optically isolated input (Line0), 1-channel optically isolated output (Line1), 1-channel bidirectional configurable non-isolated I/O (Line2). Power Supply: 9 ~ 24 VDC, supports PoE (Power over Ethernet) Typical Power Consumption: 1.4 W @12 VDC
Structural Specifications:
Lens Mount: C-Mount Dimensions: 29 mm × 29 mm × 42 mm Weight: Approximately 116 g IP Rating: IP40 (when correctly installed with lens and cables) Operating Temperature: -30°C to 60°C Storage Temperature: -30°C to 80°C Operating Humidity: 20% to 95% RH non-condensing
General Specifications:
Software: MVS or third-party software supporting GigE Vision protocol Operating System Compatibility: Windows 7/10 32/64-bit, Windows 11 64-bit, Linux 32/64-bit Protocol/Standard: GigE Vision V2.0, GenICam Certifications: CE, RoHS, KC
The HIKROBOT MV-CT016G-78GM01-BASE features a high-sensitivity stacked BSI CMOS sensor, delivering exceptional clarity and detail crucial for precise industrial inspection. Its global shutter technology eliminates motion artifacts, making it ideal for high-speed applications where even the slightest blur can compromise accuracy. The camera's Gigabit Ethernet interface ensures rapid data transmission, facilitating real-time image analysis and machine control. With a resolution of 1440 × 1080 pixels and a maximum frame rate of 78.2 fps at full resolution, it is well-suited for detailed inspection tasks on fast-moving production lines. The camera’s flexible gain and exposure controls, along with various pixel formats, allow for optimization in diverse lighting conditions.
This monochrome industrial vision camera is engineered for robustness and reliability in harsh manufacturing environments. Its compact form factor (29 mm × 29 mm × 42 mm) and C-Mount lens interface offer versatile integration options. The IP40 rating, when properly configured, provides protection against dust ingress, further enhancing its suitability for industrial settings. The camera supports a wide operating temperature range from -30°C to 60°C, ensuring stable performance across demanding environmental conditions. Powering options include a wide DC voltage input (9-24 VDC) and PoE, simplifying cabling and installation.
The HIKROBOT MV-CT016G-78GM01-BASE is a pivotal component in advanced automation solutions, enabling enhanced precision and efficiency. Its GenICam compliance and GigE Vision V2.0 standard ensure broad compatibility with machine vision software and hardware. This camera is particularly effective in scenarios demanding high-speed, accurate defect detection, measurement, and alignment. Applications can range from intricate electronics assembly to pharmaceutical packaging inspection, where the ability to capture clear, artifact-free images is paramount. The camera's monochrome output is often preferred for inspection tasks where subtle variations in grayscale intensity are critical for identifying defects.
Beyond the MV-CT016G-78GM01-BASE, HIKROBOT offers a comprehensive range of industrial cameras to address diverse application needs. Other models within the lineup include the MV-CT020G-60GM01-BASE, MV-CT032G-38GM01-BASE, MV-CT032G-38GM01-PRO, MV-CT032G-38GM01-MAX, MV-CT050G-24GM01-BASE, MV-CT050G-24GM01-PRO, MV-CT050G-24GM01-MAX, MV-CT060R-19GM01-BASE, MV-CT060R-19GM01-PRO, MV-CT060R-19GM01-MAX, MV-CT089G-13GM01-BASE, MV-CT089G-13GM01-PRO, MV-CT089G-13GM01-MAX, MV-CT120G-9GM01-BASE, MV-CT120G-9GM01-PRO, MV-CT120G-9GM01-MAX, MV-CT200R-5GM01-BASE, MV-CT200R-5GM01-PRO, MV-CT200R-5GM01-MAX, MV-CT004G-200GM01-MAX, MV-CT004G-200GM01-PRO, MV-CT016G-78GM01-PRO, MV-CT016G-78GM01-MAX, MV-CT020G-60GM01-MAX, and MV-CT020G-60GM01-PRO. These models vary in resolution, frame rate, sensor technology, and specialized features, providing scalable solutions for varying levels of complexity and performance requirements. The "PRO" and "MAX" variants often indicate enhanced features or performance metrics beyond the "BASE" models, such as higher frame rates, advanced image processing capabilities, or specialized sensor technologies.
Industrial Application Scenarios and Value Proposition:
The HIKROBOT MV-CT016G-78GM01-BASE is exceptionally well-suited for several key industrial automation scenarios:
Automated Optical Inspection (AOI) in Electronics Manufacturing: In this context, the camera's high resolution and frame rate enable detailed inspection of Printed Circuit Boards (PCBs) for soldering defects, component placement errors, and surface imperfections. The global shutter ensures sharp images of microscopic details, even on moving assemblies, leading to improved yield and reduced rework. By accurately identifying defects early in the production process, it directly contributes to enhanced product quality and manufacturing efficiency. High-Speed Packaging and Label Inspection in Food and Beverage: For fast-moving packaging lines, the camera can perform real-time checks on label placement, print quality, date codes, and seal integrity. Its ability to capture up to 78.2 fps at 1440 × 1080 resolution allows for seamless integration into high-throughput operations without bottlenecks. This precise inspection capability helps prevent costly recalls, ensures regulatory compliance, and maintains brand integrity by guaranteeing product presentation. Precision Measurement and Alignment in Automotive Component Assembly: In the assembly of automotive parts, such as engine components or sensor modules, accurate measurement and precise alignment are critical. The MV-CT016G-78GM01-BASE provides the necessary resolution and image clarity to guide robotic arms, verify component placement, and perform dimensional checks, thereby ensuring the accuracy and reliability of critical automotive sub-assemblies and contributing to vehicle safety and performance. Robotic Guidance and Vision-Guided Manufacturing: For robots performing pick-and-place, assembly, or welding tasks, the camera serves as the "eyes" of the robot. It can identify object locations, orientations, and features, enabling robots to interact with their environment accurately and adaptively. This enhances the flexibility and efficiency of robotic systems, allowing them to handle variations in part presentation and perform complex tasks with greater precision.
Selection Considerations and Long-Term Value:
The HIKROBOT MV-CT016G-78GM01-BASE is an excellent choice for applications demanding high-speed, monochrome image acquisition with excellent detail and minimal motion blur. It is particularly suited for scenarios where GigE Vision connectivity is preferred for its bandwidth and robust networking capabilities. For applications requiring color information, higher resolutions, or specialized imaging functions like infrared or UV, alternative models within the HIKROBOT series, such as certain "PRO" or "MAX" variants or cameras with different sensor specifications, may be more appropriate. Consulting HIKROBOT's product catalog or a technical specialist can help in determining the optimal camera for specific project requirements. The robust construction, wide operating temperature range, and adherence to industry standards (CE, RoHS, KC) underscore its suitability for long-term deployment in industrial settings, promising reliable performance and a sustained return on investment.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for the HIKROBOT MV-CT016G-78GM01-BASE camera, and can I get real-time inventory status?
A: Lead times can vary based on current demand and specific project timelines. For the most accurate and up-to-date information on inventory status and expected delivery schedules for the MV-CT016G-78GM01-BASE, we recommend contacting Beijing ZhongPing Technology Co., Ltd. directly. They can provide a detailed Latest Inventory Report tailored to your needs.
Q: How can I obtain project pricing or a formal quotation for the MV-CT016G-78GM01-BASE camera?
A: To receive competitive project pricing and a formal quotation for the MV-CT016G-78GM01-BASE, please submit a detailed request to Beijing ZhongPing Technology Co., Ltd. They will work with you to understand your project scope and provide a comprehensive quote.
Q: What documentation is required for customs clearance when importing the HIKROBOT MV-CT016G-78GM01-BASE camera?
A: Standard customs clearance documentation typically includes commercial invoices, packing lists, and certificates of origin. For the MV-CT016G-78GM01-BASE, Beijing ZhongPing Technology Co., Ltd. can assist in providing the necessary documentation to facilitate smooth customs clearance. Specific requirements may vary by region, so it is advisable to confirm with your local customs authorities or our sales team.
Q: Are there any specific considerations for firmware upgrades for the MV-CT016G-78GM01-BASE camera, and how is this managed by ZhongPing Technology?
A: Firmware upgrades for industrial cameras like the MV-CT016G-78GM01-BASE are crucial for maintaining optimal performance and security. Beijing ZhongPing Technology Co., Ltd. is committed to supporting our clients through the firmware update process. We can provide guidance on the availability of new firmware versions and the recommended procedures for installation to ensure uninterrupted operation and to leverage the latest enhancements.
Q: Can you perform a compatibility check for the MV-CT016G-78GM01-BASE with my existing industrial automation system?
A: Yes, Beijing ZhongPing Technology Co., Ltd. offers compatibility assessment services. To ensure seamless integration of the MV-CT016G-78GM01-BASE into your specific system, please provide details about your current hardware, software, and communication protocols. Our technical experts will conduct a thorough compatibility check and offer recommendations.
Q: What are the options if a particular model, such as the MV-CT016G-78GM01-BASE, becomes discontinued or difficult to source?
A: While the MV-CT016G-78GM01-BASE is currently available, HIKROBOT, like all manufacturers, may update its product lines. If a model is discontinued, Beijing ZhongPing Technology Co., Ltd. will proactively assist you in identifying suitable alternatives or discontinued alternatives from the HIKROBOT product portfolio that meet or exceed your original specifications, ensuring continuity for your projects.
Q: How does Beijing ZhongPing Technology Co., Ltd. ensure the authenticity and quality of the HIKROBOT industrial vision cameras it supplies?
A: As an authorized distributor, Beijing ZhongPing Technology Co., Ltd. guarantees the authenticity and quality of all HIKROBOT industrial vision cameras, including the MV-CT016G-78GM01-BASE. We source directly from the manufacturer and adhere to strict quality control protocols, ensuring that you receive genuine, high-performance products that meet all specified standards.
Q: What support is available if I encounter issues with the MV-CT016G-78GM01-BASE camera during its operational life?
A: Beijing ZhongPing Technology Co., Ltd. provides comprehensive post-sales support for the HIKROBOT MV-CT016G-78GM01-BASE. Our technical support team is equipped to assist with troubleshooting, diagnostics, and resolution of any operational issues you may encounter, ensuring minimal downtime for your automation processes.
Q: Can HIKROBOT provide custom solutions or modifications for the MV-CT016G-78GM01-BASE camera if standard specifications are not met?
A: For specific application requirements that may necessitate custom modifications or specialized configurations beyond the standard specifications of the MV-CT016G-78GM01-BASE, Beijing ZhongPing Technology Co., Ltd. can explore possibilities with HIKROBOT. Please discuss your unique needs with our sales or technical team to assess the feasibility of custom solutions.
Q: What are the warranty terms for the HIKROBOT MV-CT016G-78GM01-BASE camera purchased through Beijing ZhongPing Technology Co., Ltd.?
A: The HIKROBOT MV-CT016G-78GM01-BASE camera is covered by a manufacturer's warranty, managed by Beijing ZhongPing Technology Co., Ltd. Specific warranty periods and terms are typically detailed in the purchase agreement. We ensure that all products are supported according to HIKROBOT's established warranty policies.
