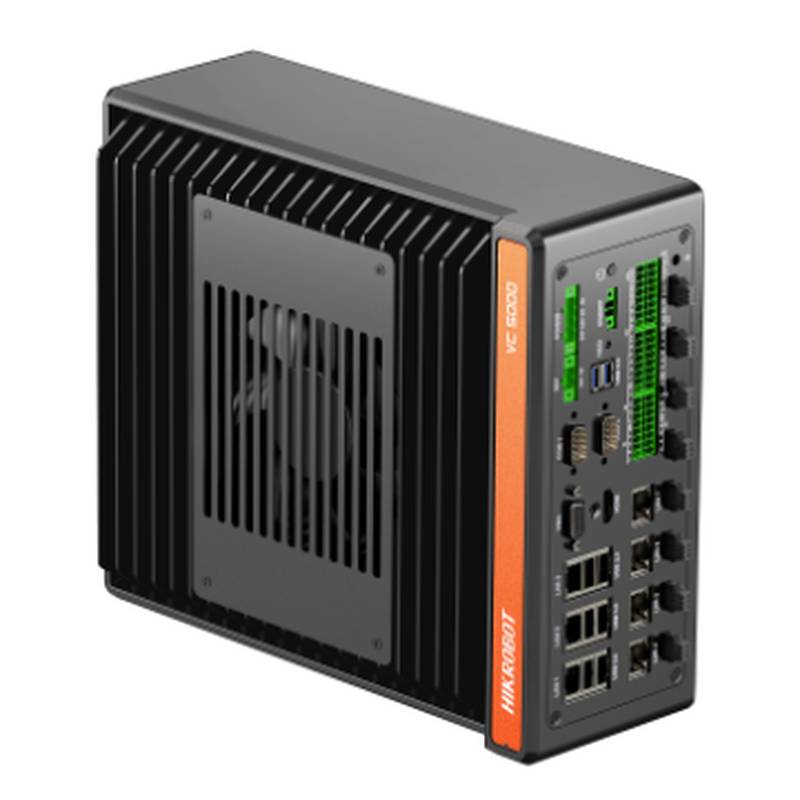

The HIKROBOT MV-VC5314-256G70-2T is a high-performance industrial computing platform designed for demanding robot vision control and advanced machine vision control systems applications. Leveraging a powerful 12th generation Intel Core i3 processor, this system is engineered to handle complex image processing tasks and real-time control operations with exceptional efficiency. The integration of a 16GB memory module, a fast 256GB SSD for the operating system and applications, and a spacious 2TB HDD for data storage ensures robust performance and ample capacity for extensive data logging and program execution. As a core component in automated industrial environments, the MV-VC5314-256G70-2T facilitates sophisticated automation solutions by providing the computational power necessary for intricate vision-guided robotics and quality inspection processes. This model exemplifies HIKROBOT's commitment to delivering reliable and scalable machine vision control systems that meet the evolving needs of the industry.
Product Specifications:
Model: MV-VC5314-256G70-2T Processor: Intel® Core™ i3-12100 (12th Gen) Memory: 16GB DDR4 Storage: 256GB SSD (System) + 2TB HDD (Data) Graphics: Intel® UHD Graphics 730 Chipset: H610 Operating System: Windows 10 (Unactivated) Video Output: 1 x HDMI, 1 x VGA (Independent display support up to 1920 × 1080 @60Hz) Digital I/O: 8 x Optocoupler Isolated Inputs, 12 x Optocoupler Isolated Outputs (NPN/PNP switchable), 8 x Digital Isolated Low-Side Driver Outputs, 4 x Non-Isolated Bidirectional Configurable Differential I/O Network Interfaces: 7 x Gigabit Ethernet Ports (4 ports support PoE) USB Ports: 4 x USB 2.0, 4 x USB 3.0, 1 x Internal USB 2.0 Serial Ports: 2 x RS-232 (Configurable to RS-485 or RS-422) Lighting Control Interface: 8 x 24V Constant Voltage Light Source Drivers (Max 72W per channel, 190W total) Expansion Interfaces: 2 x SATA 3.0 Power Input: 24 VDC (4-pin system power connector) Typical Power Consumption: 264 W Dimensions: 302.3 mm × 248 mm × 105.2 mm Weight: Approximately 6 kg Operating Temperature: 0 ~ 45 °C Operating Humidity: 20% ~ 95% RH (Non-condensing) Certifications: CE, KC
The MV-VC5314-256G70-2T is meticulously engineered to serve as the brain of sophisticated automation systems, offering a robust and flexible platform for machine vision and robot control. Its powerful Intel Core i3-12100 processor provides substantial computational power, capable of handling complex algorithms for object recognition, defect detection, and precise robot manipulation. The generous RAM and hybrid storage configuration (SSD for speed, HDD for capacity) ensure smooth operation and efficient data management, critical for high-throughput industrial environments. The inclusion of multiple high-speed Gigabit Ethernet ports, four of which support Power over Ethernet (PoE), simplifies network integration and power delivery to connected devices such as industrial cameras and sensors. This connectivity is vital for building scalable robot vision control solutions.
This machine vision control system is designed with ample I/O capabilities to interface with a wide array of industrial components. The optocoupler-isolated inputs and outputs provide robust protection against electrical noise, ensuring reliable signal transmission in harsh factory settings. The configurable differential I/O further enhances its versatility, allowing for custom integration with specialized sensors and actuators. The dedicated lighting control outputs are engineered to drive various illumination systems, a crucial aspect of optimizing image acquisition for machine vision applications. This comprehensive feature set makes the MV-VC5314-256G70-2T an ideal choice for applications demanding high levels of precision and real-time responsiveness.
Key Features for Industrial Automation:
The MV-VC5314-256G70-2T excels in providing a stable and high-performance computing foundation for advanced automation. Its architecture is optimized for demanding tasks within robot vision control scenarios, where fast processing and reliable data handling are paramount. The system's ability to support independent dual displays via HDMI and VGA is advantageous for operator interfaces and debugging, allowing for simultaneous monitoring of critical process data and camera feeds. The inclusion of both USB 2.0 and 3.0 ports offers broad compatibility with a range of peripherals, from high-resolution cameras to external storage devices.
For applications requiring robust industrial communication, the serial ports offer flexible configuration options, supporting legacy serial devices alongside modern industrial networks. The extensive network capabilities, including multiple Gigabit Ethernet ports with PoE, facilitate the integration of multiple cameras and networked devices, forming the backbone of a comprehensive machine vision control system. This unit is particularly well-suited for scenarios demanding continuous operation and precise control, such as in the automotive, electronics assembly, and packaging industries.
Performance and Reliability:
Built with industrial-grade components, the MV-VC5314-256G70-2T is designed for longevity and consistent performance in challenging environments. The operating temperature range of 0 to 45 °C and humidity tolerance ensure reliable functionality across a variety of factory floor conditions. The system's robust build and adherence to CE and KC certifications underscore its commitment to quality and safety standards. This emphasis on reliability is a cornerstone for any critical robot vision control or machine vision control systems implementation where downtime can lead to significant production losses.
The inclusion of a fanless design in many of its counterparts (though not explicitly stated for this specific model, it's a common trait in the VC5000 series) often contributes to reduced maintenance and increased operational uptime, minimizing dust ingress and noise. The 24V DC power input ensures compatibility with standard industrial power supplies, simplifying integration into existing automation architectures. The thoughtful layout of interfaces and expansion slots promotes ease of installation and future upgrades, contributing to a lower total cost of ownership.
Applications and System Integration:
The MV-VC5314-256G70-2T is highly adaptable and can be deployed in numerous industrial settings. Its capabilities are particularly beneficial in applications such as:
Automotive Manufacturing: For automated quality inspection of parts, robotic guidance for assembly, and welding verification. Electronics Assembly: High-speed component placement verification, solder joint inspection, and intricate circuit board testing. Food and Beverage Packaging: Quality control of labels, fill levels, seal integrity, and product sorting. Pharmaceuticals: Inspection of vials, blister packs, and tablet quality for compliance and safety. Logistics and Warehousing: Automated sorting, dimensioning, and identification of packages for efficient material handling.
In these scenarios, the system’s ability to process high-resolution images rapidly and control robotic movements with precision translates directly into improved efficiency, reduced errors, and enhanced product quality. The 7 Gigabit Ethernet ports, for instance, allow for the simultaneous connection of multiple high-resolution industrial cameras, crucial for comprehensive inspection tasks or complex robot vision control.
Related HIKROBOT Models:
HIKROBOT offers a comprehensive range of vision controllers designed to meet diverse application needs. While the MV-VC5314-256G70-2T provides a powerful combination of processing, storage, and I/O for many demanding tasks, other models in the series offer variations in specifications and capabilities. These include the MV-VC5314-256G70-NN, which may differ in operating system or specific hardware configurations. For systems requiring more advanced processing power or different I/O configurations, models such as the MV-VC5315-256G70-2T, MV-VC5315-256G70-NN, MV-VC5324-256G70-2T, MV-VC5324-256G70-NN, MV-VC5325-256G70-2T, MV-VC5325-256G70-NN, MV-VC5514-256G70-2T, MV-VC5514-256G70-NN, MV-VC5515-256G70-2T, MV-VC5515-256G70-NN, MV-VC5524-256G70-2T, MV-VC5524-256G70-NN, MV-VC5525-256G70-2T, MV-VC5525-256G70-NN, MV-VC5714-256G70-2T, MV-VC5714-256G70-NN, MV-VC5715-256G70-2T, MV-VC5715-256G70-NN, MV-VC5724-256G70-2T, MV-VC5724-256G70-NN, MV-VC5725-256G70-2T, and MV-VC5725-256G70-NN are available. Each model is designed to cater to specific project requirements, offering flexibility in processor choice, memory configurations, and expandability to optimize performance for a given machine vision control systems application.
Frequently Asked Questions (FAQ):
Q: What are the typical lead times for the HIKROBOT MV-VC5314-256G70-2T?
A: Lead times can vary based on current demand and specific project requirements. For the most accurate and up-to-date inventory status and project pricing, we recommend contacting Beijing ZhongPing Technology Co., Ltd. directly.
Q: How can I get a formal quote for the MV-VC5314-256G70-2T for my project?
A: To request a quote, please reach out to our sales team at Beijing ZhongPing Technology Co., Ltd. They will be able to provide detailed project pricing and discuss your specific application needs.
Q: What is the warranty period for HIKROBOT vision controllers like the MV-VC5314-256G70-2T?
A: Our warranty terms are designed to ensure your investment is protected. For specific details regarding the warranty period and coverage for the MV-VC5314-256G70-2T, please consult with Beijing ZhongPing Technology Co., Ltd., your trusted partner for industrial automation solutions.
Q: Does the MV-VC5314-256G70-2T support firmware upgrades, and what is the process?
A: Yes, firmware upgradeability is a key consideration for long-term system viability. The process and availability of firmware updates are managed to ensure optimal performance and security. For detailed guidance on firmware upgrades and to ensure you have the latest information, please contact Beijing ZhongPing Technology Co., Ltd.
Q: Are there any known compatibility issues with common industrial cameras or PLCs when using the MV-VC5314-256G70-2T?
A: The MV-VC5314-256G70-2T is designed for broad compatibility within industrial automation ecosystems. However, a compatibility check for your specific system components is always advised. Our expert team at Beijing ZhongPing Technology Co., Ltd. can assist you with system compatibility assessments to ensure seamless integration.
Q: What documentation is required for customs clearance when importing this HIKROBOT vision controller?
A: Beijing ZhongPing Technology Co., Ltd. is experienced in international logistics and can provide the necessary customs clearance documentation to ensure smooth delivery of your HIKROBOT vision controller. Please specify your shipping requirements when you contact us.
Q: Are there any discontinued alternatives to the MV-VC5314-256G70-2T that I should be aware of?
A: HIKROBOT continuously innovates its product lines. While we focus on current models like the MV-VC5314-256G70-2T, our specialists at Beijing ZhongPing Technology Co., Ltd. can advise on the most suitable current-generation alternatives if your project requires a specific feature set or if certain older models are phased out.
Q: Can I get real-time inventory status for the MV-VC5314-256G70-2T?
A: Real-time inventory status is crucial for project planning. Beijing ZhongPing Technology Co., Ltd. provides up-to-the-minute inventory reports. Please contact us to inquire about the current stock levels for the MV-VC5314-256G70-2T.
Q: What are the benefits of choosing Beijing ZhongPing Technology Co., Ltd. for purchasing HIKROBOT products?
A: As a dedicated provider of industrial automation solutions, Beijing ZhongPing Technology Co., Ltd. offers expert technical support, competitive project pricing, and reliable access to HIKROBOT's advanced machine vision control systems and robot vision control technologies. We are committed to ensuring your success through professional service and timely delivery.
Q: How does the MV-VC5314-256G70-2T contribute to operational efficiency in high-throughput manufacturing?
A: The MV-VC5314-256G70-2T enhances operational efficiency through its high-speed processing capabilities, enabling faster inspection cycles and more precise robotic movements. This reduces cycle times and minimizes errors, leading to increased throughput and reduced waste. Beijing ZhongPing Technology Co., Ltd. can help you leverage these efficiencies for your specific applications.
