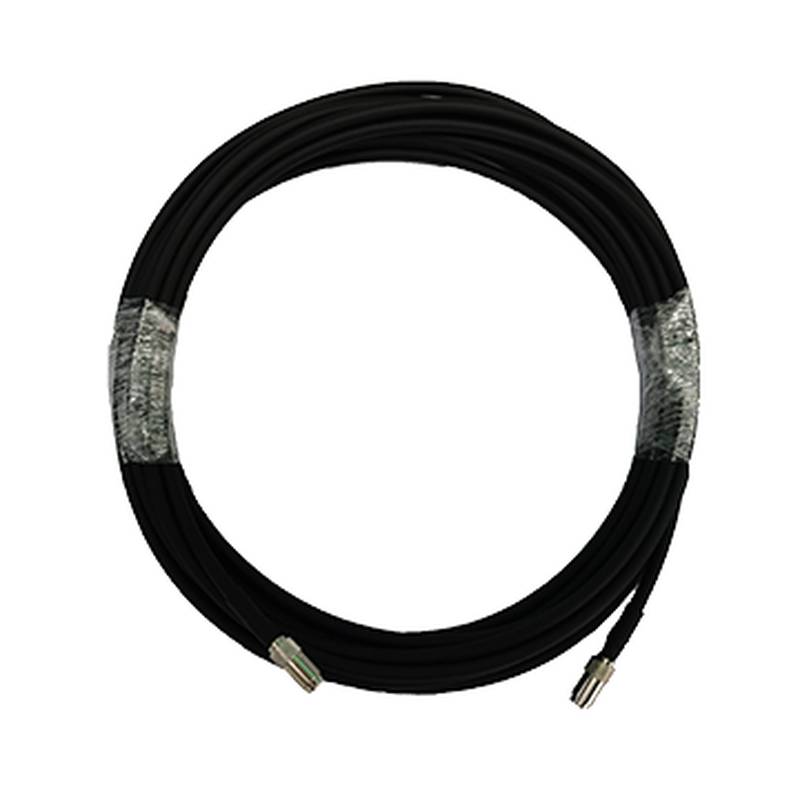

The HIKROBOT MV-ACXP6-DIN-DIN-HF-3m is a high-flex coax drag chain cable engineered for demanding industrial environments. This cable integrates the capabilities of a high flex coax cable with the durability required for drag chain applications, ensuring reliable data transmission in dynamic systems. Its construction prioritizes flexibility and resilience, making it suitable for continuous movement scenarios.
Physical Specifications: Model: MV-ACXP6-DIN-DIN-HF-3m Name: High-Flex CXP-6 Data Cable (Din-Din), 3 meters Connector A: DIN 1.0/2.3 Connector B: DIN 1.0/2.3 Cable Diameter: 5.0 mm Length: 3 m Cable Structure: Coaxial Jacket Material: PVC Cable Color: Black Connector Durability: 500 mating cycles Minimum Bend Radius: 60 mm Applicable Scenario: Drag chain Drag Chain (U-type) Sliding Cycles: 2 million times
Electrical Specifications: Maximum Working Voltage: 300 VDC
Operational and Environmental Data: Operating Temperature: -30°C to 80°C Certifications: RoHS, UL Packaging: Independent packaging bag
The HIKROBOT MV-ACXP6-DIN-DIN-HF-3m cable is specifically designed for CoaXPress (CXP) applications, a high-speed serial transmission standard crucial for industrial cameras, machine vision, and high-bandwidth data transmission. The CXP-6 standard supports data transfer rates of up to 6 Gbps, making this cable ideal for applications requiring high-resolution, high-frame-rate image sensors and video data streams. The "HF" in the model number signifies "High Flex," indicating its superior flexibility and suitability for dynamic applications where cables are subjected to repeated bending and movement. This makes it an excellent choice for integration into drag chains, which are essential for managing and protecting cables in automated systems that involve continuous motion.
The coaxial structure of the cable ensures robust signal integrity and is well-suited for transmitting high-frequency data with minimal loss. Its PVC jacket provides a balance of durability and flexibility, while the 5.0 mm diameter and 60 mm minimum bend radius allow for installation in space-constrained environments and complex routing paths. The cable's resilience is further underscored by its ability to withstand 2 million U-type sliding cycles in drag chain applications and 500 mating cycles for its connectors, ensuring longevity and reliability in demanding operational conditions.
This particular model, the MV-ACXP6-DIN-DIN-HF-3m, is part of a broader series of HIKROBOT high-flex data cables designed to meet diverse machine vision requirements. Other models within this series include the MV-ACXP6-DIN-DIN-HF-5m, MV-ACXP6-DIN-DIN-HF-10m, and various configurations with different connector types such as BNC and HD-BNC, like the MV-ACXP6-DIN-BNC-HF-3m and MV-ACXP6-DIN-HDBNC-HF-3m, as well as models with upward-facing connectors (e.g., MV-ACXP6-DIN(up)-DIN-HF-1.5m). Additionally, HIKROBOT offers other cable types, including standard data cables and power/I/O cables, to support a complete machine vision system.
Industrial Applications and Benefits:
The HIKROBOT MV-ACXP6-DIN-DIN-HF-3m cable finds its optimal application in industrial automation sectors where continuous movement and reliable data transfer are critical. Key application areas include:
Robotics: In robotic arms and automated manufacturing cells, the high flexibility and drag chain compatibility of this cable ensure uninterrupted signal transmission during complex movements, preventing cable fatigue and downtime. Machine Vision Systems: For high-speed industrial cameras used in quality inspection, automated optical inspection (AOI), and metrology, this cable provides the necessary bandwidth and signal integrity for CXP-6 data streams, enabling precise and rapid image acquisition. Automated Assembly Lines: In automotive manufacturing, electronics assembly, and packaging machinery, the cable's robustness allows it to withstand the constant motion of conveyor systems and robotic pick-and-place operations, contributing to increased throughput and reduced maintenance. CNC Machinery: For CNC machines with moving tool heads or workpieces, this drag chain cable ensures a secure and reliable connection for control signals and data feedback, preventing interference and ensuring operational accuracy.
By utilizing the HIKROBOT MV-ACXP6-DIN-DIN-HF-3m, engineers and procurement specialists can enhance operational efficiency, improve system reliability, and ensure the longevity of their automated equipment in dynamic environments. The cable's design specifically addresses the challenges of wear and tear associated with continuous motion, providing a cost-effective solution for critical data transmission needs.
Selection Guidance:
The HIKROBOT MV-ACXP6-DIN-DIN-HF-3m is ideally suited for applications requiring high-speed data transmission in dynamic environments that involve continuous cable movement, such as within drag chains. Its high-flex rating and robust construction make it a reliable choice for robotics, advanced machine vision systems, and automated manufacturing processes. For static applications where cable movement is minimal, standard data cables may suffice, but for any scenario involving repetitive flexing, the MV-ACXP6-DIN-DIN-HF-3m series offers superior durability and performance.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for the HIKROBOT MV-ACXP6-DIN-DIN-HF-3m cable?
A: Lead times can vary based on current inventory levels and order volume. For the most accurate and real-time inventory status, please contact Beijing ZhongPing Technology Co., Ltd.
Q: Can you provide project pricing for bulk orders of this high flex coax drag chain cable?
A: Yes, we offer customized project pricing for bulk orders. Please reach out to Beijing ZhongPing Technology Co., Ltd. to discuss your specific project requirements and receive a detailed quote.
Q: What documentation is available for customs clearance for international shipments of these cables?
A: Beijing ZhongPing Technology Co., Ltd. can provide necessary customs clearance documentation to facilitate smooth international shipments. Please specify your requirements when contacting our sales team.
Q: How can I verify the compatibility of this cable with my existing machine vision system?
A: Our technical specialists at Beijing ZhongPing Technology Co., Ltd. can assist with a comprehensive compatibility check to ensure seamless integration of the MV-ACXP6-DIN-DIN-HF-3m cable into your system.
Q: Are there any discontinued alternatives or potential replacements for this specific cable model?
A: While the MV-ACXP6-DIN-DIN-HF-3m is a current model, technology evolves. We recommend contacting Beijing ZhongPing Technology Co., Ltd. for information on the latest offerings and any potential upgraded or alternative solutions that meet your application's needs.
Q: What is the real-time inventory status for the HIKROBOT MV-ACXP6-DIN-DIN-HF-3m cable?
A: To obtain the most up-to-date inventory report, please contact Beijing ZhongPing Technology Co., Ltd., as stock levels can fluctuate rapidly.
Q: I need to request a quote for this high flex coax drag chain cable. What is the best way to proceed?
A: Please contact Beijing ZhongPing Technology Co., Ltd. directly. They will guide you through the quote request process and provide all necessary information.
Q: What are the warranty and support options available for this HIKROBOT cable?
A: Beijing ZhongPing Technology Co., Ltd. provides comprehensive support and warranty information for all HIKROBOT products. Contact them for details tailored to your purchase.
Q: How does the firmware upgradeability apply to a cable like this?
A: Cables themselves typically do not have firmware. However, if this cable is part of a larger system with upgradable components, Beijing ZhongPing Technology Co., Ltd. can advise on the overall system's firmware strategy.
Q: What are the recommended practices for the firmware upgrade process related to devices using this cable?
A: For firmware upgrade processes related to devices connected by this cable, please consult the documentation for those specific devices. Beijing ZhongPing Technology Co., Ltd. can offer guidance on compatible accessories or services related to system upgrades.
