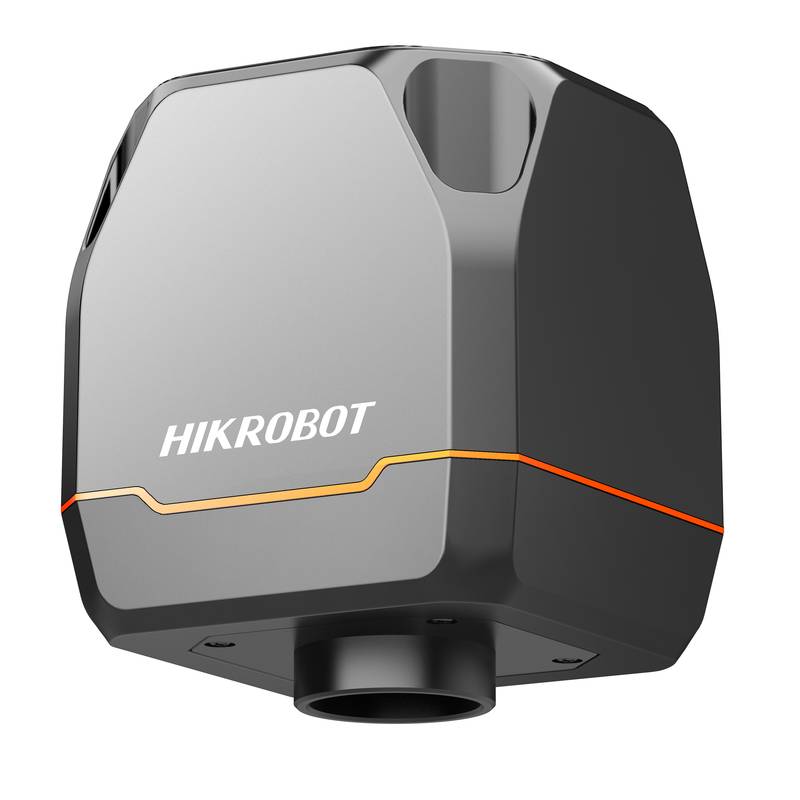

The HIKROBOT MV-CM3040C-1H is a sophisticated 4-megapixel digital microscope camera designed for industrial applications, offering high-resolution imaging and advanced measurement capabilities. This hdmi microscope camera leverages a CMOS sensor with a rolling shutter and a pixel size of 2.9 μm × 2.9 μm, delivering crisp images at a resolution of 2560 × 1440. Its 1/1.88” sensor format and a maximum frame rate of 30 fps at full resolution ensure fluid capture of dynamic processes, making it a powerful tool for detailed visual inspection and analysis. The camera seamlessly integrates into existing setups via its HDMI transmission interface, providing a direct, high-quality video output for monitoring and recording. This digital microscope camera is engineered to address the precise demands of industrial automation, quality control, and scientific research where accurate visualization and measurement are paramount.
Performance Specifications:
Model: MV-CM3040C-1H Name: 4-Megapixel Measurement HDMI Camera Sensor Type: CMOS, Rolling Shutter Pixel Size: 2.9 μm × 2.9 μm Sensor Format: 1/1.88” Resolution: 2560 × 1440 Maximum Frame Rate: 30 fps Gain: 0 dB to 18 dB Exposure Time: 300 μs to 100 ms Color/Monochrome: Color Shutter Mode: Supports Auto Exposure, Manual Exposure modes
Image Processing and Measurement Capabilities:
The MV-CM3040C-1H excels in image enhancement and metrology, offering a comprehensive suite of tools designed to optimize visual data and facilitate precise measurements. Image processing functions include adjustable white balance, brightness, sharpness, contrast, saturation, digital gain, gamma correction, digital wide dynamic range, and noise reduction, all controllable to achieve optimal image clarity under various lighting conditions. Auxiliary imaging features such as horizontal/vertical mirroring, crosshairs, grid lines, screen freezing, still image capture, and video recording provide enhanced observational flexibility and data management. The camera's advanced geometric measurement capabilities are a cornerstone of its utility in industrial settings. These include calibration tools for accurate scaling, point, line, circle, angle, polygon, polyline, and curve measurements. Furthermore, the camera supports automatic line and circle measurements, and can export detailed measurement reports, streamlining quality control workflows and engineering analysis. This robust feature set positions the MV-CM3040C-1H as a versatile solution for applications demanding detailed inspection and quantifiable data.
Electrical Characteristics:
Transmission Interface: HDMI Control Interface: 2 × USB 2.0, 1 × USB 3.0, 1 × micro SD Power Supply: 12 to 24 VDC, requires an independent power source Typical Power Consumption: 3.6 W @ 12 VDC
Structural and Environmental Specifications:
Lens Mount: C-Mount Dimensions: 75 mm × 75 mm × 86.9 mm Weight: Approximately 430 g IP Rating: IP30 (when correctly installed with lens and cables) Operating Temperature: 0°C to 50°C Storage Temperature: -30°C to 80°C Humidity: 20% to 95% RH (non-condensing) Certifications: CE, RoHS
Industrial Scene Integration and Benefits:
The HIKROBOT MV-CM3040C-1H is ideally suited for a range of demanding industrial environments where precision, clarity, and analytical capability are critical. Its high-resolution imaging and advanced measurement tools make it an invaluable asset in precision assembly and inspection, particularly within the electronics manufacturing sector. Here, the camera can facilitate detailed examination of intricate components, solder joints, and printed circuit boards (PCBs), ensuring adherence to strict quality standards and enhancing defect detection efficiency. In quality control laboratories, the MV-CM3040C-1H supports rigorous material analysis, surface inspection, and dimensional verification of manufactured goods. Its ability to provide accurate geometric measurements directly from the live video feed significantly reduces the time and resources required for manual inspection processes, leading to improved throughput and reduced operational costs.
Furthermore, this hdmi microscope camera finds application in the food and beverage industry for inspecting packaging integrity, verifying product fill levels, and examining product quality during processing, ensuring compliance with safety and regulatory standards. The camera’s robust construction and environmental specifications, including an IP30 rating when properly configured, allow for reliable operation even in moderately challenging production line conditions. By providing clear, quantifiable data, the MV-CM3040C-1H empowers engineers and technicians to make informed decisions, optimize production processes, and maintain consistent product quality, thereby contributing to overall operational efficiency and cost reduction. The seamless integration via HDMI also simplifies setup and compatibility with existing monitoring systems.
Considerations for Similar Models:
When selecting a HIKROBOT camera for specific industrial imaging needs, it is beneficial to consider the broader product family. For applications requiring similar resolution but potentially different form factors or feature sets, the MV-CM3040C-1H(MSD) offers comparable imaging performance with potential variations in specific hardware configurations or bundled software. For scenarios demanding lower resolution but still high-quality imaging, the MV-CM2020C-0H provides a cost-effective alternative for less demanding inspection tasks. Conversely, for applications requiring even higher performance or specialized features, the MV-CM3120C-1H may offer advanced capabilities beyond the scope of the MV-CM3040C-1H. Understanding these distinctions allows for precise equipment selection to match project requirements, optimizing both performance and budget.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for the HIKROBOT MV-CM3040C-1H camera?
A: Lead times can vary based on current demand and specific order configurations. For the most accurate and up-to-date inventory status and delivery timelines, we recommend contacting ZhongPing Technology for a real-time inventory report.
Q: Can ZhongPing Technology provide project pricing for bulk orders of the MV-CM3040C-1H?
A: Yes, ZhongPing Technology specializes in providing tailored project pricing for industrial automation components. Please reach out to our sales team with your project details to receive a comprehensive quotation.
Q: What documentation is typically provided for customs clearance when ordering HIKROBOT cameras internationally?
A: ZhongPing Technology ensures all necessary documentation for smooth customs clearance is provided, including certificates of origin and conformity. Specific requirements can be discussed during the ordering process to guarantee compliance.
Q: How can I verify the system compatibility of the MV-CM3040C-1H with my existing inspection setup?
A: Our technical team at ZhongPing Technology can perform a detailed compatibility check. Please provide specifications of your current system, and we will advise on the seamless integration of the MV-CM3040C-1H.
Q: Are there any known discontinued alternatives to the MV-CM3040C-1H that I should be aware of?
A: While the MV-CM3040C-1H is a current model, HIKROBOT periodically updates its product lines. ZhongPing Technology can assist in identifying any discontinued alternatives and recommend the most suitable current-generation replacements based on your application needs.
Q: What is the process for requesting a quote for the HIKROBOT MV-CM3040C-1H?
A: To request a quote, please visit the ZhongPing Technology website or contact our sales department directly. Provide the model number (MV-CM3040C-1H) and any specific requirements for a prompt response.
Q: Does the MV-CM3040C-1H support firmware upgrades, and how is this managed?
A: The MV-CM3040C-1H is designed to support firmware upgrades to enhance functionality and ensure optimal performance. ZhongPing Technology provides guidance on the firmware upgrade process to ensure your system remains current.
Q: What are the benefits of purchasing through ZhongPing Technology for industrial automation components like the MV-CM3040C-1H?
A: ZhongPing Technology offers expert technical support, competitive pricing, and reliable supply chain management. We are committed to ensuring that our clients receive not only high-quality products but also comprehensive pre- and post-sales service.
Q: Are there specific considerations regarding the storage and operating temperature ranges for the MV-CM3040C-1H in different industrial environments?
A: The MV-CM3040C-1H operates effectively within a range of 0°C to 50°C. For environments outside these parameters, ZhongPing Technology can advise on protective measures or alternative solutions to ensure operational stability.
Q: How does ZhongPing Technology handle inquiries about real-time inventory status for HIKROBOT products?
A: ZhongPing Technology maintains a dynamic inventory management system. To get the most accurate real-time inventory status for the MV-CM3040C-1H or any other HIKROBOT product, please contact our customer service team directly.
