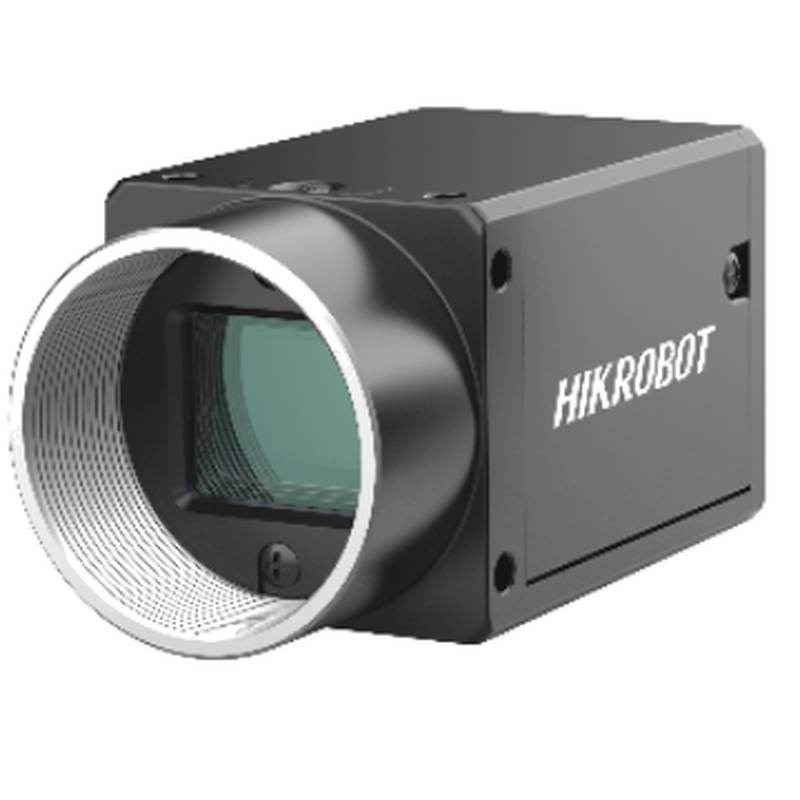

The HIKROBOT MV-CH050-60NM is a high-performance 5MP monochrome machine vision camera engineered for demanding industrial automation tasks. Featuring a 2.5 Gigabit Ethernet interface for rapid data transfer and a 2/3” CMOS sensor with global shutter technology, this camera ensures precise image capture for applications requiring high accuracy and speed. Its robust design and adherence to industry standards like GigE Vision and GenICam provide seamless integration into existing systems.
The MV-CH050-60NM boasts a resolution of 2448 x 2048 pixels, delivering exceptional detail for intricate inspection and analysis. With a maximum frame rate of 60 fps at its full resolution, it is well-suited for capturing fast-moving objects without motion blur, a critical factor in quality control and production line monitoring. The camera offers a wide dynamic range of 69.6 dB and a signal-to-noise ratio of 44.1 dB, ensuring clear imaging even in challenging lighting conditions. Its extensive exposure time control, from 5 μs to 10 seconds, allows for flexible adaptation to various operational needs.
Key electrical and structural specifications include a 2.5 Gigabit Ethernet interface, compatible with Gigabit Ethernet, and multiple digital I/O options for flexible system integration. The camera supports a wide voltage input range of 9-24 VDC, including Power over Ethernet (PoE) capabilities, simplifying installation and reducing cabling requirements. It features a standard C-Mount lens interface, compact dimensions of 29 mm x 29 mm x 42 mm, and a weight of approximately 100g, making it suitable for integration into space-constrained environments. The IP40 protection rating ensures durability in controlled industrial settings.
This 5MP machine vision camera is designed for a wide array of industrial applications, including automotive manufacturing, electronics inspection, pharmaceutical quality control, and food and beverage packaging. Its high resolution and global shutter capability are particularly beneficial for tasks such as detailed defect detection, precise measurement, robotic guidance, and automated assembly verification. For instance, in automotive production, it can be used for inspecting engine blocks and casting for hairline cracks or porosity. In electronics manufacturing, it's ideal for PCB solder joint verification and component placement checks. The pharmaceutical industry can leverage this camera for inspecting vials, syringes, tablets, and capsules for defects and ensuring seal integrity in blister packs. In the food and beverage sector, it can be used for label verification, fill level inspection, and foreign object detection.
The MV-CH050-60NM is compatible with HIKROBOT's MVS software and other third-party software that supports the GigE Vision protocol and GenICam standard, facilitating seamless integration and efficient development. This adherence to industry standards ensures interoperability with a broad range of machine vision systems and components. While the MV-CH050-60NM is a robust monochrome camera, its color counterpart, the MV-CH050-60NC, offers similar performance characteristics with the added benefit of color imaging for applications where color differentiation is critical.
Key Specifications: Model: MV-CH050-60NM Resolution: 2448 x 2048 pixels (5MP) Sensor Type: CMOS, Global Shutter, Stacked BSI Pixel Size: 3.45 μm x 3.45 μm Sensor Format: 2/3” Maximum Frame Rate: 60 fps @ 2448 x 2048 (Mono 8) Dynamic Range: 69.6 dB Signal-to-Noise Ratio: 44.1 dB Data Interface: 2.5 Gigabit Ethernet (2500Mbit/s), compatible with Gigabit Ethernet (1000Mbit/s) Lens Mount: C-Mount Power Supply: 9-24 VDC, PoE support Dimensions: 29 mm x 29 mm x 42 mm Weight: Approx. 100 g Operating Temperature: -10°C to 45°C Standards: GigE Vision V2.0, GenICam
Applications in Industrial Scenarios:
The HIKROBOT MV-CH050-60NM 5MP machine vision camera is ideally suited for various industrial automation scenarios where precise and high-speed visual inspection is paramount. Its high resolution and global shutter technology make it an excellent choice for applications such as:
Automotive Manufacturing: Used for detailed inspection of engine blocks, casting, and metal parts to detect hairline cracks, porosity, and surface defects. It ensures the structural integrity of components critical for vehicle safety. Electronics Inspection: Essential for verifying the quality of printed circuit boards (PCBs), including inspecting solder joints for defects, ensuring correct component placement, and identifying minute flaws in electronic components. Pharmaceutical and Medical Device Inspection: Deployed for the meticulous inspection of vials, syringes, tablets, and capsules to detect particulate contamination, cosmetic flaws, and ensure accurate fill levels. It also plays a crucial role in verifying the seal integrity of blister packs, preventing leakage and contamination risks. Food and Beverage Packaging: Utilized for ensuring the quality and compliance of packaged goods. This includes verifying label accuracy, checking for correct fill levels, inspecting seal integrity, and detecting foreign objects within packaging to meet safety and regulatory standards. General Quality Control: Its capabilities extend to a broad range of quality control tasks across diverse manufacturing sectors, identifying defects, measuring dimensions, and ensuring products meet stringent quality benchmarks before shipment. Robotic Guidance: The precise imaging provided by this camera enables vision-guided robotics (VGR) systems, allowing robots to accurately identify, locate, and manipulate objects for assembly, pick-and-place operations, and complex manufacturing tasks.
Operational Stability and Long-Term Value:
The MV-CH050-60NM is built with industrial-grade components designed for reliability in demanding factory environments. Its adherence to GigE Vision and GenICam standards ensures long-term compatibility and ease of integration, reducing the total cost of ownership. The camera’s robust performance and precise data capture contribute to increased manufacturing efficiency, reduced waste, and improved product quality, offering significant long-term value for businesses seeking to enhance their automation capabilities.
Considerations for Similar Models:
While the MV-CH050-60NM excels in monochrome imaging, HIKROBOT also offers the MV-CH050-60NC. This model provides similar specifications but is designed for applications where color information is essential for accurate inspection and analysis, such as identifying color variations in paint finishes or verifying the correct color coding of components.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for the HIKROBOT MV-CH050-60NM?
A: Lead times can vary based on current stock levels and demand. For the most accurate and up-to-date information on availability and estimated delivery schedules, please contact Beijing Zhongping Technology Co., Ltd. directly. They can provide a real-time inventory report and discuss project timelines.
Q: Can the HIKROBOT MV-CH050-60NM be used for outdoor applications?
A: The MV-CH050-60NM has an IP40 rating, indicating protection against solid objects larger than 1mm but no protection against water or dust ingress. It is designed for controlled indoor industrial environments and is not suitable for outdoor use or harsh, wet, or dusty conditions.
Q: How does the HIKROBOT MV-CH050-60NM compare in price to similar 5MP machine vision cameras?
A: HIKROBOT cameras, including the MV-CH050-60NM, are competitively priced, often offering significant value compared to high-end competitors. For specific project pricing and detailed comparisons based on your application's unique requirements, it is recommended to request a formal quote from authorized distributors like Beijing Zhongping Technology Co., Ltd.
Q: What are the firmware upgradeability options for this camera?
A: Firmware updates are typically managed through HIKROBOT's proprietary software or provided by authorized distributors. For information on the latest firmware versions, upgrade procedures, and compatibility, please consult with Beijing Zhongping Technology Co., Ltd. They can guide you through the process and ensure your system remains up-to-date.
Q: What documentation is required for customs clearance when importing HIKROBOT cameras?
A: Standard import documentation typically includes commercial invoices, packing lists, and certificates of origin. For specific customs clearance requirements, especially for international shipments, please coordinate with Beijing Zhongping Technology Co., Ltd. They can provide the necessary paperwork and advise on any specific regulations to ensure a smooth import process.
Q: How can I perform a compatibility check for the HIKROBOT MV-CH050-60NM with my existing vision system?
A: The MV-CH050-60NM is designed to be highly compatible, adhering to GigE Vision and GenICam standards. For a detailed compatibility check with your specific hardware and software, including checking if your current system supports GigE Vision 2.0 and GenICam, we recommend consulting the technical support team at Beijing Zhongping Technology Co., Ltd. They can assist with integration planning and confirm system requirements.
Q: Are there any discontinued alternatives to the MV-CH050-60NM that I should be aware of?
A: While the MV-CH050-60NM is a current model, it is always advisable to stay informed about product lifecycles. For information on the product roadmap, potential replacements, or alternatives within the HIKROBOT range, please reach out to Beijing Zhongping Technology Co., Ltd. They can provide insights into product availability and future offerings.
Q: What is the real-time inventory status for the HIKROBOT MV-CH050-60NM?
A: Real-time inventory status can fluctuate due to high demand and production schedules. To obtain the most accurate and current inventory information, please contact Beijing Zhongping Technology Co., Ltd. They maintain detailed stock reports and can confirm immediate availability or provide lead times for backorders.
Q: What are the benefits of using a HIKROBOT 5MP machine vision camera for project pricing?
A: Utilizing a HIKROBOT 5MP camera like the MV-CH050-60NM for your project can offer a favorable balance of high-resolution performance and cost-effectiveness. To get a precise project pricing quote tailored to your specific application, please submit a detailed inquiry to Beijing Zhongping Technology Co., Ltd. They can assist in configuring the optimal solution and providing a comprehensive cost breakdown.
Q: How can I request a quote for the HIKROBOT MV-CH050-60NM for my specific industrial application?
A: To request a quote, please contact Beijing Zhongping Technology Co., Ltd. directly. They are an authorized strategic partner for HIKROBOT and are equipped to provide detailed quotations based on your project's unique requirements, volume, and any additional services needed.
