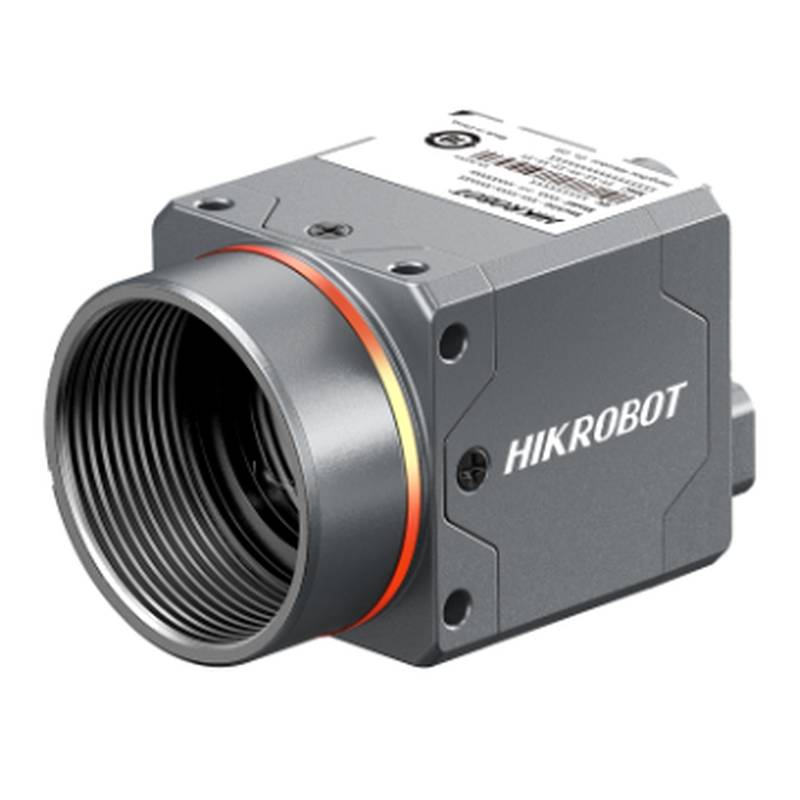

The HIKROBOT MV-CT016G-249UC01-BASE is a 1.6MP color industrial USB3 machine vision camera designed for high-speed image acquisition and precise visual inspection tasks. This industrial usb camera leverages a stacked BSI CMOS sensor with a global shutter, ensuring clear, distortion-free images even in dynamic applications. The camera's 1/2.9” sensor and 3.45 μm × 3.45 μm pixels deliver a resolution of 1440 × 1080 at an impressive maximum frame rate of 249 fps. This high throughput is facilitated by the camera's USB3.0 interface, which adheres to the USB3 Vision standard, offering significant bandwidth advantages over older USB standards. The USB3 Vision standard, built upon the GenICam protocol, ensures interoperability and simplifies system integration with its plug-and-play functionality, power over a single cable, and robust communication protocols.
Key Features and Specifications:
Resolution: 1.6 Megapixels (1440 × 1080) Sensor Type: CMOS, Global Shutter, Stacked BSI Maximum Frame Rate: 249 fps @ 1440 × 1080 (Bayer GB 8) Data Interface: USB3.0, compatible with USB2.0, Type-C connector Lens Mount: C-Mount Dynamic Range: 61 dB Signal-to-Noise Ratio: 44 dB Exposure Control: Auto, manual, one-key exposure; supports Trigger Width and Trigger Controlled I/O: 8-pin M8 connector providing 1 isolated input, 1 isolated output, and 1 bidirectional I/O Power: 9-24 VDC, supports USB power; typical consumption 1.5 W @ 5 VDC (USB3.0) Dimensions: 29 mm × 29 mm × 30 mm Weight: Approx. 72 g Operating Temperature: -30°C to 60°C IP Rating: IP40 (with correct lens and cable installation) Standards: USB3 Vision, GenICam Certifications: CE, RoHS, KC
The HIKROBOT MV-CT016G-249UC01-BASE is engineered with industrial demands in mind. Its global shutter CMOS sensor is crucial for applications involving fast-moving objects, preventing motion distortion and enabling high-speed capture without blur. The stacked BSI (Back-Side Illuminated) technology enhances light-gathering capabilities and improves low-light performance, leading to cleaner images and better signal-to-noise ratios. The USB3.0 interface, compliant with the USB3 Vision standard, offers high throughput (up to 5 Gbit/s) and low latency, essential for real-time processing and AI inference in modern industrial automation. This makes it an ideal solution for applications requiring rapid data transfer and minimal CPU load, freeing up resources for complex analysis.
The camera's C-Mount lens interface provides broad compatibility with a vast array of lenses, ensuring flexibility for different field-of-view and magnification requirements in industrial settings. Its robust construction, including an operating temperature range of -30°C to 60°C, makes it suitable for demanding environments. The inclusion of GenICam compatibility ensures seamless integration with various machine vision software and hardware platforms, reducing development time and costs.
Industrial Applications and Benefits:
The HIKROBOT MV-CT016G-249UC01-BASE is well-suited for a range of industrial automation and inspection tasks, aligning with the growing trends in Industry 4.0 and smart factories, where advanced sensing and vision systems are paramount. Its high frame rate and global shutter technology are particularly beneficial for:
Automated Quality Control: Inspecting high-speed production lines for defects, ensuring product consistency and reducing waste. Robotics and Automation: Providing precise visual feedback for robot guidance, pick-and-place operations, and assembly tasks, enhancing efficiency and accuracy. Electronics Manufacturing: Inspecting intricate components, verifying solder joints, and ensuring assembly accuracy on fast-moving conveyor systems. Food and Beverage Inspection: High-speed verification of packaging, product integrity, and fill levels where rapid image capture is necessary. Logistics and Warehousing: Reading barcodes, verifying package contents, and guiding automated handling systems.
The camera's USB3.0 interface, combined with the USB3 Vision standard, simplifies system design by allowing data and power transmission over a single cable, reducing complexity and cost compared to older interfaces. Its ability to operate reliably within a wide temperature range and its durable construction contribute to long-term stability and reduced maintenance in industrial settings.
Related HIKROBOT Models:
For applications with different resolution or frame rate requirements, HIKROBOT offers a range of industrial cameras within their series, including:
MV-CT020G-180UC01-BASE MV-CT032G-104UC01-BASE MV-CT050G-79UC01-BASE MV-CT060R-60UC01-BASE MV-CT089G-42UC01-BASE MV-CT120G-30UC01-BASE MV-CT200R-19UC01-BASE MV-CT032G-104UC01-PRO MV-CT050G-79UC01-PRO
These models provide a scalable solution, allowing users to select the optimal camera for specific imaging needs while maintaining compatibility with the USB3 Vision and GenICam standards.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for the HIKROBOT MV-CT016G-249UC01-BASE?
A: Lead times can vary based on current inventory and order volume. For the most accurate and up-to-date information on availability and projected delivery schedules, especially for specific project timelines, we recommend contacting Beijing ZhongPing Technology Co., Ltd. directly for a real-time inventory report.
Q: How does the MV-CT016G-249UC01-BASE handle challenging lighting conditions?
A: The camera utilizes a stacked BSI CMOS sensor with a global shutter, which significantly enhances light sensitivity and reduces noise. Features like adjustable gain and exposure time, along with the camera's broad dynamic range (61 dB) and SNR (44 dB), allow it to capture clear images even in less-than-ideal lighting.
Q: Is this camera compatible with existing machine vision software?
A: Yes, the MV-CT016G-249UC01-BASE is compliant with the USB3 Vision and GenICam standards. This ensures broad compatibility with most major machine vision software platforms and SDKs, simplifying integration into your existing systems.
Q: What are the advantages of using a USB3 Vision camera over other interfaces like GigE Vision?
A: USB3 Vision cameras, like the MV-CT016G-249UC01-BASE, offer high bandwidth, low latency, and simplified cabling with power and data over a single USB3.0 connection. This often results in easier plug-and-play installation and lower system complexity compared to GigE Vision, making them ideal for applications prioritizing speed and ease of deployment.
Q: Can I use this camera for outdoor applications?
A: While the camera has an operating temperature range of -30°C to 60°C and an IP40 rating, it is primarily designed for industrial indoor environments. For outdoor applications with potential exposure to harsh weather, dust, or water jets, an integrated IP67-rated camera or an appropriate protective enclosure would be necessary.
Q: How does the global shutter technology benefit my application?
A: A global shutter exposes all pixels simultaneously, "freezing" motion without distortion. This is critical for capturing sharp images of fast-moving objects, such as on high-speed production lines or in robotics, preventing the skew or wobble that can occur with rolling shutter cameras.
Q: What is the recommended cable length for USB3.0 connections with this camera?
A: For optimal performance and signal integrity with USB3 Vision, it is generally recommended to use cables up to 5 meters. For longer distances, active optical cables or specialized USB extenders may be required.
Q: Are there specific firmware upgradeability concerns I should be aware of?
A: Firmware compatibility and upgradeability are typically managed through the camera manufacturer's software and support channels. For detailed information on firmware update procedures and ensuring long-term operability, consulting the HIKROBOT support documentation or contacting Beijing ZhongPing Technology Co., Ltd. is advised.
Q: How can I verify system compatibility for a project with multiple cameras?
A: A compatibility check is crucial. The USB3 Vision and GenICam standards ensure broad interoperability, but it's always recommended to consult the specifications of your chosen software platform and other hardware components. Beijing ZhongPing Technology Co., Ltd. can assist with compatibility assessments for complex multi-camera setups.
Q: What are discontinued alternatives to this model, and how do I find replacements?
A: While specific discontinued models are not listed here, HIKROBOT maintains a product lifecycle. If a particular model is discontinued, Beijing ZhongPing Technology Co., Ltd. can help identify suitable current-generation alternatives that meet or exceed the specifications of older units, ensuring a smooth transition for your projects.
