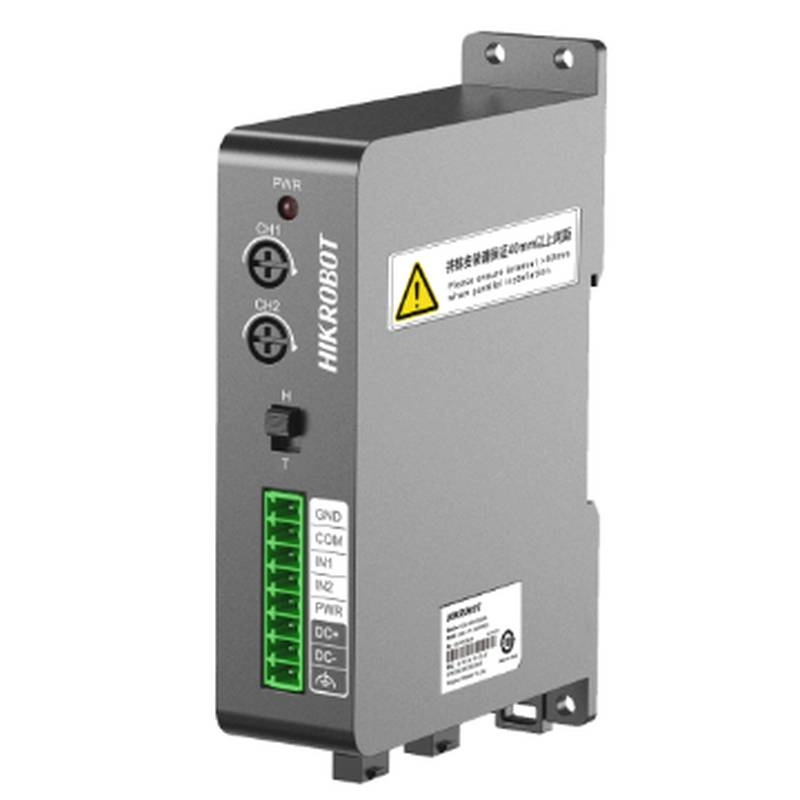

The HIKROBOT MV-LE100-24W24-2 is a compact, 2-channel machine vision lighting controller designed for stable, constant voltage illumination in demanding industrial automation applications. This 24W unit utilizes an analog, constant voltage drive method, offering both continuous illumination and strobe modes to accommodate various machine vision tasks. Its primary value lies in providing precise control over illumination intensity, crucial for achieving consistent image quality and reliable defect detection in high-speed automated inspection systems. The controller's ability to support external triggering further enhances its integration capabilities within complex vision setups, making it a key component for applications requiring synchronized lighting. As a highly efficient 2 channel light controller, it addresses the need for reliable and adaptable lighting solutions in modern manufacturing environments.
Product Specifications:
Model: MV-LE100-24W24-2 Name: Analog Constant Voltage Light Source Controller, 24W, 2 Channels, 2 SMR-03V-BC Connectors, Mini Type Drive Method: Analog, Constant Voltage Illumination Mode:常亮 (Constant On), 频闪 (Strobe) Number of Channels: 2 Dimming Method: Panel (Knob) Light Emission Delay Time:<550>
The MV-LE100-24W24-2 is engineered for consistent performance in environments requiring precise lighting control, such as automotive assembly lines, where clear and stable imaging is critical for quality control and robotic guidance. Its compact size and efficient heat dissipation through natural convection make it suitable for integration into tight spaces on production lines. The controller's ability to support external triggers ensures that the lighting is synchronized with camera acquisition, minimizing motion blur and capturing sharp images even at high production speeds. This synchronization is paramount in applications like high-speed packaging inspection, where subtle defects must be identified reliably.
The analog, constant voltage output of the MV-LE100-24W24-2 is particularly advantageous for LED-based machine vision lights, ensuring a stable light intensity that is not affected by fluctuations in input voltage within its specified range. This stability translates directly to more repeatable image acquisition and, consequently, higher accuracy in automated inspection tasks. The panel-mounted knob provides intuitive on-site adjustment of light intensity, simplifying setup and fine-tuning of illumination levels without the need for complex software interfaces in many scenarios. The inclusion of two channels allows for independent control of multiple light sources or different lighting configurations, offering greater flexibility in optimizing image acquisition for complex scenes or multi-angle inspection requirements. This makes it an excellent choice for users seeking a versatile 2 channel light controller for their machine vision systems.
HIKROBOT offers a comprehensive range of machine vision lighting controllers designed to meet diverse application needs, showcasing a commitment to scalable solutions. Complementing the MV-LE100-24W24-2, users may encounter other models such as the MV-LE100-24W24-2T-PoE, which integrates Power over Ethernet capabilities for simplified wiring, and the MV-LE100-48W24-2, offering higher power output. For applications requiring even greater power and more channels, the MV-LE100-60W24-4D and MV-LE100-120W24-4 provide 4-channel control and higher wattage. Further up the power scale, models like the MV-LE100-200W24-2BD and MV-LE100-500W24-1ED cater to applications demanding significant illumination. The MV-LE200 series, including the MV-LE200-48W24-2D, MV-LE200-60W24-4TD, MV-LE200-120W24-4TD, and MV-LE200-200W24-4TD, represents higher performance tiers with increased power and channel counts. The MV-LE201 series, such as the MV-LE201-10W5-2D, MV-LE201-30W5-2FD, MV-LE201-200W48-1TD, MV-LE201-200W48-2TD, MV-LE201-500W48-2TD, and MV-LE201-750W48-2TD, offers variations in voltage and channel configurations for specialized needs. Additionally, models like MV-LE202-600W24-1T and MV-LE202-300W24-1T, along with the MV-LE200-42W24-4-PCIE, MV-LE200-90W24-6D, and MV-LAS-808-50W-LV0, represent further diversification within HIKROBOT's lighting control portfolio, addressing a broad spectrum of industrial vision requirements.
The HIKROBOT MV-LE100-24W24-2 is an ideal solution for automated inspection systems in industries such as electronics manufacturing, where precise lighting is essential for identifying micro-defects on printed circuit boards (PCBs) or semiconductor components. Its low light emission delay time of less than 550 μs ensures that even rapid production cycles do not compromise image acquisition quality. In food and beverage processing, this controller can be used to ensure consistent illumination for quality checks on product appearance, packaging integrity, and fill levels, contributing to enhanced product safety and brand reputation. The robust design, with an IP30 rating and operation within a 0-40°C temperature range, makes it suitable for integration into typical factory environments, although it is not designed for wash-down or high-humidity applications.
Frequently Asked Questions (FAQ):
Q:What are the primary advantages of using a machine vision lighting controller like the HIKROBOT MV-LE100-24W24-2 for industrial automation?
A:This machine vision lighting controller offers precise control over light intensity and timing, crucial for consistent image acquisition. Its ability to synchronize lighting with camera triggers minimizes motion blur and enhances defect detection accuracy. The 2-channel design provides flexibility in configuring illumination setups for various applications.
Q:Can the HIKROBOT MV-LE100-24W24-2 be used with all types of machine vision lights?
A:The MV-LE100-24W24-2 is designed for analog, constant voltage light sources. It is compatible with common types such as ring lights, bar lights, area lights, and coaxial lights, provided they operate within the specified voltage and current limits. Compatibility checks are recommended for specialized or high-power lighting units.
Q:What is the typical lifespan and reliability of the HIKROBOT MV-LE100-24W24-2?
A:HIKROBOT products are engineered for industrial environments, and this controller features a robust engineering plastic shell and natural cooling for reliable operation. While specific lifespan figures depend on operating conditions and duty cycles, its design adheres to CE and KC certification standards, indicating a commitment to quality and safety. For extended operational insights, consulting with Beijing ZhongPing Technology Co., Ltd. regarding field performance data is advised.
Q:How does the external trigger functionality of the MV-LE100-24W24-2 enhance machine vision system performance?
A:The external trigger allows the lighting controller to synchronize illumination precisely with the camera's image capture signal. This ensures that the light is active only when the camera is acquiring an image, optimizing lighting conditions for each frame and preventing overexposure or underexposure due to variations in machine speed or timing. This is particularly beneficial in high-speed applications.
Q:What are the key differences between the MV-LE100-24W24-2 and other HIKROBOT lighting controllers, such as the MV-LE100-24W24-2T-PoE or higher wattage models?
A:The MV-LE100-24W24-2T-PoE variant includes Power over Ethernet (PoE) support, simplifying installation by combining power and data over a single Ethernet cable. Higher wattage models, like the MV-LE100-48W24-2 or models in the MV-LE200 and MV-LE201 series, offer increased output power and/or more control channels to accommodate larger or more complex lighting requirements. The selection depends on the specific power demands and the number of lighting zones needed for an application.
Q:Is firmware upgradeability a feature of the HIKROBOT MV-LE100-24W24-2, and what is the process for updates?
A:Firmware updates are crucial for enhancing product performance and addressing potential issues. While the MV-LE100-24W24-2 is designed for direct control, specific firmware upgradeability details and procedures are typically managed through HIKROBOT's support channels. For the most accurate information on firmware management and availability, contacting Beijing ZhongPing Technology Co., Ltd. is recommended to ensure your system remains optimized.
Q:What are the typical lead times for the HIKROBOT MV-LE100-24W24-2, and how can I get real-time inventory status?
A:Lead times for industrial automation components can vary based on global supply chain dynamics and specific order volumes. For the most accurate and up-to-date real-time inventory status and projected lead times for the MV-LE100-24W24-2, it is essential to connect directly with Beijing ZhongPing Technology Co., Ltd. They can provide current stock levels and confirm delivery estimates for your specific project needs.
Q:What are the considerations for system compatibility when integrating the MV-LE100-24W24-2 with existing machine vision cameras and hardware?
A:The MV-LE100-24W24-2 requires a 20-24 VDC power supply and utilizes SMR-03V-BC connectors for light sources and 3.5 mm × 2 pin header connectors for power and I/O. Its external trigger input is compatible with standard digital I/O signals. A compatibility check with your specific camera model's trigger input specifications and power delivery system is advisable to ensure seamless integration. Beijing ZhongPing Technology Co., Ltd. can assist with detailed compatibility assessments.
Q:In cases where the MV-LE100-24W24-2 might be discontinued or unavailable, what are the recommended alternatives or discontinued alternatives?
A:HIKROBOT continuously innovates its product line. If the MV-LE100-24W24-2 or a specific variant becomes unavailable, Beijing ZhongPing Technology Co., Ltd. can provide information on current product offerings that meet or exceed its specifications, such as other models within the MV-LE100 or MV-LE200 series, or recommend suitable replacements. Consulting with their technical sales team is the best approach to identify the most appropriate alternative for your application.
Q:How can I request project pricing or a formal quotation for bulk orders of the HIKROBOT MV-LE100-24W24-2?
A:For project pricing or formal quotations, particularly for bulk orders, please reach out directly to Beijing ZhongPing Technology Co., Ltd. They are equipped to handle detailed inquiries and provide competitive pricing based on your specific project requirements and order volume. This ensures you receive the most accurate financial information for your procurement decisions.
