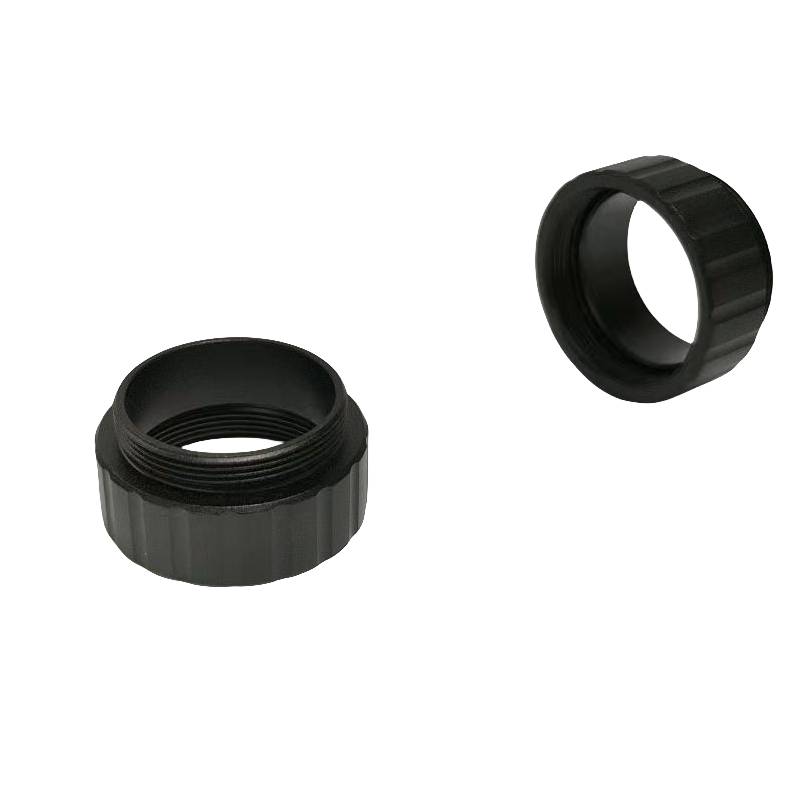

The HIKROBOT C-C T10 is a specialized 10mm thick C-Mount extension ring and lens adapter designed for precision industrial automation and machine vision applications. This c mount extension ring precisely extends the focal plane, facilitating critical adjustments for optimal focus and image acquisition when integrating C-mount lenses with C-mount cameras. It is engineered to ensure mechanical compatibility and maintain optical integrity, making it an essential component for applications requiring fine-tuning of lens-to-sensor distance.
Product Specifications:
Model: C-C T10 Name: C-Mount Extension Ring, 10mm Thickness Structure:
* Camera Interface: C-Mount
* Lens Interface: C-Mount
* Thickness: 10 mm General Specification:
* Certification: RoHS2.0
The HIKROBOT C-C T10 functions by providing a consistent and accurate extension of 10mm between the camera's C-Mount interface and the C-Mount lens. This precise spacing is crucial in machine vision systems where slight adjustments in the flange focal distance can significantly impact image sharpness and depth of field. By standardizing this extension, the T10 adapter ensures repeatable focusing, which is paramount for tasks such as quality inspection, automated assembly, and product sorting on high-speed production lines.
This adapter is particularly valuable in scenarios demanding high-resolution imaging and accurate measurements. For instance, in the automotive manufacturing sector, detailed inspection of components for defects requires precise focus. Similarly, in the food and beverage industry, automated quality control of product packaging relies on consistent image clarity. The C-C T10's robust construction and adherence to RoHS2.0 standards underscore its suitability for demanding industrial environments where reliability and compliance are critical.
Complementing the C-C T10, HIKROBOT offers other adapter solutions within its comprehensive range of machine vision components. These include the C-C T20 extension ring, providing a 20mm extension for applications requiring greater focal plane adjustment. Other related products designed to bridge various optical interfaces include the V004-X camera C-to-CS mount adapter, V004-X camera CS-to-CS mount adapter, lens adapter rings such as the M42x1.0-F T34.5, M58x0.75-C T6.02, M58x0.75-F T35, V031-lens adapter M72-F T34.5, and M72-F T36.4, showcasing HIKROBOT's extensive portfolio for diverse machine vision integration needs.
Industrial Scenarios and Value Proposition:
The HIKROBOT C-C T10 c mount lens adapter is instrumental in optimizing performance across several key industrial automation scenarios:
High-Speed Packaging Lines: In food and beverage or pharmaceutical packaging, the T10 ensures consistent focus for high-speed cameras inspecting labels, fill levels, and seal integrity. This leads to increased throughput and reduced product errors. Automated Optical Inspection (AOI): For electronics manufacturing, precise focus is critical for detecting minute defects on PCBs or components. The T10 facilitates the fine-tuning required for AOI systems to achieve higher accuracy and yield. Robotic Guidance Systems: In assembly lines where robots perform intricate tasks, accurate visual feedback is essential. The T10 helps in achieving the precise focal adjustments needed for robotic vision systems to accurately identify and pick components. Microscopy and Detailed Imaging: In applications requiring microscopic detail, such as in laboratories or specialized manufacturing, the extension ring allows for precise adjustment of the working distance to achieve optimal magnification and clarity.
By enabling finer control over the focal plane, the HIKROBOT C-C T10 contributes directly to enhanced precision, improved operational efficiency, and reduced waste in industrial processes.
Selection Guidance:
The HIKROBOT C-C T10 is specifically designed for applications where a 10mm extension is precisely required to achieve optimal focus with C-mount lenses and C-mount cameras. It is ideal for users who have determined that a 10mm flange focal distance adjustment is necessary for their optical setup. For applications requiring different extension lengths, the C-C T20 (20mm) and other specialized adapters within the HIKROBOT range should be considered. It is less suitable for systems that require different lens or camera mount types without the use of additional intermediate adapters.
Frequently Asked Questions (FAQ):
Q: What is the primary function of the HIKROBOT C-C T10?
A: The HIKROBOT C-C T10 is a 10mm thick C-Mount extension ring and lens adapter designed to increase the distance between a C-mount lens and a C-mount camera, facilitating precise focus adjustments in machine vision systems.
Q: Is the C-C T10 compatible with both C-mount and CS-mount cameras?
A: The C-C T10 is designed for C-Mount to C-Mount connections. For CS-mount cameras, a separate C-to-CS mount adapter is typically required, as CS-mount cameras have a shorter flange back distance.
Q: Can I use the C-C T10 with lenses that are not C-mount?
A: No, the C-C T10 is specifically designed for C-mount lenses and C-mount cameras. For adapting lenses with other mounts (e.g., M42, M58, M72), you would need a different type of adapter, such as the M42x1.0-F T34.5 or M58x0.75-C T6.02 mentioned in the product family.
Q: What industries commonly use the HIKROBOT C-C T10?
A: This adapter is commonly used in industries such as automotive manufacturing, electronics inspection, food and beverage processing, pharmaceuticals, and any automated production line that relies on machine vision for quality control and guidance.
Q: Does the C-C T10 require any software or drivers?
A: No, the C-C T10 is a purely mechanical adapter and does not require any software or drivers. Its function is to provide a physical extension for optical focusing.
Q: What is the significance of the RoHS2.0 certification?
A: RoHS2.0 (Restriction of Hazardous Substances) certification indicates that the product complies with European Union directives on the restriction of hazardous substances in electrical and electronic equipment, ensuring it meets environmental and safety standards for global markets.
Q: How does the 10mm thickness of the C-C T10 affect focusing?
A: The 10mm thickness directly increases the optical path length, allowing the lens to be positioned 10mm further from the camera sensor. This is crucial for achieving focus on objects at specific distances, especially when the lens's focusing range is insufficient on its own.
Q: Where can I find pricing and availability for the HIKROBOT C-C T10?
A: For the most up-to-date pricing and stock information, please contact Beijing ZhongPing Technology Co., Ltd. Pricing is subject to exchange rates and global inventory dynamics.
Q: What is the typical lead time for the HIKROBOT C-C T10?
A: Lead times can vary based on current demand and stock levels. For an accurate lead time report, please contact Beijing ZhongPing Technology Co., Ltd.
Q: How can I verify that I am purchasing an authentic HIKROBOT product?
A: To ensure you receive 100% genuine HIKROBOT products, it is recommended to purchase directly from authorized distributors or contact Beijing ZhongPing Technology Co., Ltd., who can guide you to verified sales channels.
Q: Does HIKROBOT offer firmware updates for their adapters?
A: As mechanical components, HIKROBOT adapters like the C-C T10 do not have firmware. Firmware updates are relevant for cameras and vision controllers, not for passive optical adapters.
Q: What are the international warranty policies for HIKROBOT products?
A: HIKROBOT generally offers international warranties on its products. For specific details on the warranty for the C-C T10, please refer to the product documentation or contact Beijing ZhongPing Technology Co., Ltd.
Q: How is the C-C T10 packaged for shipping?
A: Packaging specifications can vary, but HIKROBOT products are typically well-protected to ensure safe transit. For detailed information on packaging dimensions or export compliance, please contact Beijing ZhongPing Technology Co., Ltd.
Q: Can Beijing ZhongPing Technology Co., Ltd. assist with export customs clearance?
A: Yes, Beijing ZhongPing Technology Co., Ltd. can provide necessary documentation and support for export customs clearance for international orders.
Q: What are the payment options available when purchasing the C-C T10?
A: Payment options typically include bank transfer and other common business payment methods. Please contact Beijing ZhongPing Technology Co., Ltd. for a detailed payment options list and to obtain a quote.
