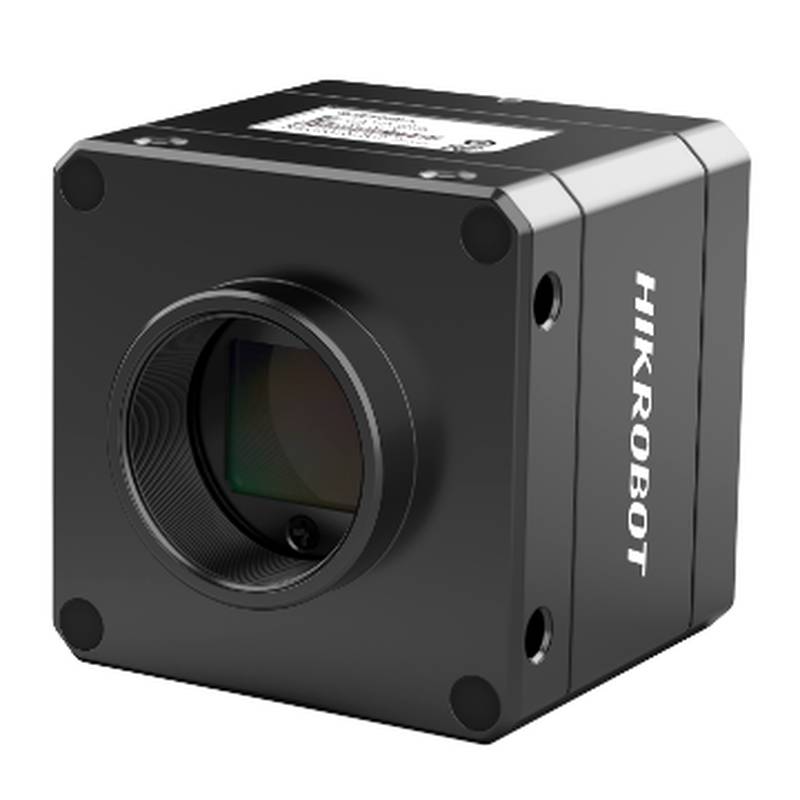

HIKROBOT MV-CH050-90XM-C-NN 5MP Industrial Machine Vision Area Scan Camera

The HIKROBOT MV-CH050-90XM-C-NN is a 5MP industrial machine vision area scan camera designed for high-precision applications in automated production, offering superior image quality and rapid data transmission. This industrial area scan camera, equipped with a Gpixel GMAX2505 sensor, excels in detailed inspection, accurate measurement, and reliable positioning tasks within demanding industrial environments. Its robust design and advanced features make it an essential component for modern manufacturing seeking enhanced efficiency and quality control.

Product Type & Category Positioning

The HIKROBOT MV-CH050-90XM-C-NN is specifically classified as a high-end industrial area scan camera. It falls under the broader category of machine vision cameras, which are crucial for automated inspection, guidance, and quality control in manufacturing. Unlike line scan cameras that capture images line by line, area scan cameras capture a complete image at once, making them suitable for stationary objects or scenes with limited motion. This particular model is positioned for applications requiring high resolution and high frame rates, as indicated by its 5MP resolution and impressive frame rate capabilities. Its design is targeted towards industries such as electronics manufacturing, semiconductor inspection, and panel production, where precision and speed are paramount. Building on this classification, the camera's capabilities are further detailed in its technical specifications.

Technical Specifications

Resolution: 2592 × 2160

Frame rate: 213 fps @ 2592 × 2160 Mono 8

Interface: CoaXPress with DIN interface

Pixel size: 2.5 μm × 2.5 μm

Sensor type: CMOS, global shutter

Sensor model: Gpixel GMAX2505

Sensor size: 1/2"

Dynamic range: 63.8 dB

SNR: 37 dB

Gain: 1.0x, 1.25x, 1.5x, 1.75x, 2.0x

Exposure time: 5 μs to 10 sec

Exposure mode: Off, Once, Continuous

Mono/color: Mono

Pixel format: Mono 8/12

Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4

Decimation: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4

Reverse image: Supports horizontal and vertical reverse image output

Digital I/O: 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1

Dimension: 50 mm × 50 mm × 45 mm

Weight: Approx. [Weight not specified in provided data]

Operating system support: 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Technical Highlights

Structural and Electrical Design Value

The camera's compact dimensions of 50 mm × 50 mm × 45 mm allow for easy integration into space-constrained automated systems, a crucial factor in modern manufacturing. Its CoaXPress interface, capable of high-speed data transmission, ensures that even at its maximum resolution of 2592 × 2160 and frame rate of 213 fps, image data is transferred efficiently without bottlenecks per manufacturer datasheet. This high-speed interface is vital for real-time image processing applications, minimizing latency and maximizing throughput in demanding industrial settings.

Performance and Reliability Value

The HIKROBOT MV-CH050-90XM-C-NN features a Gpixel GMAX2505 global shutter CMOS sensor, which is instrumental in capturing high-quality images with minimal motion artifacts, as stated in the product specifications. This global shutter technology, combined with a pixel size of 2.5 μm × 2.5 μm, contributes to a high dynamic range of 63.8 dB and an SNR of 37 dB. These specifications are critical for applications requiring accurate detail extraction in challenging lighting conditions and for ensuring the reliability of image-based inspection and measurement systems over extended operational periods.

Application Scenarios

Semiconductor Inspection: The camera's 5MP resolution (2592 × 2160) and high frame rate of 213 fps enable detailed inspection of semiconductor wafers and components, identifying minuscule defects that could impact performance. This capability ensures higher yields and product reliability in semiconductor manufacturing.   Electronics Manufacturing AOI: For Automated Optical Inspection (AOI) in electronics, the camera's precision is crucial for detecting solder joint defects, component placement errors, and other quality issues on printed circuit boards. Its high resolution and speed facilitate rapid yet thorough inspection, reducing the risk of faulty products reaching consumers and extending the operational lifespan of manufacturing equipment through early defect detection.   Panel and FPD Inspection: In the production of Flat Panel Displays (FPDs), the camera can be employed to detect surface defects, pixel anomalies, and structural integrity issues with high accuracy. The ability to capture fine details at speed ensures consistent quality in display manufacturing, contributing to product longevity and user satisfaction.   3D Applications and Motion Capture: Leveraging its high frame rate and resolution, this camera can serve as a component in 3D imaging systems or for high-speed motion capture. This is valuable for applications requiring detailed spatial analysis or tracking fast-moving objects, thereby enhancing the precision of automated processes and enabling more dynamic manufacturing operations.

Selection Recommendations

Suitable Scenario: The HIKROBOT MV-CH050-90XM-C-NN is highly suitable for applications demanding high resolution and rapid image acquisition, such as precision electronics inspection or detailed semiconductor analysis. Its 2592 × 2160 resolution and 213 fps frame rate per manufacturer datasheet make it ideal for identifying minute defects where image clarity and speed are critical for maintaining high throughput and quality control.   Unsuitable Scenario: This model might be less suitable for applications requiring extremely low light sensitivity without additional illumination or for environments with extreme temperature fluctuations beyond standard industrial operating ranges, as detailed specifications on these specific limits are not fully elaborated in all data points. The absence of explicit fan cooling on this specific variant (MV-CH050-90XM-C-NN) suggests it's optimized for typical operating conditions rather than prolonged high-heat, continuous full-load scenarios without adequate thermal management.   Comparison to Similar Models: While the MV-CH050-90XM-C-NN offers a strong balance of resolution and speed, higher-resolution models within Hikrobot's CH series, such as the MV-CH250-90XM-C-NN (5120 × 5120 resolution), are available for applications where an even greater level of detail is required, albeit typically with a lower frame rate.

FAQ

1.Can the HIKROBOT MV-CH050-90XM-C-NN camera interface with GigE Vision systems?

No,this camera uses the CoaXPress interface,which delivers significantly higher bandwidth than GigE Vision—supporting 213 fps at 5MP resolution.This means if your existing system is built around GigE Vision frame grabbers,you will need to either replace the frame grabber or select a different camera model.Interface conversion adapters are available but typically add latency that may affect high-speed trigger performance.For customers upgrading from GigE to CoaXPress,we can provide frame grabber recommendations compatible with the MV-CH050-90XM-C-NN.Our technical team can also help assess whether your current system can justify the interface upgrade based on your speed requirements.

2.What is the typical lead time for the HIKROBOT MV-CH050-90XM-C-NN?

Single-unit orders for the MV-CH050-90XM-C-NN ship within 3 to 7 business days from our regional stock. For orders exceeding 10 units, lead time extends to 2 to 3 weeks due to factory calibration and quality verification requirements for high-volume production batches. Beijing Zhongping Technology offers staged delivery for bulk orders—we can split shipments so you receive the first few units immediately while the remainder follows after factory processing.

3.What is the price range for the HIKROBOT MV-CH050-90XM-C-NN?

The price for the MV-CH050-90XM-C-NN typically ranges from$3,800 to$5,200 USD depending on configuration,order quantity,and current market conditions.This pricing reflects the CoaXPress interface and 213 fps high-speed capability,which are premium features compared to standard GigE Vision cameras in the same resolution class.Volume discounts are available for orders of 5 units or more.Prices are subject to change due to exchange rates and manufacturer adjustments.Contact us for a firm quote based on your specific configuration and quantity requirements.

4.What is the maximum frame rate at full resolution for this camera?

The MV-CH050-90XM-C-NN achieves 213 fps at its full resolution of 2592×2160 in Mono 8 mode.At higher bit depths,the frame rate is reduced to approximately 170 fps(Mono 10)and 140 fps(Mono 12)due to increased data throughput.This high-speed performance is enabled by the CoaXPress interface and the Gpixel GMAX2505 global shutter sensor.For most high-speed inspection tasks—such as web inspection,high-speed sorting,or continuous surface monitoring—Mono 8 provides sufficient grayscale resolution while maximizing throughput.Select Mono 10 or 12 only if your application requires finer grayscale differentiation.

5.Are expedited shipping options available for this camera?

Yes,expedited shipping is available for the MV-CH050-90XM-C-NN.Standard dispatch is processed within 1-2 business days,and expedited shipping can reduce total delivery time to 2-4 business days depending on your destination.We recommend specifying your delivery deadline at the time of order so our logistics team can select the optimal shipping method.For urgent requirements,contact us before placing your order to confirm current stock availability.Expedited shipping does not affect the product price,only the logistics cost component.

6.Does the MV-CH050-90XM-C-NN work with third-party vision software?

Yes,the MV-CH050-90XM-C-NN is fully compliant with GenICam and the CoaXPress standard,ensuring compatibility with a wide range of third-party software including Halcon,VisionPro,OpenCV,and Cognex VisionPro.All camera parameters—exposure time,gain,trigger mode—are accessible through standardized GenICam nodes without proprietary drivers.The camera also supports the SFNC(Standard Features Naming Convention),simplifying integration across different platforms.For custom integration,our team can provide sample code and configuration files for common development environments.

7.What warranty is provided for the HIKROBOT MV-CH050-90XM-C-NN?

Beijing Zhongping Technology provides a 12-month manufacturer‘s warranty for the MV-CH050-90XM-C-NN covering defects in materials and workmanship under normal operating conditions,starting from the date of installation or 18 months from shipment,whichever comes first.The warranty covers sensor defects,electronic component failures,and mechanical issues,but excludes damage from improper power supply,electrical surges,physical impact,or exposure beyond rated conditions.For warranty claims,contact our support team with your purchase order and installation date—we handle the full RMA process.Extended warranty options are available upon request—contact us for coverage terms.

8.What resolution and speed trade-offs should I consider in the CH series?

The MV-CH050-90XM-C-NN offers 5MP at 213 fps,making it the best choice for high-speed applications where resolution beyond 5MP is not required.For higher resolution needs,the MV-CH120-90XM-C-NN offers 12MP at approximately 91 fps,and the MV-CH250-90XM-C-NN provides 25MP at roughly 40 fps.The trade-off is straightforward:higher resolution captures more detail but reduces frame rate through the same CoaXPress interface.Select the 5MP model for applications requiring motion capture at high speed;select 12MP or 25MP for applications requiring finer detail where slower speed is acceptable.Our technical team can help match resolution and speed to your specific application requirements.

9.What are the recommended maintenance intervals for this camera?

The MV-CH050-90XM-C-NN is designed for robust industrial operation with minimal routine maintenance.We recommend inspecting and cleaning the lens and sensor window every 5,000 operational hours or annually to prevent dust accumulation that could degrade image quality.The IP40-rated housing provides protection against particles larger than 1mm,but high-dust environments may require more frequent cleaning.For cleaning procedures—including approved solvents and swab types—consult the user manual.For ongoing maintenance planning,our support team can provide a preventive maintenance schedule template customized to your operating environment.

10.What interface options are available if CoaXPress does not suit my system?

If the CoaXPress interface of the MV-CH050-90XM-C-NN does not suit your existing system,Hikrobot offers alternative models within the CH series with different interfaces.For GigE Vision environments,consider the MV-CH050-10GM(same 5MP resolution at approximately 15 fps).For USB3 Vision systems,consider the MV-CH050-60UM(same 5MP resolution at approximately 20 fps).Both alternatives maintain the 5MP resolution but at significantly lower frame rates.The selection depends on your existing infrastructure investment—replacing a frame grabber may be less expensive than redesigning the entire vision system.Our technical team can provide interface upgrade cost-benefit analysis for your specific scenario.
