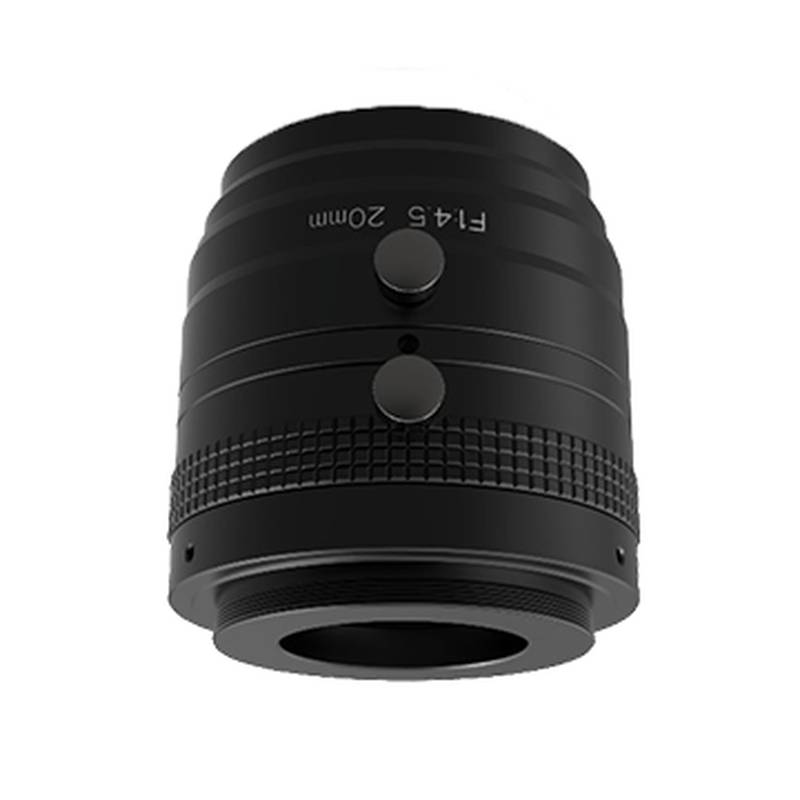

The HIKROBOT MVL-AF2045M-M42 is a high-performance machine vision lens, engineered for precision and clarity in demanding industrial applications. This prime lens 20mm features a robust M42 mount, ensuring secure and stable integration with a wide array of machine vision cameras. Its optical design prioritizes exceptional image quality, characterized by low distortion and high resolution, making it an indispensable tool for tasks requiring detailed visual inspection and accurate measurement. The MVL-AF2045M-M42 is part of Hikrobot's advanced series of lenses designed to meet the rigorous standards of modern automation.
Product Specifications:
Model: MVL-AF2045M-M42 Focal Length: 20 mm Aperture: F4.5 (maximum) Image Circle: Φ30 mm Mount Type: M42 × P1 Optical Distortion: 0.20% Magnification Range: 0.02x to 0.134x Working Distance Range: 150 to 999 mm Iris Control: Manual Focus Control: Manual Filter Thread: M43 × 0.75 Flange Back Focal Length: 12 mm Dimensions: Φ52.7 × 51.4 mm Weight: 243 g Operating Temperature: -10 to 50°C Certification: RoHS2.0
The HIKROBOT MVL-AF2045M-M42 distinguishes itself through its superior optical performance, delivering crisp and accurate imagery across its operational parameters. The low optical distortion of 0.20% is crucial for applications where geometric accuracy is paramount, such as in quality control and dimensional analysis on production lines. Its generous working distance range, from 150 mm up to 999 mm, provides flexibility for various setup configurations, allowing it to be employed in diverse industrial environments without compromising image quality or field of view. The manual iris and focus controls offer precise adjustments, enabling engineers to fine-tune the lens for optimal performance based on specific application demands.
Key Features and Benefits:
The design of the MVL-AF2045M-M42 emphasizes reliability and performance. Its M42 mount is a standard in industrial imaging, facilitating straightforward integration with compatible camera systems. The lens is built to withstand challenging industrial conditions, operating reliably within a temperature range of -10 to 50°C, and is RoHS 2.0 certified, adhering to environmental standards. The substantial image circle of Φ30 mm supports a variety of sensor sizes, making it a versatile choice for different machine vision camera models.
This machine vision lens is engineered to excel in applications demanding high fidelity imaging. Whether deployed on an automotive assembly line for detailed component inspection, in the pharmaceutical industry for quality assurance of minuscule products, or in electronics manufacturing for intricate circuit board verification, the MVL-AF2045M-M42 consistently delivers exceptional results. Its fixed focal length design ensures a stable field of view, which is advantageous for consistent monitoring and inspection tasks.
Hikrobot offers a comprehensive range of lenses designed for various machine vision applications. Other notable models within the Hikrobot family include the MVL-AF2524M-M42, MVL-AF2840M-M42, MVL-AF3528M-M42, MVL-AF4028M-M42, MVL-AF5040M-M42, MVL-AF3528M-M42A, MVL-AF5028M-M42A, MVL-AF1828M-M42B, MVL-LF3528M-F, MVL-LF3540M-F, MVL-LF8040M-F, MVL-LF3040M-005-M72, MVL-LF4040M-01-M72, MVL-LF5040M-F, MVL-LF6040M-013-M72, MVL-LF6040M-0168V-M72, MVL-LF6040M-0167V-M72, MVL-LF8040M-021V-M72, MVL-LF2540M-M58-65MP, MVL-LF3540M-M58-65MP, MVL-LF5036M-M58-65MP, and MVL-LF8036M-M58-65MP. These models offer a spectrum of focal lengths, apertures, and mount types, catering to a wide range of specialized machine vision requirements.
Industrial Applications and Value Proposition:
The HIKROBOT MVL-AF2045M-M42 prime lens 20mm is ideally suited for industrial scenarios demanding precision and high-resolution imaging. Its capabilities are particularly valuable in:
Automotive Manufacturing: For detailed inspection of components, such as engine parts, chassis, and electronic modules, ensuring adherence to strict quality standards and identifying microscopic defects. Electronics Assembly: Crucial for verifying solder joints, inspecting printed circuit boards (PCBs), and examining micro-components on electronic devices, thereby enhancing product reliability and reducing manufacturing defects. Food and Beverage Processing: Utilized for quality control, foreign object detection, and verifying packaging integrity, ensuring compliance with safety and quality regulations. Pharmaceutical Inspection: Employed in the inspection of pills, vials, and packaging for defects, dosage accuracy, and contamination, critical for patient safety and regulatory compliance. General Industrial Automation: Applicable in any automated process requiring precise visual feedback for tasks like robot guidance, part recognition, and dimensional verification.
The MVL-AF2045M-M42 contributes to enhanced efficiency by enabling faster and more accurate inspections, reducing manual labor, and minimizing errors. Its robust construction ensures long-term operational stability, contributing to reduced downtime and a lower total cost of ownership. By providing clear and detailed imagery, it empowers systems to make faster and more informed decisions, ultimately boosting overall productivity and product quality.
Selection Considerations:
When selecting a machine vision lens, factors such as resolution requirements, working distance, field of view, and environmental conditions are critical. The MVL-AF2045M-M42 is an excellent choice for applications that require a 20mm focal length with a moderate aperture and excellent image quality at moderate working distances. For applications demanding wider fields of view or different focal lengths, other models in the Hikrobot series, such as the MVL-AF2524M-M42 or MVL-AF3528M-M42, might be more suitable. For specialized applications requiring larger image circles or specific mount types, the broader Hikrobot lens catalog should be consulted.
---
Frequently Asked Questions (FAQ):
Q1: What is the primary application area for the HIKROBOT MVL-AF2045M-M42 machine vision lens?
A1: The HIKROBOT MVL-AF2045M-M42 is primarily designed for industrial automation and machine vision applications that require high-precision imaging, such as quality control, inspection, and measurement on production lines.
Q2: What is the minimum working distance for the MVL-AF2045M-M42 lens?
A2: The minimum working distance for the MVL-AF2045M-M42 lens is 150 mm.
Q3: Does this lens support autofocus?
A3: No, the HIKROBOT MVL-AF2045M-M42 features manual focus control, allowing for precise adjustments tailored to specific application needs.
Q4: What type of mount does the MVL-AF2045M-M42 lens use?
A4: The lens utilizes an M42 × P1 mount, a common standard in machine vision for secure camera attachment.
Q5: Is this lens compatible with high-resolution cameras, such as those used for 4K imaging?
A5: While the lens is designed for high-quality imaging, compatibility with specific camera resolutions like 4K depends on the sensor size and pixel pitch. The Φ30 mm image circle supports various sensors, but verification with the camera specifications is recommended for optimal performance.
Q6: What is the optical distortion of the MVL-AF2045M-M42 lens?
A6: The optical distortion of the MVL-AF2045M-M42 lens is 0.20%, which is considered low and suitable for applications requiring geometric accuracy.
Q7: Can this lens be used in environments with fluctuating temperatures?
A7: Yes, the lens is rated to operate within a temperature range of -10 to 50°C, making it suitable for many industrial environments.
Q8: What is the maximum magnification capability of this lens?
A8: The maximum magnification range for the MVL-AF2045M-M42 lens is 0.134x.
Q9: How does the MVL-AF2045M-M42 compare to other Hikrobot lenses like the MVL-AF2524M-M42?
A9: The MVL-AF2045M-M42 has a focal length of 20mm and an aperture of F4.5, while the MVL-AF2524M-M42 has a focal length of 25mm and a wider aperture of F2.4. The choice between them depends on specific field of view and light sensitivity requirements.
Q10: What are the warranty terms for the HIKROBOT MVL-AF2045M-M42?
A10: Standard warranty information for Hikrobot products typically covers manufacturing defects. For specific warranty details, including duration and coverage, please contact Beijing Zhongping Technology directly. Prices are subject to change based on market conditions and other factors; for an accurate quotation, please reach out to Beijing Zhongping Technology.
