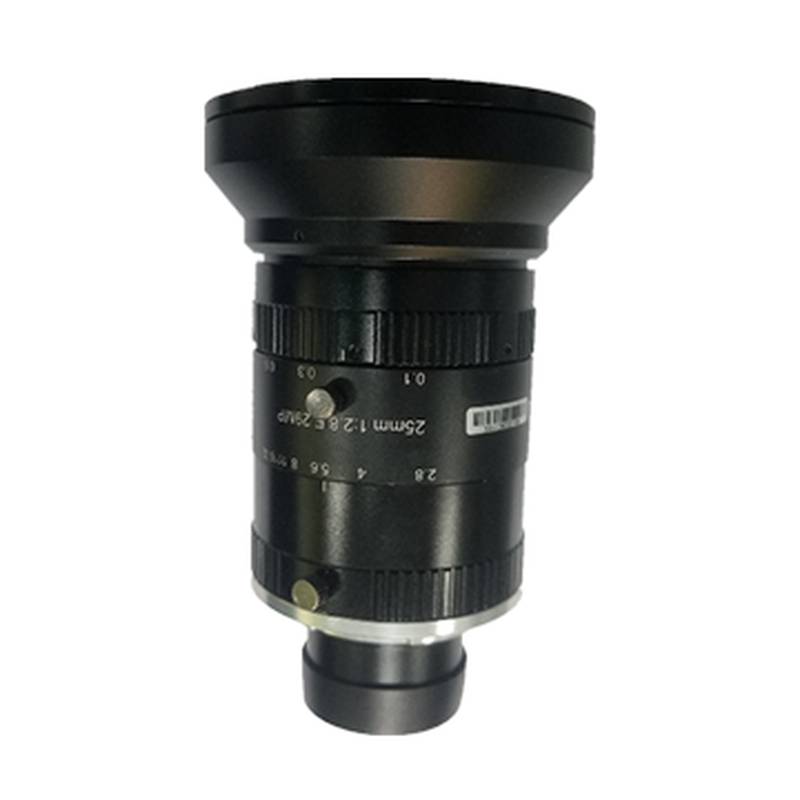

HIKROBOT LF2528M-F 25mm F2.8 F-Mount Industrial Machine Vision Camera Lens

The HIKROBOT LF2528M-F is a high-performance 25mm F2.8 industrial camera lens designed for demanding machine vision applications. Leveraging advanced optical engineering, this F-Mount lens provides exceptional clarity and precision, making it an indispensable tool for tasks requiring detailed image acquisition. It is meticulously crafted to meet the rigorous standards of industrial environments, offering robust performance for both current and future machine vision camera lens and industrial camera lens requirements.

Product Specifications:

Model: LF2528M-F Focal Length: 25 mm Aperture (F-number): F2.8 ~ F32 Image Circle Size: Φ43.2 mm Resolution: 29 Megapixels Optical Distortion: 0.40% Magnification Range: 0.17x ~ 0.001x Working Distance Range: 140 ~ inf mm Aperture Control: Manual Focus Control: Manual Filter Thread: M77 × 0.75 Mount Type: F-Mount Flange Back Distance: 46.5 mm Dimensions: Φ80 × 95.75 mm Weight: 705.7 g Operating Temperature: -10 ~ 50°C Certifications: RoHS2.0

The HIKROBOT LF2528M-F excels in delivering sharp, high-resolution imagery across a wide range of working distances, from 140 mm to infinity. Its manual aperture and focus controls provide engineers with precise command over image parameters, crucial for optimizing capture in dynamic industrial settings. The lens's robust construction, including its F-Mount interface and substantial weight of 705.7 g, ensures stability and reliability even under demanding operational conditions. The inclusion of an M77 × 0.75 filter thread allows for easy integration of supplementary optical filters, further enhancing its adaptability for specialized imaging tasks. Manufactured in compliance with RoHS2.0 standards, this lens underscores a commitment to environmental responsibility and product safety.

This industrial camera lens is particularly well-suited for high-precision automated inspection tasks commonly found in industries such as automotive manufacturing, electronics assembly, and pharmaceutical packaging. For instance, in automotive production lines, the LF2528M-F can be employed for detailed quality control of components, ensuring that every part meets stringent specifications by accurately capturing surface defects or assembly errors. In electronics manufacturing, its high resolution and minimal distortion enable the precise inspection of intricate circuitry and solder joints, thereby reducing the likelihood of faulty product releases. The lens's performance characteristics also make it ideal for intricate assembly verification in the pharmaceutical sector, where the accurate identification of product integrity and label verification are critical. Other comparable models in HIKROBOT's lineup, such as the MV1236M-5MP, HIK-8072-F, ML-MF35-5MPE, XAC-40M42, and LF5545M-M72, offer different focal lengths, resolutions, and mount types, catering to a broader spectrum of machine vision challenges. The LF5545M-M72, for example, offers a longer focal length for applications requiring greater working distances or magnification of smaller details.

The operational stability and long-term value proposition of the HIKROBOT LF2528M-F are further bolstered by its robust design and adherence to industry standards. The lens is engineered to perform reliably within a temperature range of -10°C to 50°C, ensuring consistent image quality across diverse environmental conditions. This resilience is vital for deployments in factory floors where temperature fluctuations can impact equipment performance. Its optical distortion is remarkably low at 0.40%, which is critical for applications where accurate dimensional measurements are paramount, such as in metrology or precision part inspection. While the LF2528M-F is optimized for specific high-resolution, moderate working distance applications, engineers seeking lenses for extremely close-up work with very small targets might consider alternatives offering higher magnification ratios or different optical designs. Conversely, for applications demanding wider fields of view or longer focal lengths for remote observation, models like the HIK-8072-F or ML-MF35-5MPE might present more suitable options depending on specific resolution and sensor size requirements.

Frequently Asked Questions (FAQ):

Q1: What is the typical field of view for the HIKROBOT LF2528M-F lens at a working distance of 1 meter?

A1: The exact field of view depends on the sensor size of the connected camera. However, with its 25mm focal length and ability to resolve 29 Megapixels, it provides a detailed view suitable for close to mid-range inspection tasks. For precise calculations, consult the HIKROBOT application notes or Beijing Zhongping Technology.

Q2: Can the HIKROBOT LF2528M-F lens be used with cameras that have a different mount type, such as C-Mount or CS-Mount?

A2: No, the LF2528M-F is exclusively designed with an F-Mount interface. Adapters may be available for some C-Mount or CS-Mount cameras, but performance and compatibility are not guaranteed and may require specific engineering evaluation.

Q3: What is the maximum resolution this industrial camera lens can support?

A3: The HIKROBOT LF2528M-F is specified to support up to 29 Megapixels, providing exceptionally detailed images for high-precision machine vision systems.

Q4: Is the HIKROBOT LF2528M-F lens suitable for high-speed machine vision applications?

A4: While the lens itself is designed for sharp imaging, its suitability for high-speed applications also depends on the camera's frame rate and the lighting conditions. The manual aperture and focus are generally well-suited for controlled environments.

Q5: How does the LF2528M-F compare to the MV1236M-5MP in terms of optical performance?

A5: The LF2528M-F offers a 25mm focal length and supports 29 Megapixels, while the MV1236M-5MP features a 36mm focal length and supports 5 Megapixels. The LF2528M-F is thus better suited for applications requiring higher resolution and a wider field of view at closer working distances, whereas the MV1236M-5MP might be preferred for longer-range or specific 5MP applications.

Q6: Does Beijing Zhongping Technology stock the HIKROBOT LF2528M-F for immediate dispatch?

A6: Beijing Zhongping Technology typically maintains stock for popular industrial camera lens models like the LF2528M-F to ensure prompt delivery. For real-time inventory status and estimated delivery times, it is recommended to contact their sales department directly.

Q7: What is the warranty period for the HIKROBOT LF2528M-F machine vision camera lens?

A7: HIKROBOT products, including the LF2528M-F, are generally supplied with a standard manufacturer's warranty. The specific duration and terms would be detailed in the purchase agreement, and further information can be obtained from authorized distributors such as Beijing Zhongping Technology.

Q8: Are there any alternative lenses to the LF2528M-F for applications requiring a similar focal length but a smaller form factor?

A8: While the LF2528M-F is optimized for its F-Mount and resolution, other series like the ML-MF35-5MPE or potentially certain models from the XAC series might offer different form factors and focal lengths that could be considered as alternatives, depending on the specific resolution and sensor size requirements.

Q9: Can the LF2528M-F lens be used for outdoor industrial applications where it might be exposed to varying weather conditions?

A9: The specified operating temperature range is -10°C to 50°C. For applications involving exposure to rain, dust, or extreme temperatures outside this range, an appropriate protective housing or enclosure would be necessary.

Q10: What is the typical lead time for ordering the HIKROBOT LF2528M-F if it is not currently in stock?

A10: Lead times can vary based on manufacturing schedules and current demand. If the LF2528M-F is not in stock, typical lead times can range from 4 to 8 weeks. For the most accurate estimate, please inquire with Beijing Zhongping Technology.
