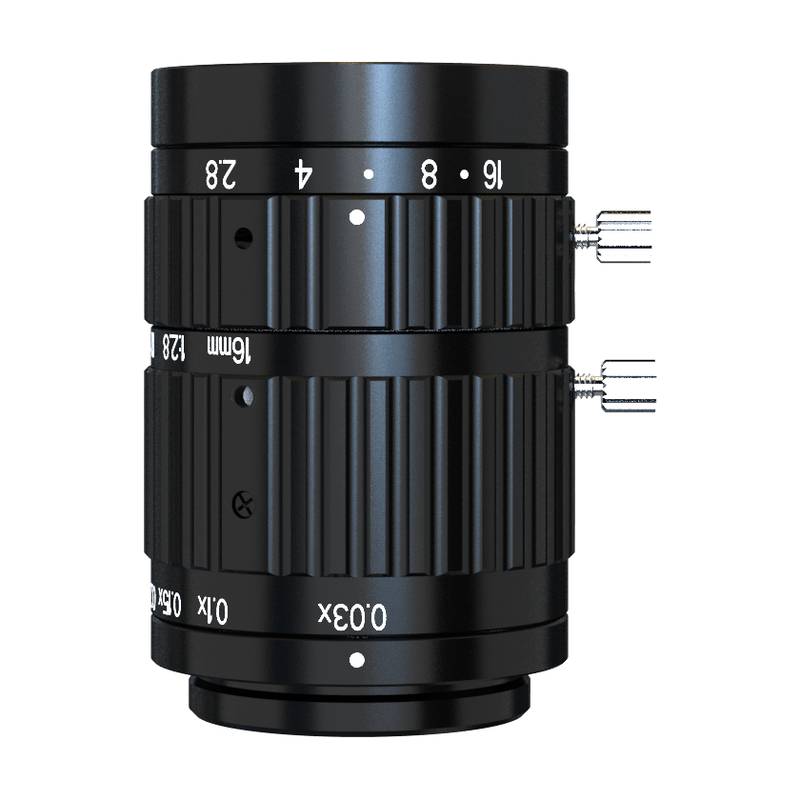

HIKROBOT KF1628M-ML 16mm F2.8 C-Mount Macro Machine Vision Lens

The HIKROBOT KF1628M-ML is a high-performance 16mm F2.8 C-Mount macro machine vision lens engineered for precision industrial automation applications. This lens, with its robust construction and advanced optical design, excels in delivering exceptional image quality and detail for demanding inspection and measurement tasks. As a specialized c mount macro lens, it offers superior close-up imaging capabilities, making it an indispensable tool for quality control, automated assembly, and detailed surface analysis. Its compatibility with C-mount camera systems ensures seamless integration into existing machine vision setups.

Key Specifications and Performance:

Model: KF1628M-ML   Focal Length: 16 mm   Aperture Range: F2.8 ~ F16   Image Circle Diameter: Φ17.6 mm (1.1”)   TV Distortion: 0.33%   Magnification Range: 0.25x (at 52mm working distance) to 0.1x (at 152mm working distance) to 0.03x (at 546mm working distance)   Working Distance Range: 52 mm to 546 mm   Iris Control: Manual   Focus Control: Manual   Filter Thread: M28.5 × P0.5   Mount Type: C-Mount   Back Focal Length: 17.526 mm   Dimensions: Φ32 × 43.65 mm   Weight: 81.6 g   Operating Temperature: -10°C to 50°C   Certifications: RoHS2.0

Advanced Features for Machine Vision Excellence:

The KF1628M-ML is meticulously designed to meet the rigorous demands of modern industrial automation. Its optical formula is optimized to minimize aberrations, ensuring crisp, high-resolution images even at the widest aperture. The manual iris and focus controls provide users with precise command over depth of field and image sharpness, crucial for applications requiring fine-tuned adjustments. The lens's robust build quality guarantees reliable operation in challenging industrial environments, while its C-mount interface facilitates broad compatibility with a wide array of machine vision cameras. The significant magnification range, from 0.25x down to 0.03x, allows for versatile imaging, accommodating tasks that require inspecting both small components and larger assemblies with remarkable detail.

Optimized for Precision and Detail:

This machine vision lens is engineered to capture intricate details that are vital for automated inspection processes. The low distortion characteristic of the KF1628M-ML ensures that measurements and analyses derived from the captured images are highly accurate, minimizing the risk of false positives or missed defects. Its ability to achieve macro magnifications at practical working distances makes it ideal for tasks such as PCB inspection, semiconductor wafer analysis, textile defect detection, and detailed part verification on assembly lines. The 1.1-inch image circle is suitable for many high-resolution industrial cameras, ensuring full frame coverage without vignetting.

Industrial Applications and Value Proposition:

The HIKROBOT KF1628M-ML finds its primary utility in scenarios demanding high precision and detailed visual data. Its robust performance in macro photography makes it a critical component in industries such as electronics manufacturing, where it can be employed for detailed inspection of solder joints, component placement, and surface anomalies on printed circuit boards. In the pharmaceutical sector, it can be used for inspecting the integrity of seals on vials and syringes, or for examining the intricate details of drug formulations. Furthermore, in the automotive industry, this lens is invaluable for inspecting small, critical components during the assembly process, ensuring adherence to strict quality standards. The lens's ability to provide sharp, clear macro imagery contributes directly to enhanced product quality, reduced scrap rates, and improved manufacturing efficiency by enabling automated systems to accurately identify defects. For applications requiring different focal lengths and magnification capabilities within the same C-mount macro lens series, consider models such as the KF2528M-ML, KF3528M-ML, KF5028M-ML, and KF7538M-ML, each offering unique performance characteristics for specific imaging challenges.

Operational Stability and Long-Term Value:

Built to withstand the rigors of industrial environments, the KF1628M-ML is designed for consistent performance and longevity. Its operational temperature range of -10°C to 50°C ensures reliable function across various manufacturing conditions. The RoHS2.0 certification underscores the product's compliance with environmental safety standards. For engineers and procurement specialists, investing in the KF1628M-ML represents a strategic decision towards enhancing the reliability and accuracy of their machine vision systems. Its durable construction minimizes the need for frequent replacements, offering a strong return on investment over the long term.

Selection Guidance:

The HIKROBOT KF1628M-ML is an optimal choice for applications requiring detailed close-up imaging and high measurement accuracy, particularly within the electronics, pharmaceutical, and automotive manufacturing sectors. It is well-suited for inspecting small components, verifying intricate details, and ensuring high-quality standards in automated processes. Conversely, for applications that do not require macro magnification, or where extremely wide fields of view at longer distances are paramount, alternative lens types might be more appropriate. Always consider the specific working distance, field of view, and resolution requirements of your application when selecting a machine vision lens.

Frequently Asked Questions (FAQ):

Q1: Can I get a live quote for the HIKROBOT KF1628M-ML in bulk quantities?

A1: For bulk discount inquiries and real-time pricing, please submit a quote request via our inquiry form or contact our sales team directly via email or WhatsApp. Pricing is subject to current market conditions and order volume.

Q2: What is the current stock availability for the KF1628M-ML lens?

A2: Stock availability fluctuates based on demand. To receive the most accurate information on lead times and current stock status, please contact our sales department. We can provide an estimated lead time upon request.

Q3: How can I verify the authenticity of the HIKROBOT KF1628M-ML lens?

A3: All our HIKROBOT products are sourced directly from authorized distributors, ensuring they are genuine and come with the manufacturer's warranty. We can provide documentation to support product authenticity upon request.

Q4: Do you offer support for customs clearance and export packaging for international orders?

A4: Yes, we provide comprehensive support for export packaging and can assist with customs clearance documentation to facilitate international shipments. Please specify your destination country when requesting a quote to ensure all requirements are met.

Q5: What is the warranty period for the KF1628M-ML?

A5: The HIKROBOT KF1628M-ML comes with a standard manufacturer's warranty. For specific details on warranty coverage and duration, please refer to the product documentation or contact our support team.

Q6: If the KF1628M-ML is discontinued in the future, what would be a suitable replacement model?

A6: While the KF1628M-ML is a current model, we offer a range of HIKROBOT lenses. If a model were to be discontinued, our technical sales team can help identify the best alternative based on your specific application parameters, potentially including other lenses in the KF series like the KF2528M-ML or KF3528M-ML, or other compatible series. Please contact us for current recommendations.

Q7: Does this lens offer specific compatibility with cameras using a 1.1" sensor?

A7: The KF1628M-ML features an image circle diameter of Φ17.6 mm (1.1”), making it compatible with cameras utilizing 1.1-inch sensors, ensuring full illumination and image coverage.

Q8: Can this lens be used for applications requiring high magnification at very short working distances, similar to the KF5028M-ML?

A8: The KF1628M-ML offers a magnification range from 0.25x to 0.03x with working distances from 52mm to 546mm. While it provides macro capabilities, for higher magnification at shorter working distances, you might consider models like the KF5028M-ML or KF7538M-ML, which are specifically designed for such scenarios. Request a quote for comparative models.

Q9: What are the typical industrial scenarios where this c mount macro lens is deployed?

A9: This c mount macro lens is typically deployed in scenarios such as detailed inspection of electronic components, semiconductor wafer analysis, quality control in pharmaceutical manufacturing, and intricate part verification on automated assembly lines. Contact for lead time on specific application configurations.

Q10: Are there any special considerations for integrating the KF1628M-ML into a machine vision system for high-speed applications?

A10: For high-speed applications, ensure your camera's frame rate and your system's processing capabilities are synchronized with the lens's optical performance. While the lens itself doesn't have an inherent speed limitation, the overall system performance is key. Please reach out to our technical team to discuss integration with high-speed cameras and illumination.
