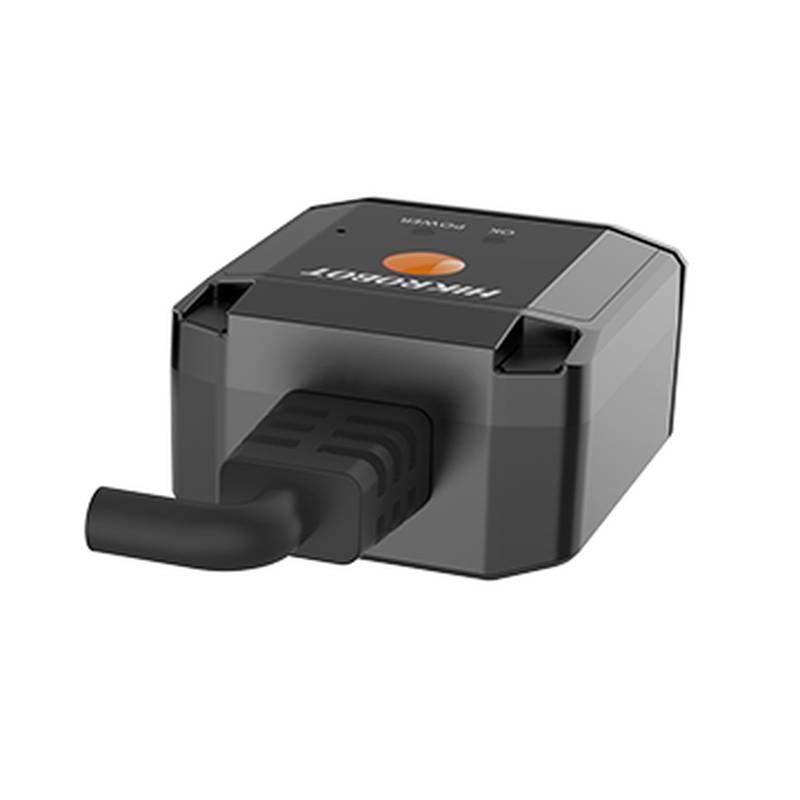

The HIKROBOT MV-ID2013EM-03N-RBN is a high-performance industrial barcode reader designed for demanding automation environments. This fixed-mount device leverages advanced imaging technology to provide reliable and efficient code reading in various manufacturing and logistics applications. As a leading industrial barcode reader, the MV-ID2013EM-03N-RBN excels in applications requiring rapid and accurate identification of 1D and 2D codes, making it an essential component for improving operational efficiency and data integrity. Its robust design and sophisticated features ensure consistent performance even in challenging industrial settings.
Key Specifications and Features
The MV-ID2013EM-03N-RBN is engineered with precision and durability in mind, offering a comprehensive set of features for diverse industrial needs.
Model: MV-ID2013EM-03N-RBN Name: 1.3MP NR Red Light Network Port 3mm Standard Basic Reader Barcode Types:
* 1D Codes: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN, UPCA, UPCE, and more.
* 2D Codes: QR Code, Data Matrix, and others. Performance:
* Maximum Processing Frame Rate: 50 fps
* Maximum Reading Speed: 30 codes/second
* Sensor Type: CMOS, Global Shutter
* Pixel Size: 2.7 μm × 2.7 μm
* Image Sensor Size: 1/4”
* Resolution: 1024 × 1280
* Exposure Time: 60 μs ~ 6000 μs
* Gain: 1 ~ 28 dB
* Color: Black and White Communication Protocols: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP. This wide array of protocols ensures seamless integration into existing automation systems. Depth of Field:
* Code 39 (5 mil): 40 ~ 120 mm
* Code 128 (10 mil): 15 ~ 250 mm
* EAN13 (13 mil): 30 ~ 280 mm
* QR Code (10 mil): 35 ~ 155 mm
* QR Code (15 mil): 15 ~ 215 mm
* QR Code (20 mil): 15 ~ 270 mm Electrical Characteristics:
* Data Interface: Fast Ethernet (100 Mbit/s), RS-232, DC Terminal.
* Digital I/O: DB15 connector provides power and I/O, including 2 optically isolated inputs (pins 0/1), 2 optically isolated outputs (pins 3/4), and 1 RS-232. Supports trigger via side button and device restart.
* Power Supply: 12 ~ 24 VDC.
* Maximum Power Consumption: 2.5 W @ 12 VDC. This low power consumption contributes to energy efficiency in industrial settings. Structural Features:
* Focal Length: 2.48 mm
* Lens Interface: M5.5-Mount.
* Ambient Light: 0 ~ 10000 lux.
* Illumination: Red LED.
* Aiming: Green LED.
* Dimensions: 45 mm × 43 mm × 25 mm. Its compact size allows for easy integration into tight spaces.
* Indicators: POWER (Power), OK/NG (Status) LEDs.
* Weight: Approximately 68.5 g.
* IP Protection Rating: IP54, offering protection against dust and splashes.
* Operating Temperature: 0 ~ 50°C.
* Storage Temperature: -30 ~ 70°C.
* Humidity: 20% ~ 95% RH (non-condensing). General Specifications:
* Software: IDMVS.
* Certifications: CE, RoHS, KC. These certifications attest to the product's compliance with international standards.
Advanced Imaging for Industrial Applications
The MV-ID2013EM-03N-RBN utilizes a high-resolution CMOS sensor with a global shutter, ensuring crisp image capture without motion blur, even when reading codes on fast-moving objects. The 1.3MP resolution (1024 × 1280) provides ample detail for reading small or densely printed barcodes. The intelligent red LED illumination system is optimized for a wide range of barcode types and surface conditions, enhancing read rates and reliability. The global shutter technology is particularly crucial in industrial automation where high-speed movements are common, preventing image distortion that can occur with rolling shutter sensors.
Seamless Integration and Connectivity
With multiple communication interfaces including Fast Ethernet, RS-232, and support for industrial protocols like Profinet and Ethernet/IP, the MV-ID2013EM-03N-RBN offers exceptional flexibility for integration into various control systems. The included SmartSDK facilitates easy development and deployment of custom applications. The digital I/O ports allow for direct interaction with other automation components, such as PLCs, robots, and sensors, enabling real-time control and feedback loops. This comprehensive connectivity ensures that the barcode reader can be a pivotal part of a sophisticated automation architecture, simplifying the integration cycle and reducing development time.
Robustness and Environmental Tolerance
Designed for the rigors of industrial environments, the MV-ID2013EM-03N-RBN features an IP54 rating, providing effective protection against dust ingress and water splashes. Its operating temperature range of 0 to 50°C and humidity resistance make it suitable for deployment in diverse factory conditions. The compact and lightweight design (approximately 68.5 g) further simplifies mounting in space-constrained areas. These environmental specifications ensure that the device can maintain consistent performance and longevity, minimizing downtime and maintenance requirements.
Applications in Key Industrial Sectors
The versatility and performance of the HIKROBOT MV-ID2013EM-03N-RBN make it an ideal solution for a multitude of industrial applications, including:
Automotive Manufacturing: Tracking parts, sub-assemblies, and finished vehicles on the production line for quality control and traceability. The reader's speed and accuracy are vital for high-volume assembly lines. Electronics Assembly: Identifying components, PCBs, and finished electronic goods for inventory management, process control, and defect detection. Its ability to read small, high-density codes is a significant advantage here. Food and Beverage Processing: Verifying product codes, batch numbers, and expiry dates on packaging for compliance, safety, and recall management. The IP54 rating ensures it can operate in environments with washdown procedures. Logistics and Warehousing: Automating sorting, picking, and shipping processes by quickly reading package labels and pallet information. This enhances throughput and reduces manual errors. Pharmaceuticals: Ensuring traceability and compliance by reading unique identifiers on drug packaging and components, critical for patient safety and regulatory adherence.
Enhancing Efficiency and Precision
By implementing the MV-ID2013EM-03N-RBN, businesses can significantly enhance their operational efficiency through automated data capture. This reduces manual data entry, minimizes human error, and accelerates process times. The precise reading capabilities contribute to improved inventory accuracy, better supply chain visibility, and a reduction in costly mistakes. The integration of this industrial barcode reader can lead to substantial cost savings through increased throughput and reduced waste.
Considerations for Deployment and Alternative Models
While the MV-ID2013EM-03N-RBN is a versatile solution, specific application requirements might necessitate considering other models within the HIKROBOT range. For instance, variations in resolution, lens options, or illumination types are available to optimize performance for unique challenges.
Other models to consider include:
MV-ID2013EM-03N-RBP, MV-ID2013EM-05-RBN, MV-ID2013EM-05-RBN-U, MV-ID2013EM-05-RBN-S, MV-ID2013EM-05-RBN-SU, MV-ID2013EM-05-RBP, MV-ID2013EM-05-RBP-SU, MV-ID2013EM-05-RBP-U, MV-ID2013EM-05-RBP-S, MV-ID2013EM-05-WBN, MV-ID2013EM-05-WBN-U, MV-ID2013EM-05-WBP, MV-ID2013EM-05-WBP-U, MV-ID2013EM-05N-RBN, MV-ID2013EM-05N-RBN-U, MV-ID2013EM-05N-RBN-S, MV-ID2013EM-05N-RBN-SU, MV-ID2013EM-05N-RBP, MV-ID2013EM-05H-RBN, MV-ID2013EM-05H-RBN-U, MV-ID2013EM-05H-RBN-S, MV-ID2013EM-05H-RBN-SU, MV-ID2013EM-05H-RBP, MV-ID2013EMI-03N-RBN, MV-ID2013EMI-03N-RBP.
For applications requiring higher resolution or different illumination spectra, specific models offer tailored capabilities. Similarly, if specialized communication protocols or a more rugged IP rating are needed, alternative options exist within the HIKROBOT product line. Consulting with HIKROBOT or a qualified integrator is recommended to select the optimal model for a given application.
Frequently Asked Questions (FAQ)
Q1: What is the typical operating environment for the HIKROBOT MV-ID2013EM-03N-RBN?
A1: The MV-ID2013EM-03N-RBN is designed for industrial environments with an operating temperature range of 0 to 50°C and an IP54 rating for protection against dust and splashes.
Q2: Can this barcode reader handle codes on fast-moving items?
A2: Yes, with a maximum processing frame rate of 50 fps and a global shutter CMOS sensor, it is well-suited for reading codes on items moving at high speeds without significant motion blur.
Q3: What types of barcodes can the MV-ID2013EM-03N-RBN read?
A3: It supports a wide variety of 1D barcodes (e.g., Code 39, Code 128, EAN) and 2D barcodes (e.g., QR Code, Data Matrix).
Q4: How does the MV-ID2013EM-03N-RBN integrate with existing automation systems?
A4: It offers multiple communication protocols, including Fast Ethernet, RS-232, Profinet, and Ethernet/IP, along with digital I/O capabilities, ensuring broad compatibility with PLCs and other control systems.
Q5: Is the MV-ID2013EM-03N-RBN suitable for food and beverage applications?
A5: Yes, its IP54 rating provides protection against common environmental factors found in food processing facilities, and its ability to read critical codes ensures traceability and compliance.
Q6: What is the advantage of using a global shutter sensor in this industrial barcode reader?
A6: A global shutter captures the entire image simultaneously, eliminating the rolling shutter effect and producing distortion-free images of fast-moving objects, which is critical for accurate reading in high-speed industrial processes.
Q7: Does this model support remote configuration or monitoring?
A7: Yes, through its network connectivity and supporting software like IDMVS, along with protocols like TCP Client/Server and FTP, remote configuration and monitoring are possible.
Q8: What is the maximum reading distance for common barcode types?
A8: The depth of field varies by barcode type and size; for instance, Code 128 (10 mil) can be read from 15 to 250 mm, and QR Code (20 mil) from 15 to 270 mm.
Q9: Are there specific models recommended for extremely low light conditions?
A9: While the MV-ID2013EM-03N-RBN has an illumination system, for very challenging low-light scenarios, alternative models with specialized lighting or higher sensitivity sensors might be more appropriate.
Q10: What certifications does the MV-ID2013EM-03N-RBN hold?
A10: It is certified with CE, RoHS, and KC, indicating compliance with essential European, environmental, and Korean safety standards, respectively.
